Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

39 part groups · 15 illustrations

Illustrations

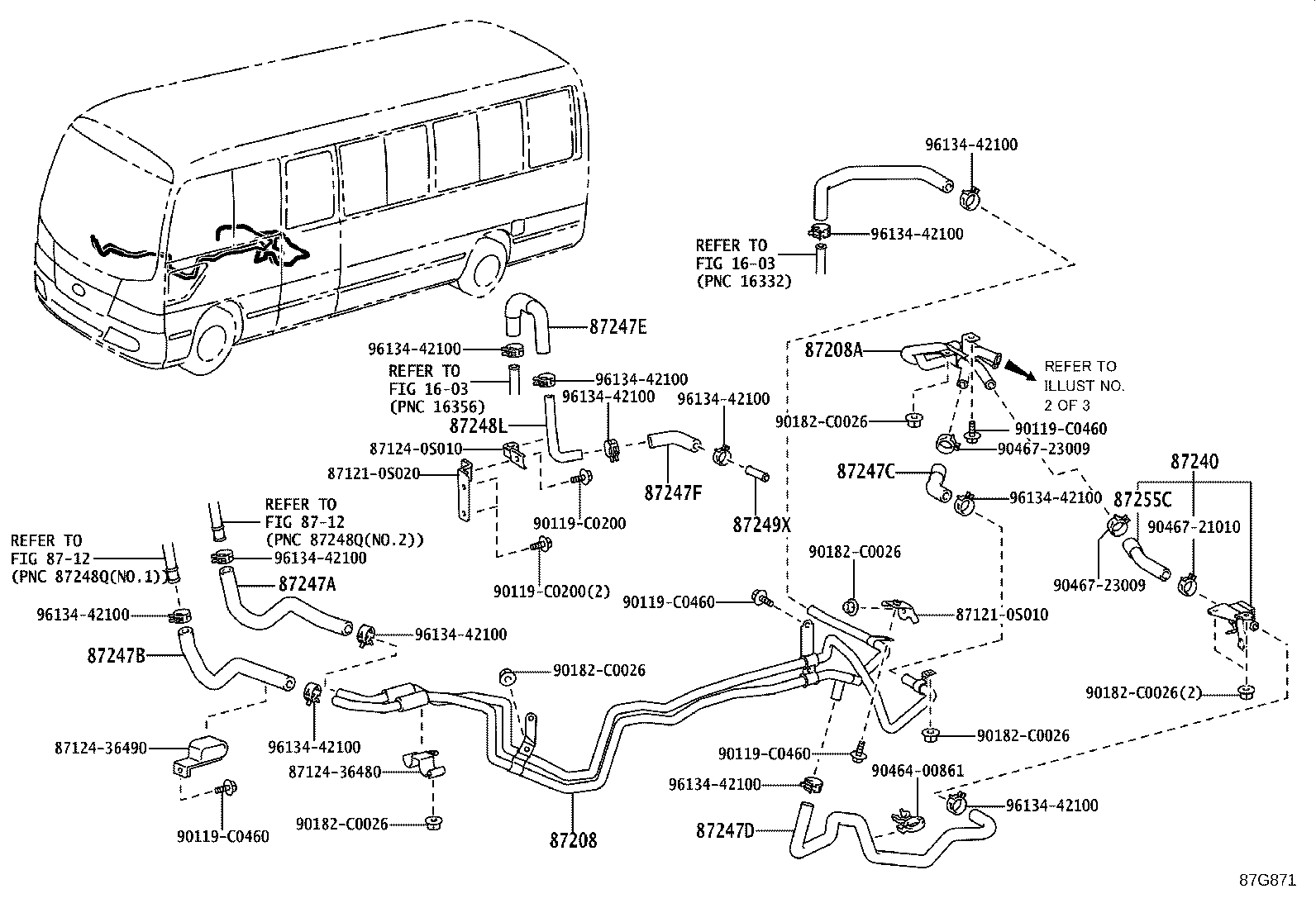

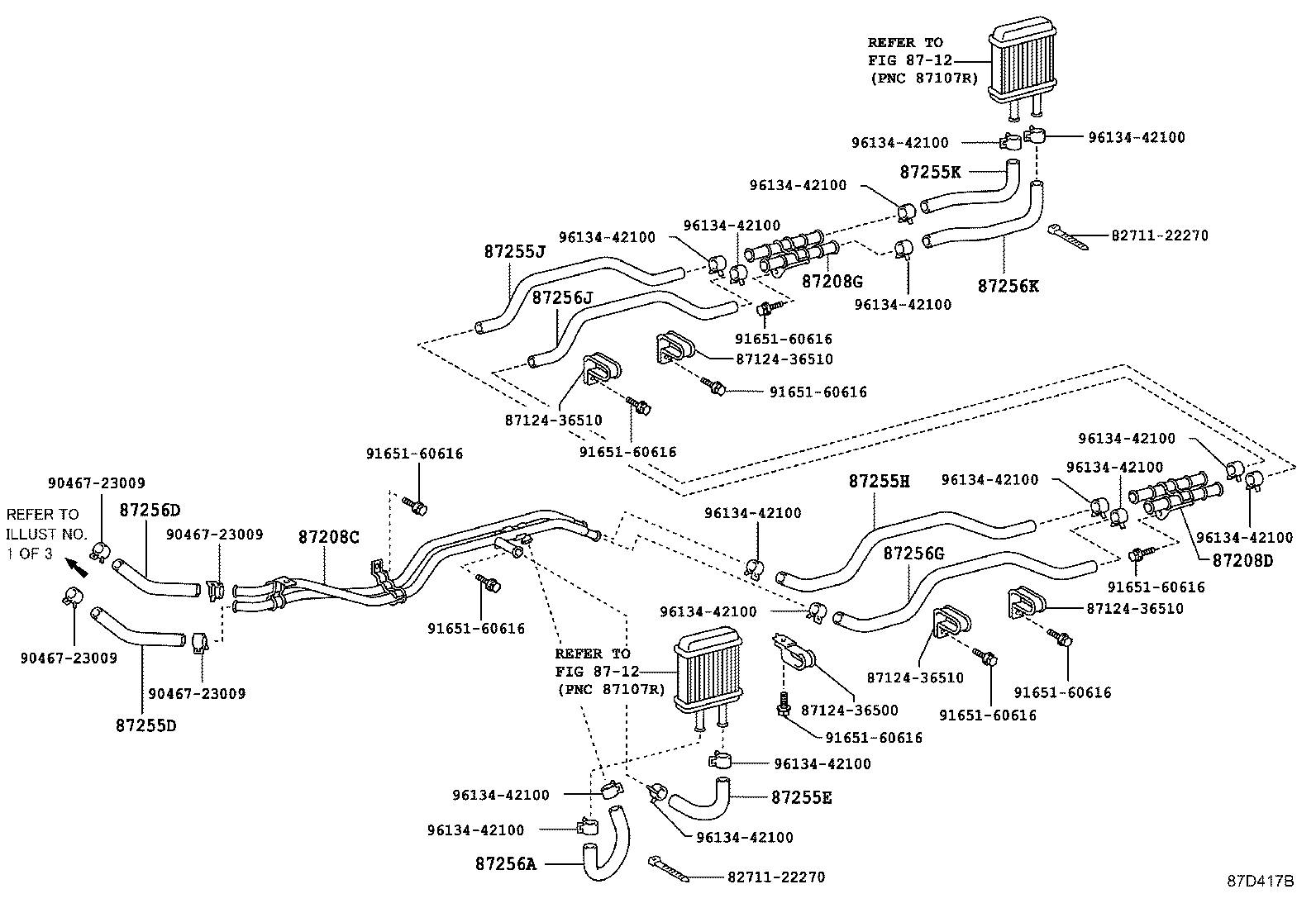

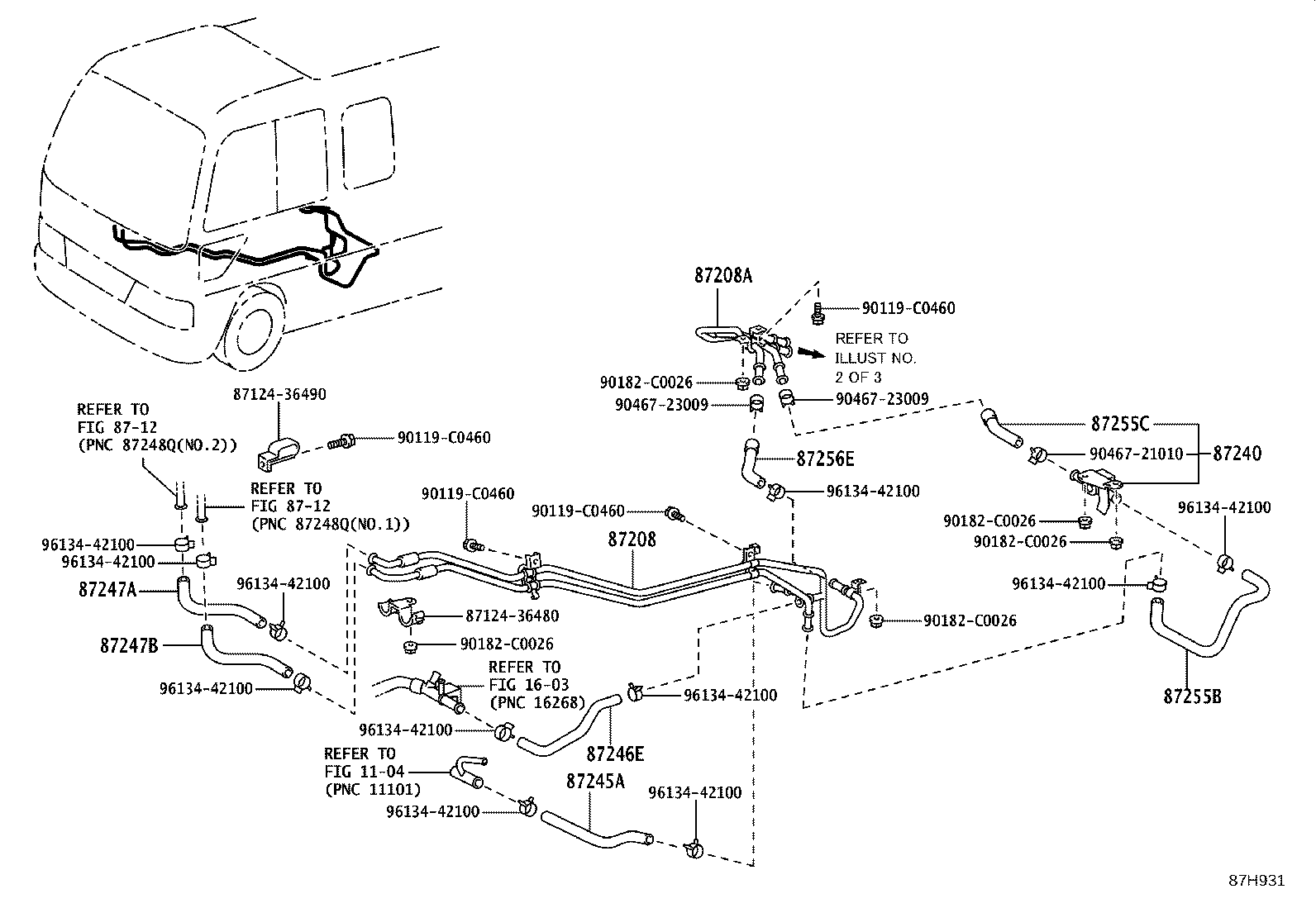

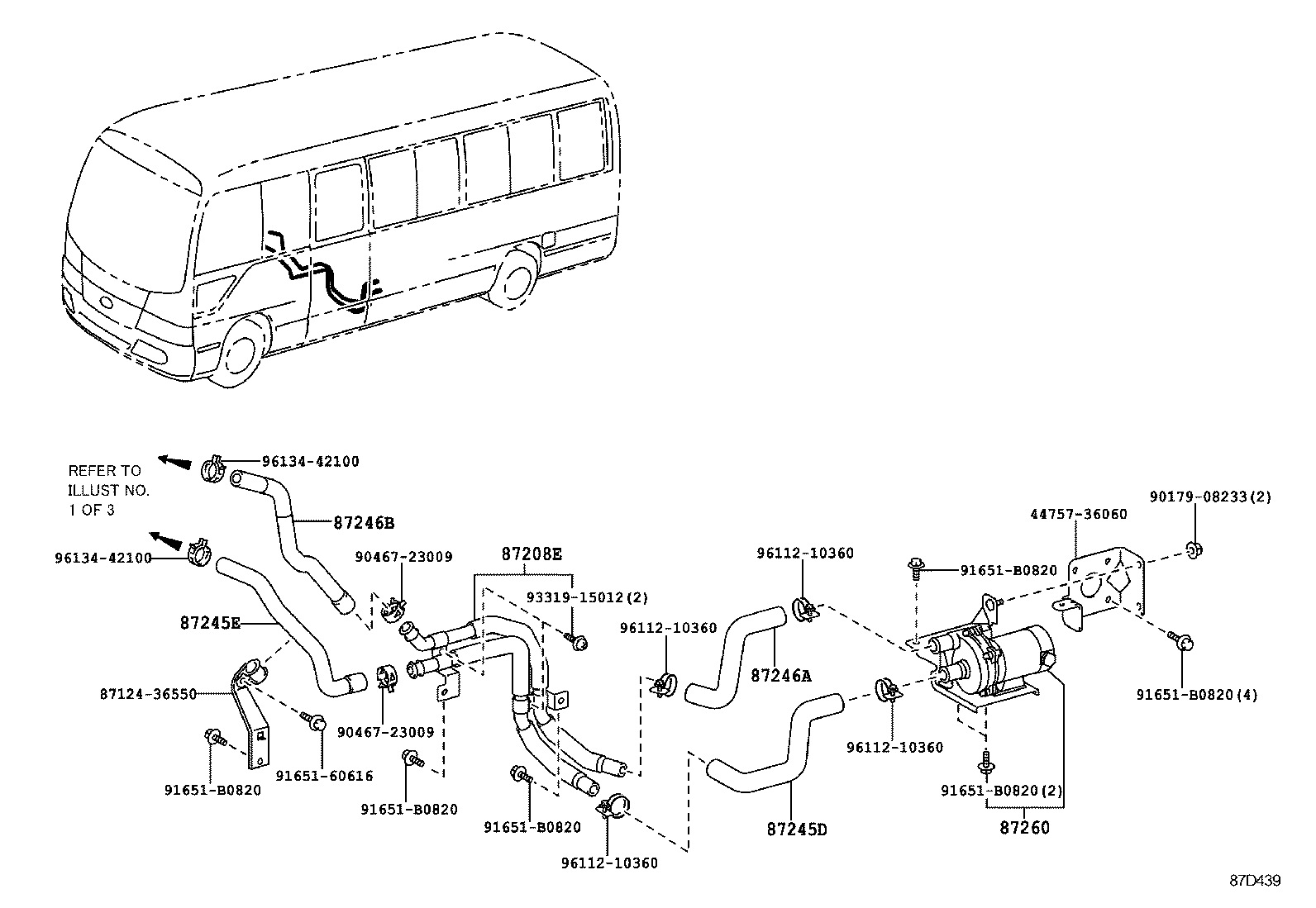

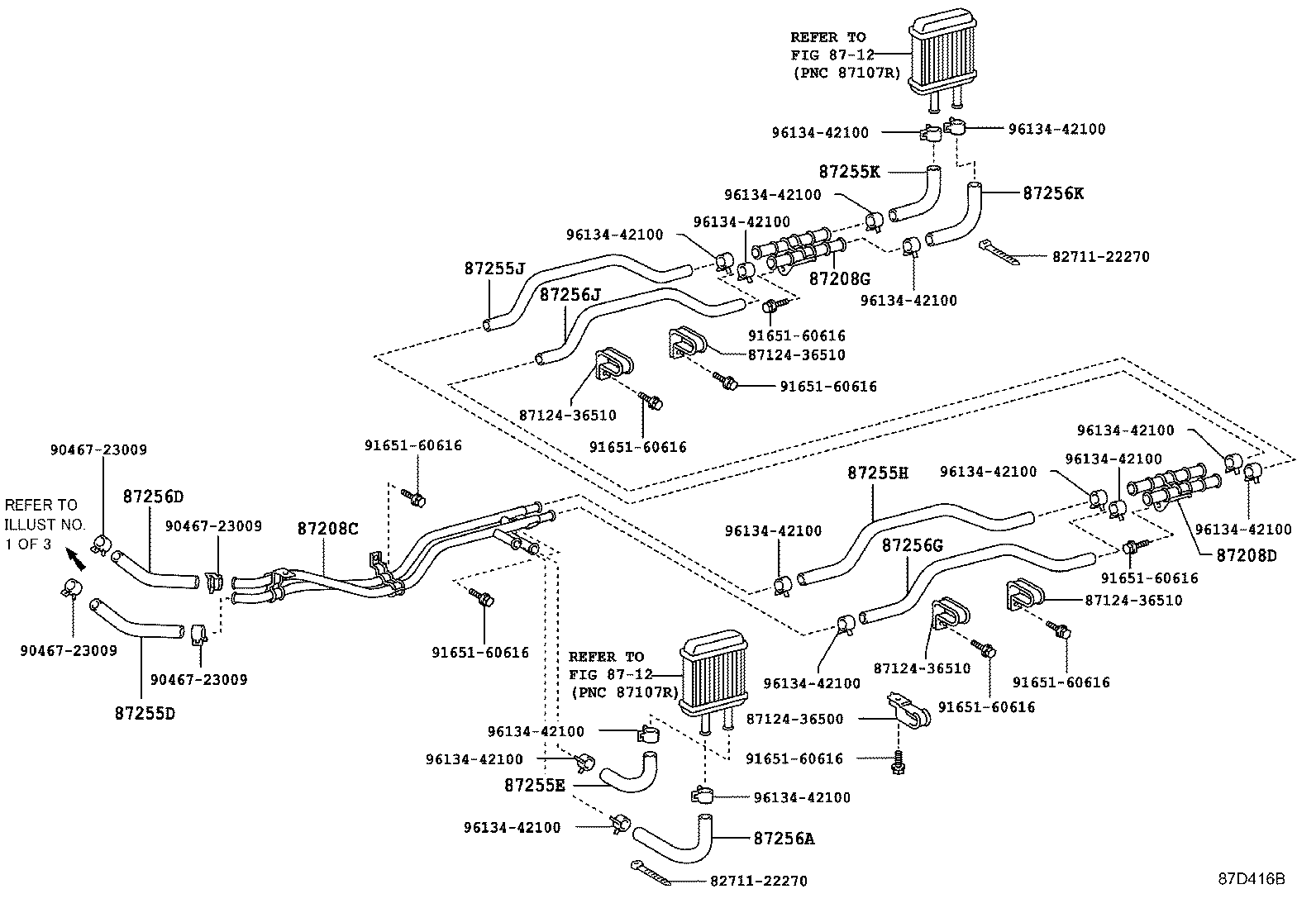

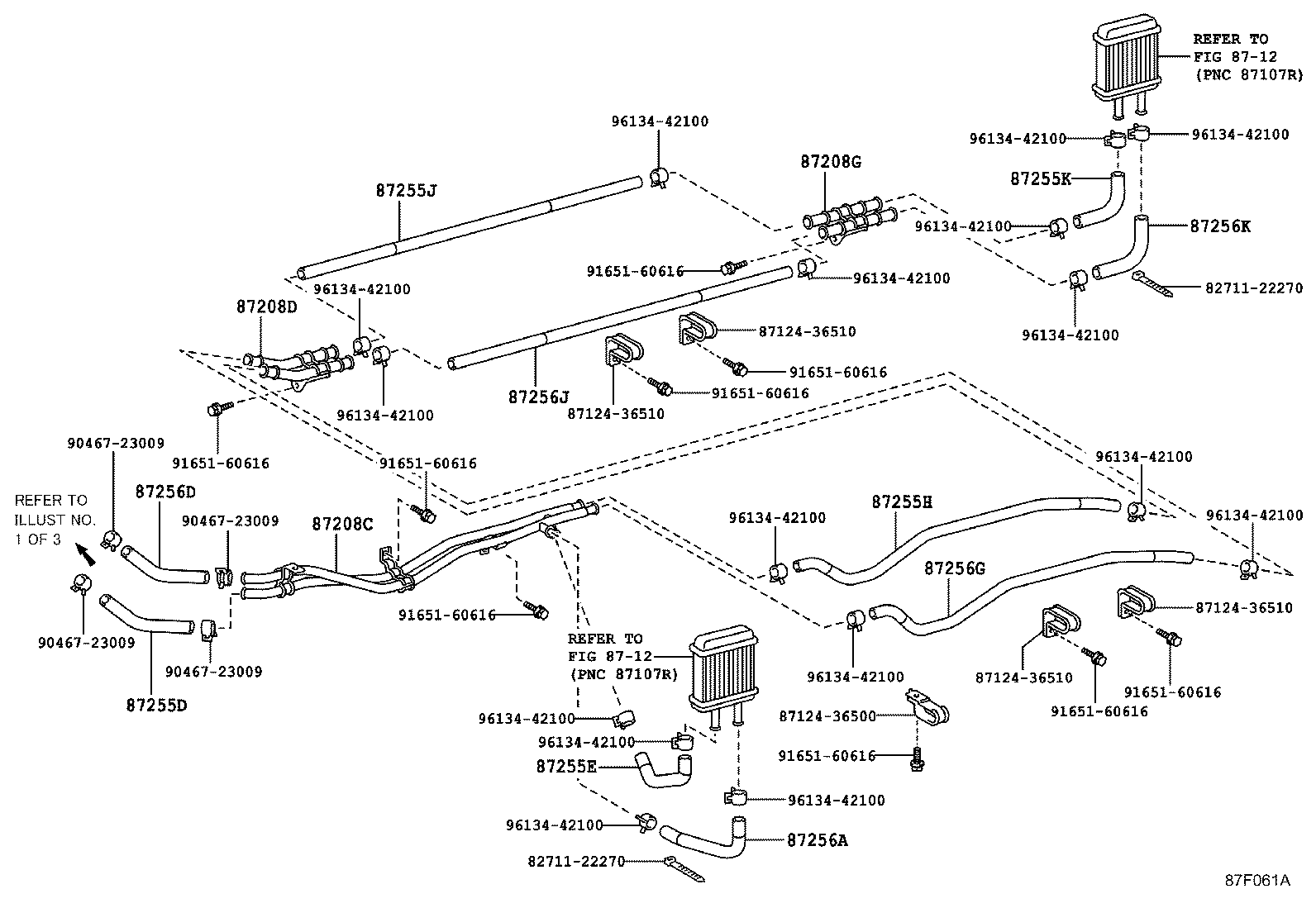

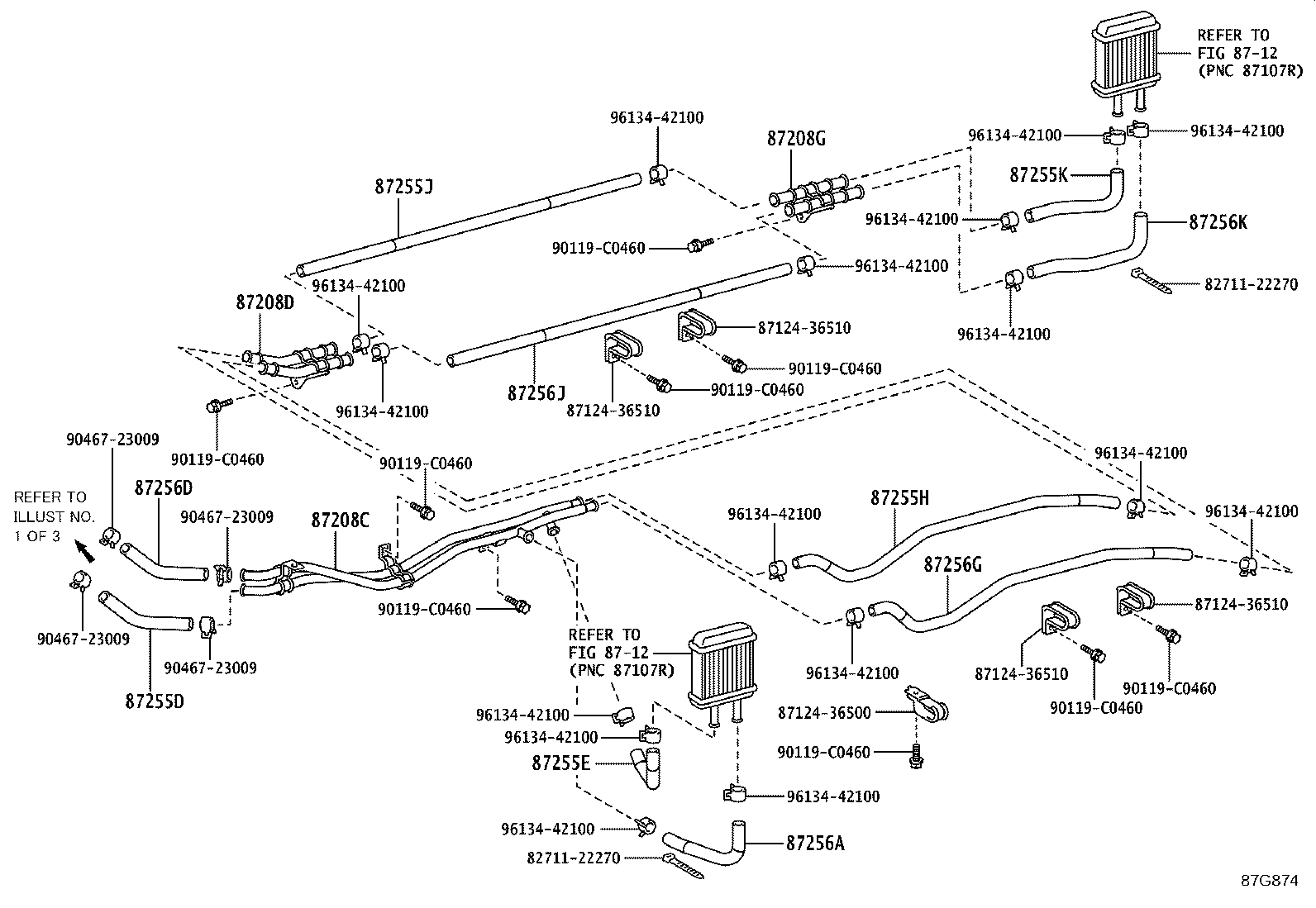

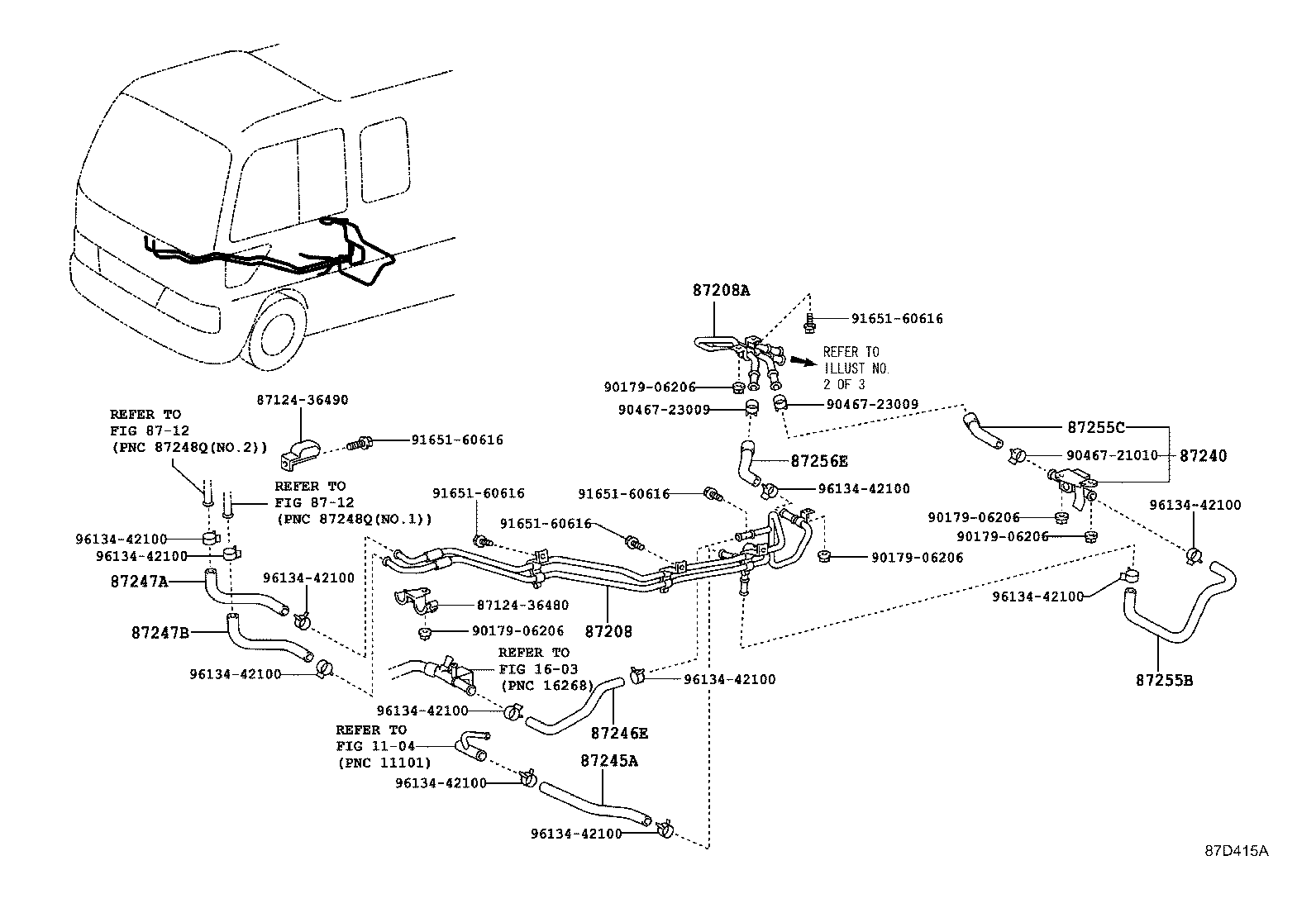

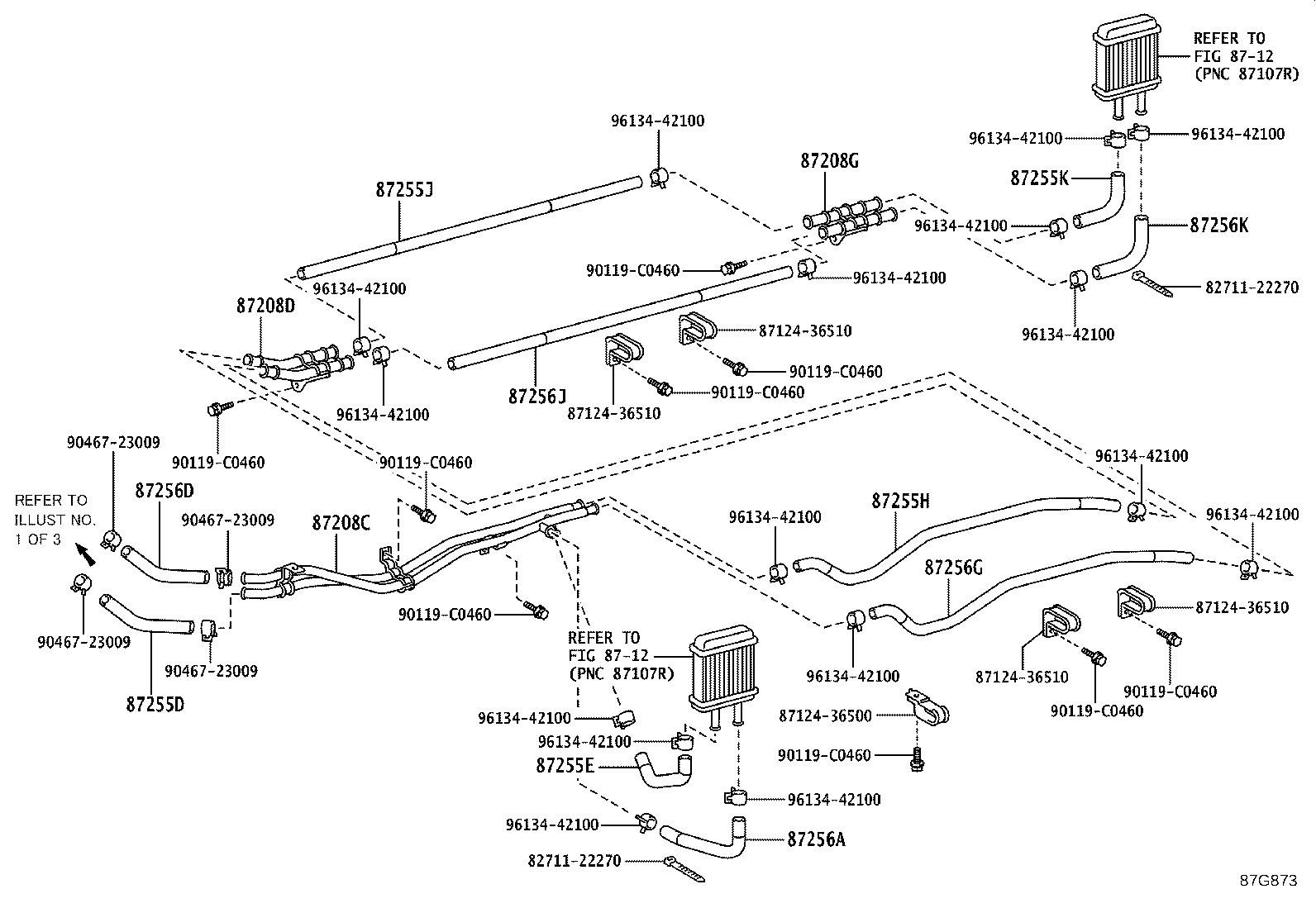

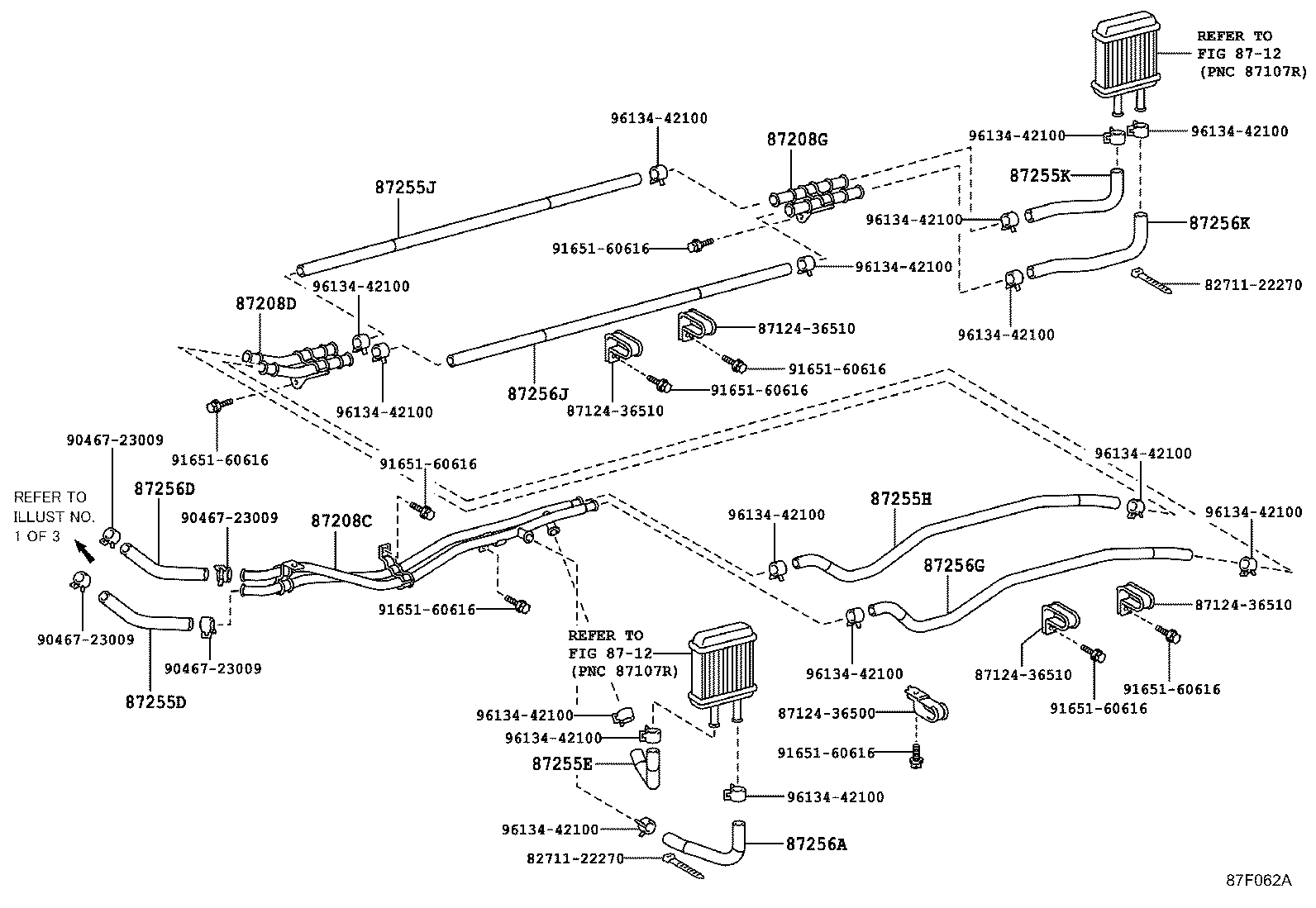

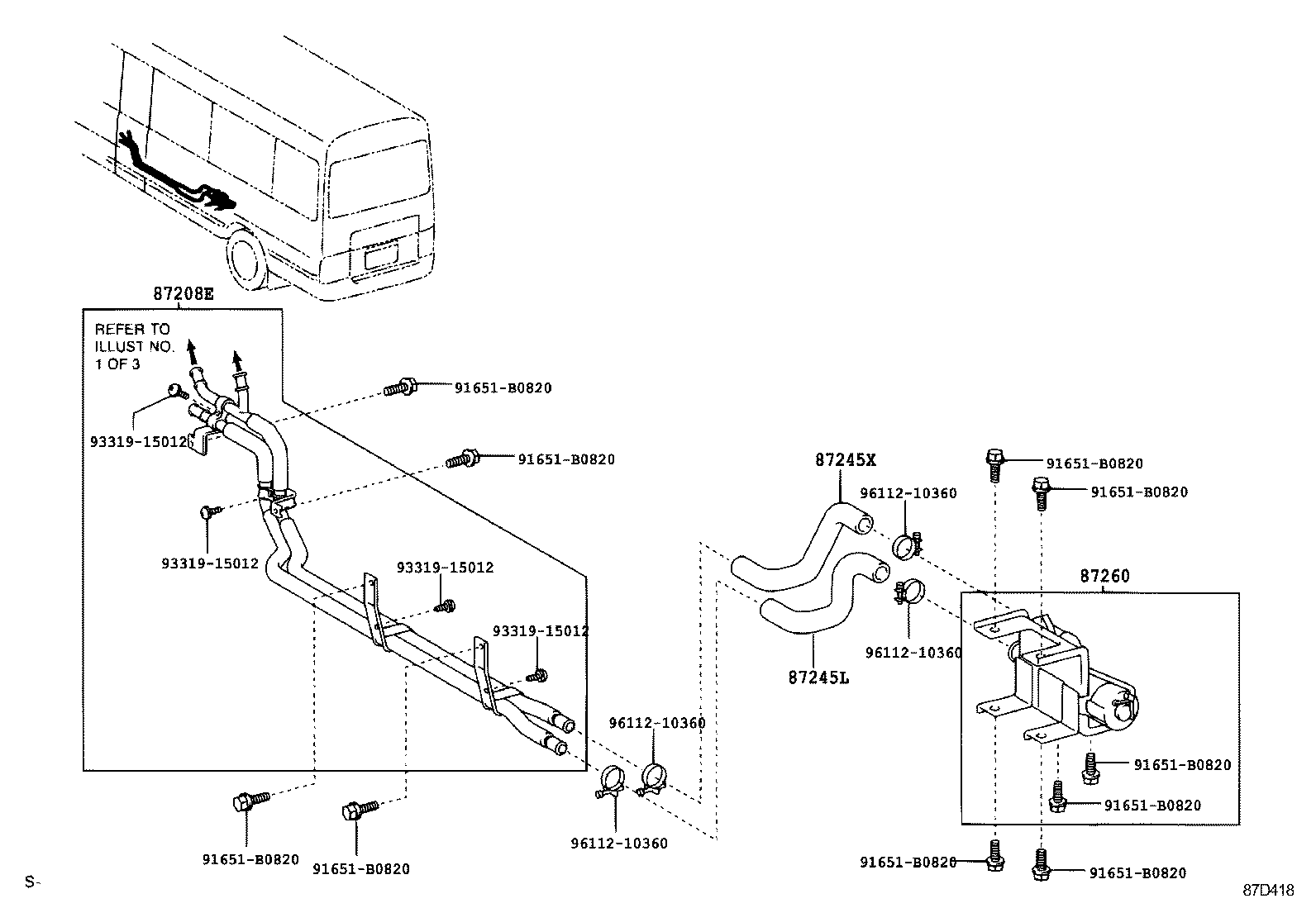

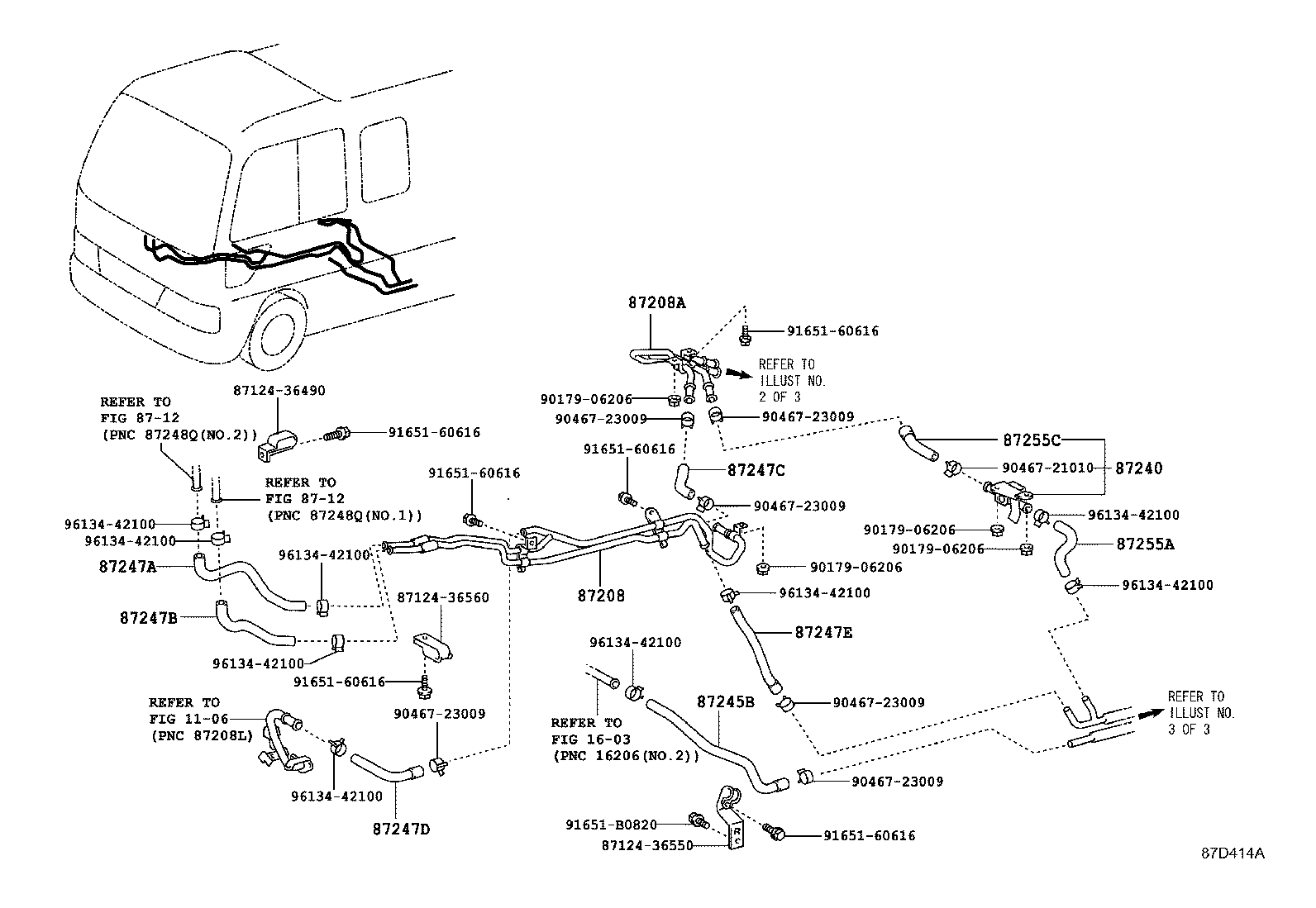

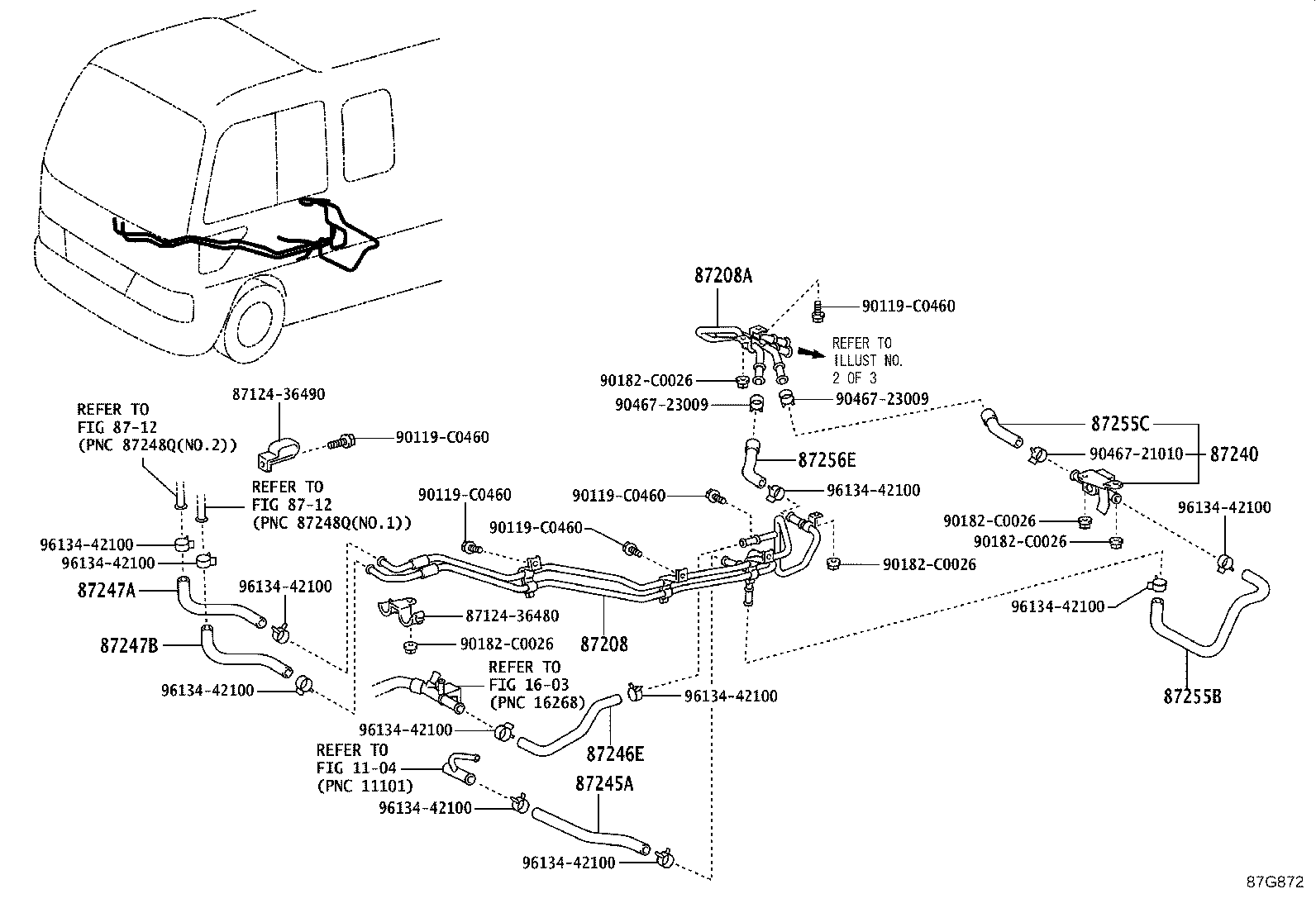

Figure 87D440B 87D440B 2013-01 → 2018-01 Figure 87G871 87G871 2018-01 → — Figure 87D415A 87D415A 2013-01 → 2018-01 Figure 87G872 87G872 2018-01 → 2019-03 Figure 87H931 87H931 2019-03 → — Figure 87D414A 87D414A 2014-03 → 2015-07 Figure 87D416B 87D416B 2013-01 → 2015-07 Figure 87D417B 87D417B 2013-01 → 2015-07 Figure 87F061A 87F061A 2015-07 → 2018-01 Figure 87G873 87G873 2018-01 → — Figure 87F062A 87F062A 2015-07 → 2018-01 Figure 87G874 87G874 2018-01 → — Figure 87D418 87D418 2014-03 → 2015-07 Figure 87D439 87D439 2013-01 → 2018-01 Figure 87G875 87G875 2018-01 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245L Hose, Heater Water, L
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87247E Hose, Heater Water, E
87247F Hose, Heater Water, F
87248L Pipe, Heater Water, L
87249X Pipe, Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255H Hose, Heater Water Inlet, H
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
87260 Pump Assy, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
