Heating & Air Conditioning - Cooler Piping

47 part groups · 13 illustrations

Illustrations

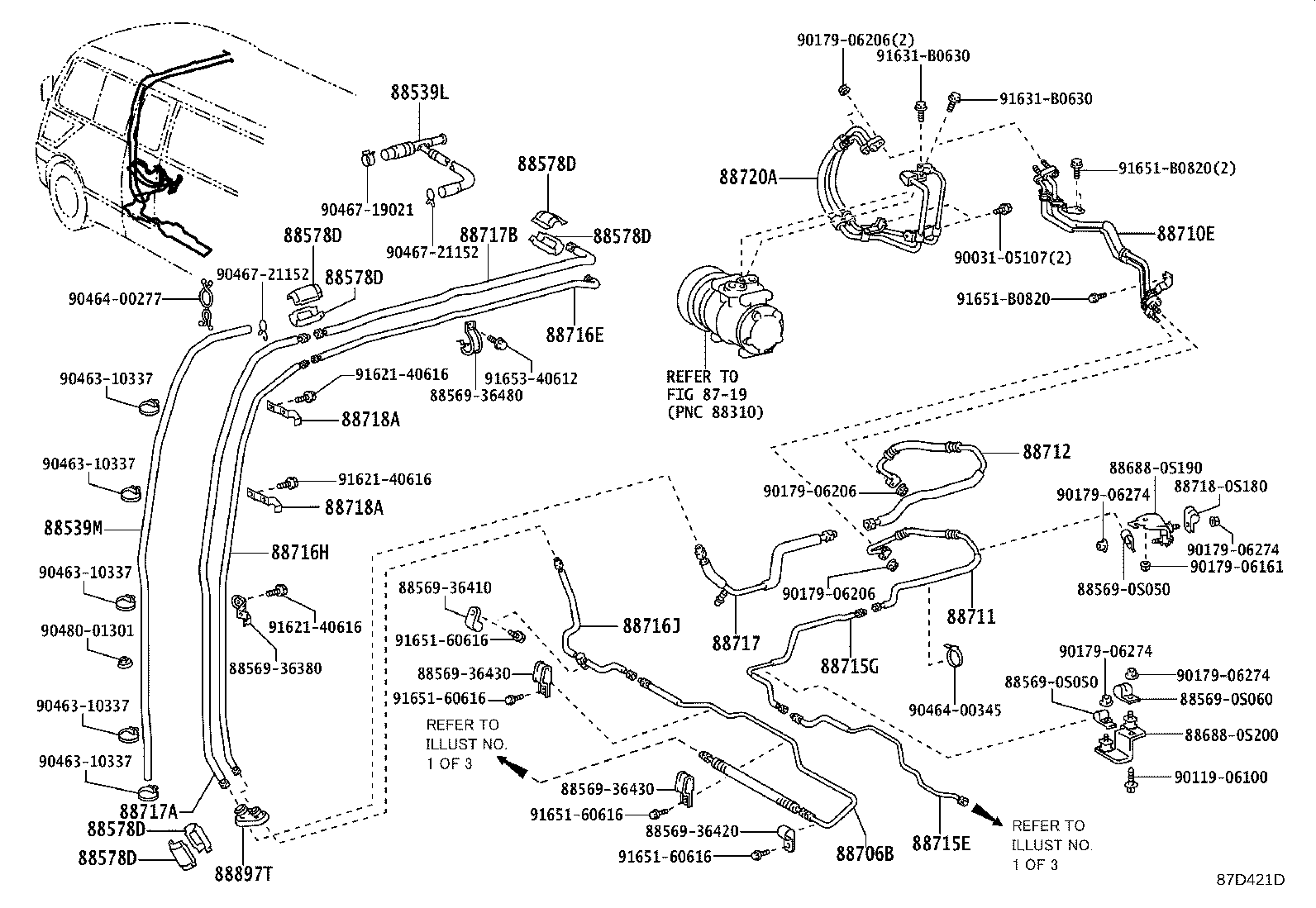

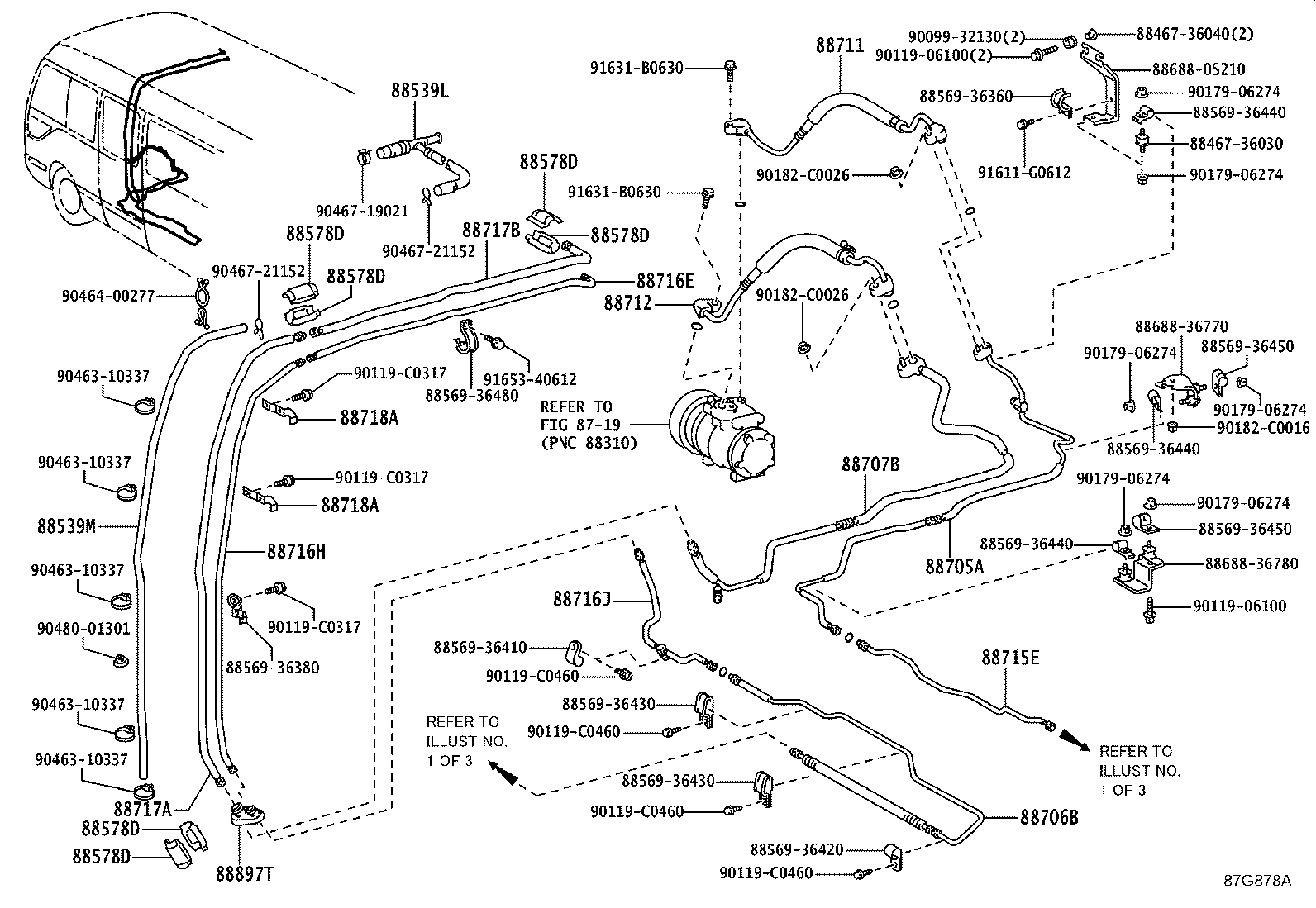

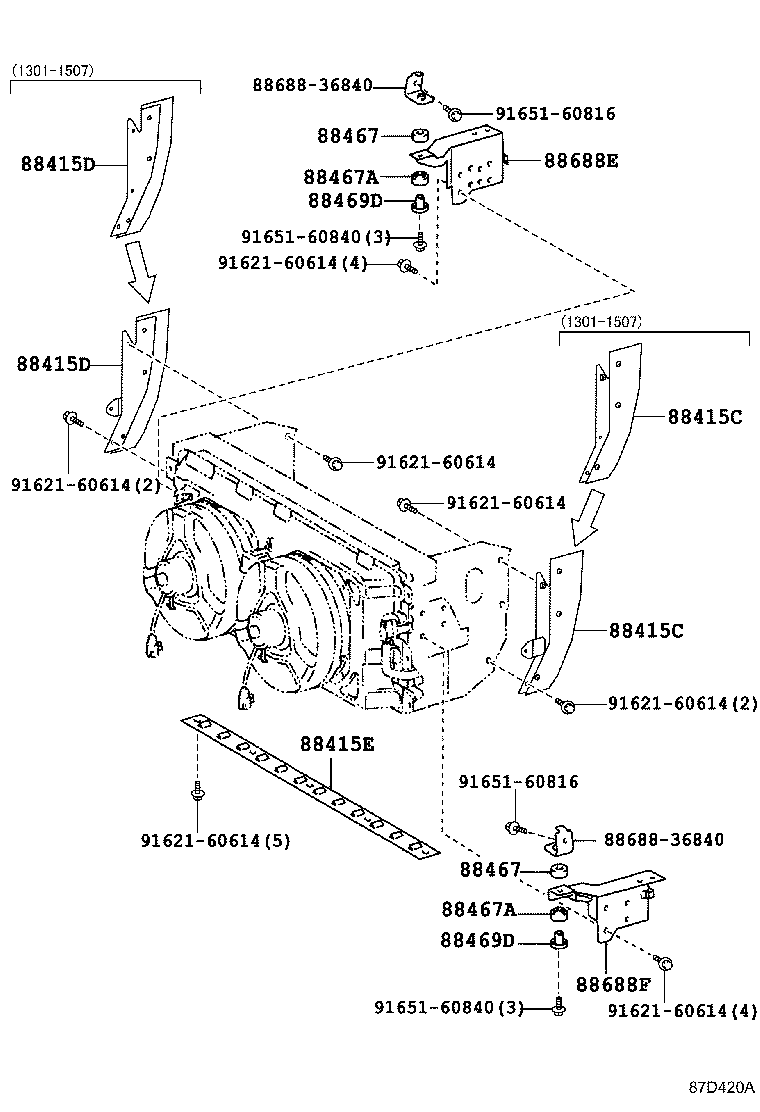

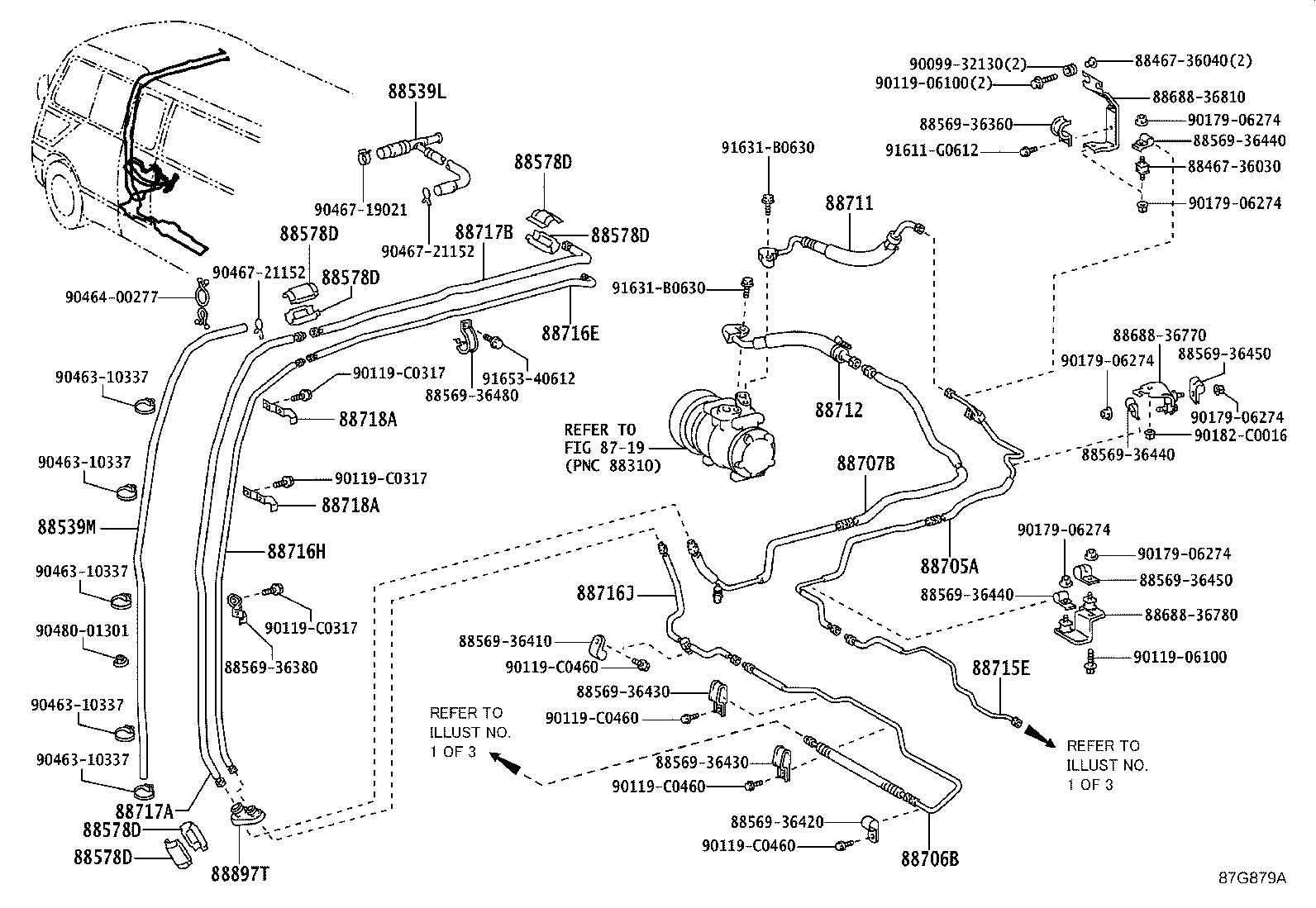

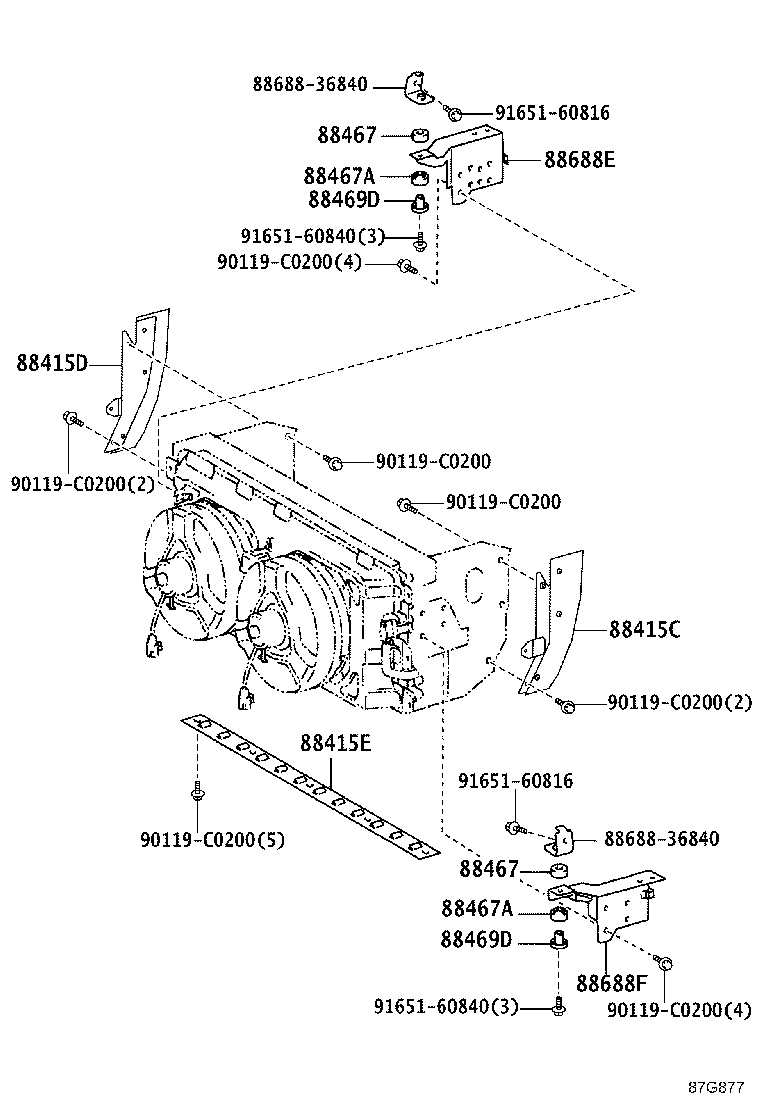

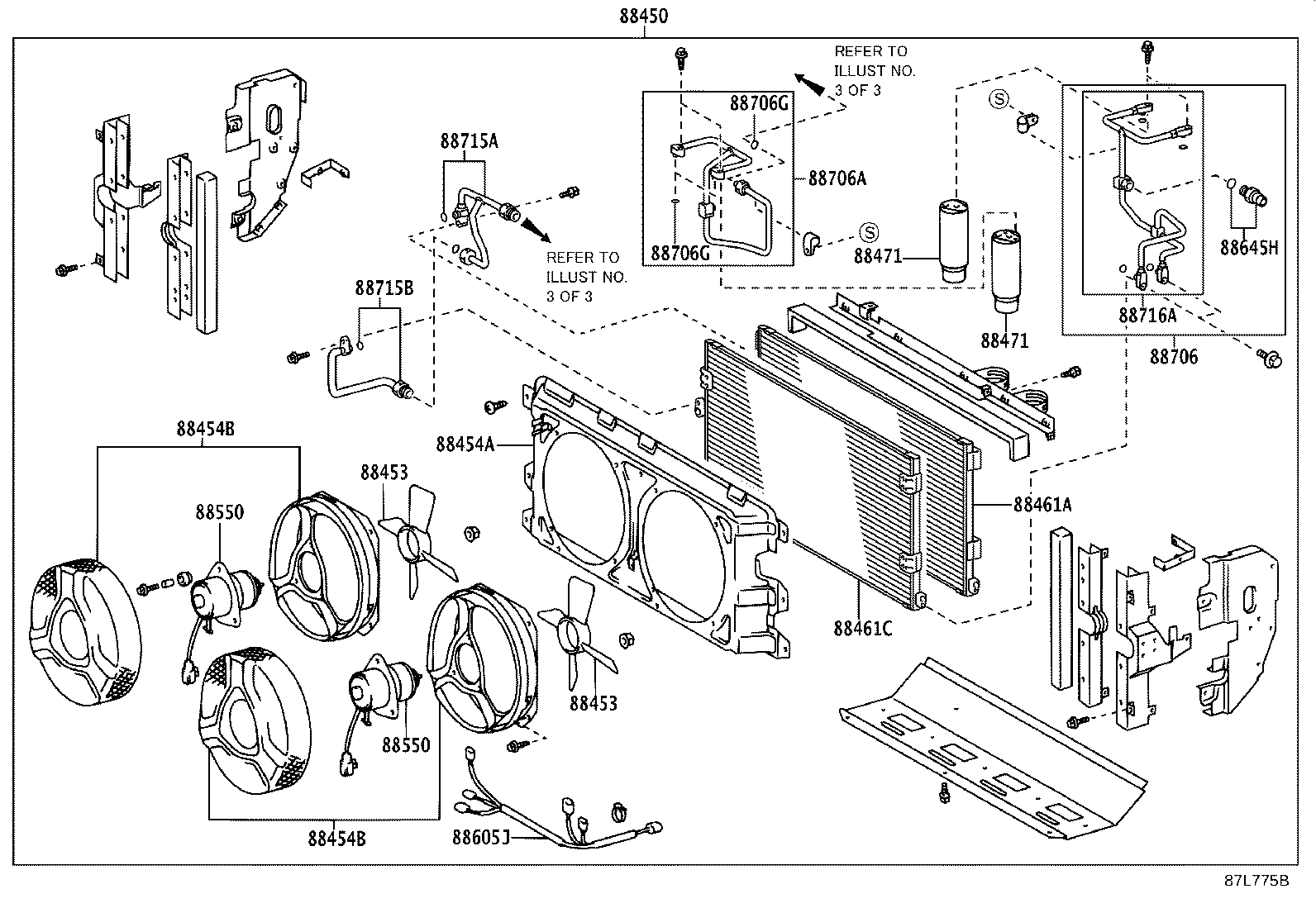

Figure 87D419A 87D419A 2013-01 → 2023-02 Figure 87D419A 87D419A 2013-01 → — Figure 87D419A 87D419A 2014-03 → 2015-07 Figure 87D419A 87D419A 2023-12 → — Figure 87L775B 87L775B 2023-02 → — Figure 87D420A 87D420A 2013-01 → 2018-01 Figure 87D420A 87D420A 2014-03 → 2015-07 Figure 87G877 87G877 2018-01 → — Figure 87D442D 87D442D 2013-01 → 2018-01 Figure 87G878A 87G878A 2018-01 → — Figure 87D421D 87D421D 2014-03 → 2015-07 Figure 87D422D 87D422D 2013-01 → 2018-01 Figure 87G879A 87G879A 2018-01 → —

Part groups

PNCDescription
88407 Glass Sub-assy, Sight
88415C Cover, Dust, NO.1
88415D Cover, Dust, NO.2
88415E Cover, Dust, NO.3
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88461C Core, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88471 Tank, Receiver Air Conditioner
88539L Hose, Drain Cooler
88539M Hose, Drain Cooler, NO.2
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88705A Tube Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706G Ring, O(FOR LIQUID TUBE)
88707B Tube Sub-assy, Suction, B
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88720A Hose & Accessory, Air Conditioner
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
