Toyota Coaster (CHINA)

2013-01 → present · chassis GRB53,TRB53,XZB53 · catalogue 814320 · General

Discontinued model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

10 part groups · 3 illustrations

Illustrations

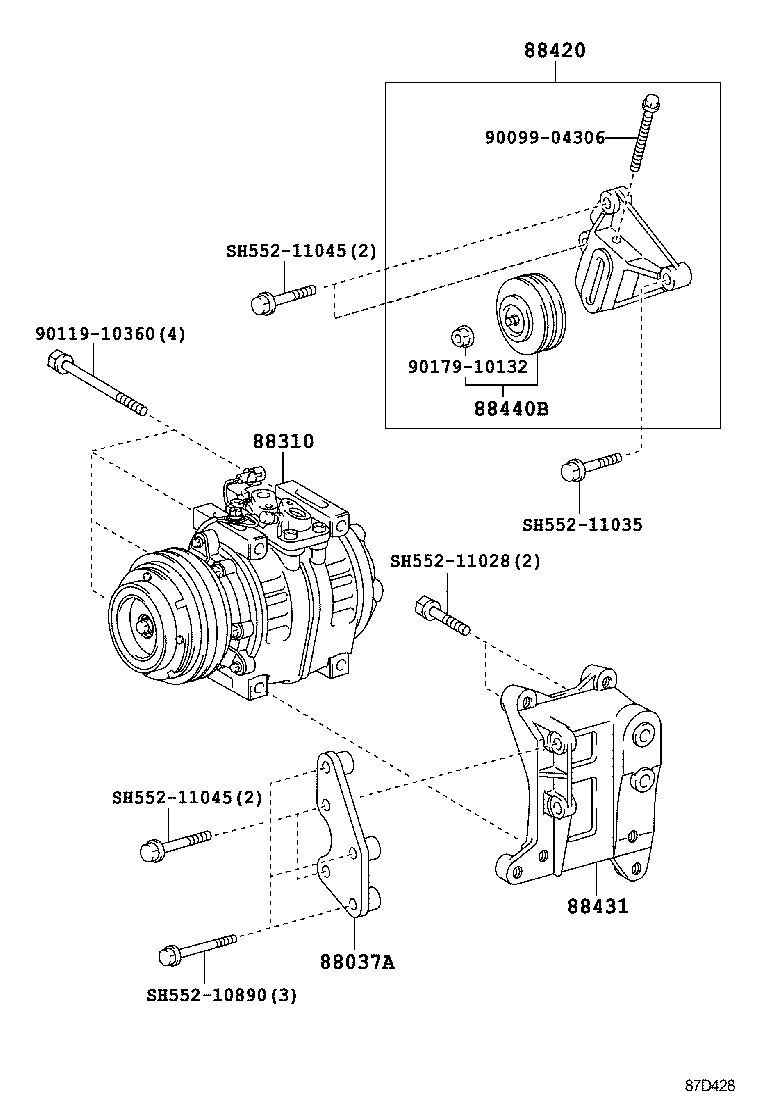

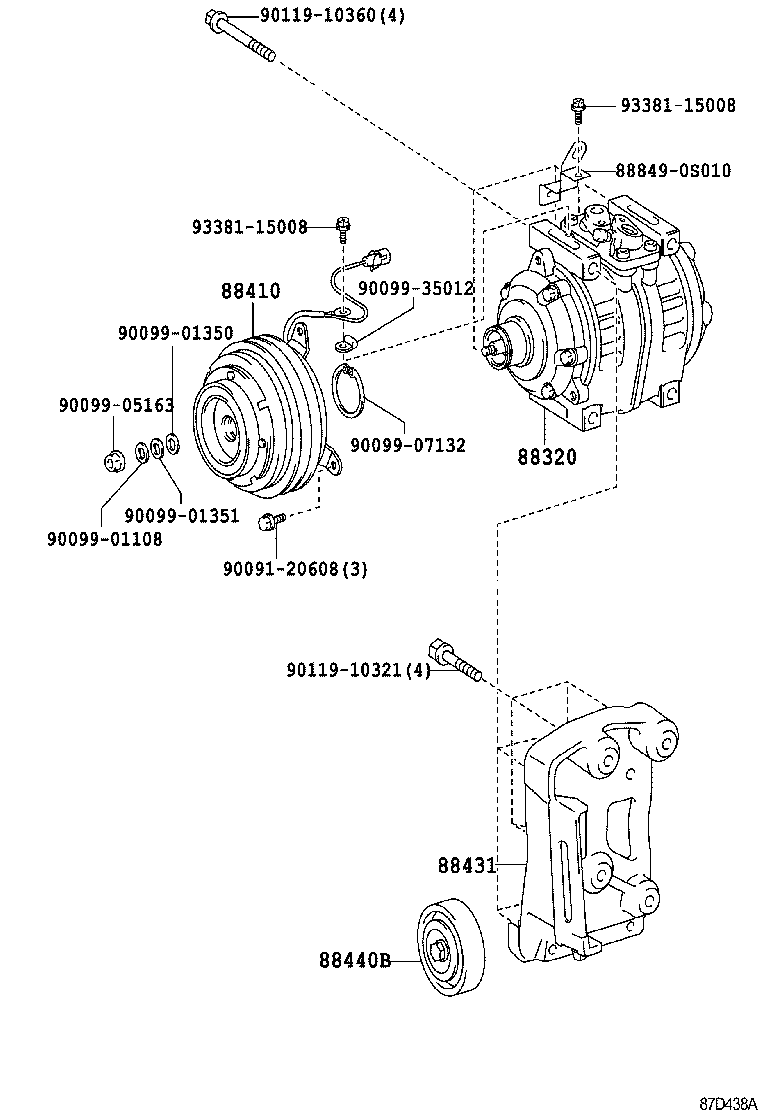

Figure 87D423B 87D423B 2013-01 → — Figure 87D438A 87D438A 2013-01 → — Figure 87D428 87D428 2014-03 → 2015-07

Part groups

PNCDescription
88037A Bracket Set,Compressor Mounting
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
