Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05
Parking Brake & Cable
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201B | Spring, Tension |
| 46210 | Lever Assy, Parking Brake |
| 46241 | Boot, Parking Brake Lever |
| 46243 | Cover, Parking Brake Lever |
| 46405A | Screw Set, Shoe Adjusting, RH |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410C | Clamp(FOR PARKING BRAKE FRONT CABLE) |

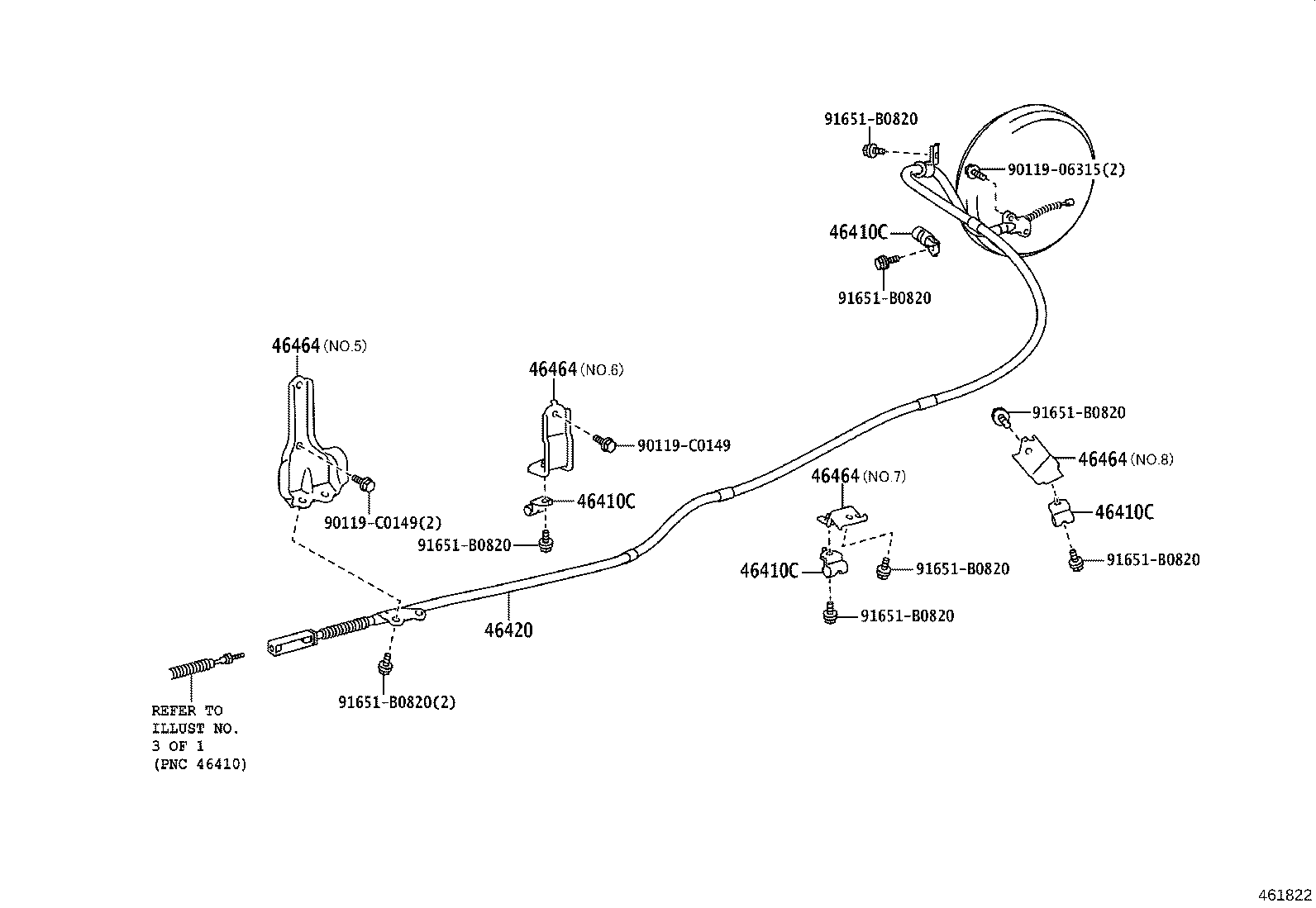

| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420S | Clamp, Parking Brake NO.1 Cable |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46451B | Bracket, Parking Brake Cable Support |
| 46464 | Plate, Cable Clamp Support |

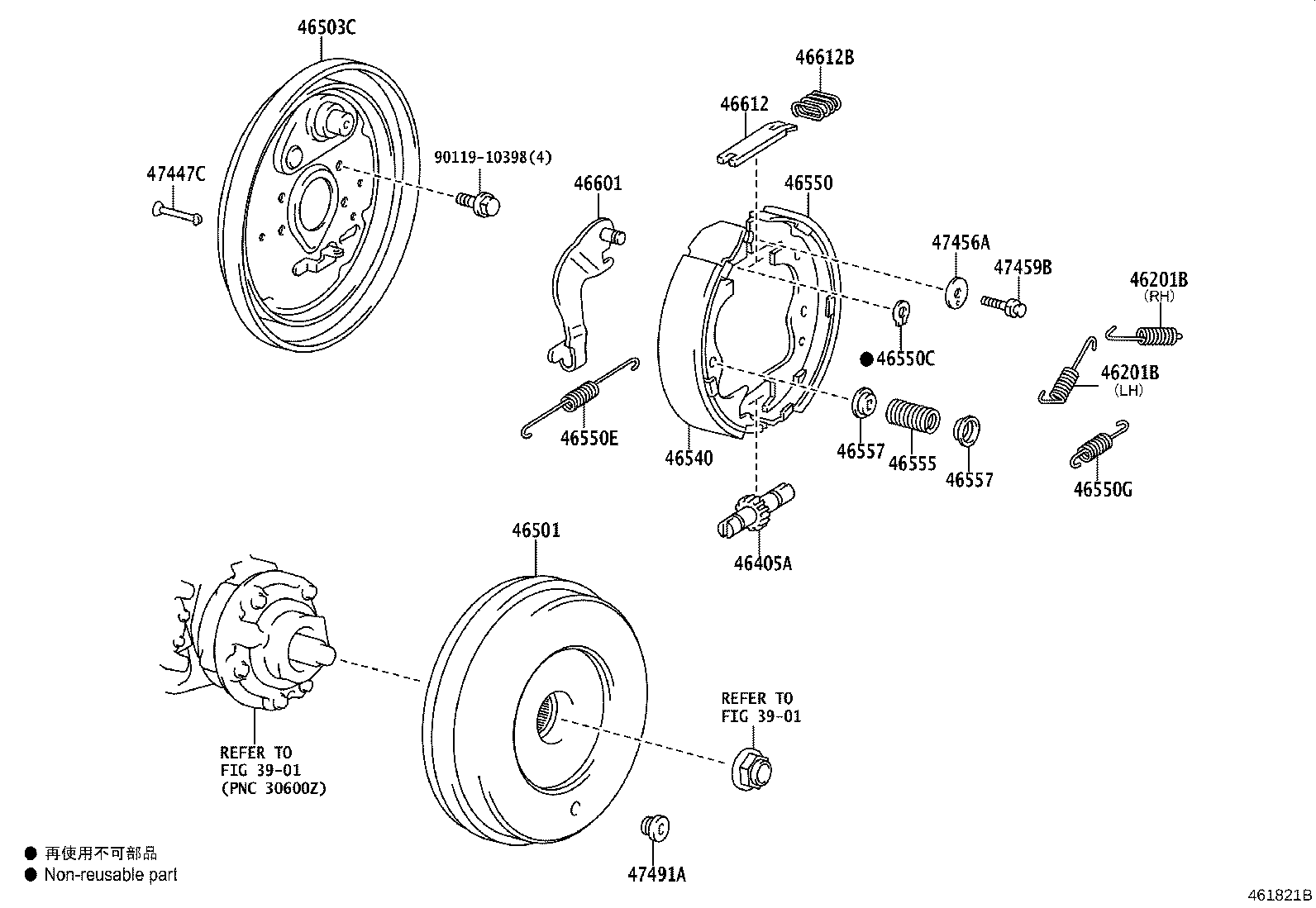

| 46501 | Drum Sub-assy, Parking Brake |
| 46503C | Plate Sub-assy, Parking Brake |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46557 | Cup, Brake Shoe Hold Down |
| 46601 | Lever Sub-assy, Parking Brake Shoe |
| 46612 | Strut, Parking Brake Shoe Lever |
| 46612B | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47447C | Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47491A | Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
