Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

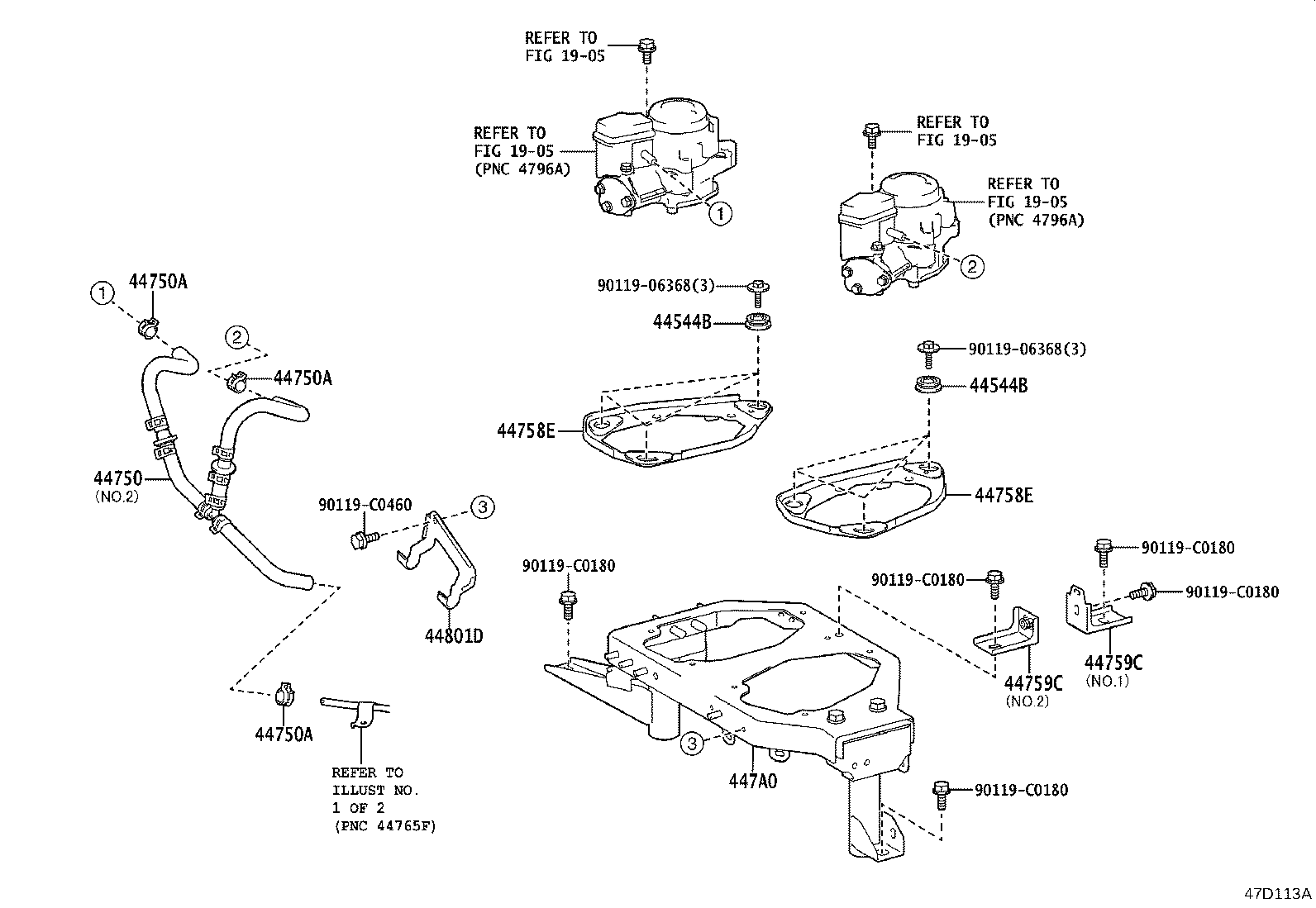

Brake Booster & Vacuum Tube
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44544B | Bush, Motor Vacuum Pump Bracket |
| 44610 | Booster Assy, Brake |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44729 | Gasket, Vacuum Tube |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44757B | Bracket, Vacuum Tank Clamp, NO.2 |
| 44758A | Bracket, Air Reservoir TO Air Booster |
| 44758E | Bracket, Motor Vacuum Pump, NO.3 |
| 44759C | Support, Motor Vacuum Pump Bracket |
| 44764J | Tube, Connector TO Vacuum Reservoir |
| 44765 | Tube, Connector TO Brake Booster, NO.2 |
| 44765F | Tube, Connector TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774C | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774E | Hose, Union TO Connector Tube |
| 447A0 | Bracket Assy, Motor Vacuum Pump |
| 44801D | Bracket, Air Reservoir |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
