Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05
Instrument Panel & Glove Compartment
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55305B | Reinforcement Sub-assy, Instrument Panel, NO.1 |
| 55306C | Reinforcement Sub-assy, Instrument Panel, NO.2 |
| 55307D | Reinforcement Sub-assy, Instrument Panel, NO.3 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |

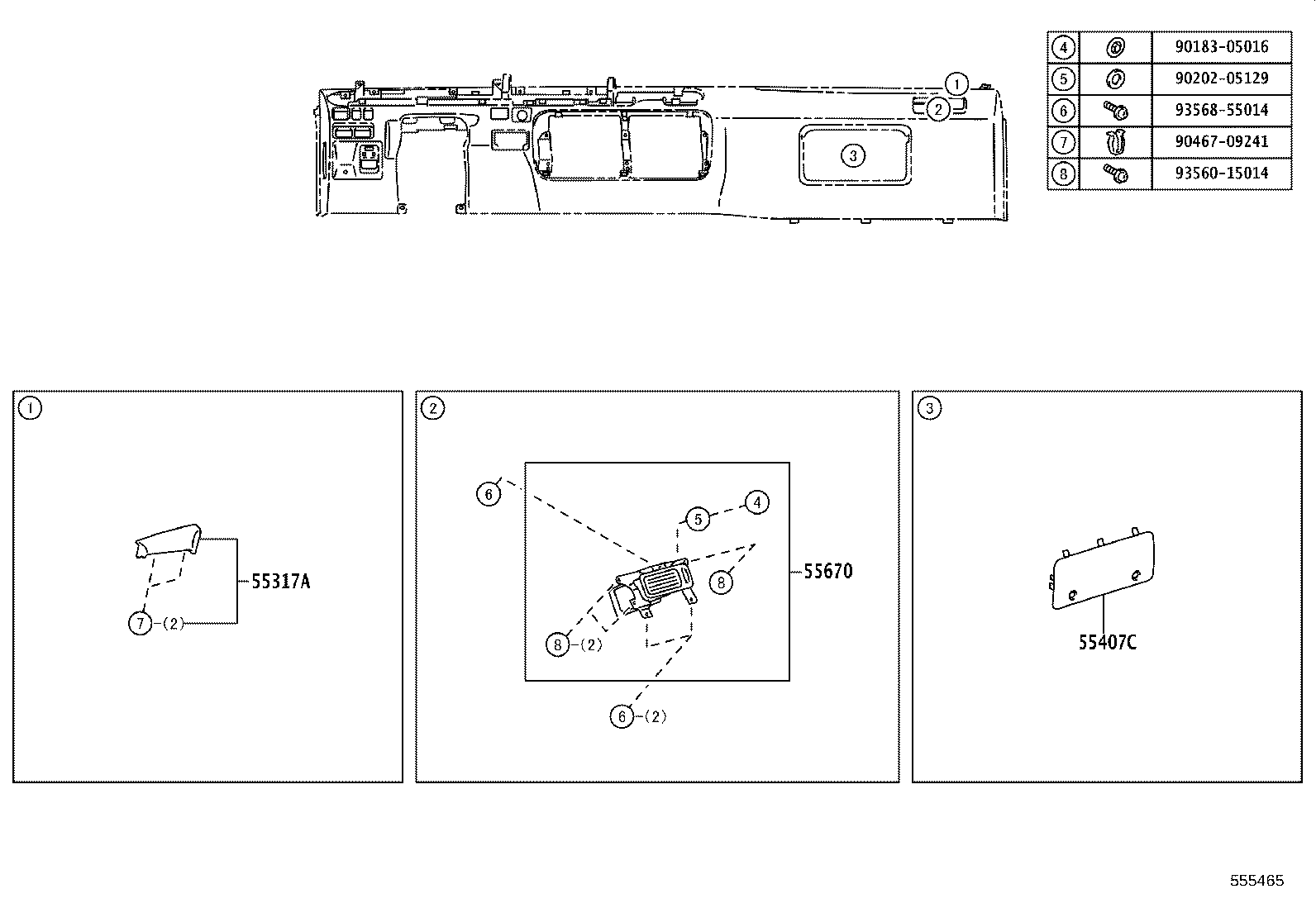

| 55317A | Panel, Instrument Side, RH |

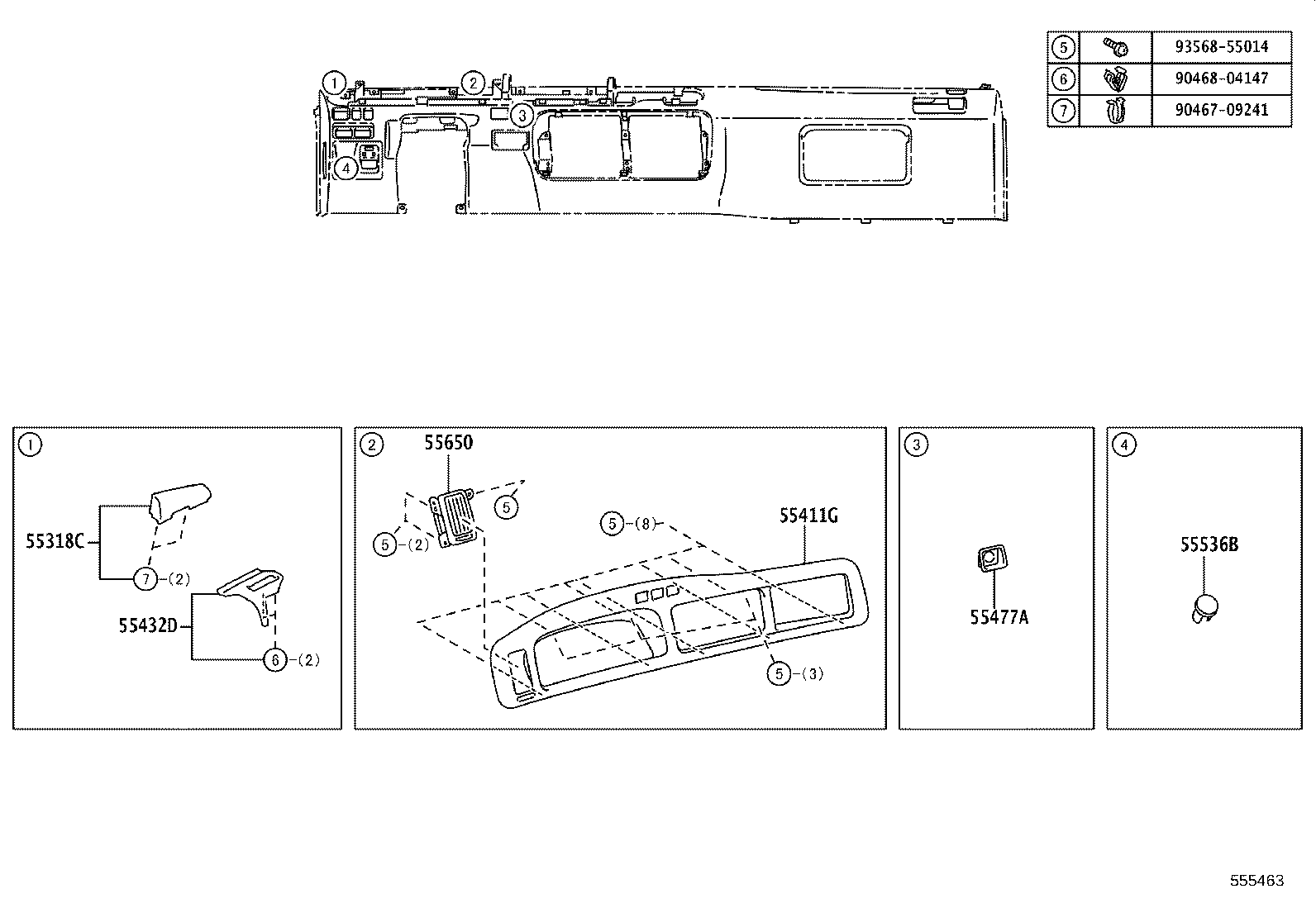

| 55318C | Panel, Instrument Side, LH |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55345B | Brace, Instrument Panel TO Cowl, NO.4 |
| 55346C | Pin, Instrument Panel |
| 55351A | Brace, Instrument Panel TO Floor |
| 55352A | Brace, Instrument Panel TO Floor, NO.2 |
| 55356C | Cushion, Instrument Panel, NO.2 |

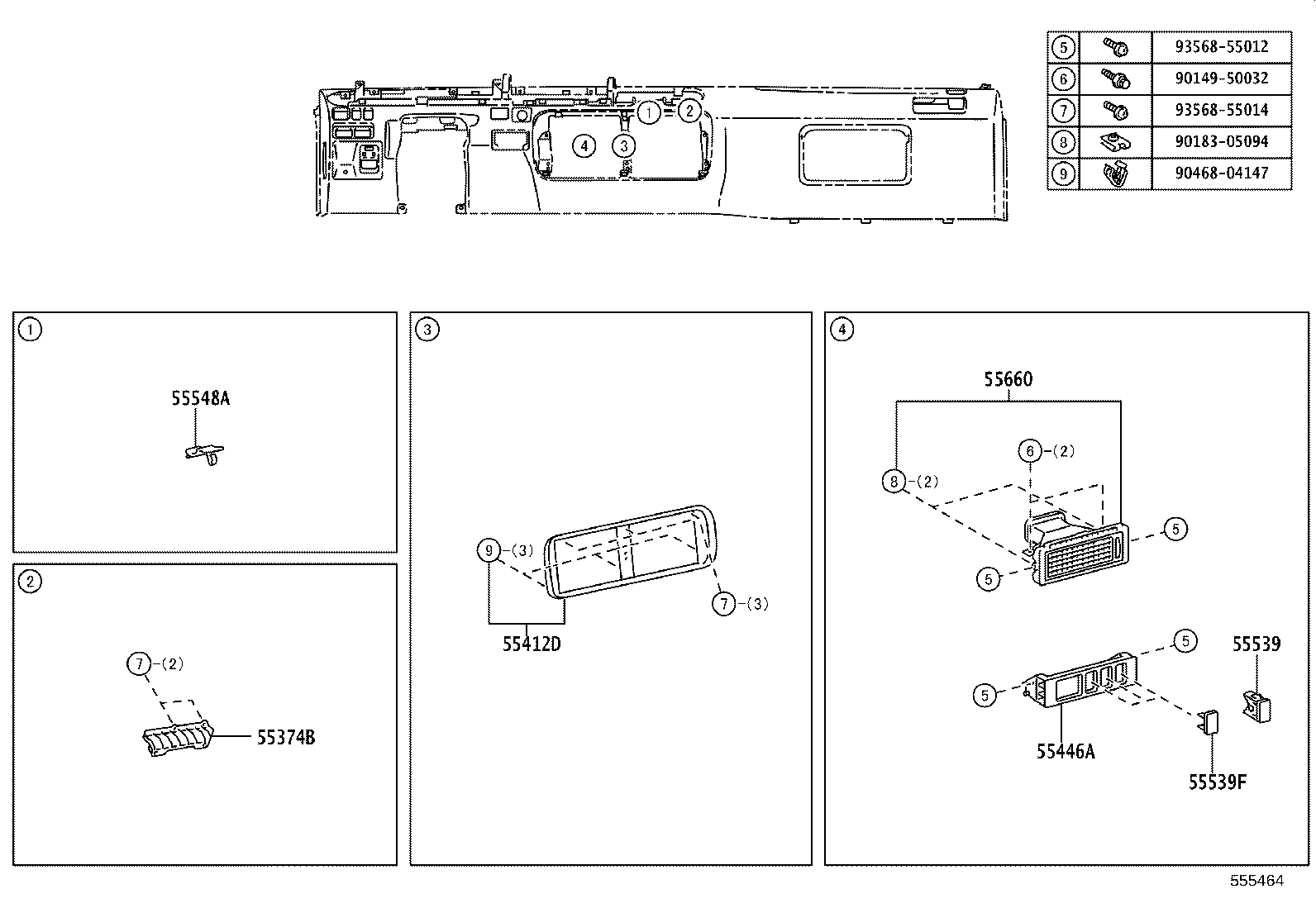

| 55374B | Bracket, Instrument Panel |
| 55386A | Bracket, Computer Mounting, NO.1 |
| 5538E | Bracket, Electrical Parts Mounting |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55425A | Bracket, Meter Hood Set |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55446A | Base, Switch Hole, NO.1 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55536B | Cover, Light Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950 | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 82715B | Bracket, Wiring Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
