Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

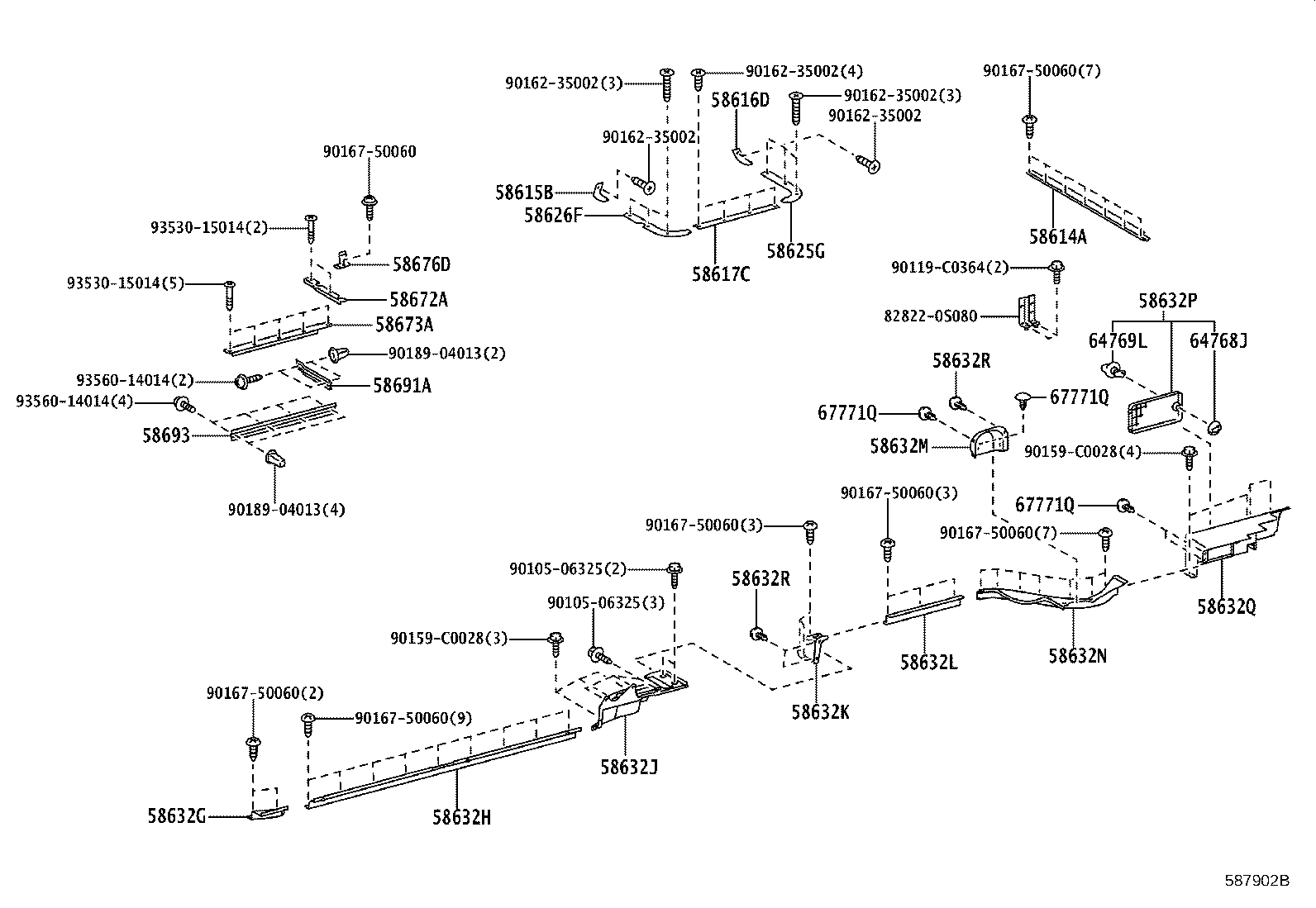

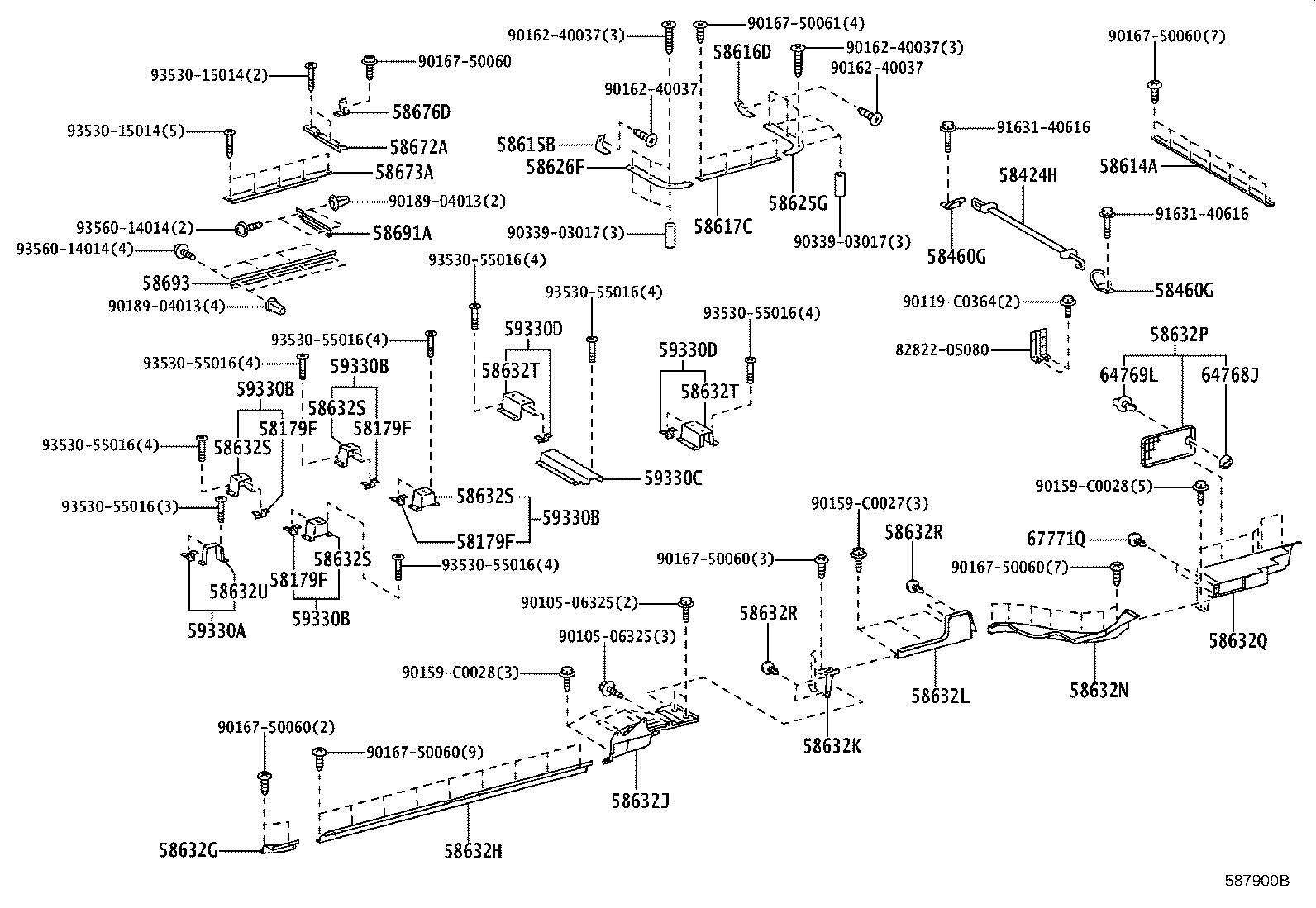

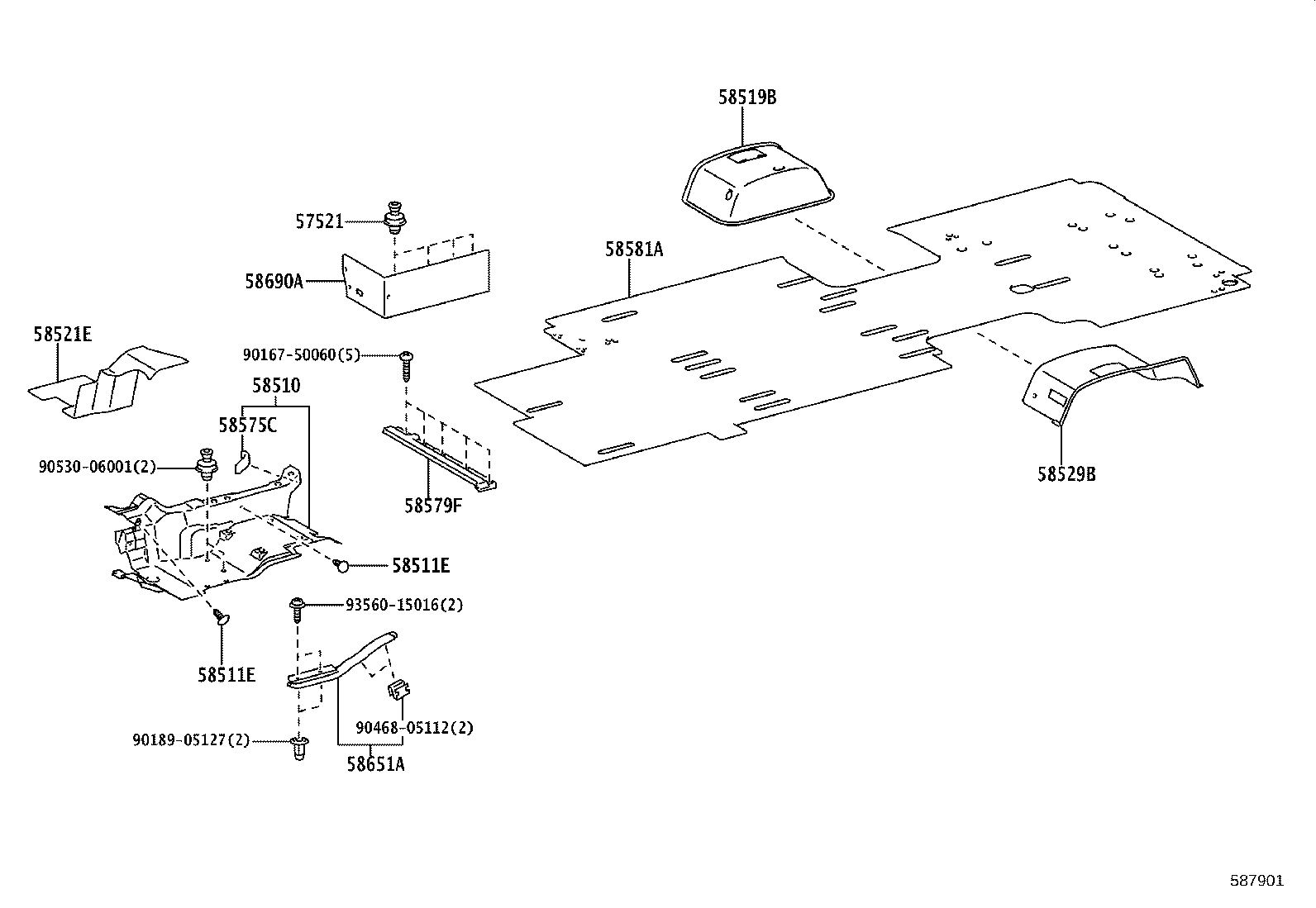

Floor Mat & Silencer Pad
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 57521 | Fastener, Hook |
| 58179F | Bracket, Clamp Floor |
| 58424H | Belt, Luggage Hold, Rear |
| 58460G | Striker Assy, Luggage Hold Belt |
| 58510 | Mat Assy, Front Floor, Front NO.1 |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58514C | Mat, Froor, Rear |
| 58519B | Mat, Rear Wheel House, RH |
| 58521E | Carpet, Engine Service Hole Cover |
| 58529B | Mat, Rear Wheel House, LH |
| 58575C | Pad, Front Floor, Front |
| 58579F | Plate, Rear Floor Mat Support Side, NO.3 |
| 58581A | Mat, Rear Floor |
| 58614A | Plate, Mat Set, NO.4 |
| 58615B | Plate, Mat Set, NO.5 A |
| 58616D | Plate, Mat Set, NO.6 A |
| 58617C | Plate, Rear Wheel House Mat |
| 58625G | Plate, Rear Wheel House Mat, NO.1 |
| 58626F | Plate, Rear Wheel House Mat, NO.1 |
| 58632G | Cover, Seat Floor Box, NO.1 |
| 58632H | Cover, Seat Floor Box, NO.2 |
| 58632J | Cover, Seat Floor Box, NO.3 |
| 58632K | Cover, Seat Floor Box, NO.4 |
| 58632L | Cover, Seat Floor Box, NO.5 |
| 58632M | Cover, Seat Floor Box, NO.6 |
| 58632N | Cover, Seat Floor Box, NO.7 |
| 58632P | Cover, Seat Floor Box, NO.8 |
| 58632Q | Cover, Seat Floor Box, NO.9 |
| 58632R | Clip (FOR SEAT FLOOR BOX COVER) |
| 58632S | Cover, Seat Floor Box, NO.11 |
| 58632T | Cover, Seat Floor Box, NO.12 |
| 58632U | Cover, Seat Floor Box, NO.10 |
| 58651A | Plate, Front Door Mat, NO.1 |
| 58672A | Plate, Center Door Step Mat, Rear |
| 58673A | Plate, Center Door Step Mat Side |
| 58676D | Plate, Center Door Pillar Mat, Rear |
| 58690A | Carpet Assy, Center Door Step |
| 58691A | Plate, Center Door Step Mat, Lower Front |
| 58693 | Plate, Center Door Step Mat, Lower Side |
| 59330A | Cover Assy, Rear Floor Box, NO.1 |
| 59330B | Cover Assy, Rear Floor Box, NO.2 |
| 59330C | Cover Assy, Rear Floor Box, NO.4 |
| 59330D | Cover Assy, Rear Floor Box, NO.3 |
| 64768J | Stopper, Seat Floor Box Cover |
| 64769L | Knob, Seat Floor Box Cover |
| 67771Q | Retainer (FOR SEAT FLOOR BOX COVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
