Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Room Curtain & Room Rack

16 part groups · 2 illustrations

Illustrations

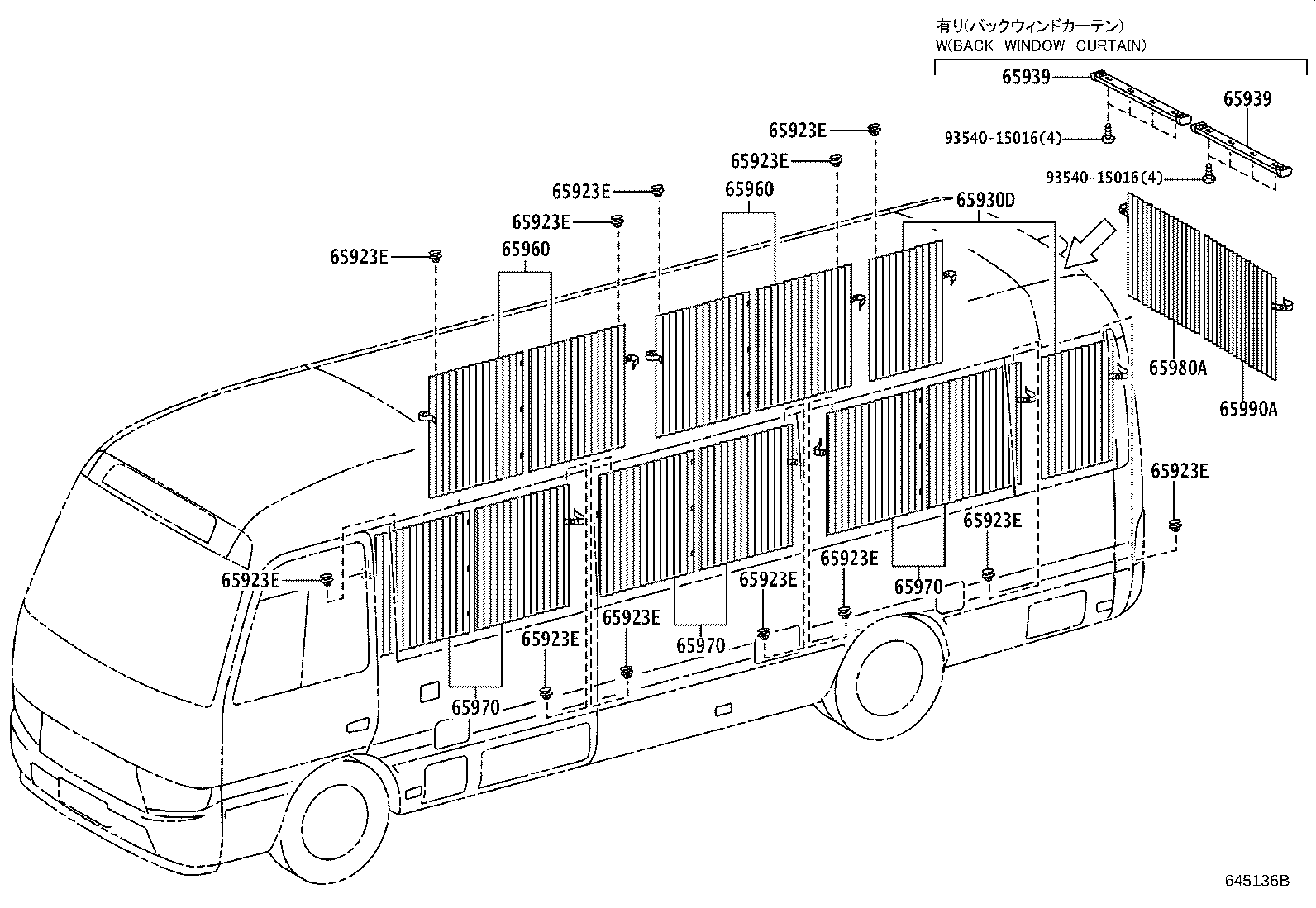

Figure 645135 645135 2021-08 → — Figure 645136B 645136B 2021-08 → —

Part groups

PNCDescription
63075 Cover Sub-assy, Room Rack
63402B Frame Sub-assy, Room Rack
63435A Frame, Room Rack, NO.1
63435E Frame, Room Rack, NO.1
63437E Frame, Room Rack, NO.3
63476 Stay, Room Rack
63476A Stay, Room Rack
63725 Plate, Room Rack Cover, Front
63726 Plate, Room Rack Cover, Rear
65923E Hook, Curtain
65930D Curtain Assy, Side Window, NO.1
65939 Rail, Curtain, NO.4
65960 Curtain Assy, Side, Rear RH
65970 Curtain Assy, Side, Rear LH
65980A Curtain Assy, Back Window, RH
65990A Curtain Assy, Back Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
