Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

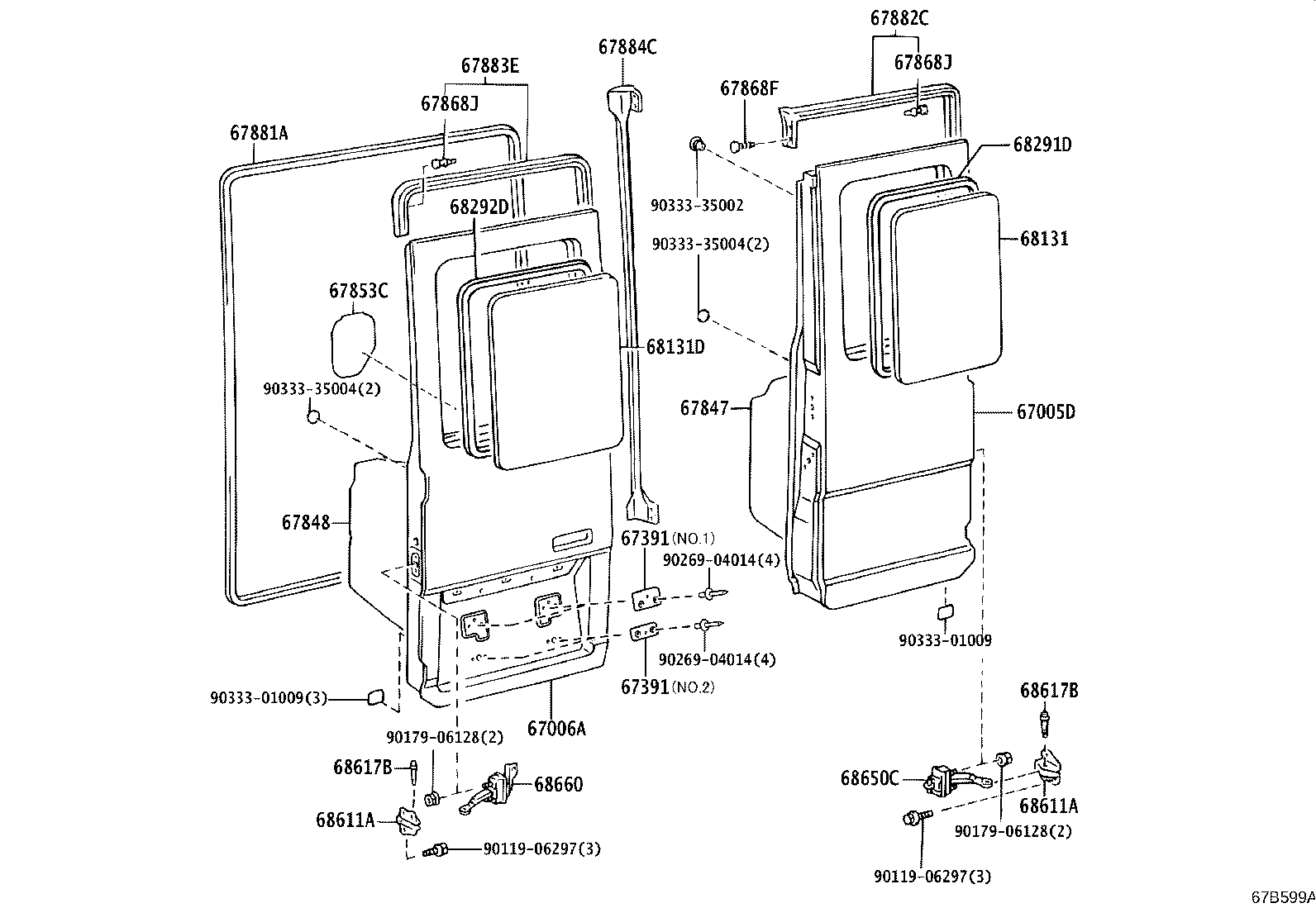

Back Door Panel & Glass
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006A | Panel Sub-assy, Back Door, LH |
| 67115 | Panel, Back Door, Outer |
| 67391 | Reinforcement, Back Door Lock |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67853C | Cover, Back Door Service Hole, NO.3 |
| 67868F | Retainer, Door Weatherstrip, LH |
| 67868J | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67883E | Weatherstrip, Back Door, NO.3 |
| 67884C | Weatherstrip, Back Door, Lower LH |
| 68131 | Glass, Back Door |
| 68131D | Glass, Back Door, LH |
| 68291D | Weatherstrip, Back Door Glass, RH |
| 68292D | Weatherstrip, Back Door Glass, LH |
| 68611A | Base, Back Door Check |
| 68617B | Pin, Back Door Check |
| 68650C | Check Assy, Back Door, RH |
| 68660 | Check Assy, Back Door, LH |
| 75010 | Frame, Rear License Plate |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76811A | Garnish, Back Door, Outside |
| 76812A | Garnish, Back Door, Outside NO.2 |
| 76817 | Clip, Back Door Outside Garnish |
| 76825 | Protector, Back Door Outside Garnish |
| 76825B | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
