Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

233 part groups · 13 illustrations

Illustrations

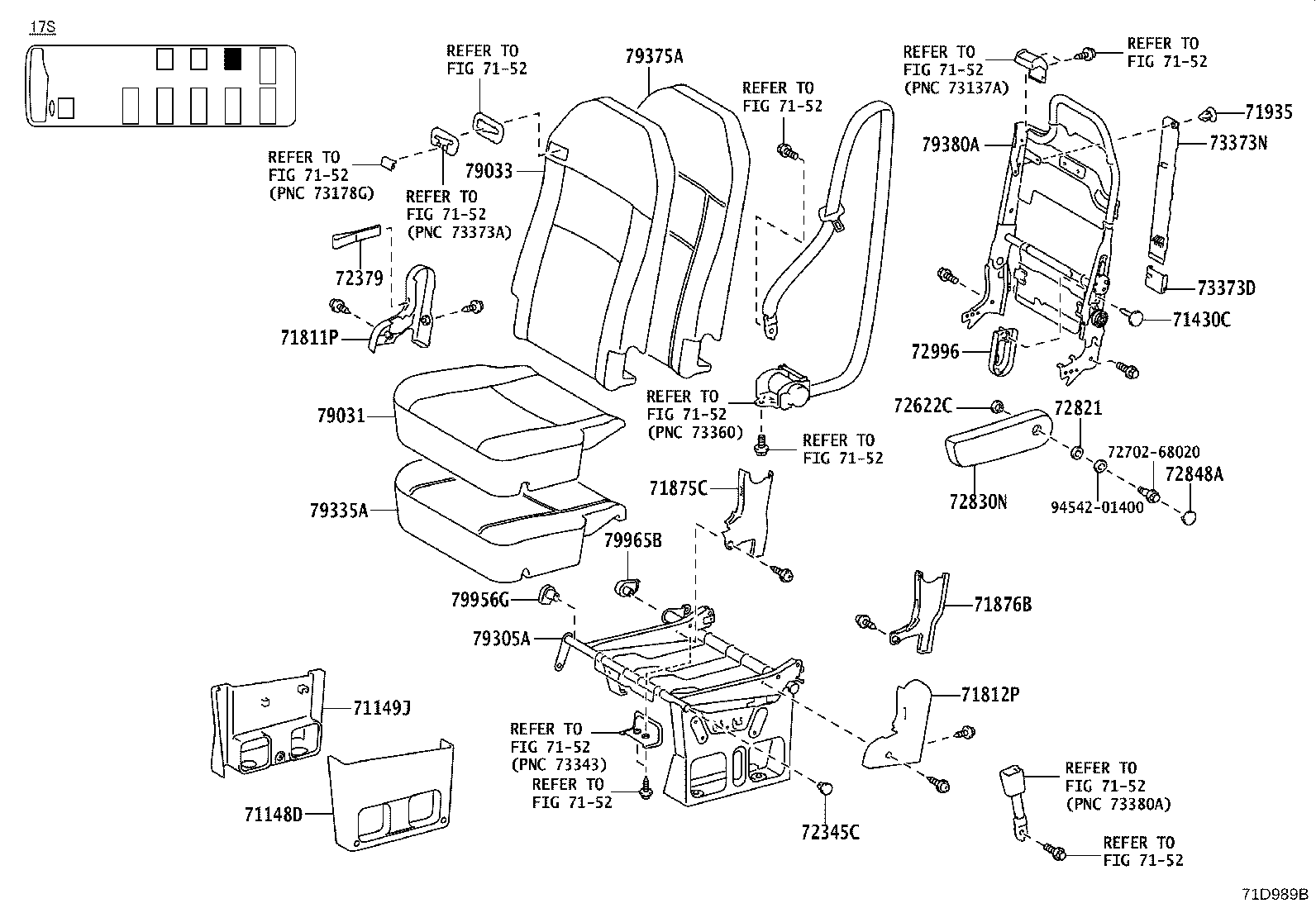

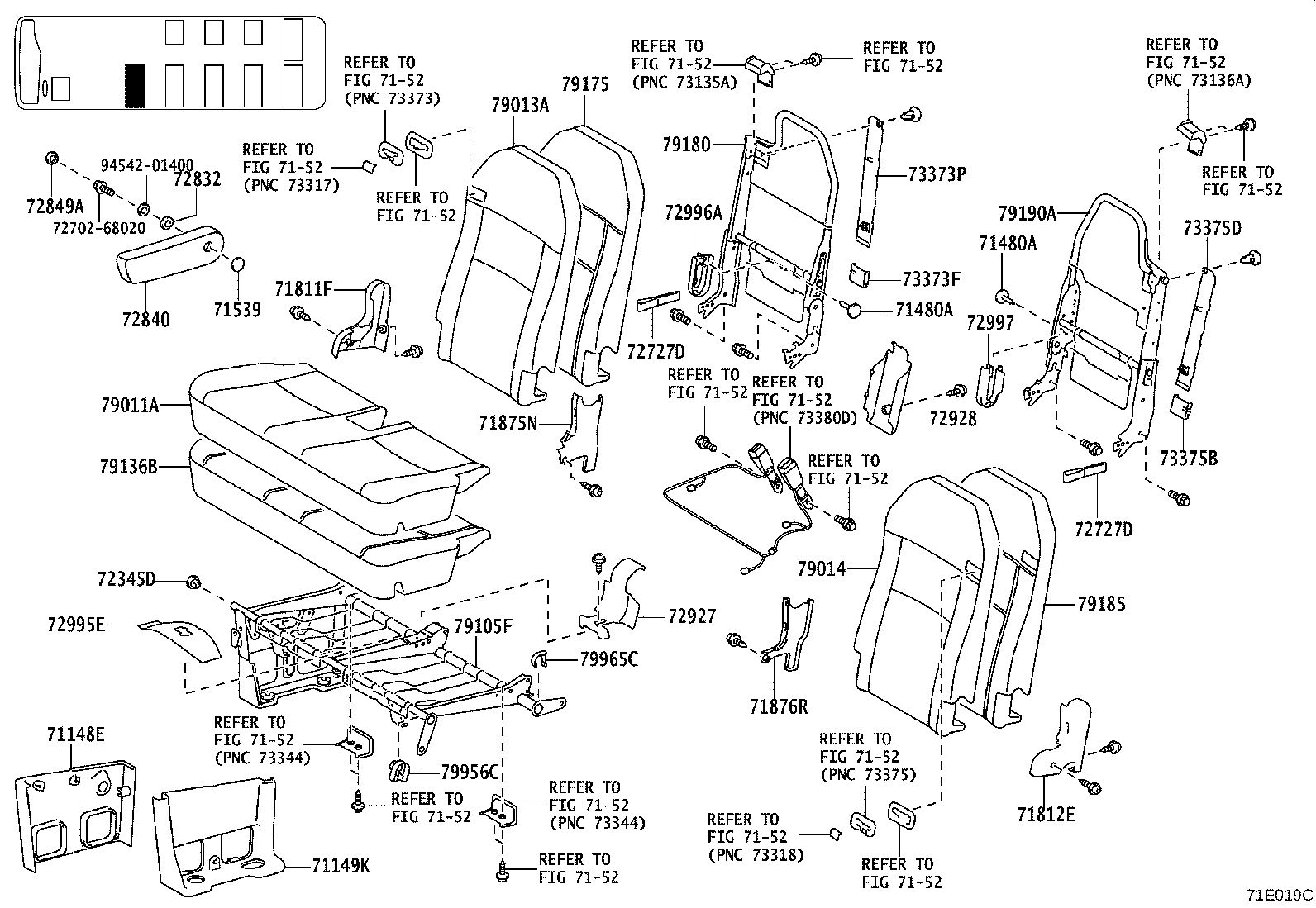

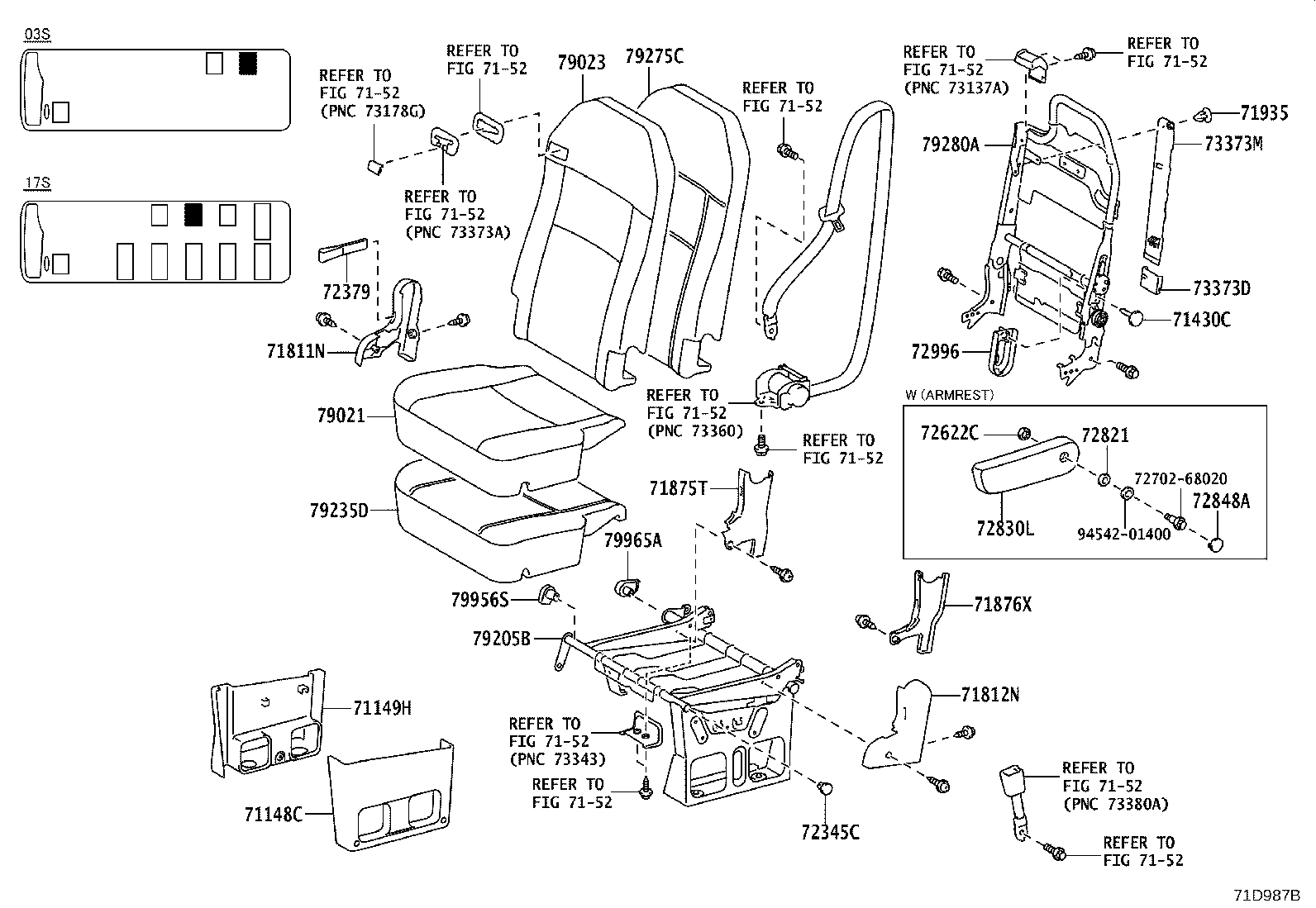

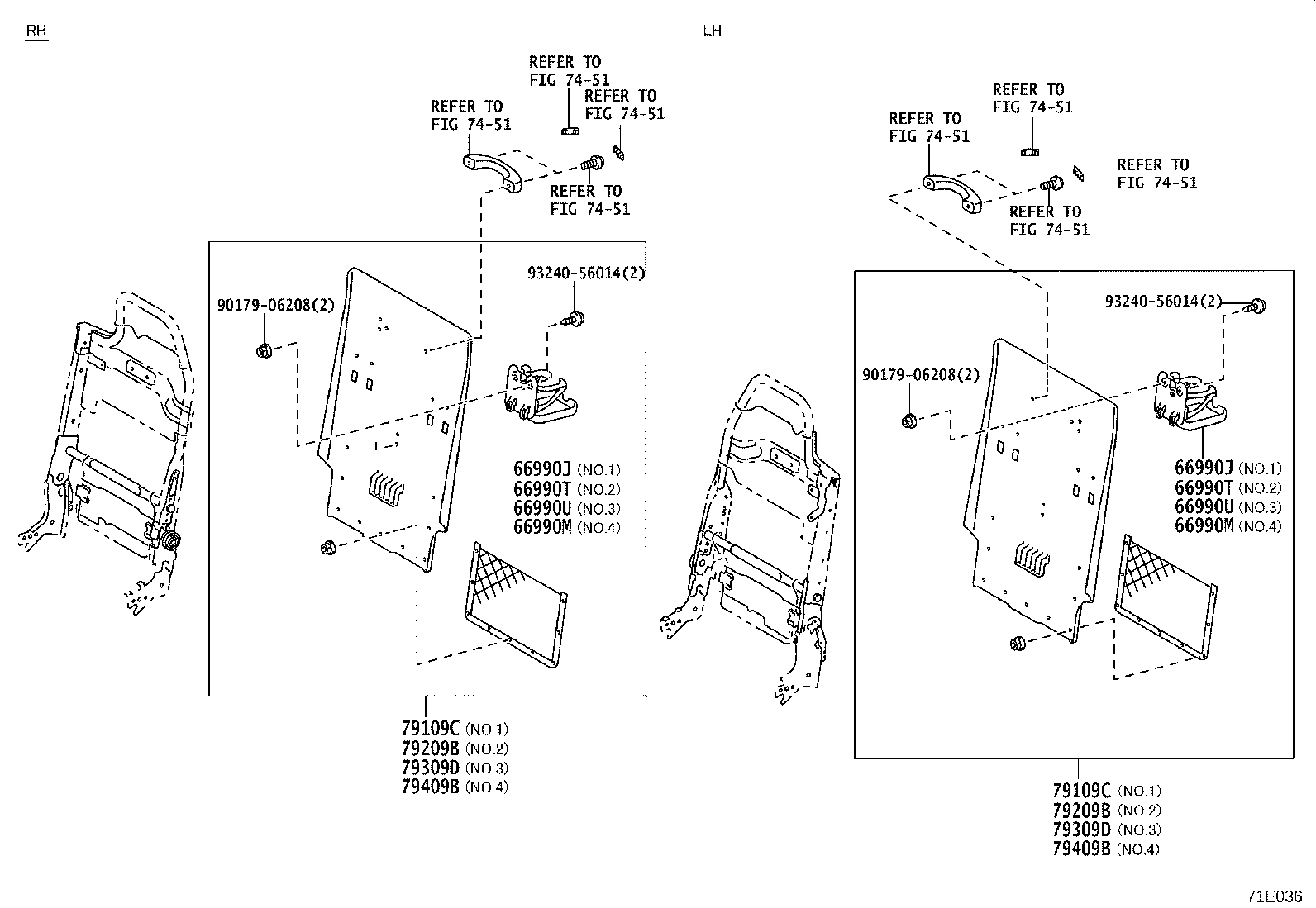

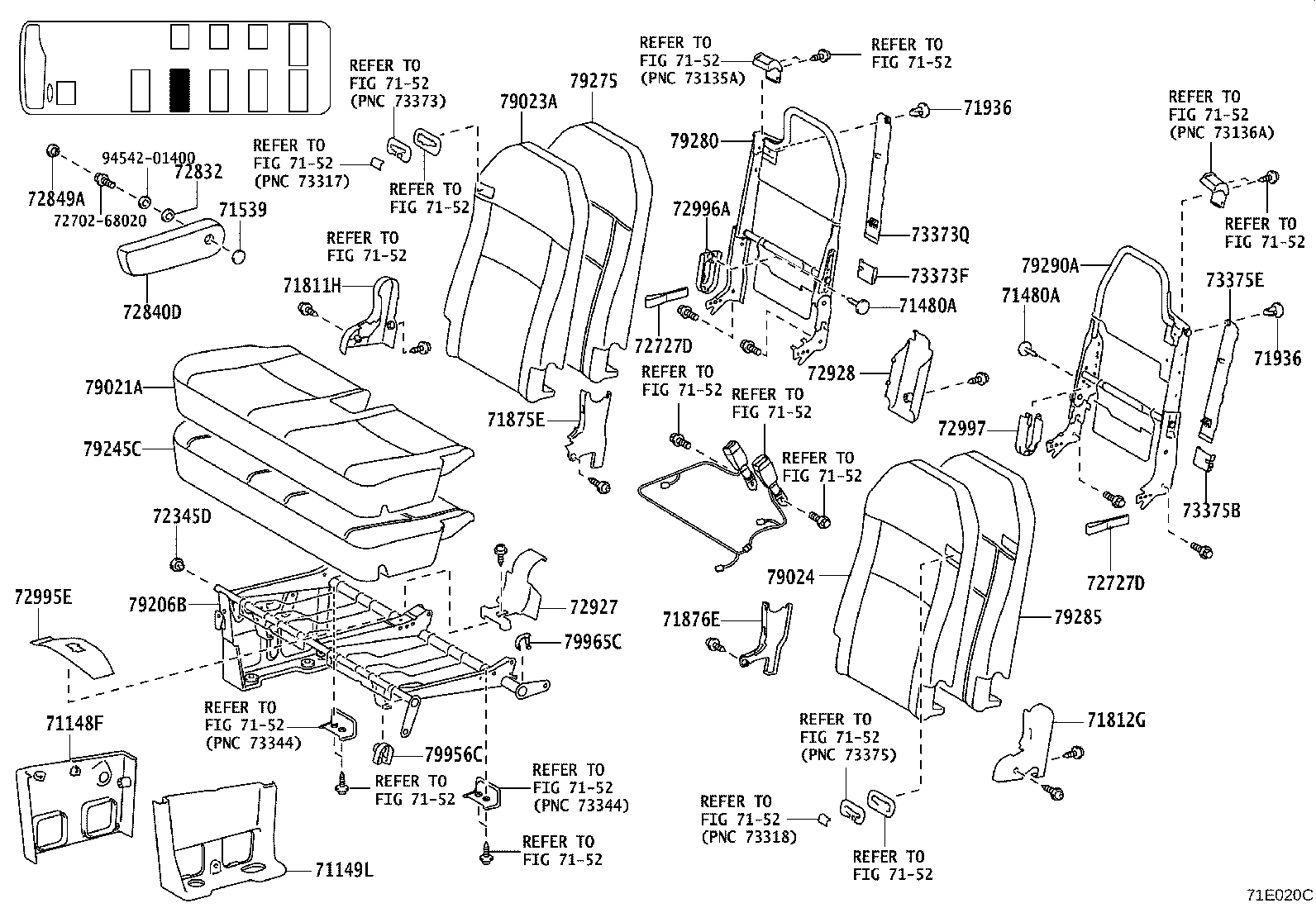

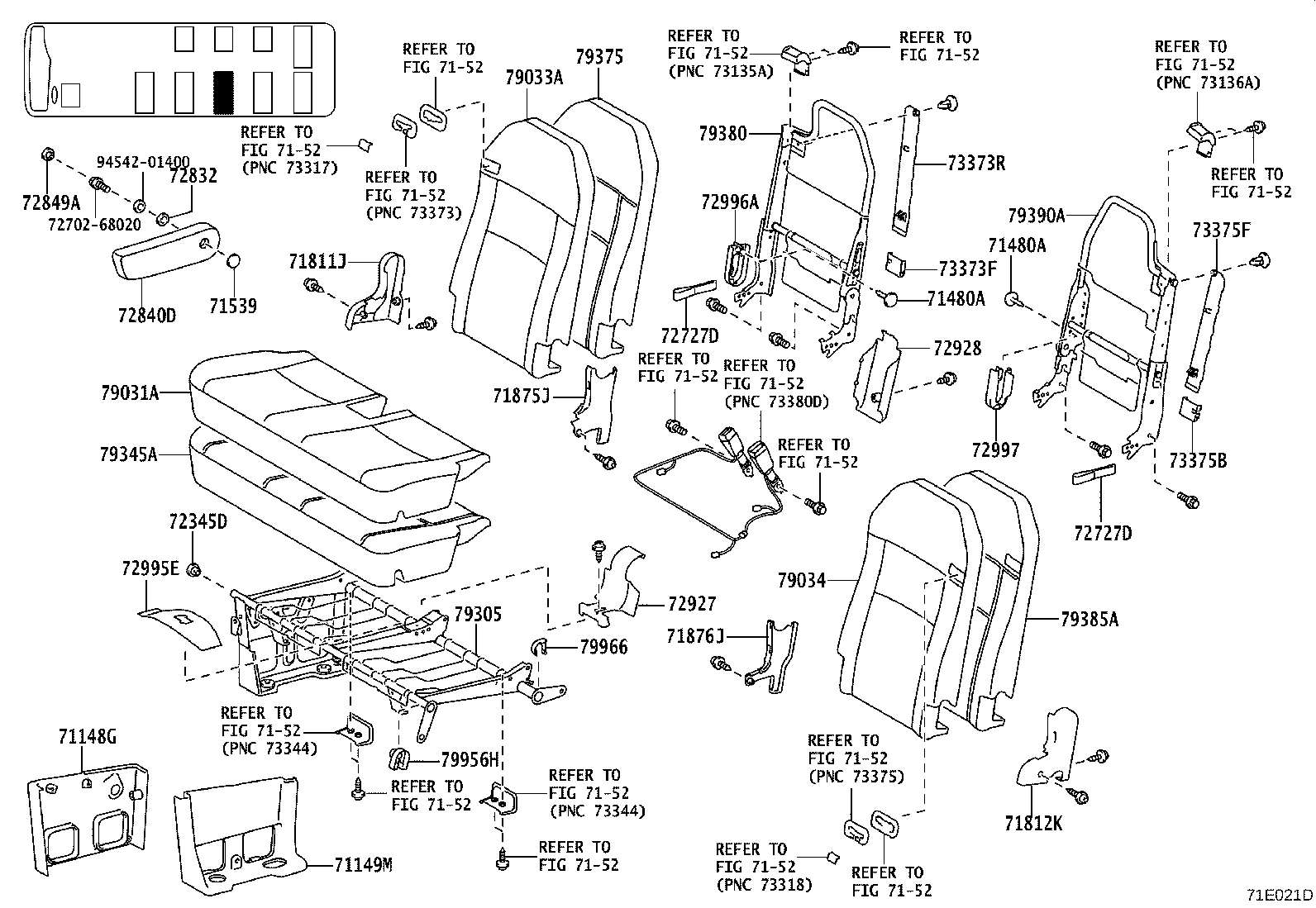

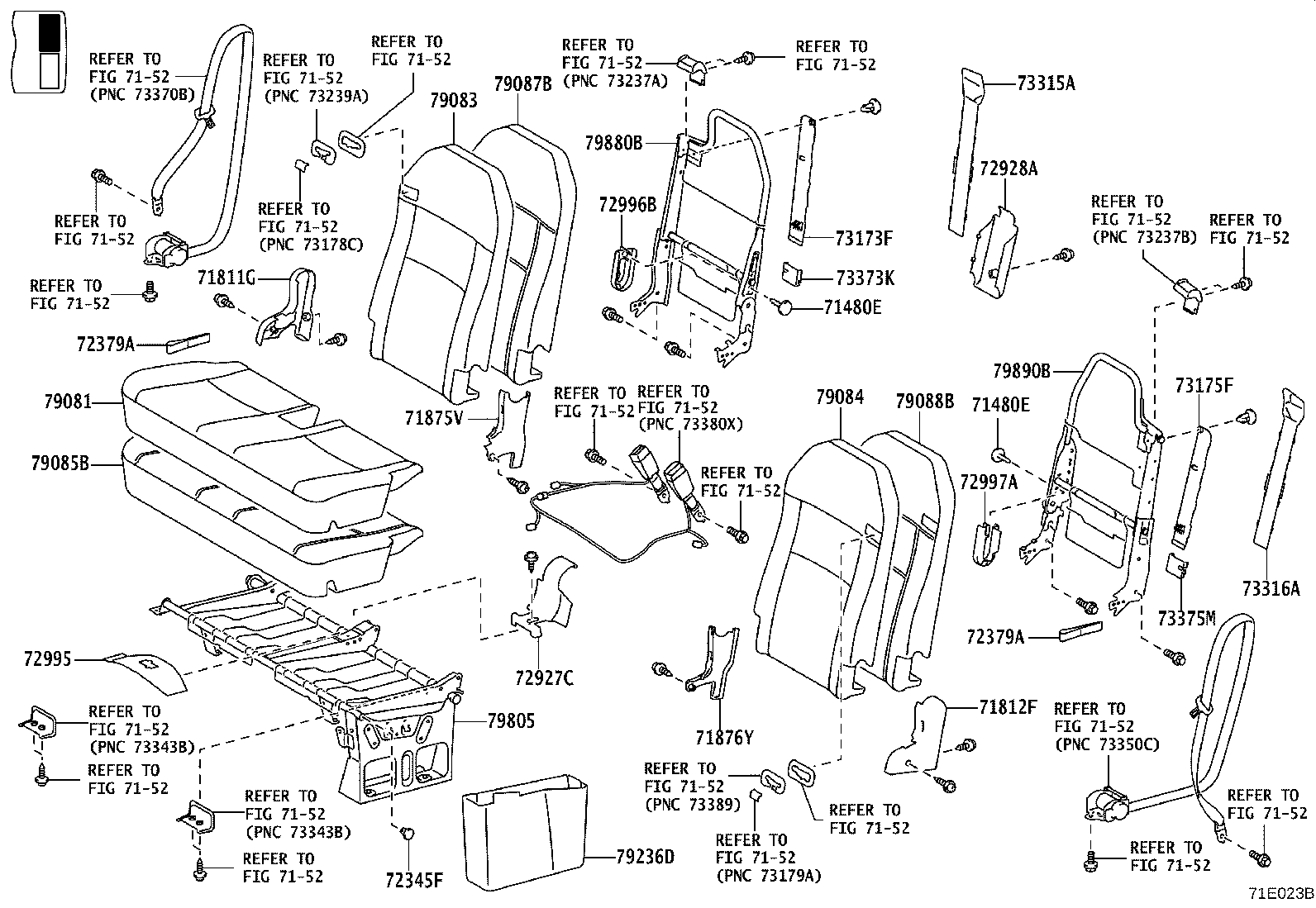

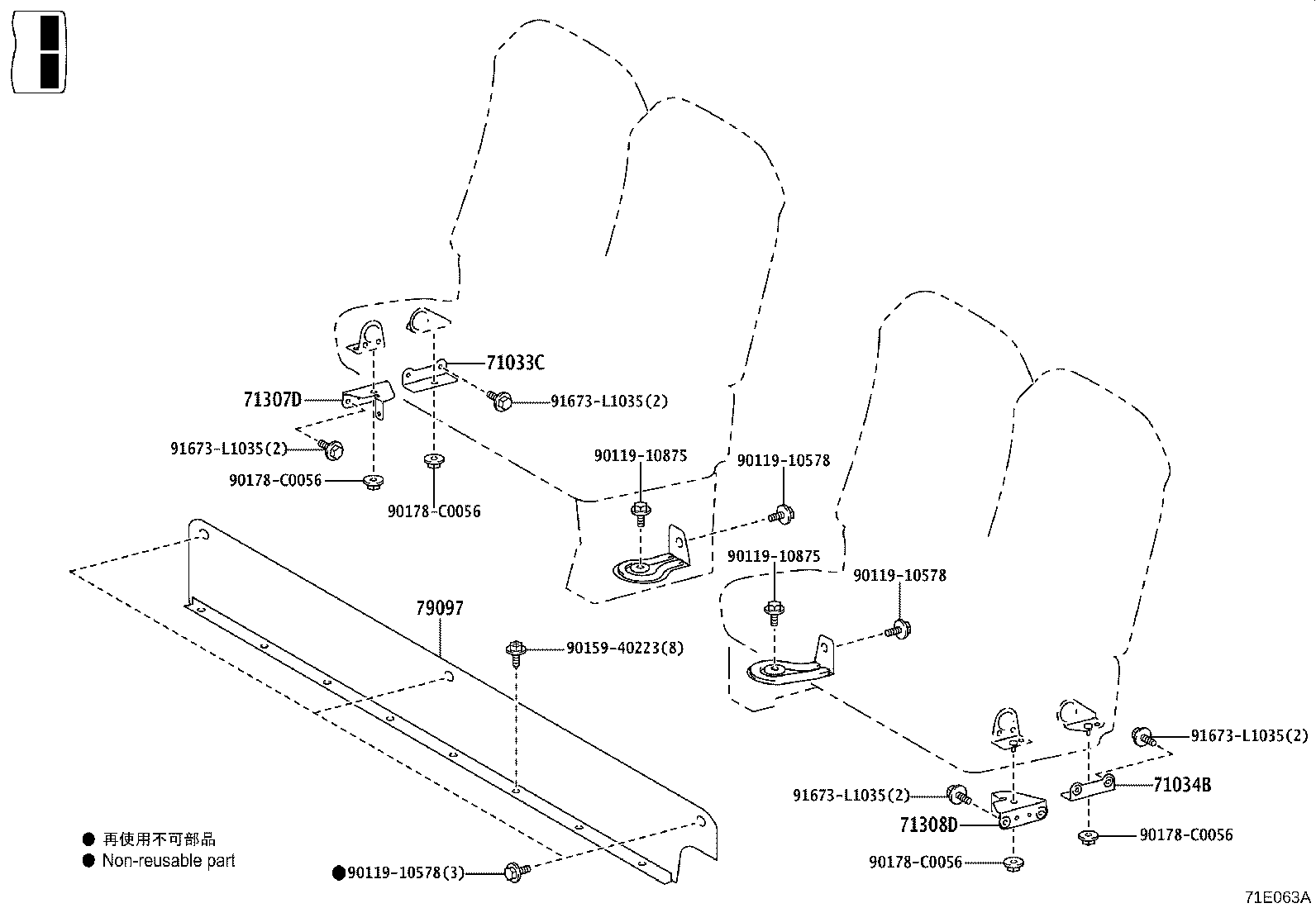

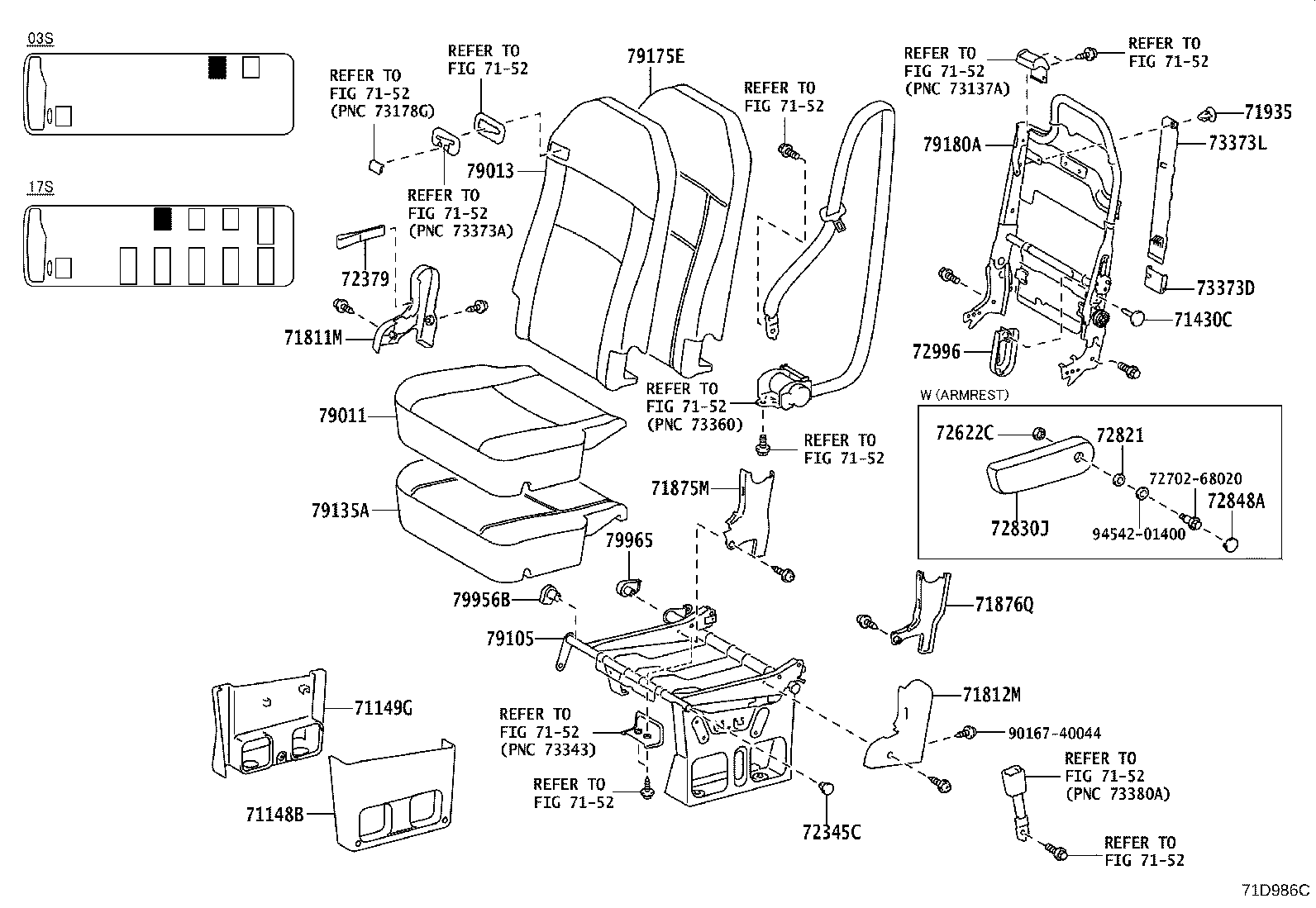

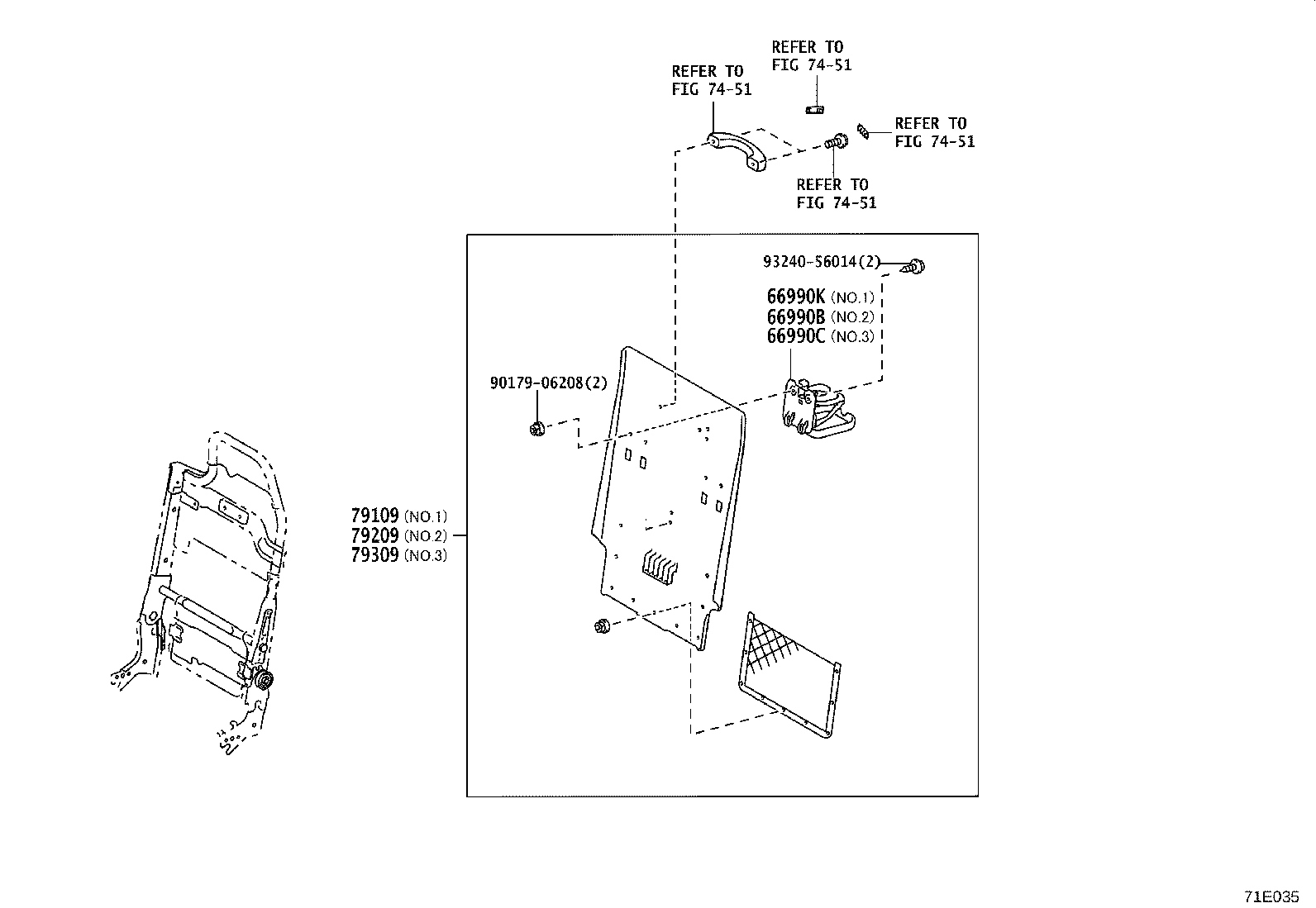

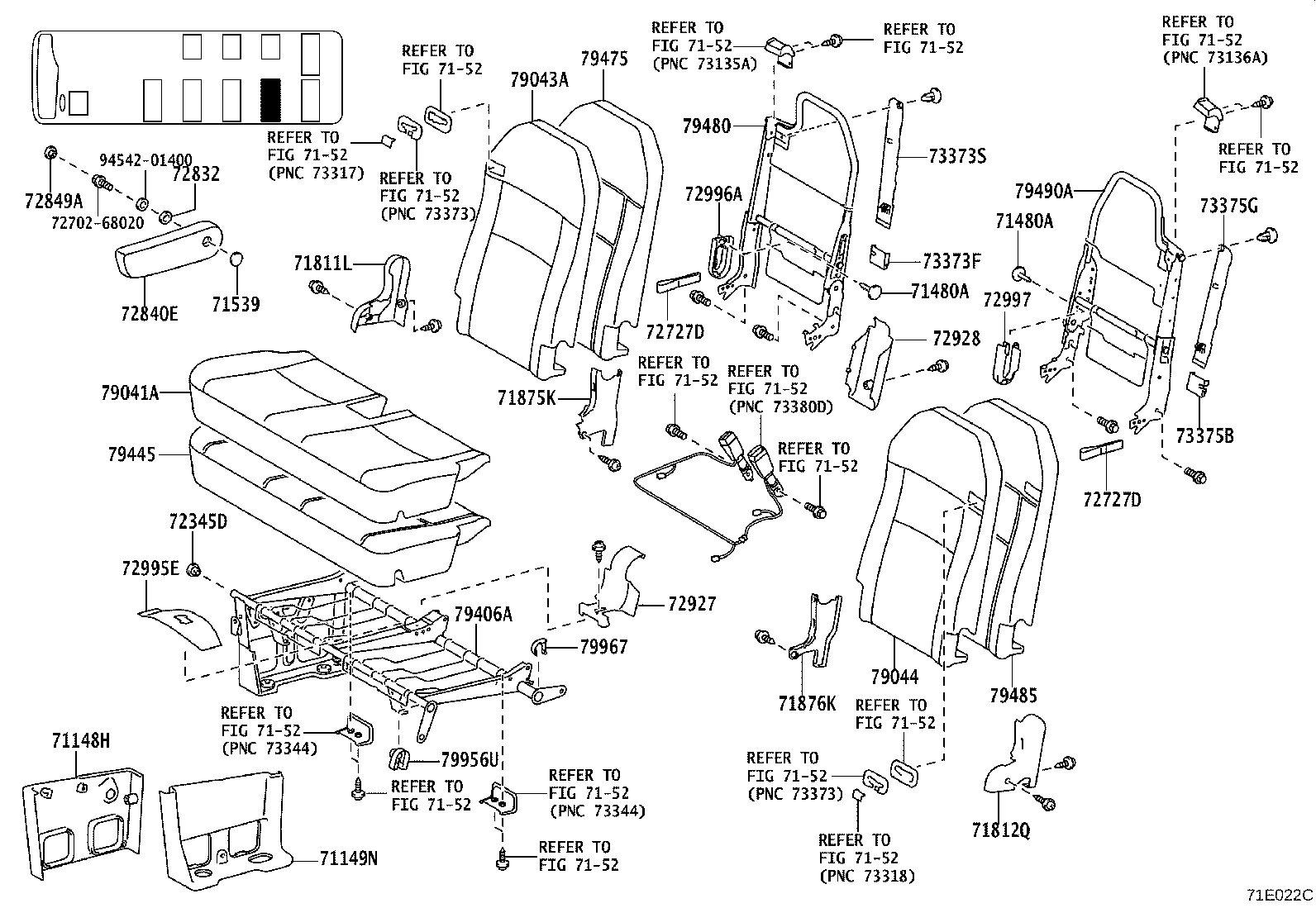

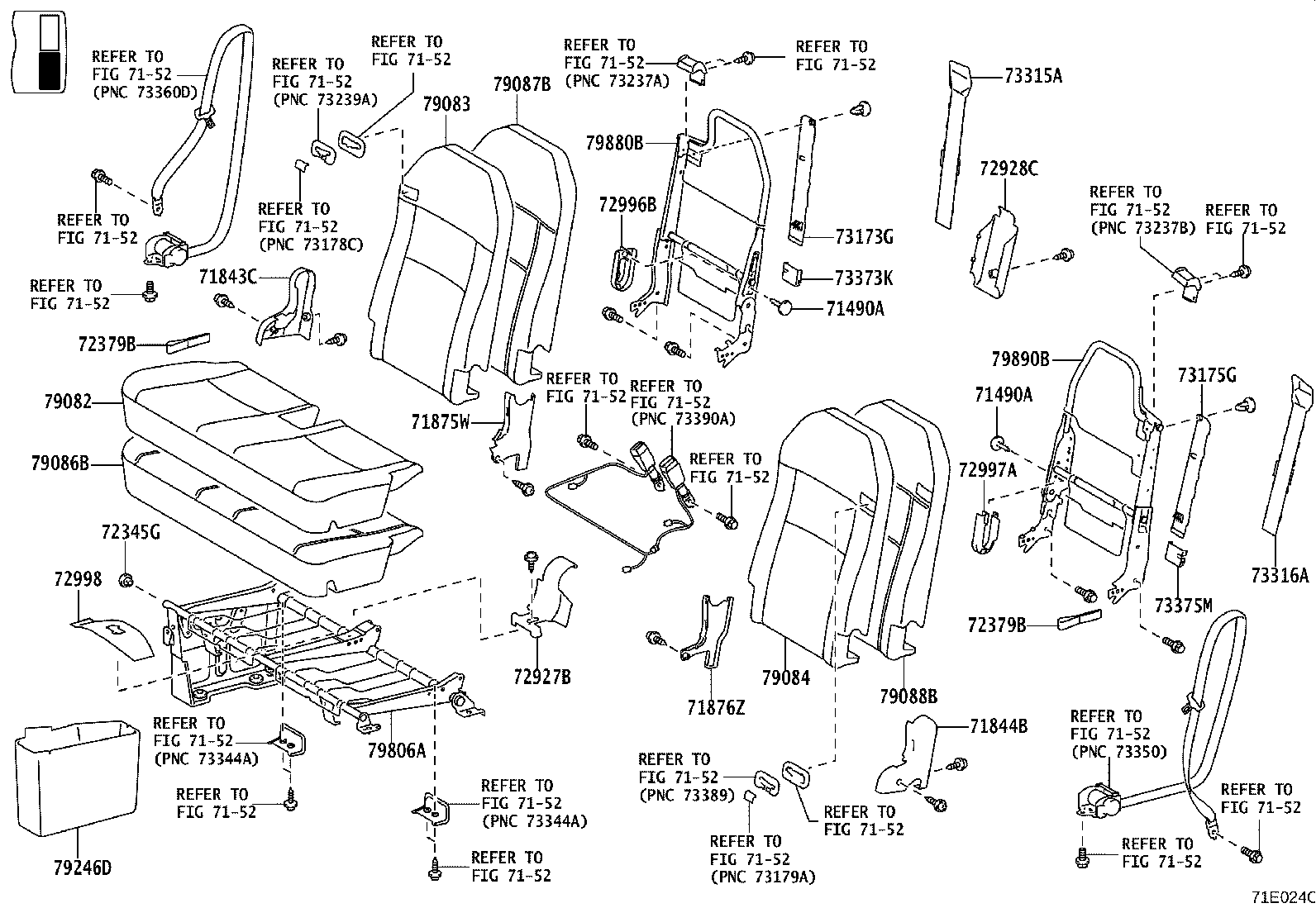

Figure 71D946B 71D946B 2021-08 → — Figure 71D986C 71D986C 2021-08 → — Figure 71D987B 71D987B 2021-08 → — Figure 71D989B 71D989B 2021-08 → — Figure 71E035 71E035 2021-08 → — Figure 71E019C 71E019C 2021-08 → — Figure 71E020C 71E020C 2021-08 → — Figure 71E021D 71E021D 2021-08 → — Figure 71E022C 71E022C 2021-08 → — Figure 71E036 71E036 2021-08 → — Figure 71E023B 71E023B 2021-08 → — Figure 71E024C 71E024C 2021-08 → — Figure 71E063A 71E063A 2021-08 → —

Part groups

PNCDescription
66990B Holder Assy, Cup, NO.2 RH
66990C Holder Assy, Cup, NO.3 RH
66990J Holder Assy, Cup, NO.1 LH
66990K Holder Assy, Cup, NO.1 RH
66990M Holder Assy, Cup, NO.4 LH
66990T Holder Assy, Cup
66990U Holder Assy, Cup
71033C Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71034B Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71109B Leg Sub-assy, Front Seat, LH
71148B Cover, Rear Seat Leg, Outer
71148C Cover, Rear Seat Leg, Outer
71148D Cover, Rear Seat Leg, Outer
71148E Cover, Rear Seat Leg, Outer
71148F Cover, Rear Seat Leg, Outer
71148G Cover, Rear Seat Leg, Outer
71148H Cover, Rear Seat Leg, Outer
71149 Wire, Front Seat Cushion Connecting
71149G Cover, Rear Seat Leg, Inner
71149H Cover, Rear Seat Leg, Inner
71149J Cover, Rear Seat Leg, Inner
71149K Cover, Rear Seat Leg, Inner
71149L Cover, Rear Seat Leg, Inner
71149M Cover, Rear Seat Leg, Inner
71149N Cover, Rear Seat Leg, Inner
71307D Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D Bracket Sub-assy, Rear Seat Cushion Support, LH
71311B Bush (FOR FRONT SEAT HINGE PIN)
71430C Clip
71480A Clip (FOR REAR SEATBACK)
71480E Clip, Rear Seatback, RH
71490A Clip, Rear Seatback, LH
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71524 Pad, Front Seat Cushion Silencer, D
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71539 Bush, Rear Seat Armrest, LH
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71750A Tray Assy, Front Seat Under
71811F Cover, Reclining Adjuster, RH
71811G Shield, Rear Seat Cushion, RH
71811H Cover, Reclining Adjuster, RH
71811J Cover, Reclining Adjuster, RH
71811L Cover, Reclining Adjuster, RH
71811M Cover, Reclining Adjuster, RH
71811N Cover, Reclining Adjuster, RH
71811P Cover, Reclining Adjuster, RH
71812D Shield, Front Seat Cushion, LH
71812E Cover, Reclining Adjuster, LH
71812F Shield, Rear Seat Cushion, LH
71812G Cover, Reclining Adjuster, LH
71812K Cover, Reclining Adjuster, LH
71812M Cover, Reclining Adjuster, LH
71812N Cover, Reclining Adjuster, LH
71812P Cover, Reclining Adjuster, LH
71812Q Cover, Reclining Adjuster, LH
71843C Cover, Reclining Adjuster, RH
71844B Cover, Reclining Adjuster, LH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875J Cover, Reclining Adjuster Inside, RH
71875K Cover, Reclining Adjuster Inside, RH
71875M Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875N Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875T Cover, Reclining Adjuster Inside, RH (FOR REAR NO.2 SEAT)
71875V Cover, Reclining Adjuster Inside, RH
71875W Cover, Reclining Adjuster Inside, RH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876J Cover, Reclining Adjuster Inside, LH
71876K Cover, Reclining Adjuster Inside, LH
71876Q Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876R Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876X Cover, Reclining Adjuster Inside, LH (FOR REAR NO.2 SEAT)
71876Y Cover, Reclining Adjuster Inside, LH
71876Z Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71935 Clip
71936 Clip
72140A Track Assy, Front Seat,Inner LH
72250C Lock Assy, Front Seat
72301 Wire Sub-assy, Seat Track Equalizing
72345C Pipe,Reclining Connecting, RH
72345D Pipe, Reclining Connecting, LH
72345F Pipe, Reclining Connecting, RH
72345G Pipe, Reclining Connecting, LH
72379 Belt, Seat Reclining Handle
72379A Belt, Seat Reclining Handle, RH
72379B Belt, Seat Reclining Handle, LH
72520 Adjuster Assy, Reclining Seatback, LH
72622C Bush, Rear Seatback Protector Shaft
72727D Belt, Rear Seat Reclining Release
72821 Plate, Seat Armrest, RH
72830J Armrest Assy, Rear NO.1 Seat, RH
72830L Armrest Assy, Rear NO.2 Seat, RH
72830N Armrest Assy, NO.3 Seat, RH
72832 Plate, Rear Seat Armrest
72840 Armrest Assy, Rear NO.1 Seat, LH
72840D Armrest Assy, Rear Seat, LH
72840E Armrest Assy, NO.4 Seat, LH
72848A Cap, Seat Armrest, NO.1
72849A Cap, Seat Armrest, NO.2
72927 Cover, Rear Seat Cushion Under, RH
72927B Cover, Rear Seat Cushion Under
72927C Cover, Rear Seat Cushion Under RH
72928 Cover, Rear Seat Cushion Under, LH
72928A Cover, Rear Seat Cushion Under, NO.2
72928C Cover, Rear Seat Cushion Under, LH
72993A Cover, Front Seatback
72993B Cover, Front Seatback, RH
72994B Cover, Front Seatback, LH
72995 Cover, Rear Seat Cushion, RH
72995E Cover, Rear Seat Cushion
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72996B Cover, Rear Seatback, Inner RH
72997 Cover, Rear Seatback, LH
72997A Cover, Rear Seatback, Inner LH
72998 Cover, Rear Seat Cushion, LH
73173F Cover, Rear Seat Shoulder Belt, RH
73173G Cover, Rear Seat Shoulder Belt, RH
73175F Cover, Rear Seat Shoulder Belt, LH
73175G Cover, Rear Seat Shoulder Belt, LH
73315A Cover, RR Seat Belt, Inner RH
73316A Cover, RR Seat Belt, Inner LH
73373D Cover, Rear Seat Shoulder Belt Hole, RH
73373F Cover, Rear Seat Shoulder Belt Hole
73373K Cover, Rear Seat Shoulder Belt Hole
73373L Cover, Rear Seat Shoulder Belt, RH
73373M Cover, Rear Seat Shoulder Belt, RH
73373N Cover, Rear Seat Shoulder Belt, RH
73373P Cover, Rear Seat Shoulder Belt, RH
73373Q Cover, Rear Seat Shoulder Belt, RH
73373R Cover, Rear Seat Shoulder Belt, RH
73373S Cover, Rear Seat Shoulder Belt, RH
73375B Cover, Rear Seat Shoulder Belt Hole, LH
73375D Cover, Rear Seat Shoulder Belt, LH
73375E Cover, Rear Seat Shoulder Belt, LH
73375F Cover, Rear Seat Shoulder Belt, LH
73375G Cover, Rear Seat Shoulder Belt, LH
73375M Cover, Rear Seat Shoulder Belt Hole
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79011A Cover Sub-assy, NO.1 Seat Cushion
79013 Cover Sub-assy, NO.1 Seatback, RH
79013A Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79021A Cover Sub-assy, NO.2 Seat Cushion
79023 Cover Sub-assy, NO.2 Seatback, RH
79023A Cover Sub-assy, NO.2 Seatback
79024 Cover Sub-assy, NO.2 Seatback, LH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79031A Cover Sub-assy, NO.3 Seat Cushion
79033 Cover Sub-assy, NO.3 Seatback, RH
79033A Cover Sub-assy, NO.3 Seatback
79034 Cover Sub-assy, NO.3 Seatback, LH
79041A Cover Sub-assy, NO.4 Seat Cushion
79043A Cover Sub-assy, NO.4 Seatback
79044 Cover Sub-assy, NO.4 Seatback, LH
79081 Cover Sub-assy, NO.8 Seat Cushion, RH
79082 Cover Sub-assy, NO.8 Seat Cushion, LH
79083 Cover Sub-assy, NO.8 Seatback, RH
79084 Cover Sub-assy, NO.8 Seatback, LH
79085B Pad Sub-assy, NO.8 Seat Cushion, RH
79086B Pad Sub-assy, NO.8 Seat Cushion, LH
79087B Pad Sub-assy, NO.8 Seatback, RH
79088B Pad Sub-assy, NO.8 Seatback, LH
79097 Partition Sub-assy, Luggage Compartment Wall
79105 Leg Sub-assy, NO.1 Seat, RH
79105F Leg Sub-assy, NO.1 Seat, LH
79109 Board Sub-assy, NO.1 Seatback
79109C Board Sub-assy, NO.1 Seatback, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175 Pad, NO.1 Seatback
79175E Pad, NO.1 Seatback, RH
79180 Spring Assy, NO.1 Seatback
79180A Spring Assy, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79209 Board Sub-assy, NO.2 Seatback
79209B Board Sub-assy, NO.2 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79236D Cover, Rear Seat Leg, RH (FOR RH SEAT)
79245C Pad, NO.2 Seat Cushion, LH
79246D Cover, Rear Seat Leg, RH (FOR LH SEAT)
79275 Pad, NO.2 Seatback
79275C Pad, NO.2 Seatback, RH
79280 Spring Assy, NO.2 Seatback
79280A Spring Assy, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79290A Spring Assy, NO.2 Seatback, LH
79305 Leg Sub-assy, NO.3 Seat
79305A Leg Sub-assy, NO.3 Seat, RH
79309 Board Sub-assy, NO.3 Seatback
79309D Board Sub-assy, NO.3 Seatback, LH
79335A Pad, NO.3 Seat Cushion, RH
79345A Pad, NO.3 Seat Cushion, LH
79375 Pad, NO.3 Seatback
79375A Pad, NO.3 Seatback, RH
79380 Spring Assy, NO.3 Seatback
79380A Spring Assy, NO.3 Seatback, RH
79385A Pad, NO.3 Seatback, LH
79390A Spring Assy, NO.3 Seatback, LH
79406A Leg Sub-assy, NO.4 Seat, LH
79409B Board Sub-assy, NO.4 Seatback, LH
79445 Pad, NO.4 Seat Cushion, LH
79475 Pad, NO.4 Seatback
79480 Spring Assy, NO.4 Seatback
79485 Pad, NO.4 Seatback, LH
79490A Spring Assy, NO.4 Seatback, LH
79805 Leg Sub-assy, NO.8 Seat, RH
79806A Leg Sub-assy, NO.8 Seat, LH
79880B Spring Assy, NO.8 Seatback, RH
79890B Spring Assy, NO.8 Seatback, LH
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79956G Cover, NO.3 Seat Leg Side, RH
79956H Cover, NO.3 Seat Leg Side, LH
79956S Cover, Rear Seat Leg Side
79956U Cover, Rear Seat Leg Side
79965 Cover, Rear Seat Leg Side, NO.2
79965A Cover, Rear Seat Leg Side, NO.2
79965B Cover, Rear Seat Leg Side, NO.2
79965C Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
