Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

27 part groups · 3 illustrations

Illustrations

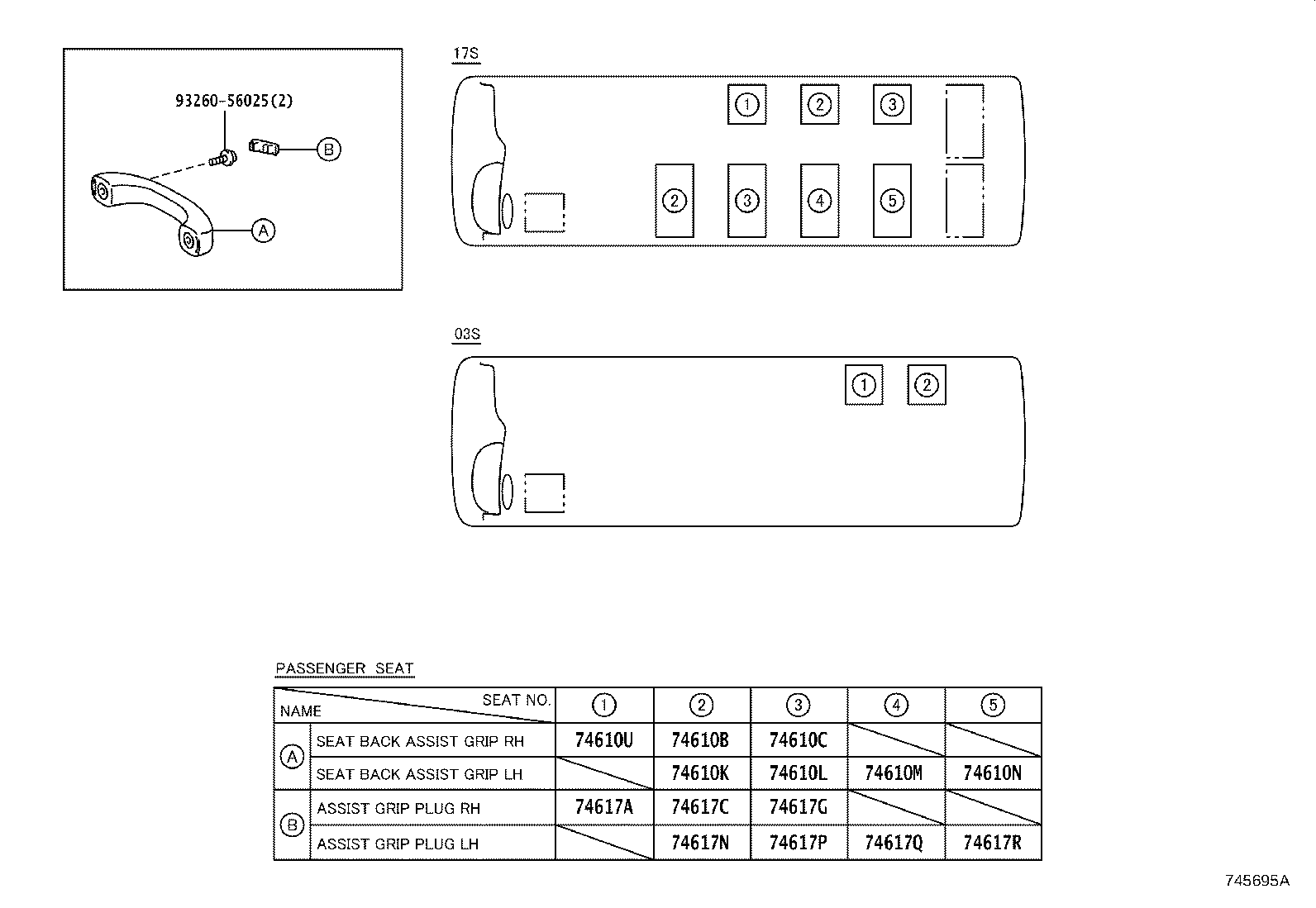

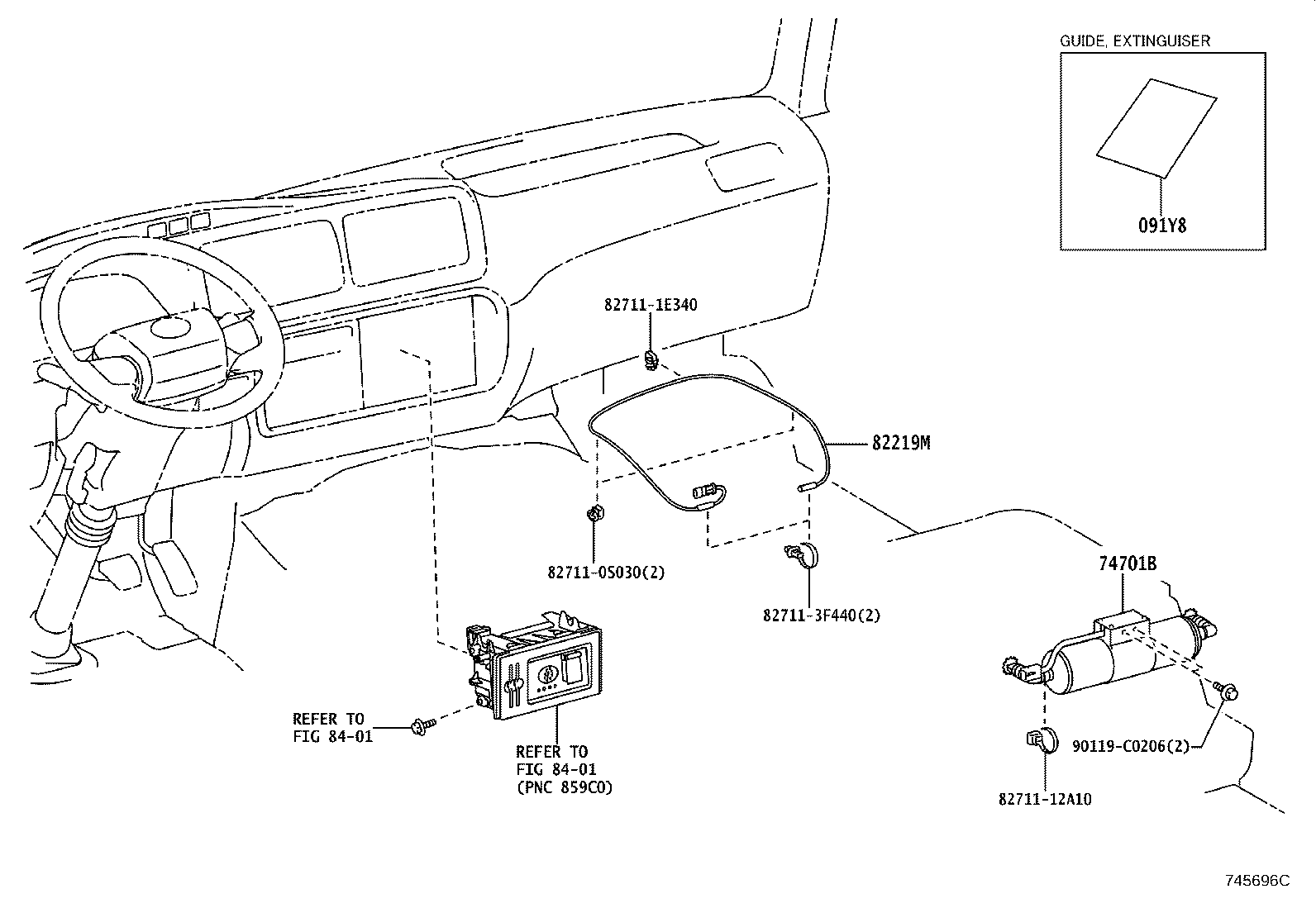

Figure 745694 745694 2021-08 → — Figure 745695A 745695A 2021-08 → — Figure 745696C 745696C 2021-08 → —

Part groups

PNCDescription
091Y8 Guide, Extinguisher
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74603 Grip Sub-assy, Assist, Front
74610B Grip Assy, Assist, NO.2 RH
74610C Grip Assy, Assist, NO.3 RH
74610K Grip Assy, Assist, NO.2 LH
74610L Glip Assy, Assist, NO.3 LH
74610M Grip Assy, Assist, NO.4 LH
74610N Grip Assy, Assist, NO.5 LH
74610U Grip Assy, Assist
74611B Grip, Assist
74613 Plug, Assist Grip
74615E Plug, Front Assist Grip, NO.1 RH
74616C Plug, Front Assist Grip, NO.1 LH
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617G Plug, Assist Grip, NO.3 RH
74617N Plug, Assist Grip, NO.2 LH
74617P Plug, Assist Grip, NO.3 LH
74617Q Plug, Assist Grip, NO.4 LH
74617R Plug, Assist Grip, NO.5 LH
74701B Extinguisher Sub-assy
74710A Bracket, Extinguisher
74711 Bracket Sub-assy, Extinguisher
74711A Extinguisher
82219M Wire, Thermosensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
