Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

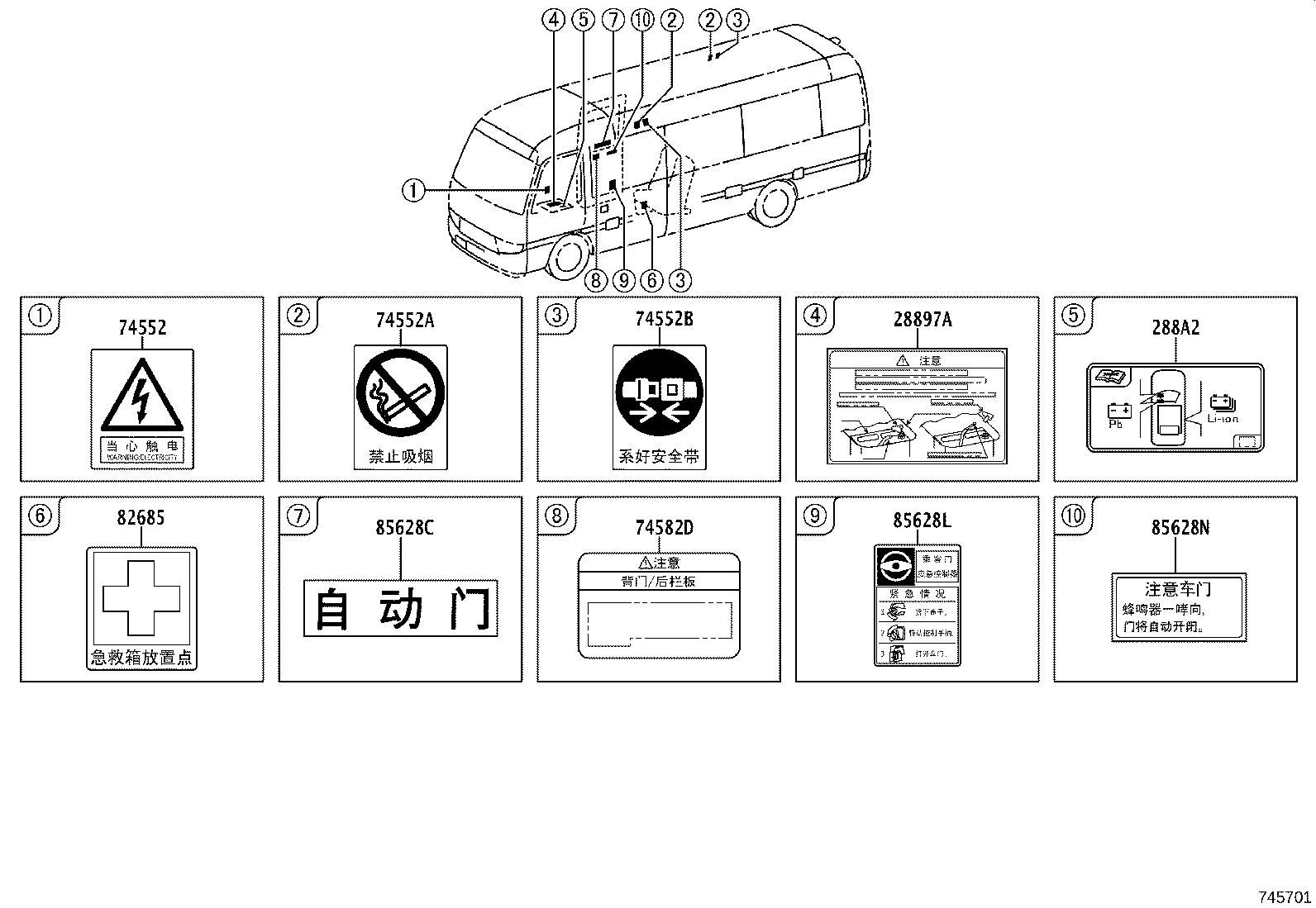

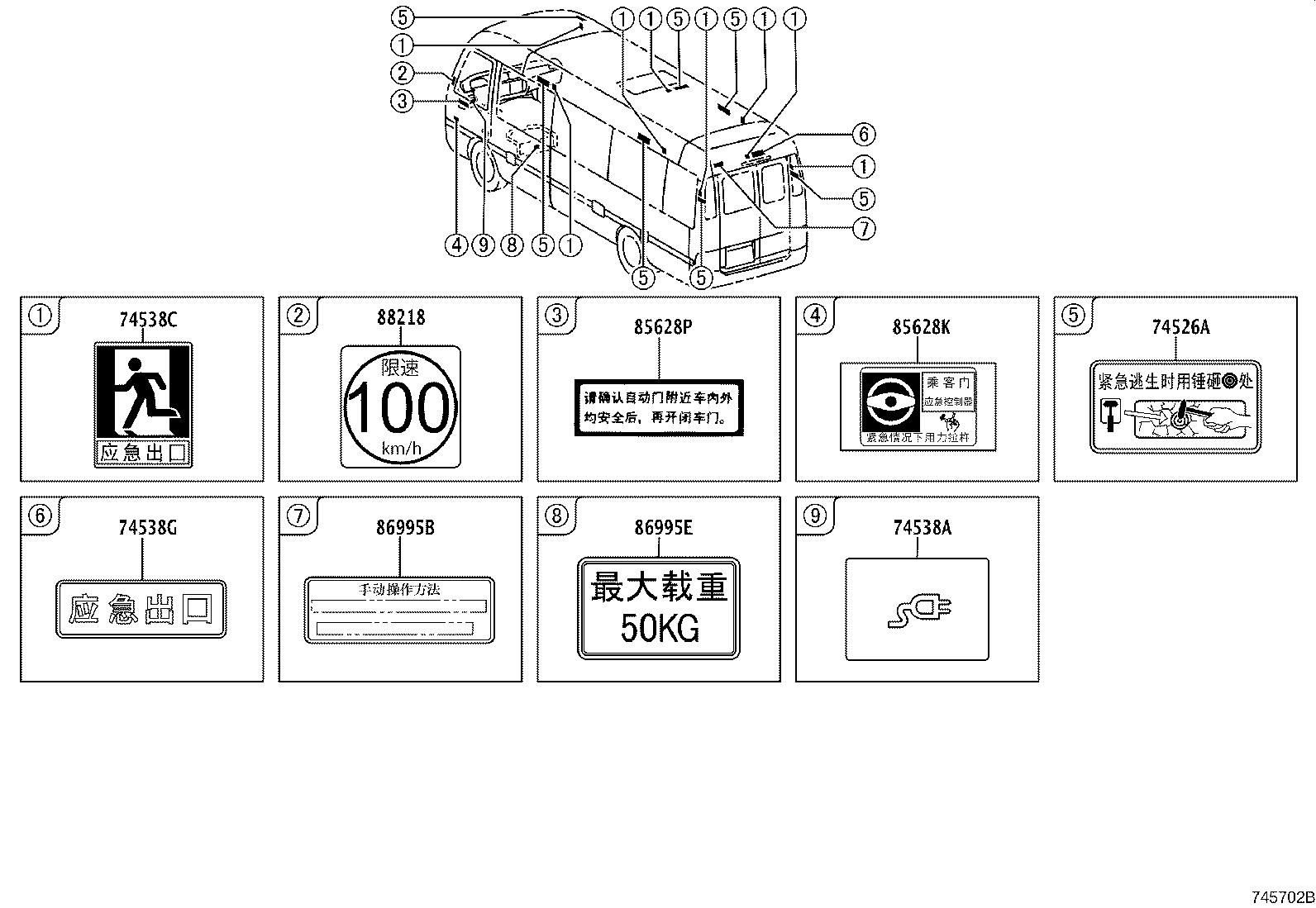

Caution Plate
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28897A | Plate, Battery Caution |
| 288A2 | Label, Battery Location |
| 74511G | Label, Name |
| 74526A | Plate, Emergency Hammer Caution |
| 74538A | Plate, Air Cleaner Inlet Operational Caution |
| 74538C | Label, Emergency Exit Caution |
| 74538F | Label, Emergency Exit Caution, NO.2 |
| 74538G | Label, Emergency Exit Caution, NO.3 |
| 74541 | Plate, Tire Pressure Caution |
| 74552 | Plate, Safety Caution |
| 74552A | Label, Safety Caution |
| 74552B | Label, Safety Caution |
| 7455A | Label, Carry-on Baggage Information |
| 74582D | Label, Safety Caution |
| 74719A | Label, Extinguisher Notice |
| 77A61 | Label, Hydrogen Tank Pressure Information |
| 82685 | Plate, Caution |
| 85628C | Label, Automatic Door |
| 85628K | Label, Automatic Door, NO.1 |
| 85628L | Label, Automatic Door, NO.2 |
| 85628M | Label, Automatic Door, NO.3 |
| 85628N | Label, Automatic Door, NO.4 |
| 85628P | Label, Automatic Door, NO.5 |
| 86995B | Plate, Caution |
| 86995E | Label, Caution |
| 88218 | Label, Speed Governor Information |
| 88723H | Label, Cooler Service Caution |
| 89712A | Label, Seat Control Information |
| C6185A | Label, Wheel Chair Holder Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
