Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05
Battery & Battery Cable
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800A | Terminal, Battery Positive |
| 28800F | Cable, Battery TO Battery |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 28885 | Hose, Battery Room Ventilation |
| 28885A | Hose, Battery Room Ventilation |
| 28897D | Label, Battery Caution |
| 82675D | Terminal, Junction |
| 82821K | Cover, Connector |

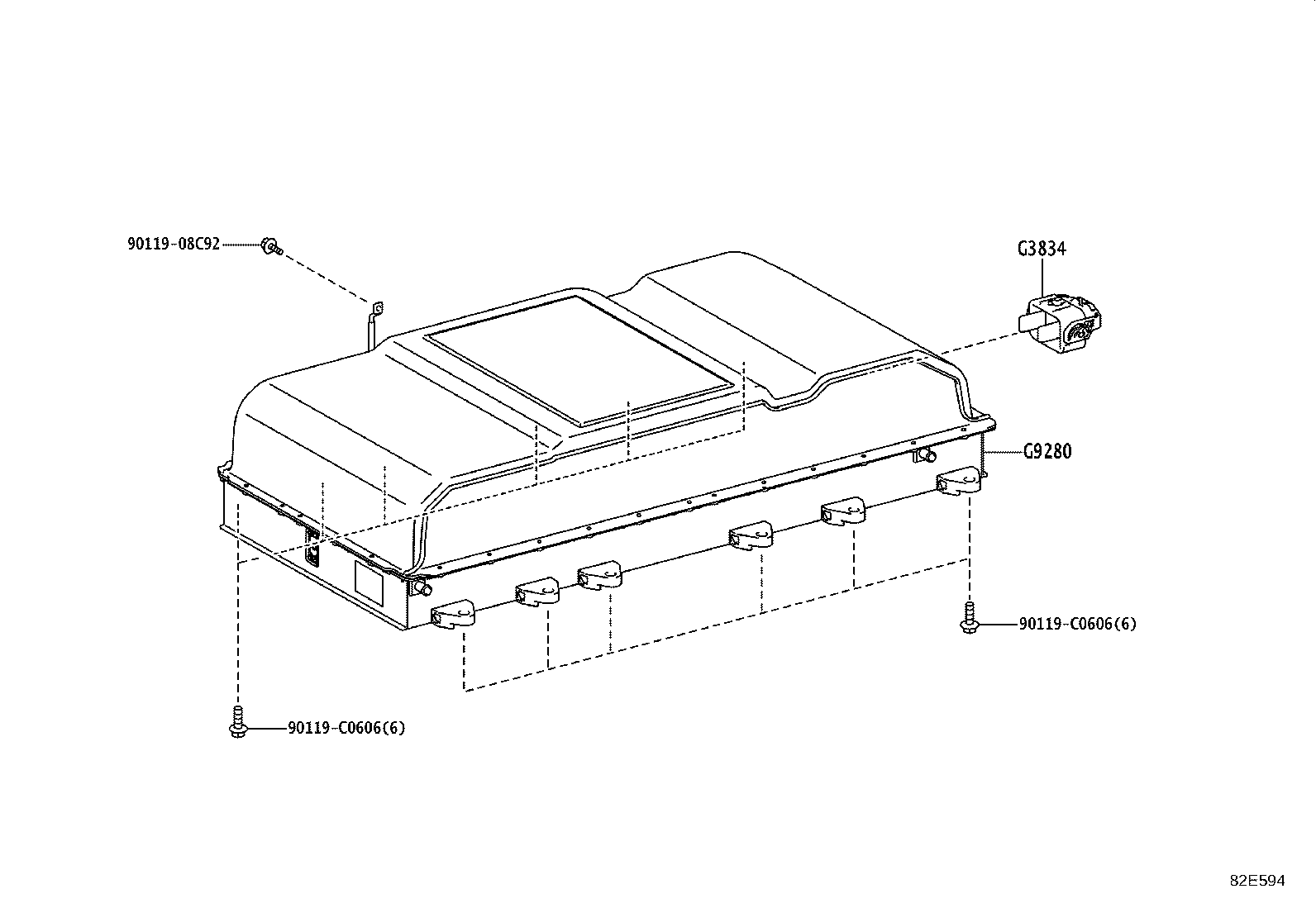

| G3834 | Grip, Service Plug |
| G9280 | Battery Assy, EV, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
