Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 9 illustrations

Illustrations

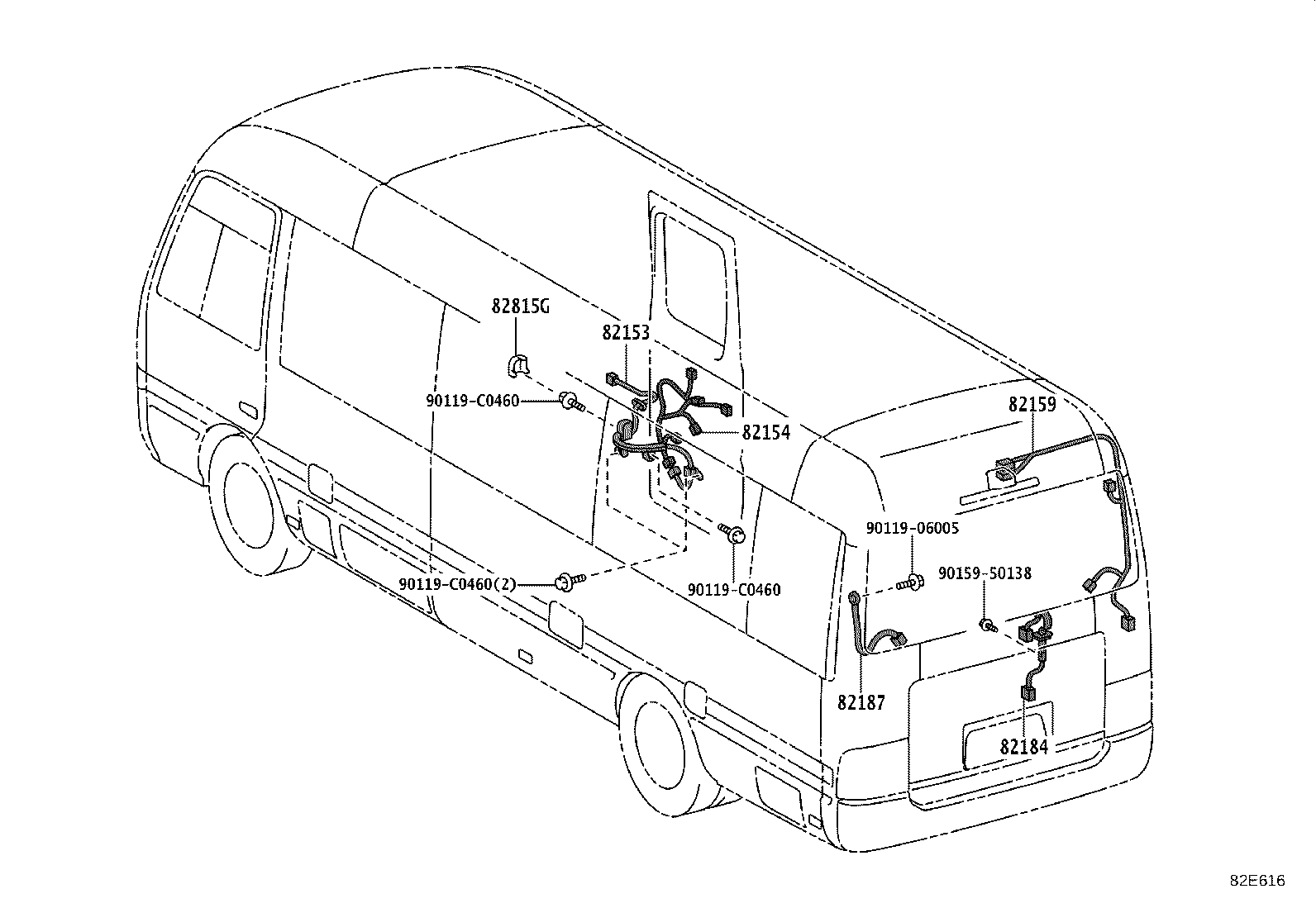

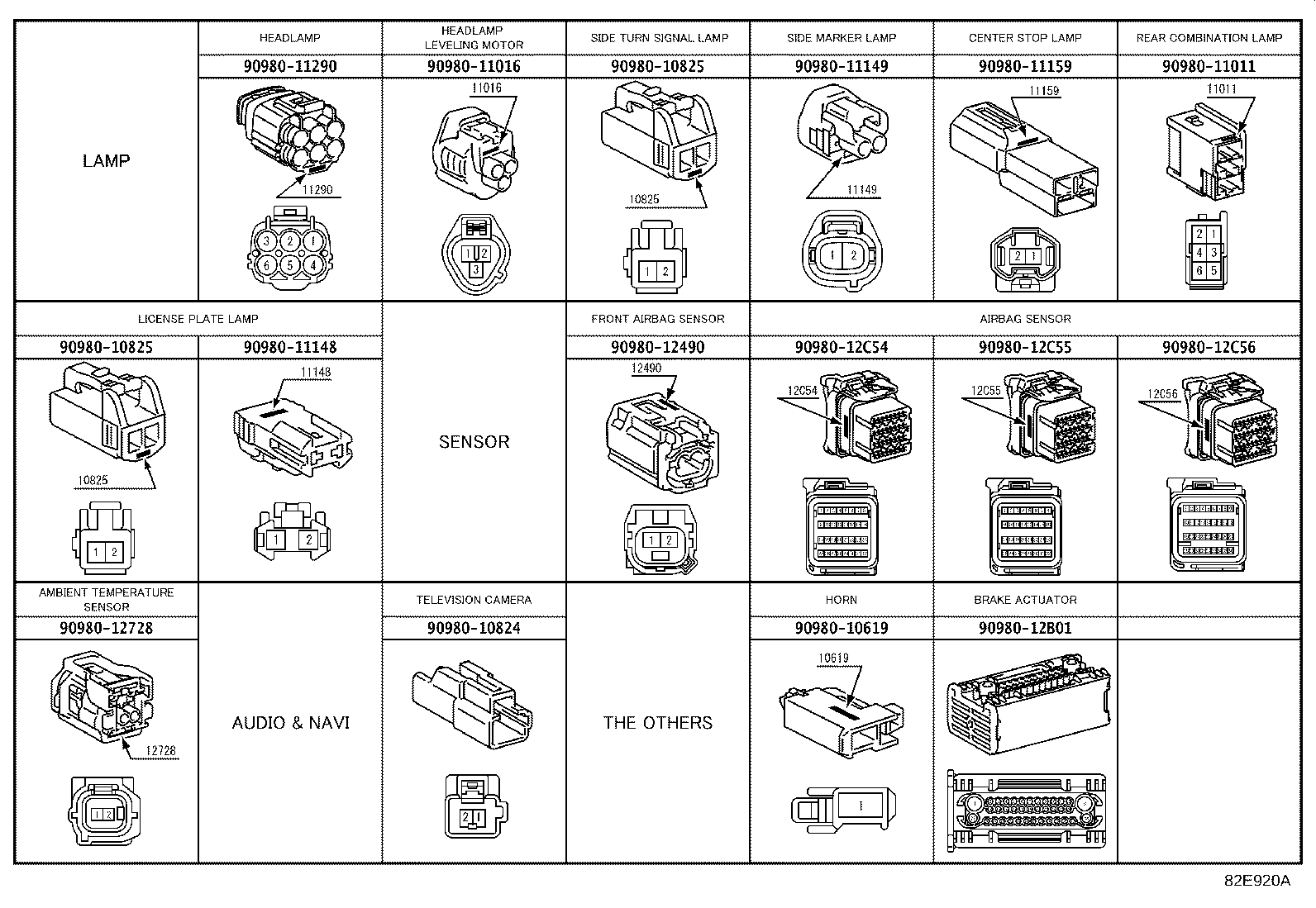

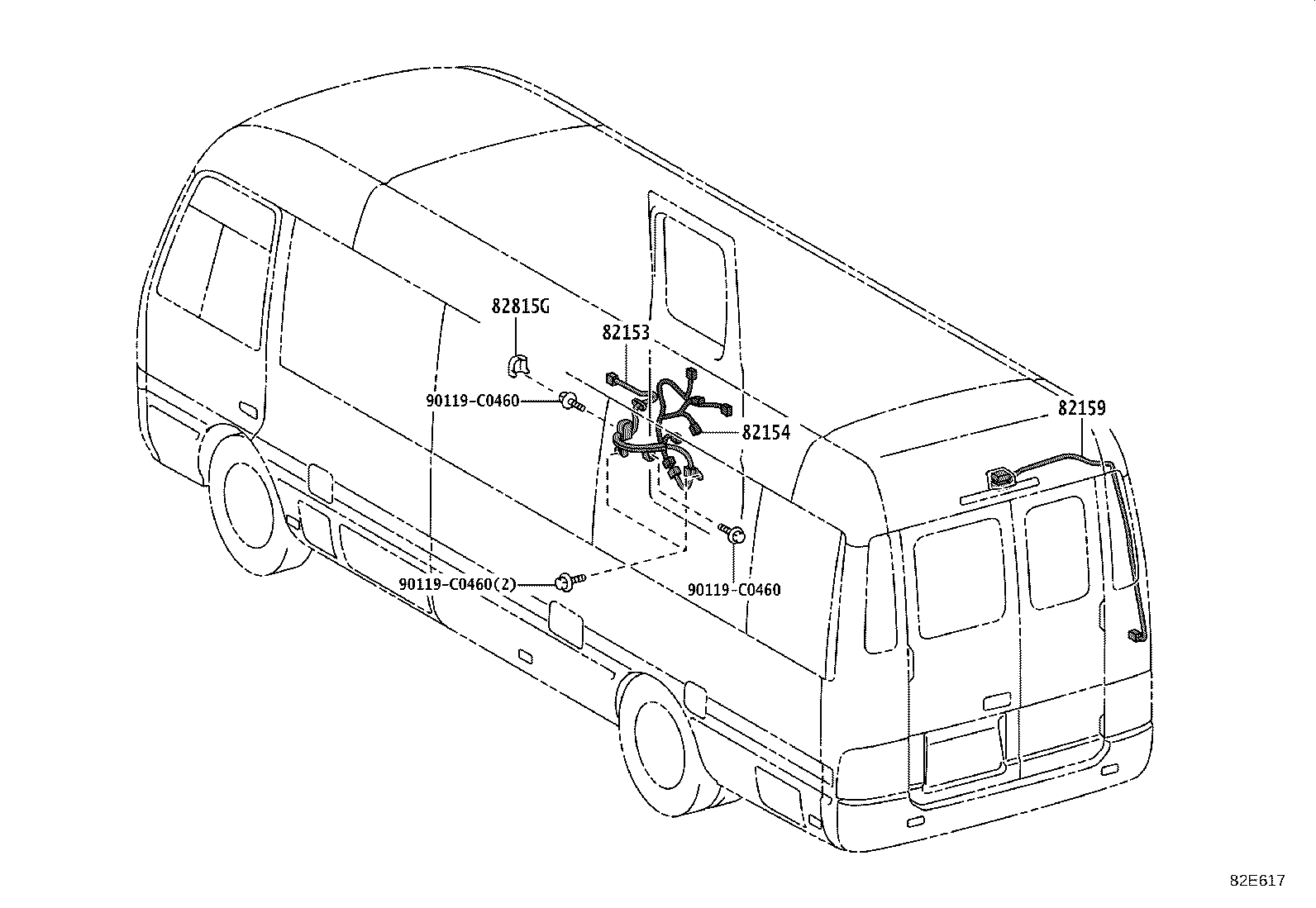

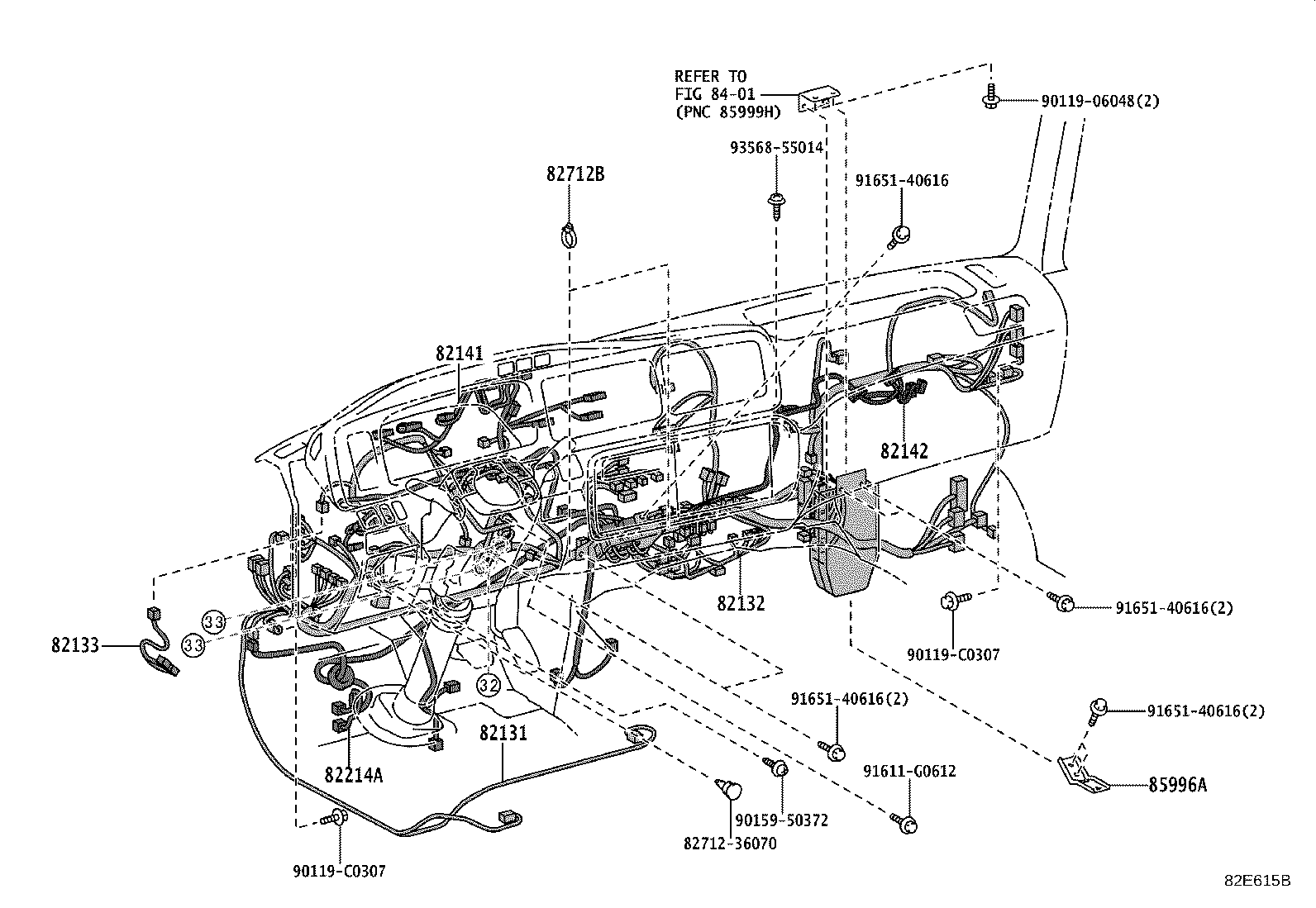

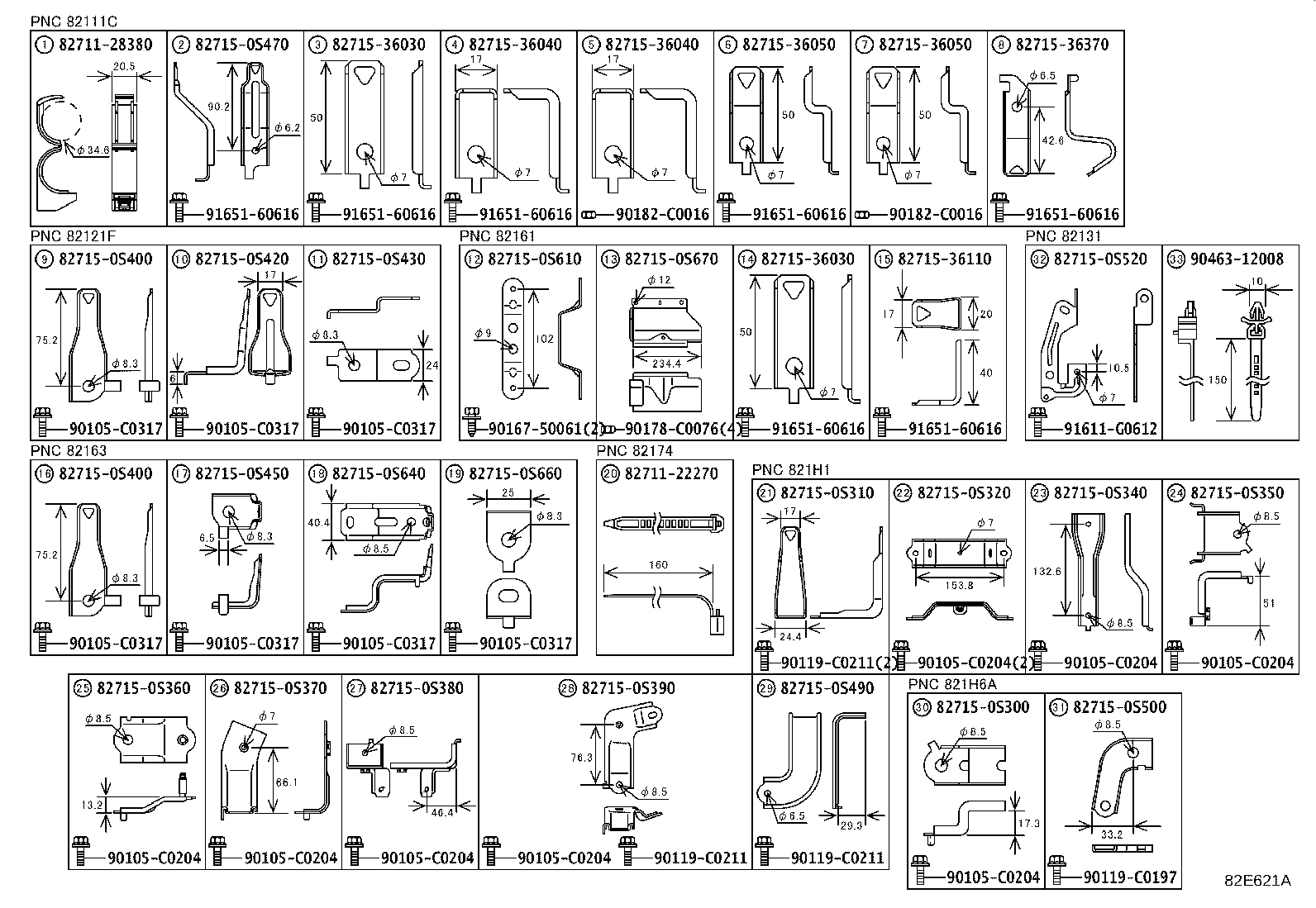

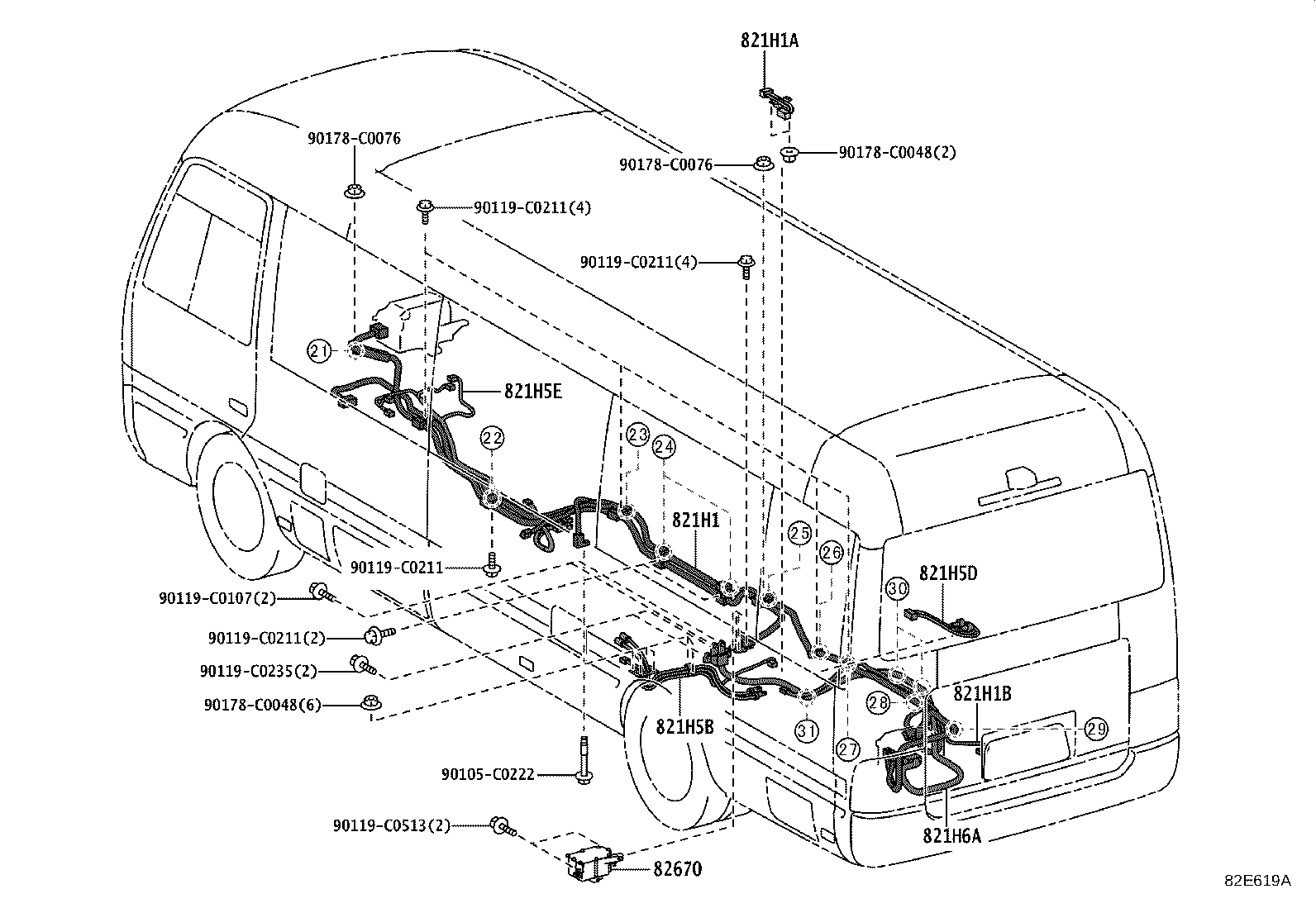

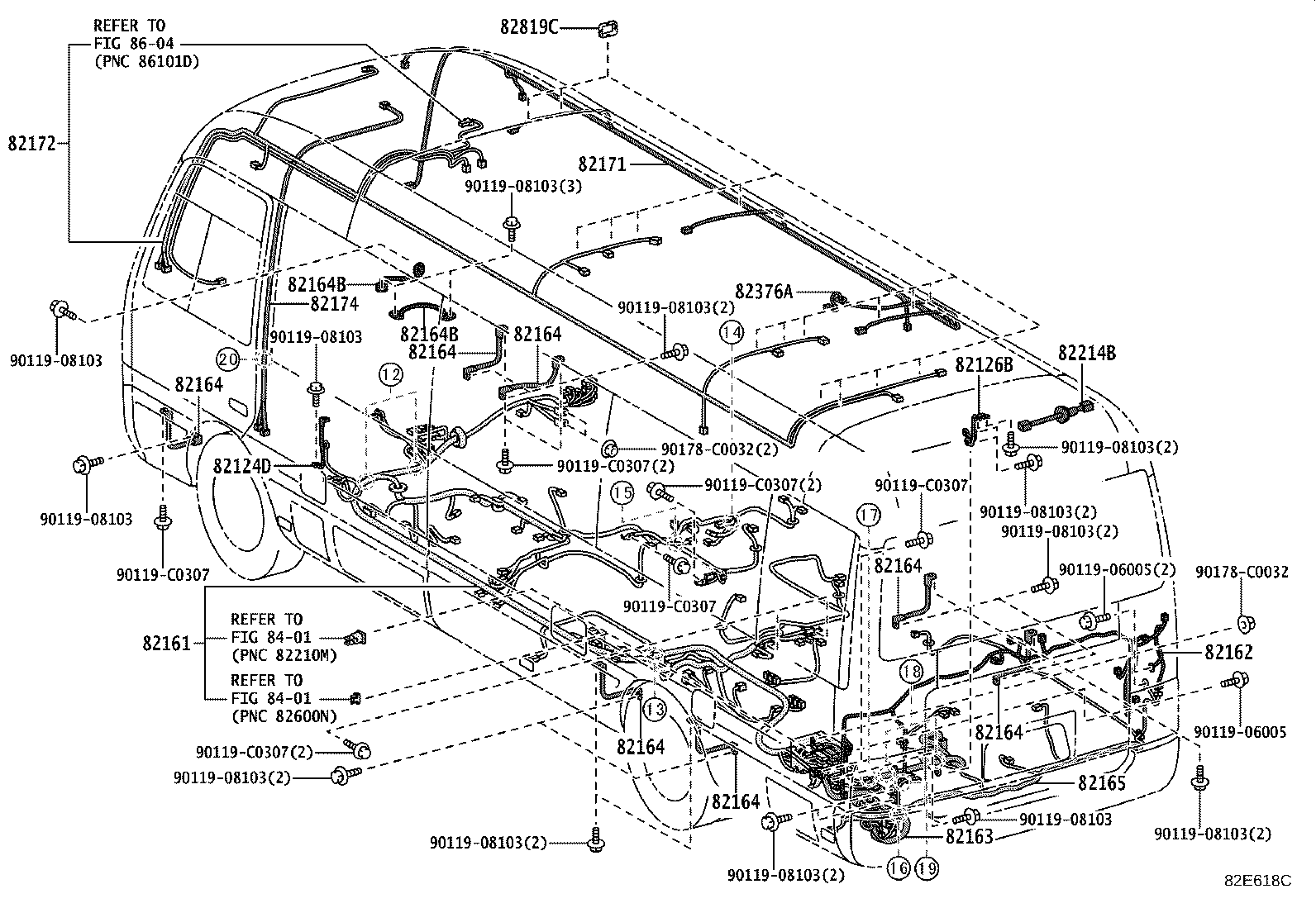

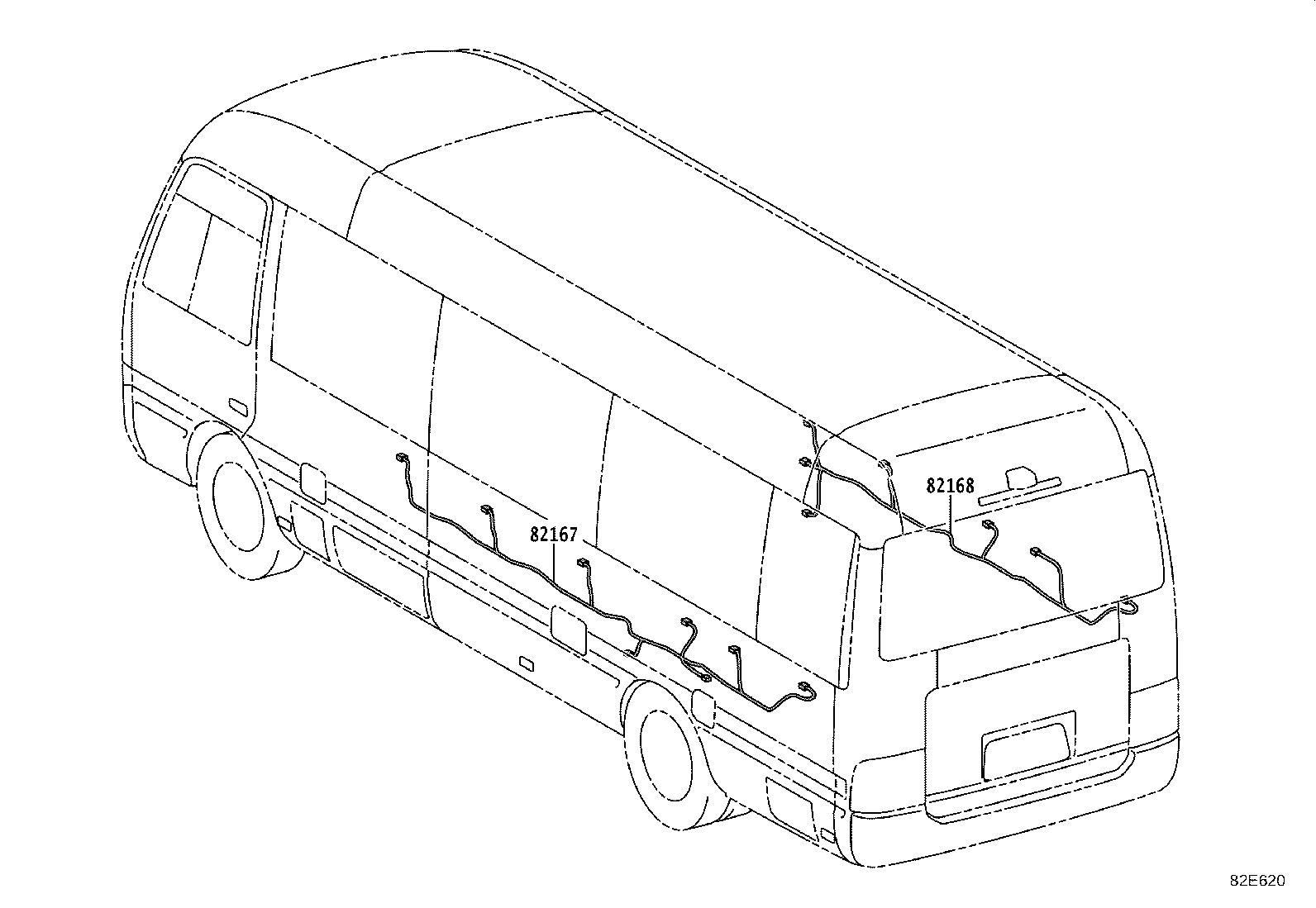

Figure 82E614A 82E614A 2021-08 → — Figure 82E615B 82E615B 2021-08 → — Figure 82E616 82E616 2021-08 → — Figure 82E617 82E617 2021-08 → — Figure 82E618C 82E618C 2021-08 → — Figure 82E619A 82E619A 2021-08 → — Figure 82E620 82E620 2021-08 → — Figure 82E621A 82E621A 2021-08 → — Figure 82E920A 82E920A 2021-08 → —

Part groups

PNCDescription
44580D Wire Assy, Brake Actuator
82111C Wire, Front Compartment, Main
82121F Wire, Stack
82124D Wire, Stack, NO.4
82126B Wire, Stack, NO.6
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82164B Wire, Frame, NO.2
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82174 Wire, Roof, NO.4
82184 Wire, Back Door, NO.1
82187 Wire, Rear Window, NO.2
821H1 Wire, Floor Under
821H1A Wire, Floor Under, NO.3
821H1B Wire, Floor Under, NO.4
821H5B Wire, EV Battery Charger
821H5D Wire, EV Battery Charger, NO.2
821H5E Wire, EV Battery Charger, NO.3
821H6A Wire, Floor Under, NO.2
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82376A Wire, Auto Fan
82670 Block Assy, Junction, NO.1
82712B Support, Wiring Harness
82815G Cover, Wiring Harness Protector NO.5
82819C Grommet, Wiring Harness
85996A Bracket, Relay, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
