Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

153 part groups · 9 illustrations

Illustrations

Part groups

PNC	Description

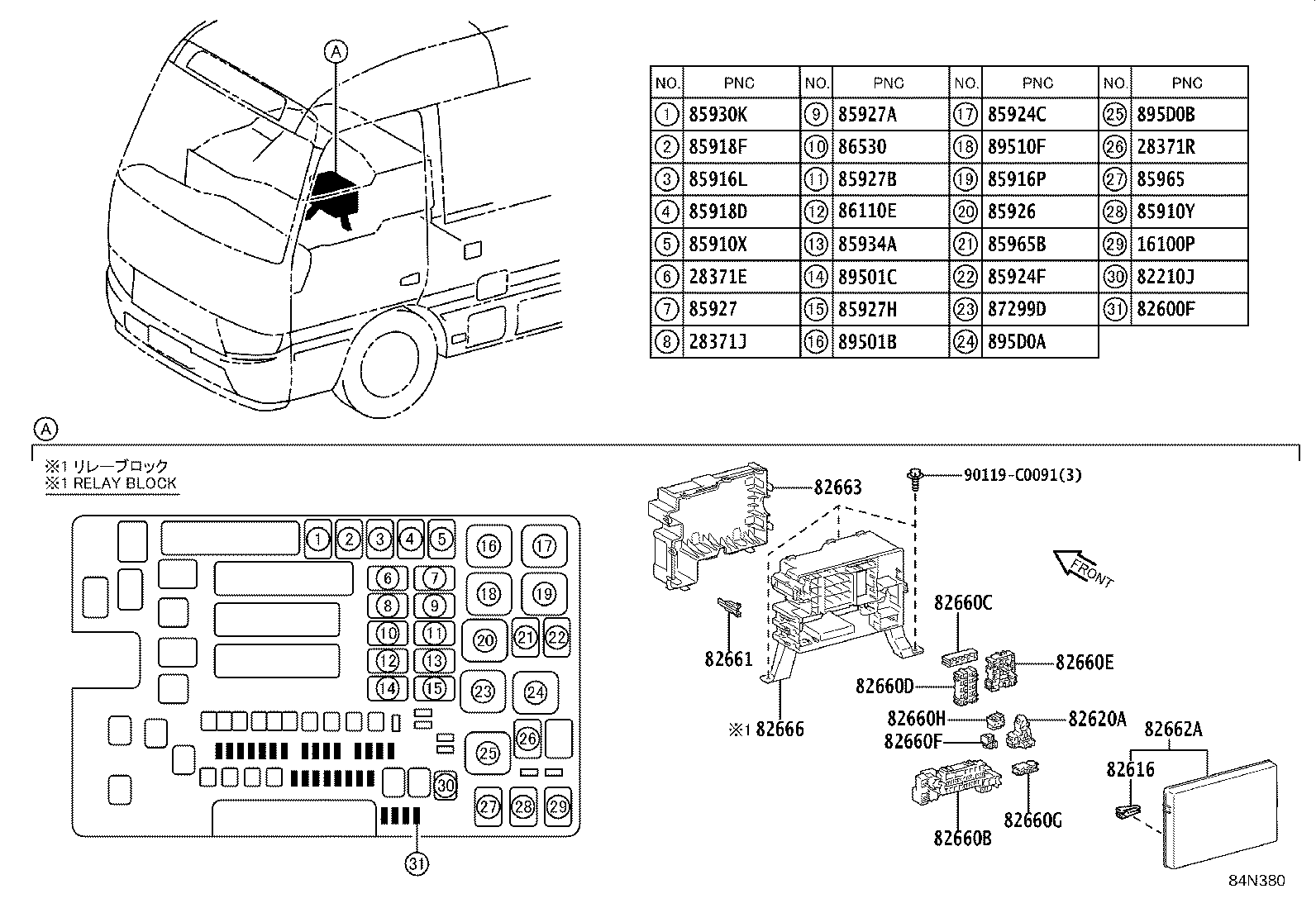

16100P	Relay, Water Pump

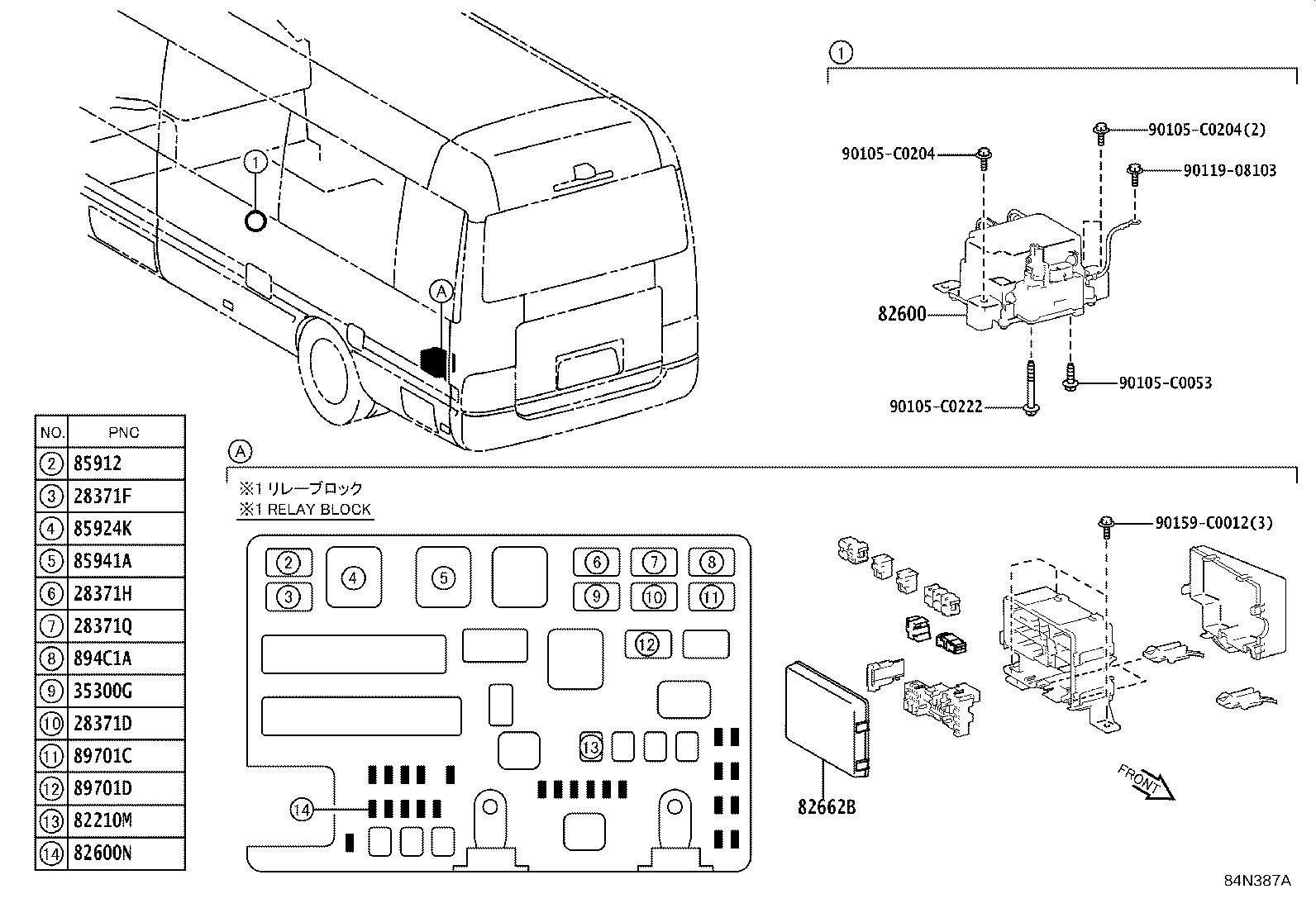

28371D	Relay, Ignition, NO.3
28371E	Relay, Ignition, NO.4
28371F	Relay, Ignition, NO.5
28371H	Relay, Ignition, NO.6
28371J	Relay, Igb
28371Q	Relay, Ignition 2, NO.2
28371R	Relay, Ignition 2, NO.3
35300G	Relay, Oil Pump
82210J	Fusible Link
82210M	Fusible Link
82600	Block Assy, Fuse

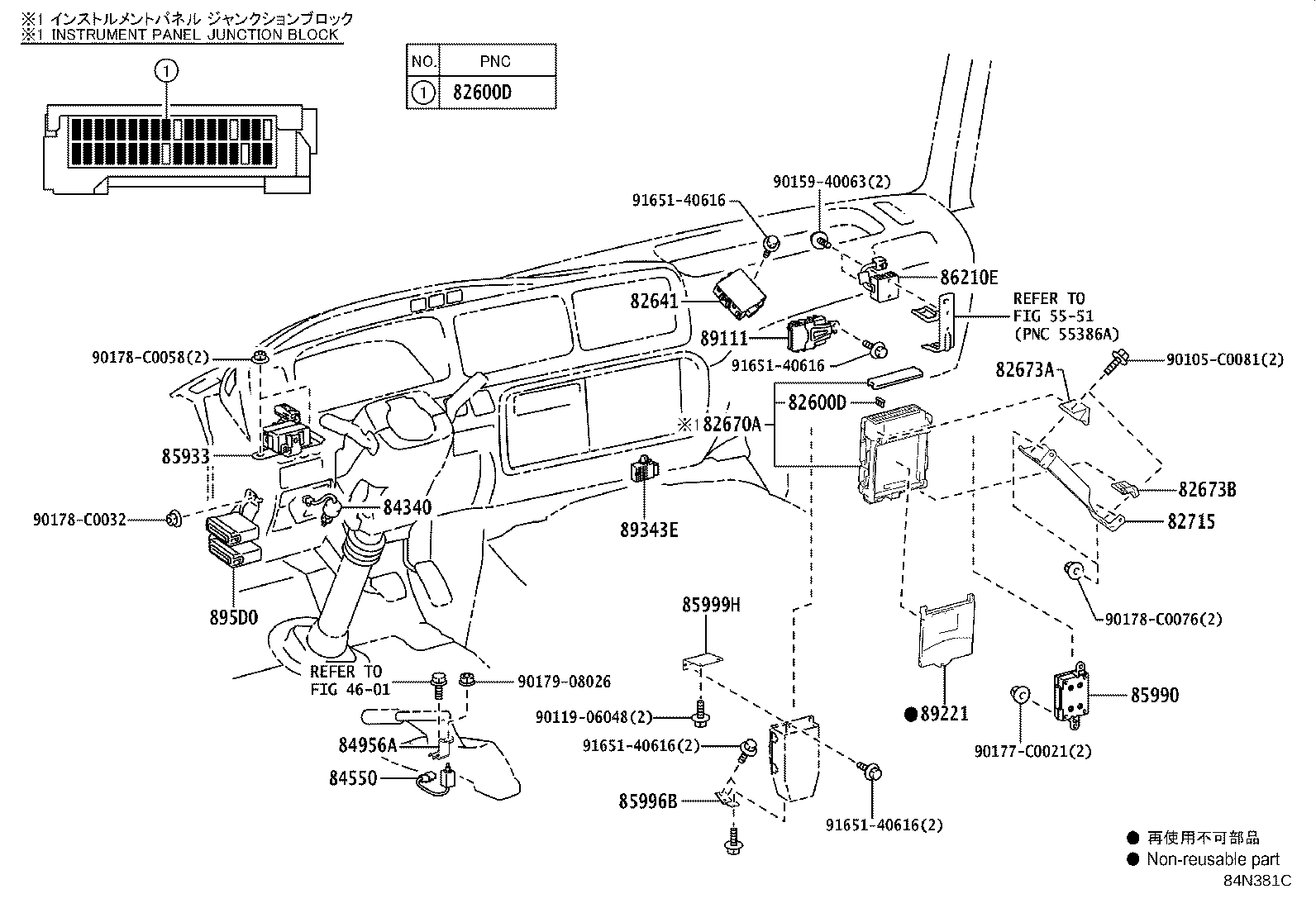

82600D	Instrument Panel Fuse
82600F	Fuse, Fuse Block
82600N	Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82641	Relay, Integration NO.1

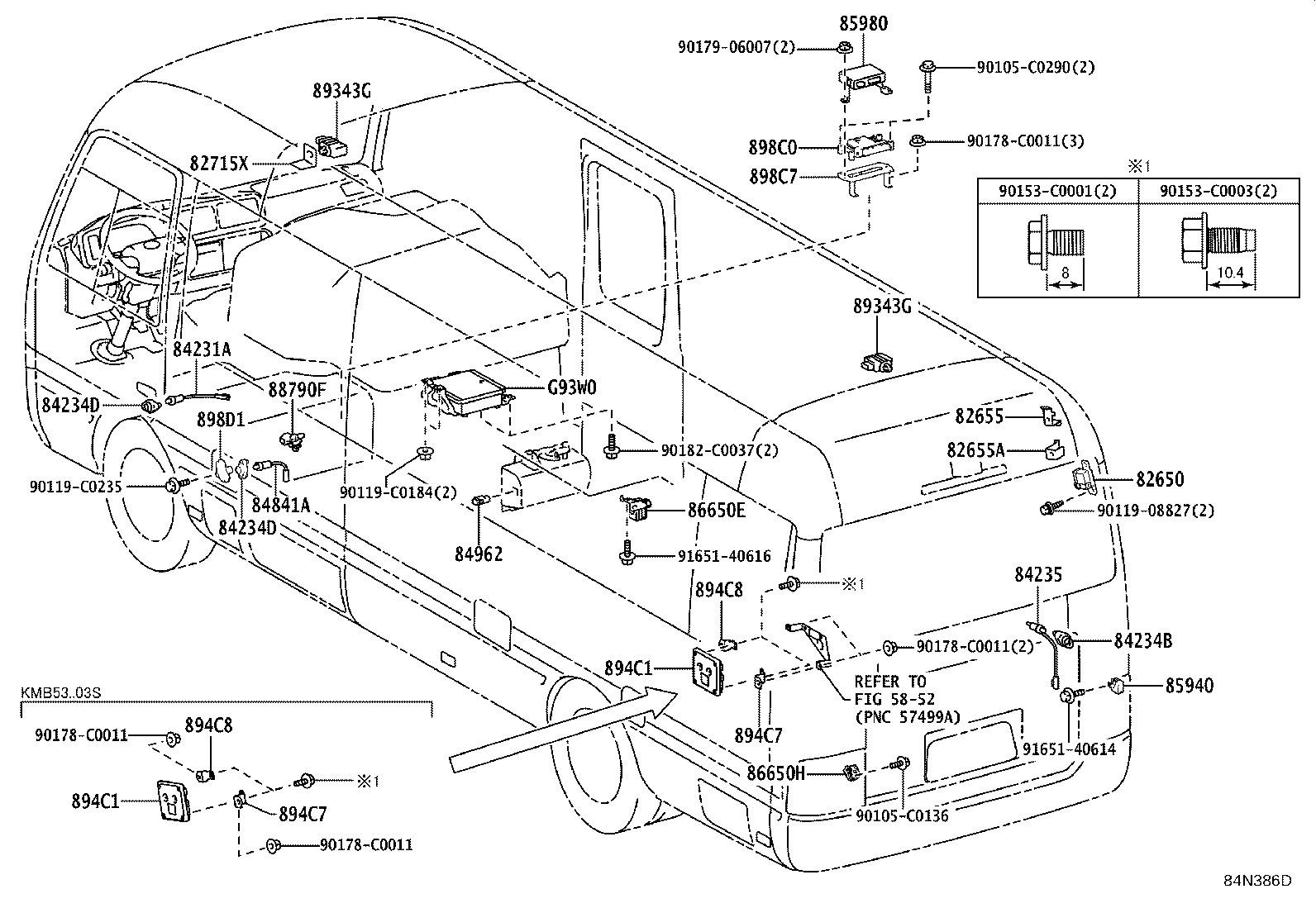

82650	Breaker Assy, Wiring Circuit, NO.1
82655	Bracket, Curcuit Breaker
82655A	Bracket, Circuit Breaker, NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660G	Block Assy, Relay
82660H	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82666	Holder, Connector
82670A	Block Assy, Junction, NO.1
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82715X	Bracket, Wiring Harness Clamp, NO.2
83390	Switch Assy, Vacuum Warning

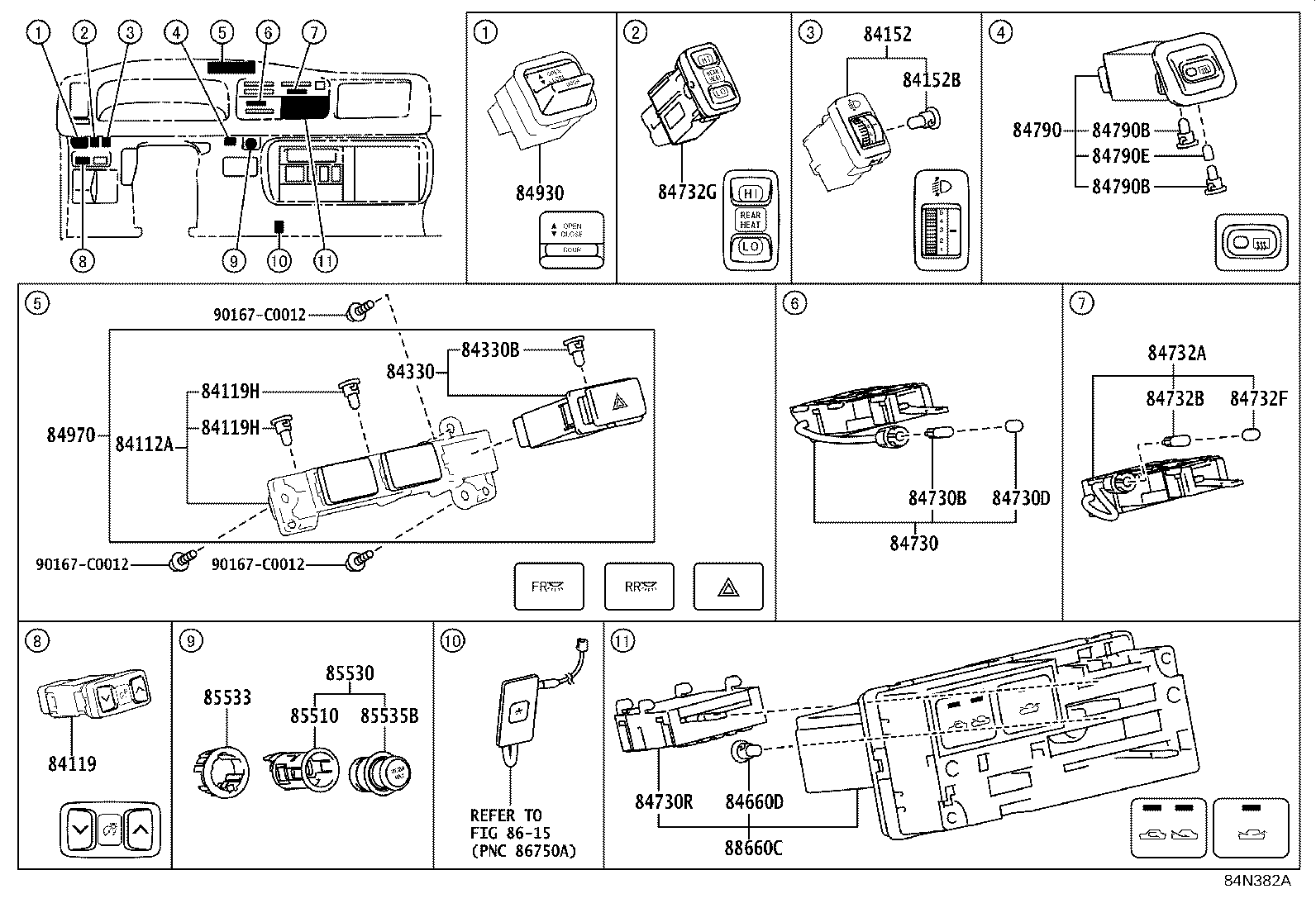

84112A	Switch, Light Control
84119	Rheostat, Light Control
84119H	Blub, NO.1

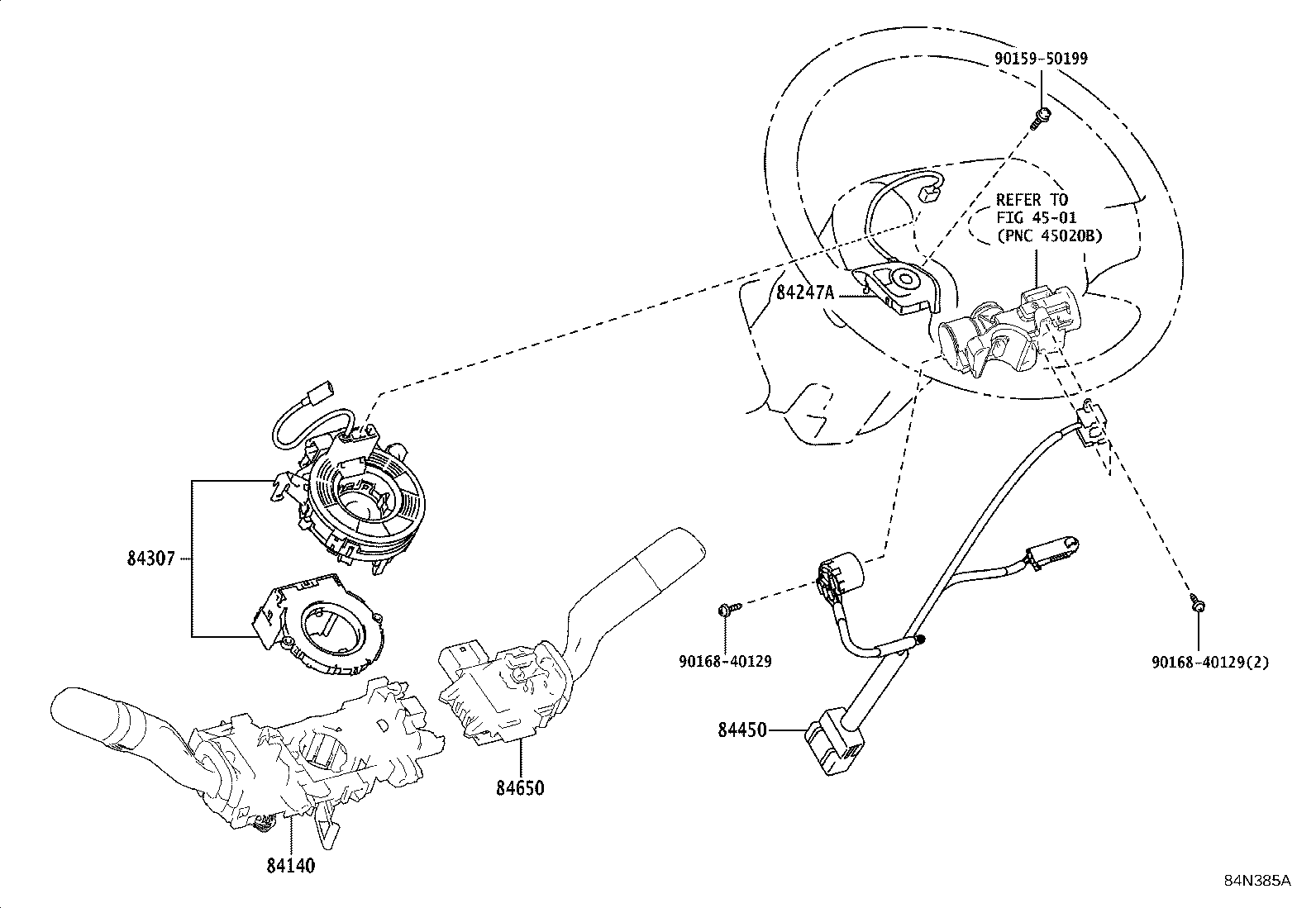

84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84152B	Bulb (FOR HEADLAMP LEVELING SWITCH)

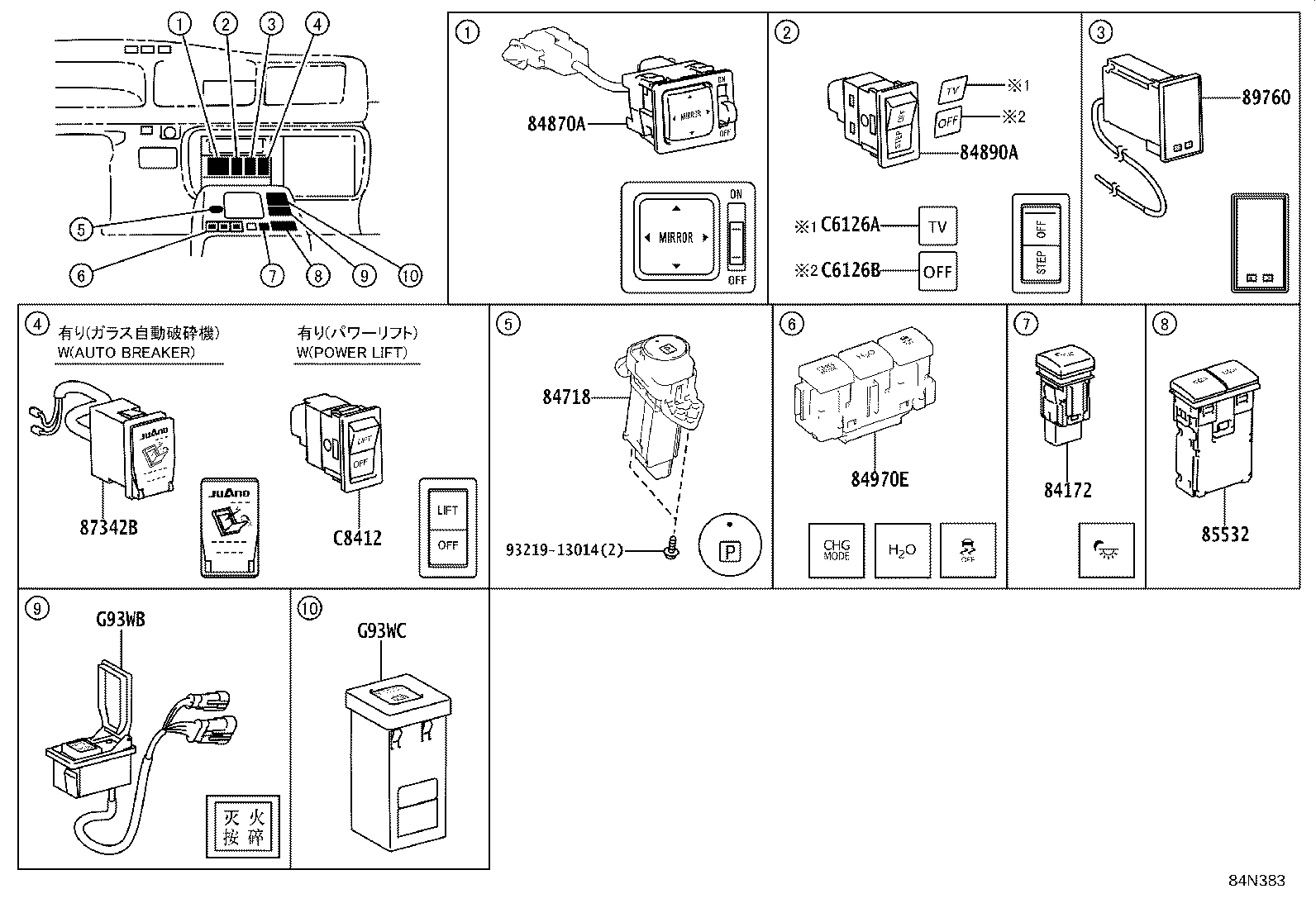

84172	Switch, Room Lamp
84231A	Switch, Courtesy Lamp
84234B	Cushion, Courtesy Switch (FOR REAR DOOR)
84234D	Cushion, Courtesy Switch
84235	Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84247A	Switch, Steering Pad, LH
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84330B	Bulb, Hazard Warning Signal Switch
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84660D	Bulb(FOR COOLER SWITCH)
84718	Switch, Transmission Shift Main
84730	Switch Assy, Heater Blower
84730B	Bulb, Heater Blower Switch
84730D	Cap, Heater Blower Switch Bulb
84730R	Switch Assy, Heater Blower
84732A	Switch, Rear Heater Blower
84732B	Bulb, Rear Heater Blower Switch
84732F	Cap, Rear Heater Blower Switch
84732G	Switch, Ventilator
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84790E	Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84890A	Switch, Large Monitor
84930	Switch Assy, Door Control
84956A	Bracket, Hand Brake Signal Switch
84962	Switch, Power Slide Door Main
84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
85510	Socket & Retainer Assy, Cigarlighter
85530	Socket Assy, Power Outlet, NO.1
85532	Socket, Usb Charger
85533	Lens, Cigarette Lighter Indicator
85535B	Cover, Power Outlet Socket, NO.1
85910X	Relay, Heater Mirror
85910Y	Relay, Rear Heater
85912	Relay, Defogger
85916L	Relay, Rear Fog Lamp
85916P	Relay, Headlamp
85918D	Relay, Auto Courtesy
85918F	Relay, Auto Door
85924C	Relay, Igct
85924F	Relay, FC Ignition Control
85924K	Relay, Igct, NO.2
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85927H	Relay, Condenser Fan, NO.2
85930K	Relay, Acc, NO.2
85933	Computer, Shift Lock Control
85934A	Relay Condenser Fan
85940	Relay Assy, Windshield Wiper
85941A	Relay, Rear Windshield Washer
85965	Relay, Room Lamp Control
85965B	Relay, Room Lamp Control (REAR)
85980	Relay Assy, Door Control
85990	Relay OR Computer Assy, Seat Belt Warning
85996B	Bracket, Relay, NO.2
85999H	Bracket, Relay

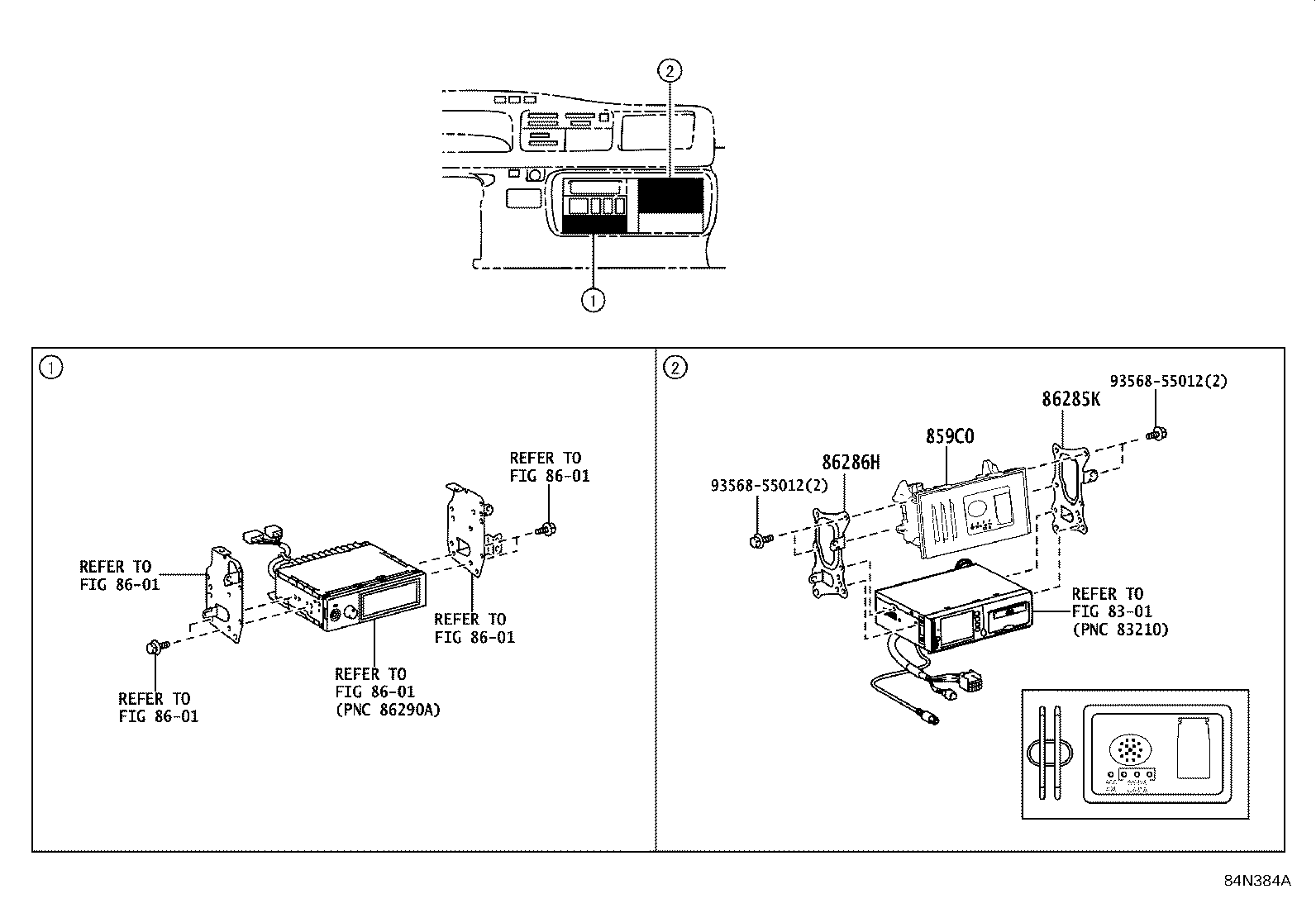

859C0	Computer Assy, Extinguisher Controller
86110E	Relay, Monitor
86210E	Converter Assy, Voltage
86285K	Bracket, Amplifier, NO.1
86286H	Bracket, Amplifier, NO.2
86530	Relay Assy, Horn
86650E	Buzzer Assy
86650H	Buzzer Assy, Back
87299D	Relay, Front Heater
87342B	Switch, Emergency
88660C	Switch Assy, Cooler Control
88790F	Thermistor Assy
89111	Computer, Network Gateway
89221	Computer, Multiplex Network Body
89343E	Buzzer, Clearance Warning
89343G	Buzzer, Clearance Warning, NO.2
89422A	Sensor, Water Temperature
894C1	Computer, Shift Control
894C1A	Relay, Parking Control Motor, NO.1
894C7	Bracket, Shift Control Computer, NO.1
894C8	Bracket, Shift Control Computer, NO.2
89501B	Relay, FC Power, NO.1
89501C	Relay, FC Power, NO.2
89510F	Relay, Shutter Valve
895D0	Computer Assy, Electric Vacuum Pump
895D0A	Relay, Electric Vacuum Pump
895D0B	Relay, Electric Vacuum Pump, NO.2
89701C	Relay, Plug Lock, NO.1
89701D	Relay, Plug Lock, NO.2
89760	Computer Assy, Tire Pressure Control
898A1	Computer, FC Control
898A7	Bracket, FC Control Computer, NO.1
898A8	Bracket, FC Control Computer, NO.2
898C0	Computer Assy, Hydrogen Fuel Control
898C7	Bracket, Hydrogen Fuel Control Computer, NO.1
898D1	Transmitter, Hydrogen Fuel Control
C6126A	Label, Switch Notice
C6126B	Label, Switch Notice, NO.2
C8412	Switch, Power Lift Control
G4171	Sensor, FC Impact
G93W0	Extinguisher Assy, EV Battey
G93WB	Switch, EV Battey Extinguisher
G93WC	Alarmer, EV Battey Extinguisher

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
