Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

DC/DC Converter & Charger(BEV OR FCEV)

7 part groups · 3 illustrations

Illustrations

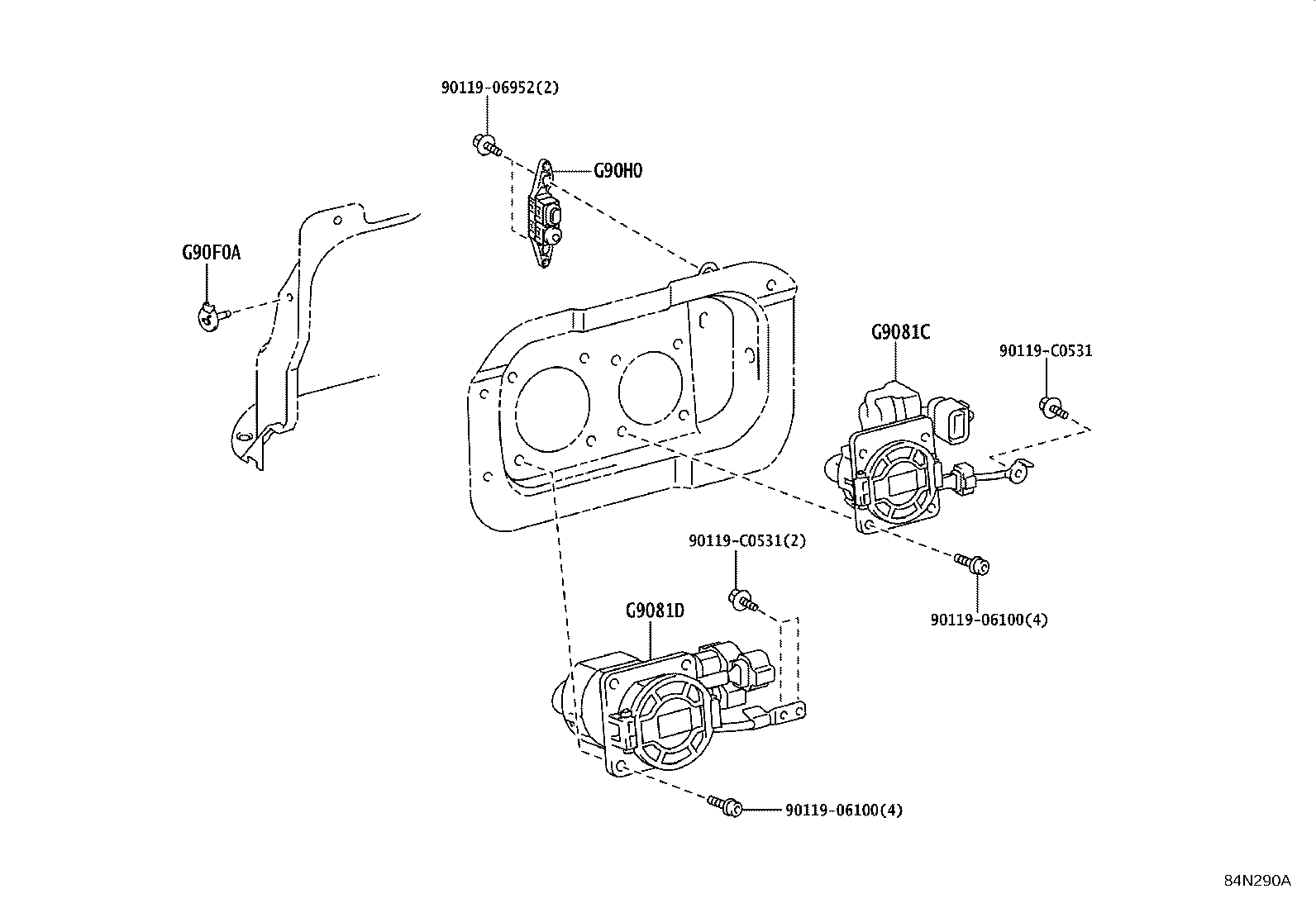

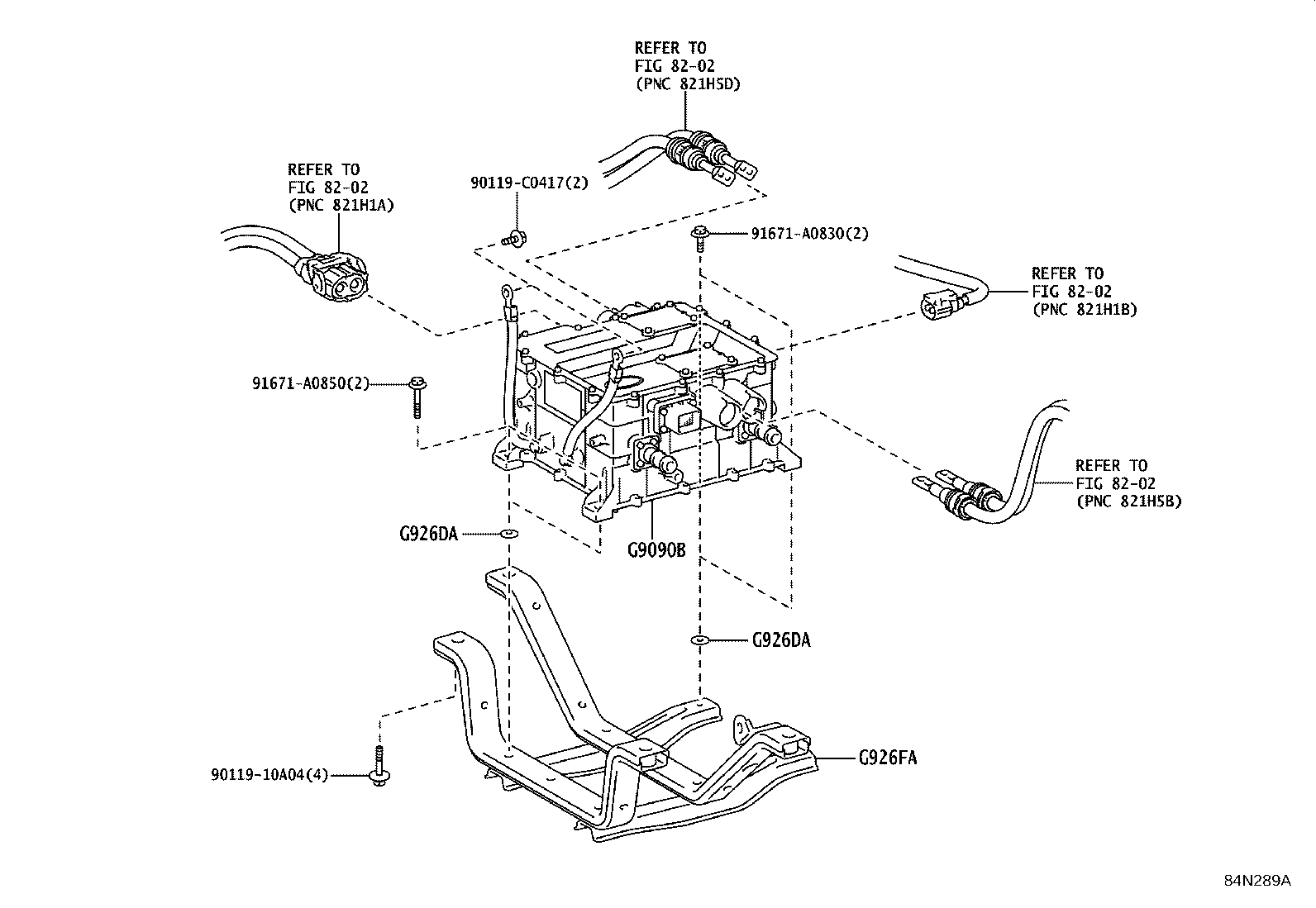

Figure 84N288 84N288 2021-08 → — Figure 84N289A 84N289A 2021-08 → — Figure 84N290A 84N290A 2021-08 → —

Part groups

PNCDescription
G9081C Cable, AC Charger Inlet
G9081D Cable, DC Charger Inlet
G9090B Charger Assy, Electric Vehicle
G90F0A Lock Assy, Cable EV Charger
G90H0 Indicator Assy, EV Charger Lid
G926DA Bracket, EV Charge Connector
G926FA Bracket, EV Charger Mount, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
