Toyota Coaster Fuelcell

2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fcev Intake & Exhaust

35 part groups · 3 illustrations

Illustrations

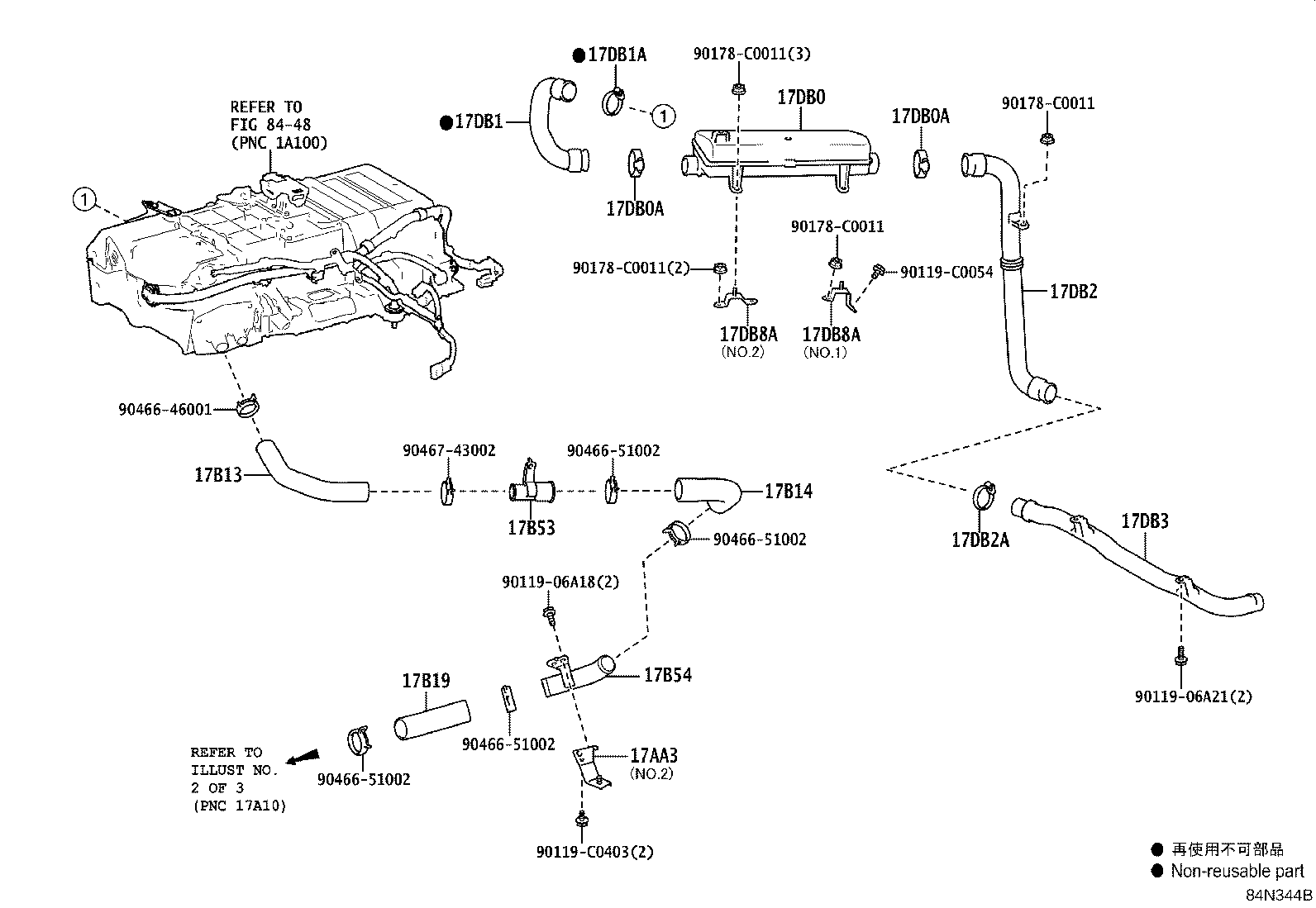

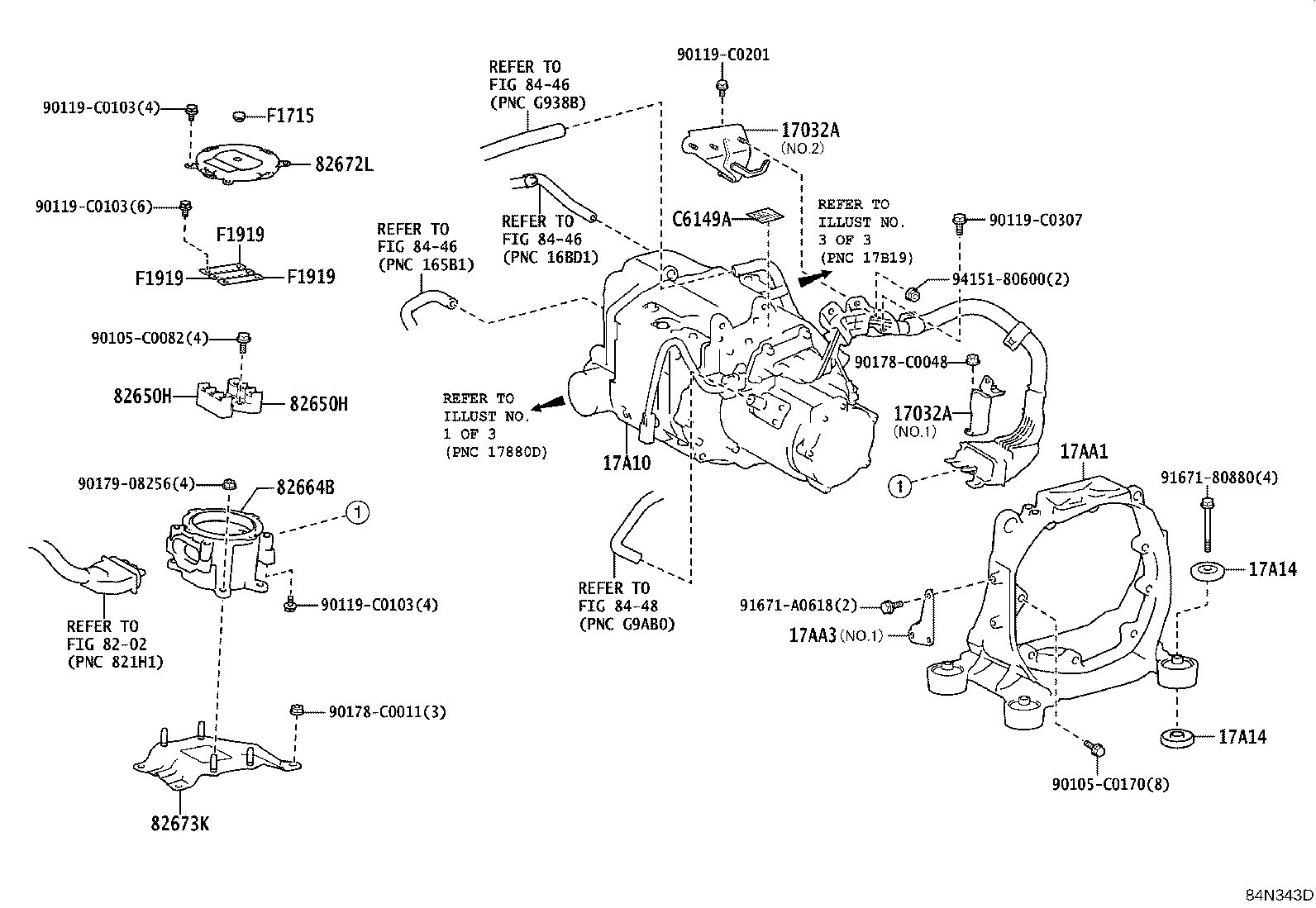

Figure 84N342A 84N342A 2021-08 → — Figure 84N343D 84N343D 2021-08 → — Figure 84N344B 84N344B 2021-08 → —

Part groups

PNCDescription
17032A Bracket Sub-assy, Air Valve
17080A Cleaner Assy, Air W/Air Flow Meter
17801C Element Sub-assy, Air Cleaner Filter
17841A Gasket, Filter Element
17845A Gasket, Air Cleaner Case
17880D Hose Assy, Air Cleaner
17880G Clamp, NO.1(FOR AIR CLEANER HOSE ASSY)
17880H Clamp, NO.2(FOR AIR CLEANER HOSE ASSY)
17A10 Compressor Assy, FC Air W/Motor
17A14 Insulator, FC Air Compressor Mount, NO.2
17AA1 Bracket, FC Air Compressor
17AA3 Bracket, FC Air Compressor Cable
17B13 Hose, FC Air Compressor Outlet, NO.1
17B14 Hose, FC Air Compressor Outlet, NO.2
17B19 Hose, FC Air Compressor TO Intercooler
17B53 Pipe, FC Air Compressor Outlet, NO.1
17B54 Pipe, FC Air Compressor Outlet, NO.2
17DB0 Pipe Assy, FC Exhaust Tail
17DB0A Clamp(FOR FC EXHAUST TAILPIPE ASSY)
17DB1 Pipe, FC Exhaust, NO.1
17DB1A Clamp(FOR FC EXHAUST PIPE NO.1)
17DB2 Pipe, FC Exhaust, NO.2
17DB2A Clamp(FOR FC EXHAUST PIPE NO.2)
17DB3 Pipe, FC Exhaust, NO.3
17DB8A Bracket, FC Exhaust Tailpipe
52810B Duct Assy, Cool Air Intake, NO.1
55871M Seal, Air Duct
58257C Cover, Apron Water Guard
82650H Block Assy, Terminal
82664B Block, Connector Holder
82672L Cover, Junction Block
82673K Bracket, Junction Block
C6149A Label, Water Pump Caution
F1715 Filter, Engine Control Computer
F1919 Plate, Bus-bar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
