Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05
Fcev Stack & Converter
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

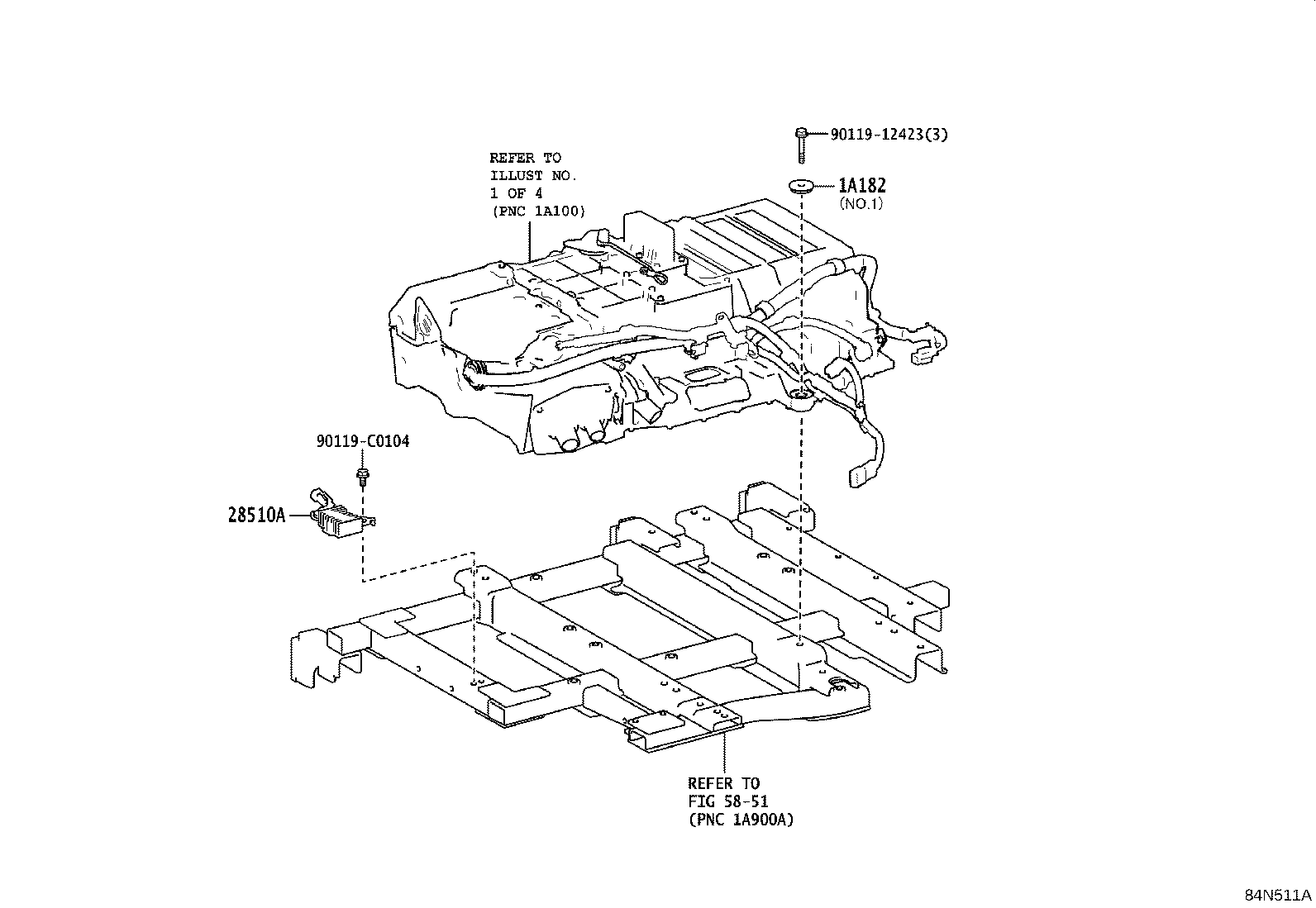

| 1A100 | Stack Assy, FC |
| 1A182 | Mount, FC Stack, NO.2 |
| 1A1A1 | Label, FC Stack Caution, NO.1 |
| 1A522 | Grip, FC Stack Service Plug |
| 1A658 | Bracket, FC Stack Earth, NO.1 |
| 1A659 | Bracket, FC Stack Earth, NO.2 |
| 1A693 | Bracket, FC Wiring Harness, NO.3 |
| 1A694 | Bracket, FC Wiring Harness, NO.4 |
| 1A695 | Bracket, FC Wiring Harness, NO.5 |
| 1A697 | Bracket, FC Wiring Harness, NO.7 |
| 23CA1 | Cable, Hydrogen Pump Inverter |
| 23CA5 | Bracket, Hydrogen Pump Cable |
| 23CA6 | Bracket, Hydrogen Pump Cable, NO.2 |
| 23CA7 | Bracket, Hydrogen Pump Cable, NO.3 |
| 28510A | Resistor Assy, Solenoid |
| 82284G | Wire, Earth |
| 82685J | Plate, Caution |
| 82G11A | Clamp, Wiring Harness, NO.1 |
| C6149B | Label, Water Pump Caution |
| G4145 | Bracket, FC Stack Acceleration Wire |

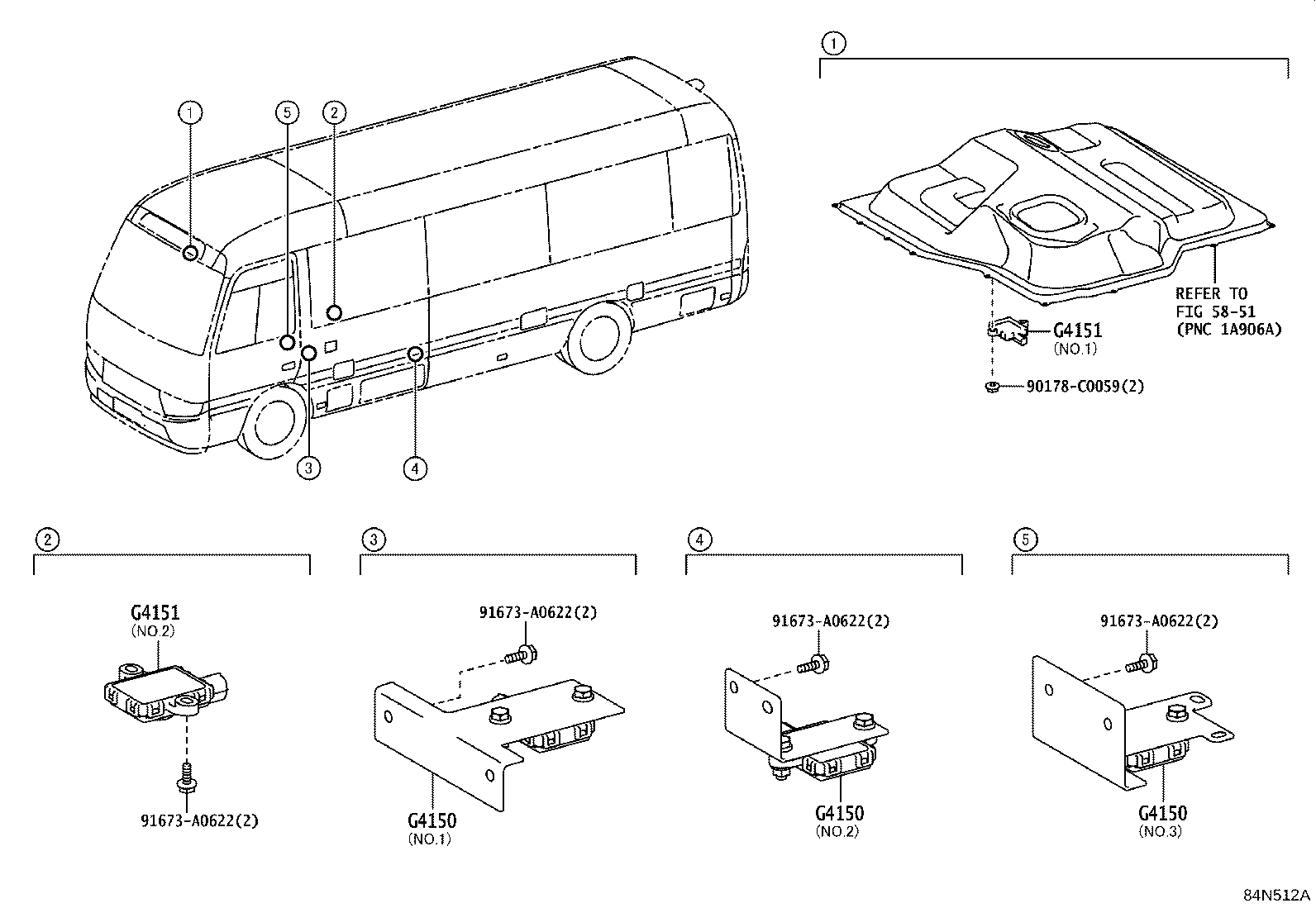

| G4150 | Detector Assy, Hydrogen |
| G4151 | Detector, Hydrogen |
| G9118J | Label, Unit Controller Caution, NO.1 |
| G922CC | Hose, Inverter Cooling Outlet, NO.1 |
| G922KG | Connector, FC Water Hose |
| G93A9A | Bracket, EV Radiator Cooling Pipe |

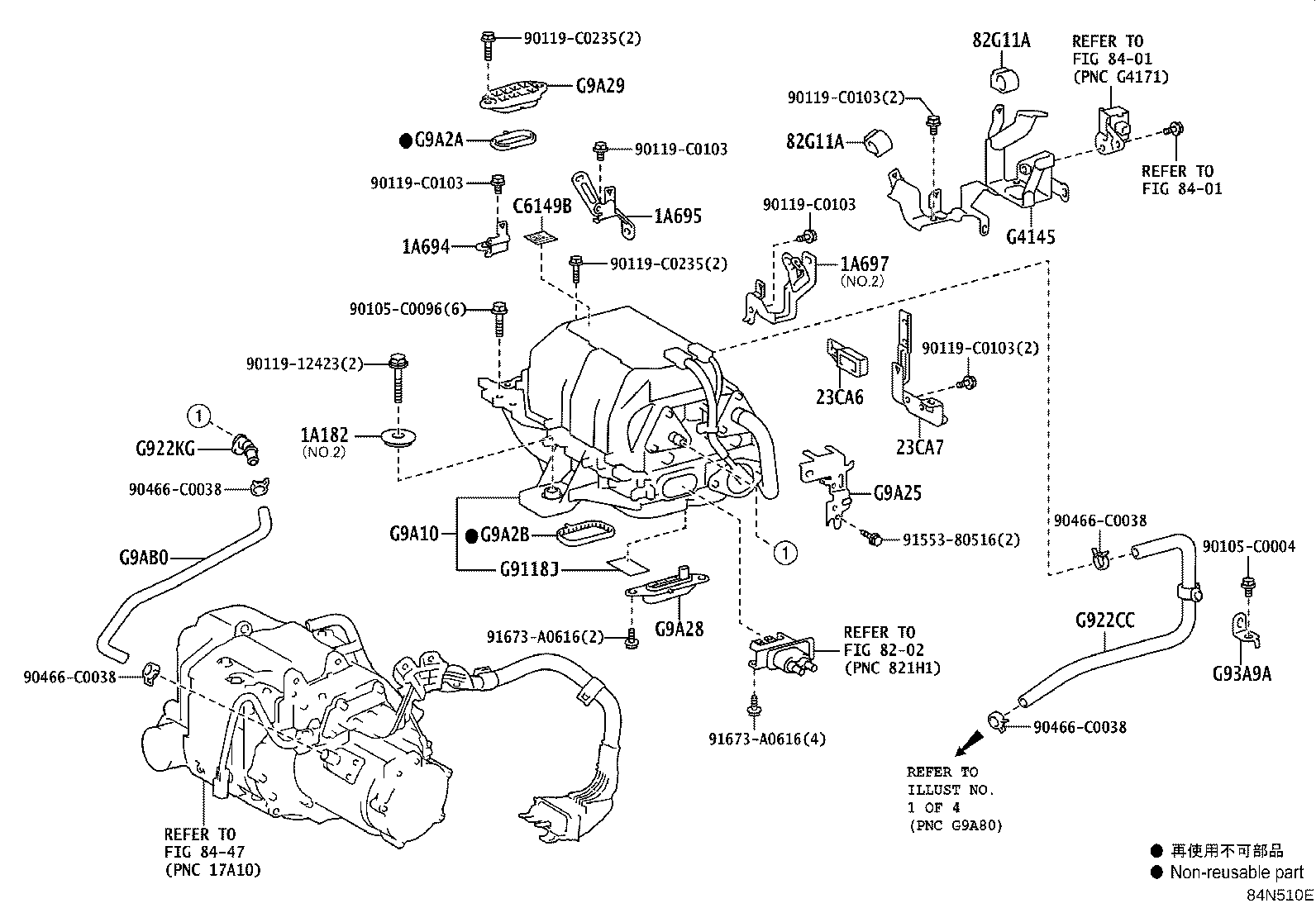

| G9A10 | Converter Assy, FC |
| G9A25 | Bracket, FC Converter Power Outlet |
| G9A28 | Cover, FC Converter Service Hole, Front |
| G9A29 | Cover, FC Converter Service Hole, Rear |
| G9A2A | Gasket, FC Converter Service Hole, Rear |
| G9A2B | Gasket, FC Converter, Rear |
| G9A80 | Inverter Assy, FC Water & Hydrogen Pump |
| G9AB0 | Hose Assy, FC Converter Cooling Outlet |
