Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

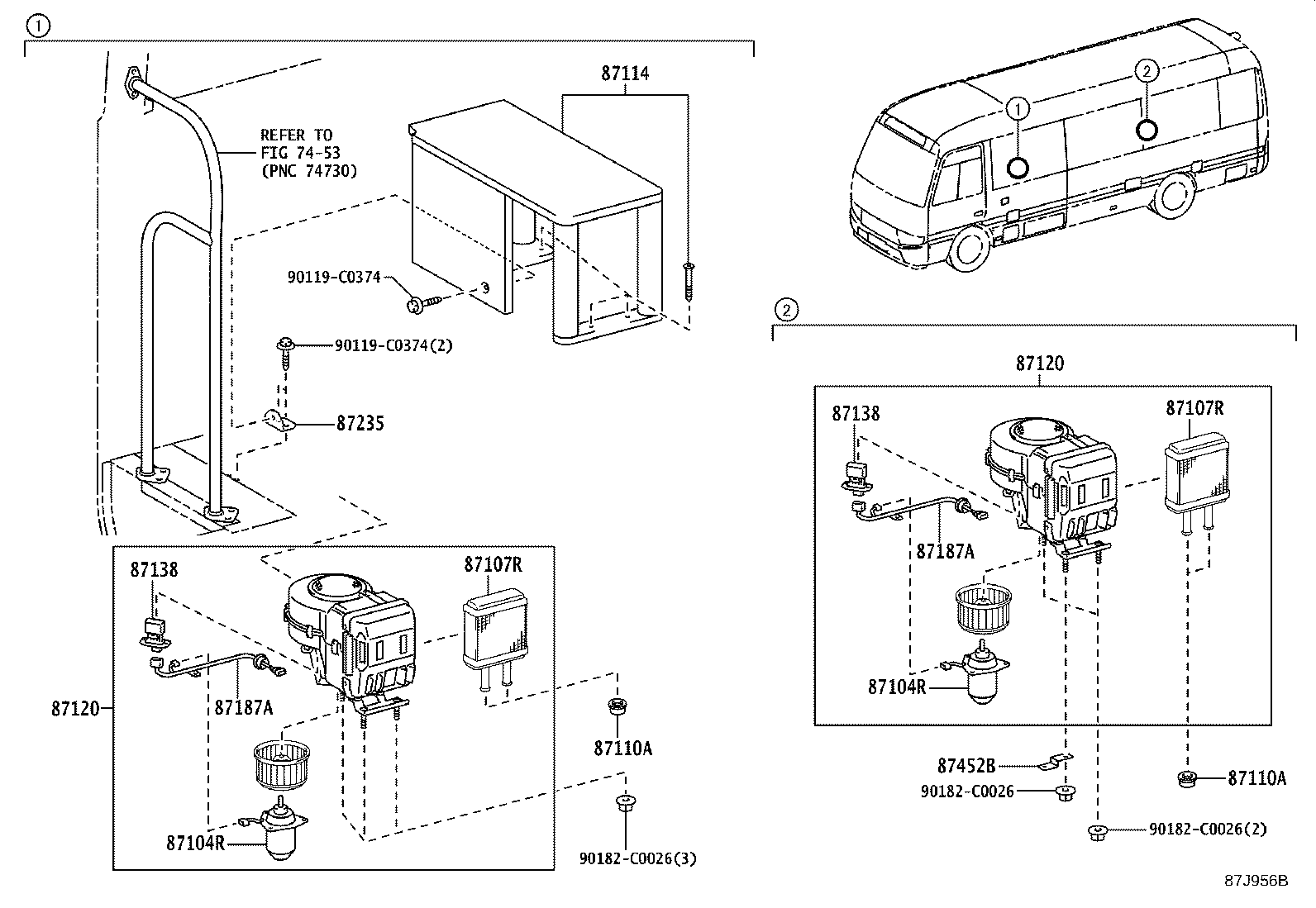

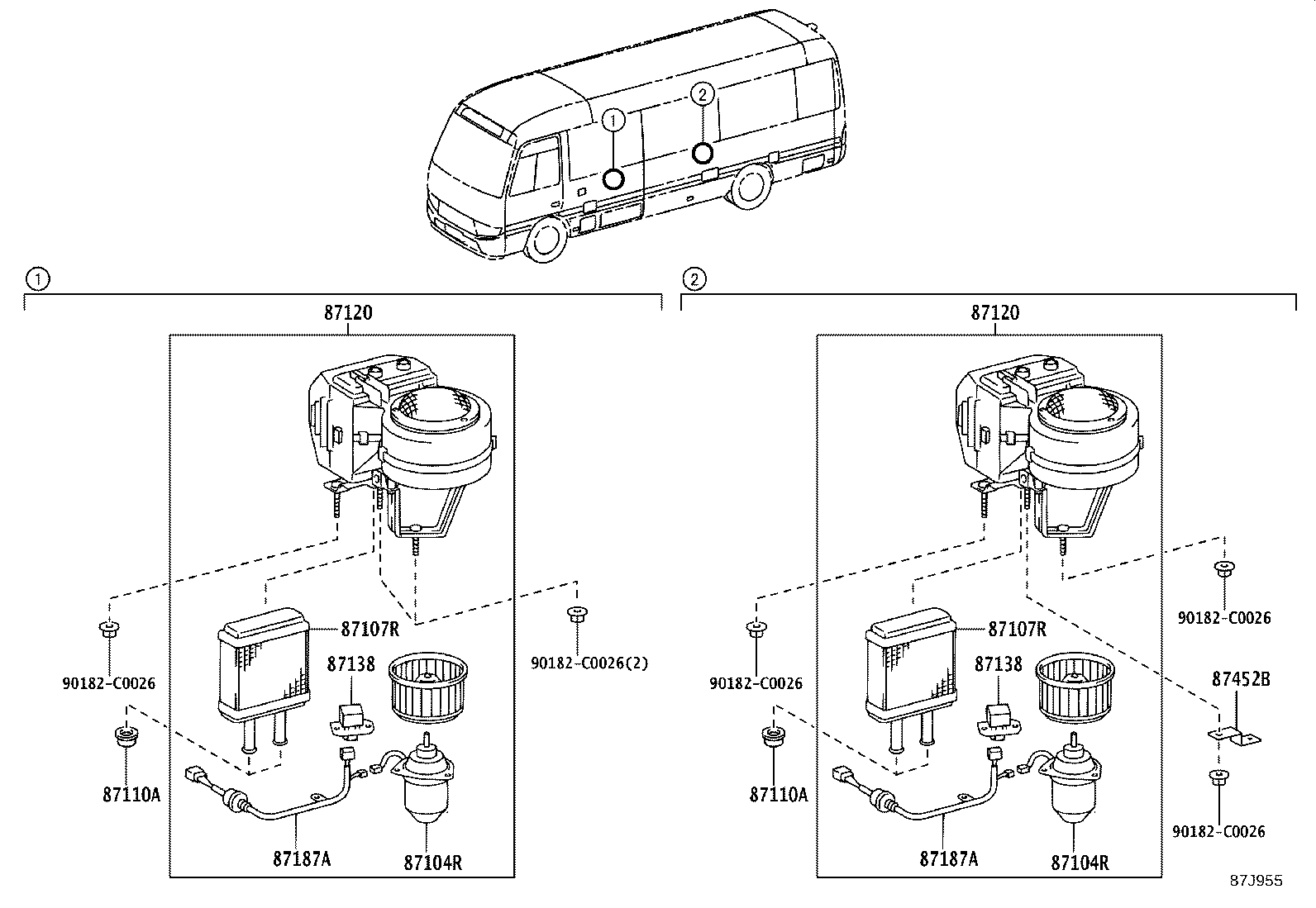

Heating & Air Conditioning - Heater Unit & Blower
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87110A | Grommet (FOR HEATER PIPE) |
| 87114 | Cover, Heater |
| 87120 | Heater Assy, Rear |
| 87138 | Resistor, Heater Blower |
| 87174A | Guide, Air Heater |
| 87187A | Wire, Blower Motor Lead |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87235 | Bracket, Heater Cover |
| 87248Q | Pipe, Front Heater Radiator Water |
| 87452A | Bracket, Heater, Front |
| 87452B | Bracket, Heater, Rear |
| 87452C | Bracket, Front Heater, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
