Heating & Air Conditioning - Cooler Unit

22 part groups · 3 illustrations

Illustrations

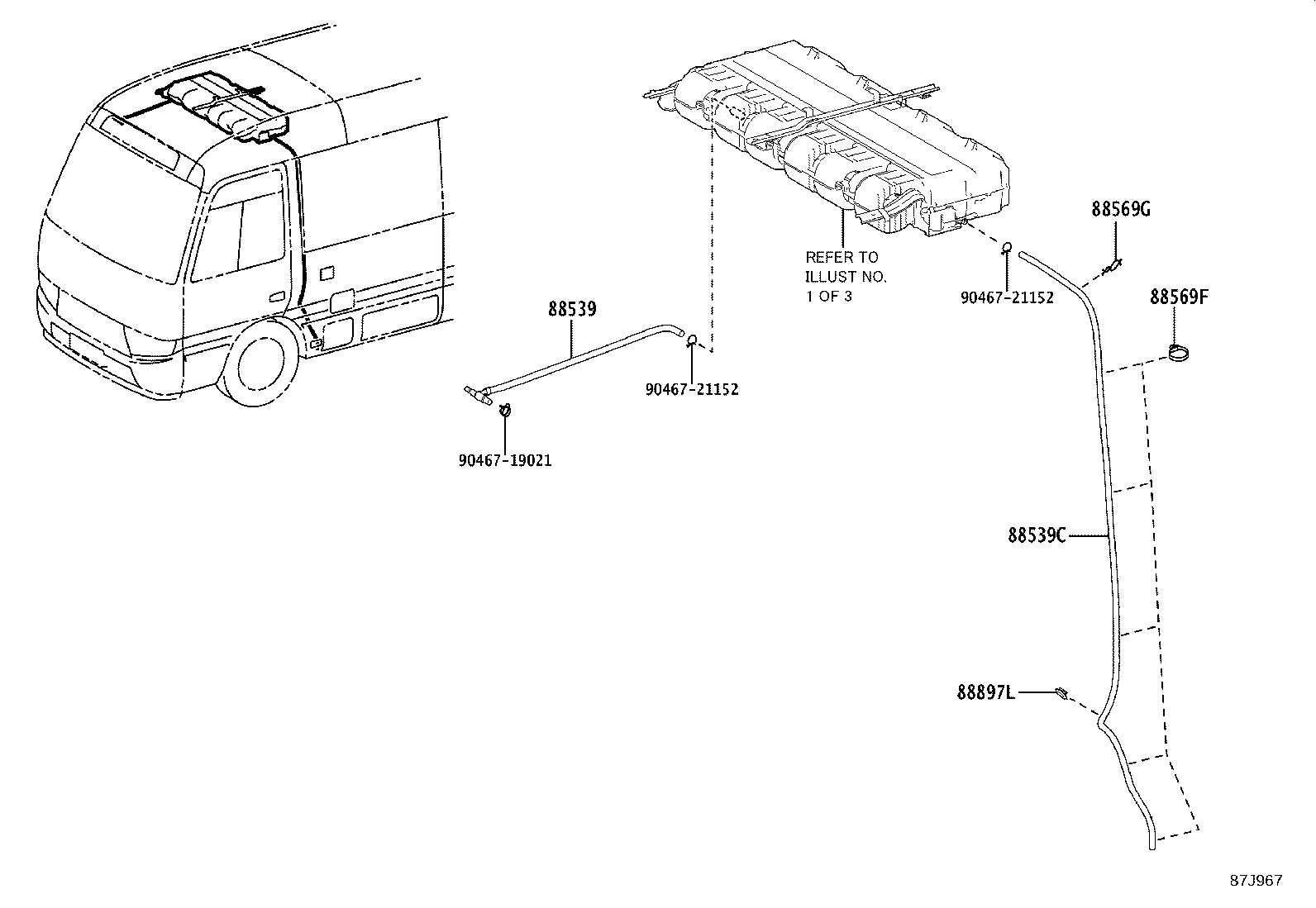

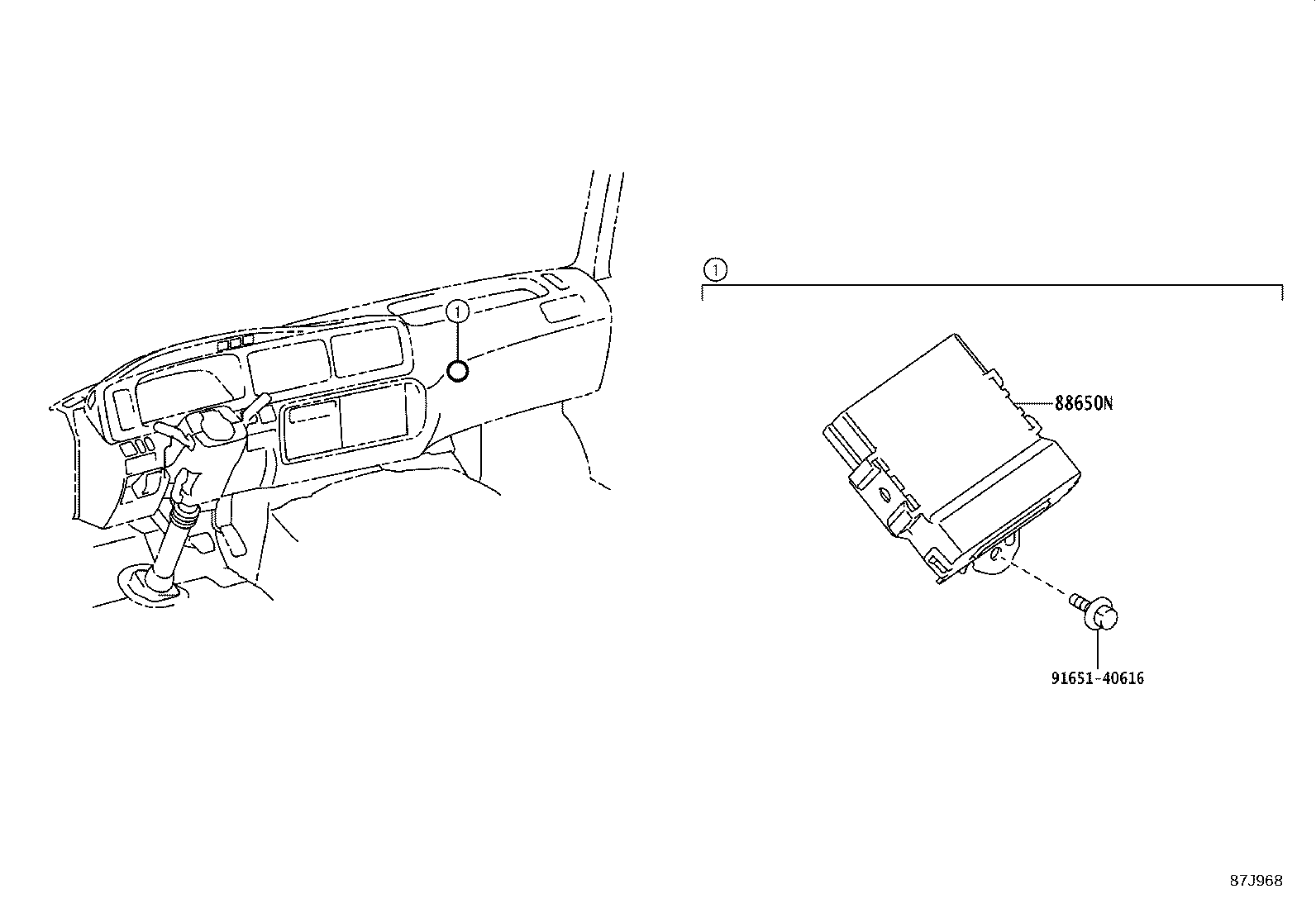

Figure 87J966A 87J966A 2021-08 → — Figure 87J967 87J967 2021-08 → — Figure 87J968 87J968 2021-08 → —

Part groups

PNCDescription
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88421 Valve, Expansion, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536E Bracket, Cooling Unit, NO.5
88536F Bracket, Cooling Unit, NO.6
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88550B Motor Assy, Blower
88569F Clamp
88569G Clamp
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
88800D Cooling Unit Servo
88897L Grommet (FOR DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
