Toyota Coaster Fuelcell
2021-08 → 2022-01 · chassis KMB53 · catalogue 815310 · General
Supported model
Data version 2023-05

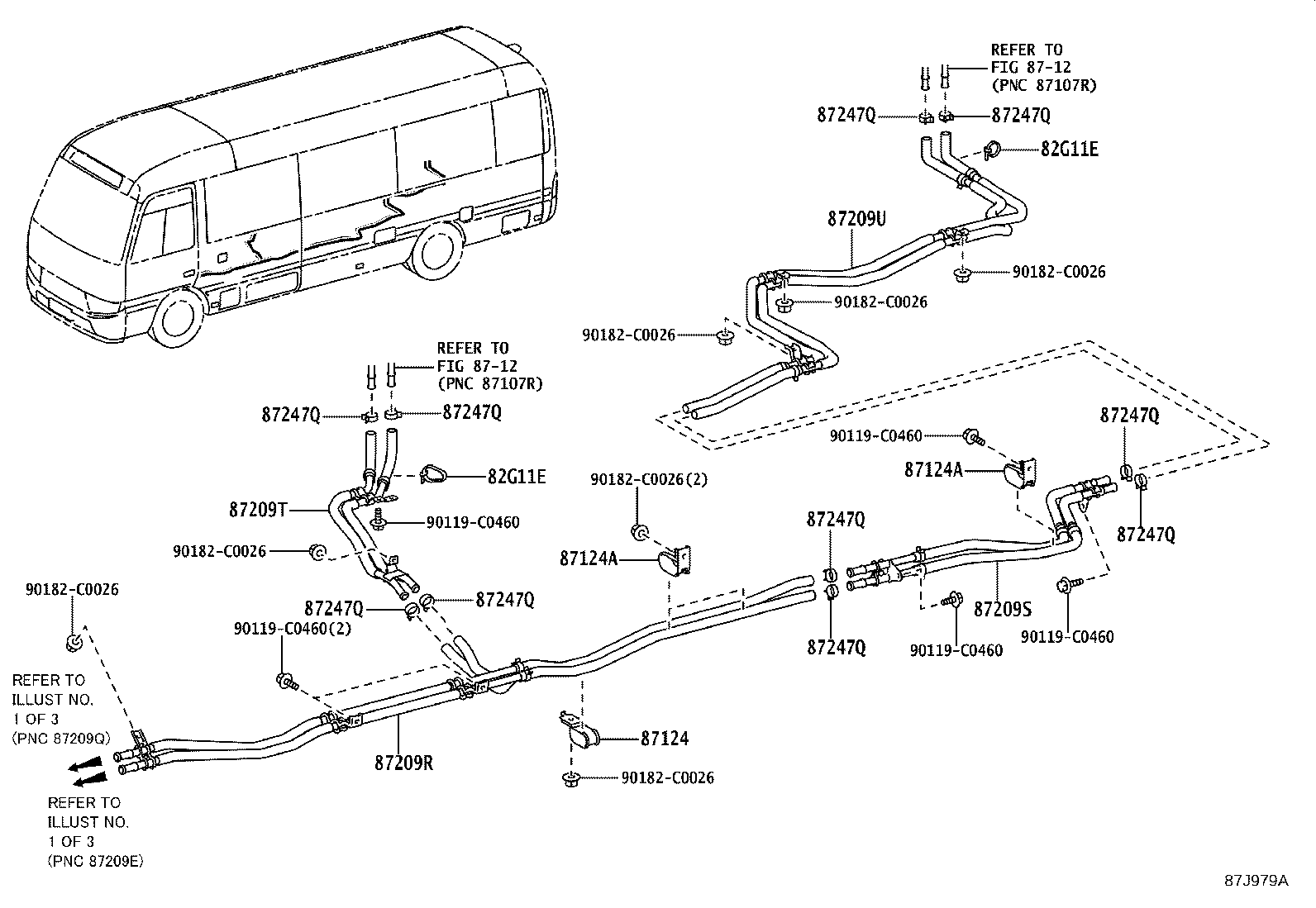

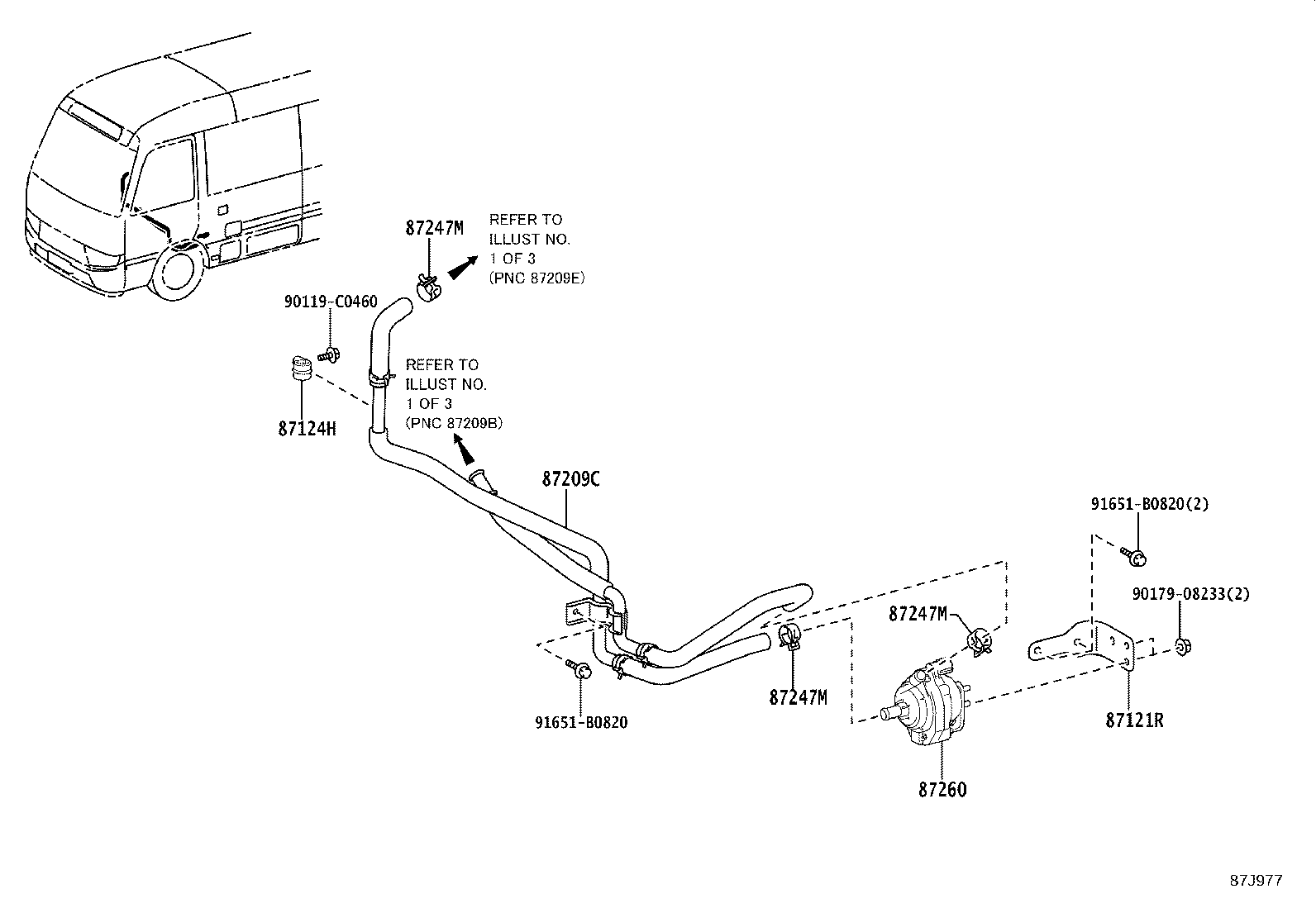

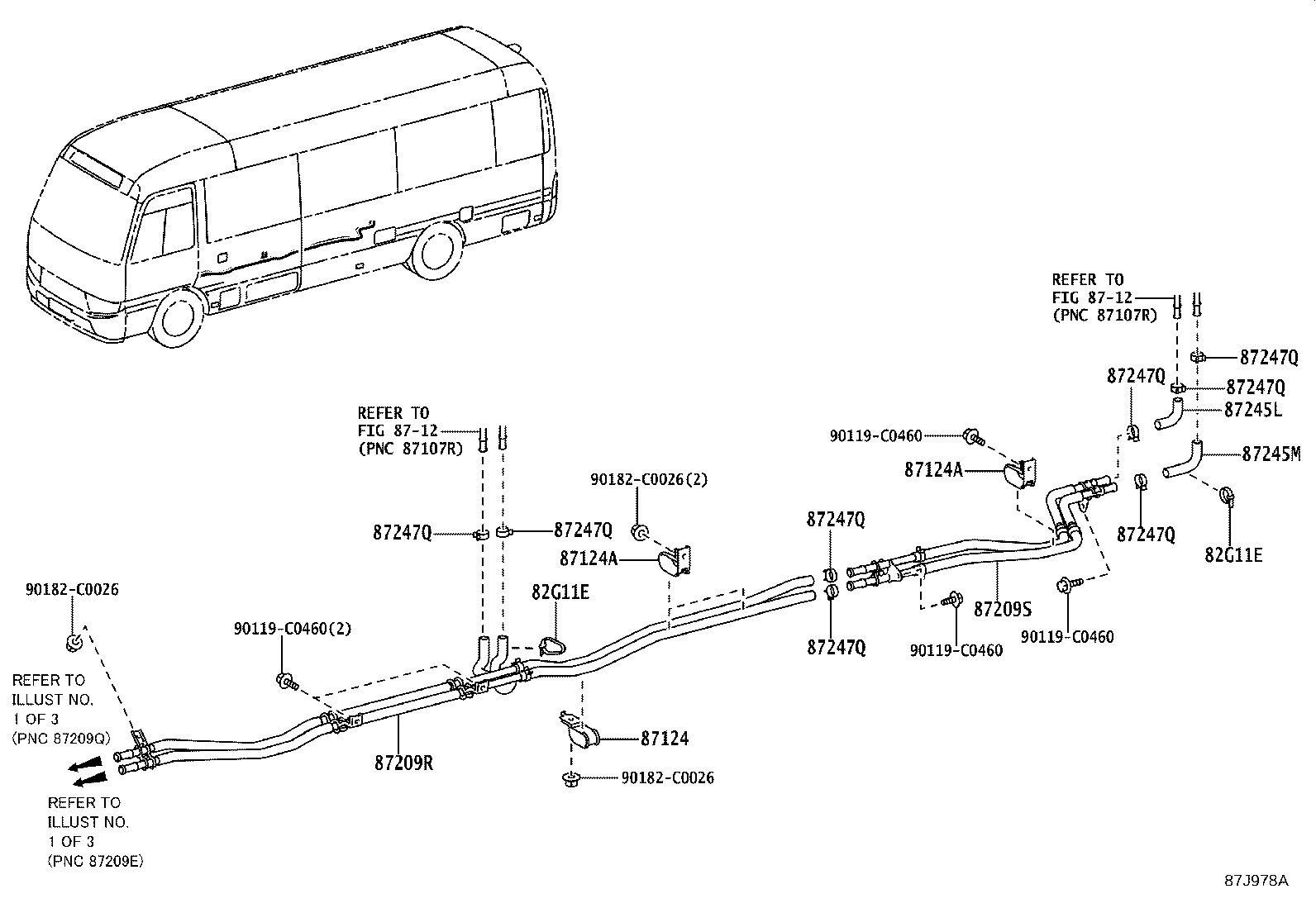

Heating & Air Conditioning - Water Piping
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16475F | Cap, Reserve Tank |
| 82212E | Harness, Air Conditioner NO.1 |
| 82G11E | Clamp, Wiring Harness |
| 87101G | Heater Sub-assy, Electric |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87121R | Bracket, Heater NO.3 |
| 87124 | Clamp, Heater |
| 87124A | Clamp, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87124H | Clamp, Heater Hose, NO.3 |
| 87209 | Hose Sub-assy, Water |
| 87209B | Hose Sub-assy, Water, B |
| 87209C | Hose Sub-assy, Water, C |
| 87209D | Hose Sub-assy, Water, D |
| 87209E | Hose Sub-assy, Water, E |
| 87209Q | Hose Sub-assy, Water, F |
| 87209R | Hose Sub-assy, Water, G |
| 87209S | Hose Sub-assy, Water, H |
| 87209T | Hose Sub-assy, Water, J |
| 87209U | Hose Sub-assy, Water, K |
| 87240 | Valve Assy, Heater Water |
| 87245L | Hose, Heater Water, L |
| 87245M | Hose, Heater Water, M |
| 87247M | Clip, Hose |
| 87247N | Clip, Hose |
| 87247P | Clip, Hose |
| 87247Q | Clip, Hose |
| 87260 | Pump Assy, Heater |
| 87710K | Quick Heater Assy |
| G910F | Tank Sub-assy, Inverter Reserve |
| G910FA | Tank Sub-assy, Inverter Reserve W/O Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
