Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

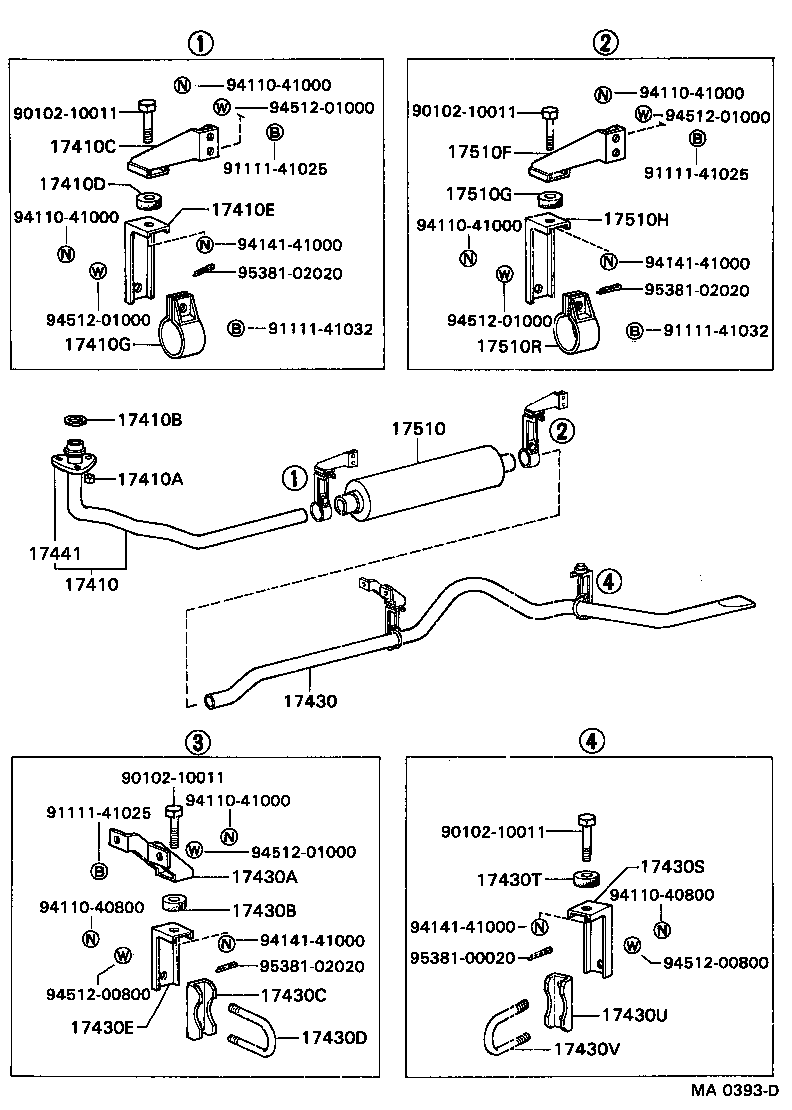

Exploded illustration MA0393D 9411041000 — not listed in this catalogue 9411041000 — not listed in this catalogue 9451201000 — not listed in this catalogue 9010210011 — not listed in this catalogue 9010210011 — not listed in this catalogue 9451201000 — not listed in this catalogue 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (5 parts) 17510F — BRACKET, MUFFLER, REAR (6 parts) 9111141025 — not listed in this catalogue 9111141025 — not listed in this catalogue 17410D — CUSHION, EXHAUST PIPE FRONT (FOR FRONT) (4 parts) 17510G — CUSHION, MUFFLER, REAR (3 parts) 17410E — CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) (4 parts) 9411041000 — not listed in this catalogue 17510H — CLAMP NO.1, MUFFLER, REAR (5 parts) 9411041000 — not listed in this catalogue 9414141000 — not listed in this catalogue 9414141000 — not listed in this catalogue 9538102020 — not listed in this catalogue 9538102020 — not listed in this catalogue 9451201000 — not listed in this catalogue 9451201000 — not listed in this catalogue 9111141032 — not listed in this catalogue 9111141032 — not listed in this catalogue 17410G — CLAMP NO.2, EXHAUST PIPE FRONT (FOR FRONT) (3 parts) 17510R — CLAMP NO.2, MUFFLER, REAR (9 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17510 — MUFFLER ASSY (18 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 17441 — FLANGE, EXHAUST PIPE (2 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (12 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (20 parts) 9010210011 — not listed in this catalogue 9411041000 — not listed in this catalogue 9111141025 — not listed in this catalogue 9010210011 — not listed in this catalogue 9451201000 — not listed in this catalogue 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (5 parts) 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (7 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (3 parts) 9411040800 — not listed in this catalogue 9411040800 — not listed in this catalogue 17430B — CUSHION, EXHAUST TAILPIPE(FOR FRONT) (5 parts) 9414141000 — not listed in this catalogue 9414141000 — not listed in this catalogue 9538100020 — not listed in this catalogue 9451200800 — not listed in this catalogue 9538102020 — not listed in this catalogue 9451200800 — not listed in this catalogue 17430C — CLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT) (6 parts) 17430U — CLAMP NO.1, EXHAUST TAILPIPE (FOR REAR) (4 parts) 17430E — CLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT) (3 parts) 17430D — BOLT OR RING, EXHAUST TAILPIPE (FOR FRONT) (5 parts) 17430V — BOLT OR RING, EXHAUST TAILPIPE (FOR REAR) (4 parts)
MA0393D · 23 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
138 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17401-60160 Pipe Assy, Exhaust, Front
1969-03 → 1975-01 ended
F FA100,11#,FC100 —
17401-60170 Pipe Assy, Exhaust, Front
1969-03 → 1971-05 ended
F FB100 —
17401-61030 Pipe Assy, Exhaust, Front
1975-01 → 1976-08 ended
F FA100,115 —
17401-61031 Pipe Assy, Exhaust, Front
1976-08 → 1982-07 ended
F FA100,115 —
17401-76030 Pipe Assy, Exhaust, Front
1969-03 → 1976-08 ended
2D DA11# —
17401-76040 note Pipe Assy, Exhaust, Front
1969-03 → 1976-08 ended
2D DA11# —
17401-77030 Pipe Assy, Exhaust, Front
1969-03 → 1977-03 ended
2D DB10# —
17401-77040 note Pipe Assy, Exhaust, Front
1969-03 → 1977-03 ended
2D DB10# —
17401-77050 Pipe Assy, Exhaust, Front
1976-08 → 1977-04 ended
2D DA11# —
17401-77060 note Pipe Assy, Exhaust, Front
1976-08 → 1977-04 ended
2D DA11# —
17401-77070 note Pipe Assy, Exhaust, Front
1977-04 → 2001-12 ended
2D DA11# —
17401-77080 Pipe Assy, Exhaust, Front
1977-04 → 2001-12 ended
2D DA11# —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10049 Nut, Exhaust Pipe Set Stud Bolt
1969-03 → 1972-11 ended
F,2D DA11#,DB10#,FA100,11#,FB100,FC100 —
90170-10199 Nut, Exhaust Pipe Set Stud Bolt
1972-11 → 2001-12 ended
F,2D DA11#,DB10#,FA100,11#,FC100 —
17410B — Gasket, Exhaust Pipe
90917-06003 Gasket, Exhaust Pipe
1969-03 → 1975-01 ended
2D DA11#,DB10# —
90917-06003 Gasket, Exhaust Pipe
1975-01 → 2001-12 ended
F,2D DA11#,DB105,FA100,115 —
90917-06005 Gasket, Exhaust Pipe
1969-03 → 1975-01 ended
F FA100,11#,FB100,FC100 —
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17561-60030 Bracket, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
17571-76031 Bracket, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1976-08 ended
2D DA11# —
17571-77010 Bracket, Exhaust Pipe Front (FOR FRONT)
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 —
17575-77010 Bracket, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
17575-77020 Bracket, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1977-03 ended
2D DB10# —
17410D — Cushion, Exhaust Pipe Front (FOR FRONT)
90540-10011 Cushion, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
90540-10011 note Cushion, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1976-08 ended
2D DA11#,DB10# —
90540-10011 Cushion, Exhaust Pipe Front (FOR FRONT)
1976-08 → 1977-03 ended
2D DB105 —
90917-08010 Cushion, Exhaust Pipe Front (FOR FRONT)
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 —
17410E — Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17561-76012 Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1976-08 ended
2D DA11# —
90917-04001 Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1977-03 ended
2D DB10# —
90917-04002 Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1980-02 ended
F FA100,11#,FC100 —
90917-04004 Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
17410G — Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
90461-23011 Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
1977-02 → 1980-02 ended
F,2D DA11#,FA100,115 —
90461-23245 Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
1969-03 → 1976-08 ended
2D DA11# —
90461-23245 Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
1976-08 → 1977-02 ended
F,2D DA11#,FA100,115 —
17430 — Pipe Assy, Exhaust, Tail
17405-77060 Pipe Assy, Exhaust, Tail
1969-03 → 1974-03 ended
2D DB102 —
17405-77070 Pipe Assy, Exhaust, Tail
1969-03 → 1977-03 ended
2D DB105 —
17405-77110 note Pipe Assy, Exhaust, Tail
1976-08 → 1988-09 ended
2D DA115 RHD —
17405-77110 Pipe Assy, Exhaust, Tail
1988-09 → 1991-05 ended
2D DA115 ARL —
17431-60021 Pipe Assy, Exhaust, Tail
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
17431-60040 Pipe Assy, Exhaust, Tail
1969-03 → 1971-05 ended
F FB100 —
17431-77050 Pipe Assy, Exhaust, Tail
1969-03 → 1974-03 ended
2D DA115 —
17431-77050 Pipe Assy, Exhaust, Tail
1974-04 → 1976-08 ended
2D DA115,116 1SR —
17431-77051 Pipe Assy, Exhaust, Tail
1976-08 → 2001-12 ended
F,2D DA115,FA115 1SR —
17431-77060 Pipe Assy, Exhaust, Tail
1969-03 → 1974-03 ended
2D DA116 —
17431-77061 Pipe Assy, Exhaust, Tail
1976-08 → 2001-12 ended
2D DA116 1SR —
17431-77070 Pipe Assy, Exhaust, Tail
1976-08 → 2001-12 ended
F,2D DA110,FA100 1SR —
17431-77080 note Pipe Assy, Exhaust, Tail
1977-10 → 2001-12 ended
2D DA110 —
17431-77090 note Pipe Assy, Exhaust, Tail
1977-10 → 2001-12 ended
2D DA116 —
17431-77100 note Pipe Assy, Exhaust, Tail
1983-08 → 2001-12 ended
2D DA11# LHD 1SR —
17431-77100 note Pipe Assy, Exhaust, Tail
1988-09 → 2001-12 ended
2D DA11# LHD 2SR —
17431-77100 note Pipe Assy, Exhaust, Tail
1983-08 → 2001-12 ended
2D DA116 LHD 1SR —
17431-77100 note Pipe Assy, Exhaust, Tail
1981-02 → 2001-12 ended
2D DA110 LHD DMP +1 —
17431-77100 note Pipe Assy, Exhaust, Tail
1981-02 → 2001-12 ended
2D DA115 LHD 1SR —
17431-77100 note Pipe Assy, Exhaust, Tail
1982-11 → 1983-08 ended
2D DA110 LHD 1SR —
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17562-60030 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
17571-60050 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
17572-77012 Bracket, Exhaust Tailpipe(FOR FRONT)
1980-02 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
17574-77010 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1974-03 ended
2D DA115,116 —
17574-77010 Bracket, Exhaust Tailpipe(FOR FRONT)
1974-04 → 1976-08 ended
2D DA115,116 1SR —
17574-77010 Bracket, Exhaust Tailpipe(FOR FRONT)
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 1SR —
17575-77020 Bracket, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1977-03 ended
2D DB10# —
17430B — Cushion, Exhaust Tailpipe(FOR FRONT)
90540-10011 Cushion, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
90540-10011 Cushion, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1976-08 ended
2D DA115,116,DB10# —
90540-10011 Cushion, Exhaust Tailpipe(FOR FRONT)
1976-08 → 1977-03 ended
2D DB105 —
90540-10011 Cushion, Exhaust Tailpipe(FOR FRONT)
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 1SR —
90917-08013 Cushion, Exhaust Tailpipe(FOR FRONT)
1980-02 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
17430C — Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1974-04 → 1976-08 ended
2D DA115,116 1SR —
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1976-08 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1974-04 → 1977-03 ended
2D DB105 —
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1974-03 ended
2D DA115,116,DB10# —
90917-04003 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
90917-04004 Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
17430D — Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
90117-08009 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
90117-08060 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1974-03 ended
2D DA115,116 —
90117-08060 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1974-04 → 1976-08 ended
2D DB105;2D DA115,116 1SR —
90118-08071 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1969-03 → 1971-05 ended
F FB100 —
90118-08078 Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1976-08 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
17430E — Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17562-77010 Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 1SR —
17562-77010 Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
1974-04 → 1976-08 ended
2D DA115,116 1SR —
17562-77010 Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
1969-03 → 1974-03 ended
2D DA115,116 —
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17561-76012 Bracket, Exhaust Tailpipe (FOR REAR)
1969-03 → 1974-03 ended
2D DA115,116 —
17561-76012 Bracket, Exhaust Tailpipe (FOR REAR)
1974-04 → 1976-08 ended
2D DA115,116 1SR —
17561-76012 Bracket, Exhaust Tailpipe (FOR REAR)
1976-08 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
17577-77010 Bracket, Exhaust Tailpipe (FOR REAR)
1969-03 → 1971-05 ended
F FB100 —
17577-77010 Bracket, Exhaust Tailpipe (FOR REAR)
1969-03 → 1971-05 ended
2D DB10# —
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
90540-10011 Cushion, Exhaust Tailpipe (FOR REAR)
1969-03 → 1974-03 ended
F,2D DA115,116,DB10#,FB100 —
90540-10011 Cushion, Exhaust Tailpipe (FOR REAR)
1974-04 → 1977-04 ended
2D DB105;2D DA115,116 1SR —
90540-10011 Cushion, Exhaust Tailpipe (FOR REAR)
1977-04 → 2001-12 ended
F,2D DA11#,FA100,115 1SR —
17430U — Clamp NO.1, Exhaust Tailpipe (FOR REAR)
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR REAR)
1969-03 → 1974-03 ended
2D DA115,116,DB10# —
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR REAR)
1976-08 → 2001-12 ended
2D DB105;F,2D DA11#,FA100,115 1SR —
90917-04001 Clamp NO.1, Exhaust Tailpipe (FOR REAR)
1974-04 → 1976-08 ended
2D DB105;2D DA115,116 1SR —
90917-04004 Clamp NO.1, Exhaust Tailpipe (FOR REAR)
1969-03 → 1971-05 ended
F FB100 —
17430V — Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
90117-08060 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1969-03 → 1974-03 ended
2D DA115,116,DB10# —
90117-08060 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1974-04 → 1976-08 ended
2D DB105;2D DA115,116 1SR —
90118-08071 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1969-03 → 1971-05 ended
F FB100 —
90118-08078 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1976-08 → 2001-12 ended
2D DB105;F,2D DA11#,FA100,115 1SR —
17441 — Flange, Exhaust Pipe
17441-60010 Flange, Exhaust Pipe
1969-03 → 1976-08 ended
F FA100,11#,FB100,FC100 —
17441-76010 Flange, Exhaust Pipe
1969-03 → 1976-08 ended
2D DA11#,DB10# —
17510 — Muffler Assy
17510-60041 Muffler Assy
1969-03 → 1976-08 ended
F FA100,11#,FC100 —
17510-60080 Muffler Assy
1969-03 → 1971-05 ended
F FB100 —
17510-76020 Muffler Assy
1969-03 → 1977-03 ended
2D DB10# —
17510-76030 Muffler Assy
1969-03 → 1974-03 ended
2D DA110;2D DA115 2SR —
17510-76030 Muffler Assy
1974-04 → 1976-08 ended
2D DA110;2D DA115,116 2SR —
17510-77010 Muffler Assy
1969-03 → 1976-08 ended
2D DA116;2D DA115 1SR —
17510-77030 note Muffler Assy
1981-02 → 2001-12 ended
2D DA110 LHD DMP +1 —
17510-77030 note Muffler Assy
1982-11 → 2001-12 ended
2D DA110 LHD 1SR —
17510-77030 note Muffler Assy
1983-08 → 2001-12 ended
2D DA116 LHD 1SR —
17510-77030 note Muffler Assy
1983-08 → 2001-12 ended
2D DA11# LHD 1SR —
17510-77030 note Muffler Assy
1988-09 → 2001-12 ended
2D DA11# LHD 2SR —
17510-77030 note Muffler Assy
1976-08 → 1988-09 ended
2D DA115 RHD —
17510-77030 note Muffler Assy
1977-10 → 2001-12 ended
2D DA110,116 LHD 1SR —
17510-77030 note Muffler Assy
1976-08 → 2001-12 ended
2D DA11# 1SR —
17510-77030 Muffler Assy
1988-09 → 1991-05 ended
2D DA115 ARL —
17510-77030 note Muffler Assy
1981-02 → 2001-12 ended
2D DA115 LHD 1SR —
17510-77040 note Muffler Assy
1980-06 → 2001-12 ended
2D DA110 RHD 1SR —
17510-77040 note Muffler Assy
1976-08 → 2001-12 ended
F,2D DA11#,FA100,115 2SR —
17510F — Bracket, Muffler, Rear
17563-60020 Bracket, Muffler, Rear
1969-03 → 1976-08 ended
F FA100,11# —
17571-76031 Bracket, Muffler, Rear
1969-03 → 1976-08 ended
2D DA11# —
17572-77010 Bracket, Muffler, Rear
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 —
17572-77012 Bracket, Muffler, Rear
1980-02 → 2001-12 ended
F,2D DA11#,FA100,115 2SR —
17572-77012 note Bracket, Muffler, Rear
1980-06 → 2001-12 ended
2D DA110 RHD 1SR —
17576-77010 Bracket, Muffler, Rear
1969-03 → 1977-03 ended
2D DB10# —
17510G — Cushion, Muffler, Rear
90540-10011 note Cushion, Muffler, Rear
1969-03 → 1976-08 ended
2D DA11#,DB10# —
90917-08010 Cushion, Muffler, Rear
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 —
90917-08013 Cushion, Muffler, Rear
1980-02 → 2001-12 ended
F,2D DA11#,FA100,115 2SR —
17510H — Clamp NO.1, Muffler, Rear
17561-76012 Clamp NO.1, Muffler, Rear
1969-03 → 1976-08 ended
2D DA11# —
17579-76010 Clamp NO.1, Muffler, Rear
1969-03 → 1977-03 ended
2D DB10# —
90917-04001 Clamp NO.1, Muffler, Rear
1980-02 → 2001-12 ended
F,2D DA11#,FA100,115 2SR —
90917-04001 note Clamp NO.1, Muffler, Rear
1980-06 → 2001-12 ended
2D DA110 RHD 1SR —
90917-04003 Clamp NO.1, Muffler, Rear
1969-03 → 1976-08 ended
F FA100,11# —
17510R — Clamp NO.2, Muffler, Rear
17573-76020 Clamp NO.2, Muffler, Rear
1969-03 → 1977-03 ended
2D DB10# —
90461-23223 Clamp NO.2, Muffler, Rear
1969-03 → 1971-05 ended
F FB100 —
90461-23223 Clamp NO.2, Muffler, Rear
1969-03 → 1975-01 ended
F FC100 —
90461-23243 Clamp NO.2, Muffler, Rear
1969-03 → 1974-03 ended
F,2D DA11#,FA100,115 2SR —
90461-23243 Clamp NO.2, Muffler, Rear
1974-04 → 1976-08 ended
2D DA110;2D DA115,116 2SR —
90461-23243 Clamp NO.2, Muffler, Rear
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 2SR —
90461-23244 Clamp NO.2, Muffler, Rear
1969-03 → 1974-03 ended
F,2D DA11#,FA100,115 1SR —
90461-23244 Clamp NO.2, Muffler, Rear
1974-04 → 1976-08 ended
2D DA110;2D DA115,116 1SR —
90461-23244 Clamp NO.2, Muffler, Rear
1976-08 → 1980-02 ended
F,2D DA11#,FA100,115 1SR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
