Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

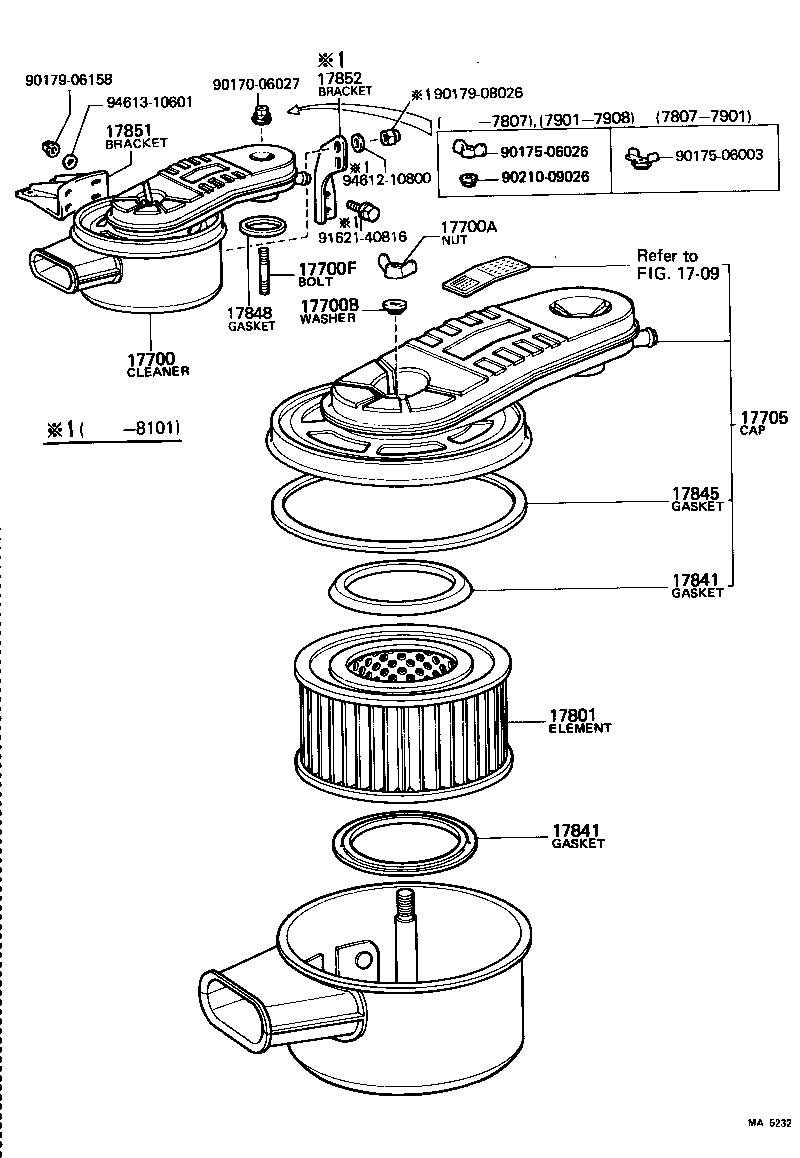

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-60073 note |
Cleaner Assy, Air
1969-03 → 1971-01
ended
|
F FA100,11#,FC100 | — | |
| 17700-60112 note |
Cleaner Assy, Air
1969-09 → 1971-01
ended
|
F FA100,11#,FC100 | — | |
| 17700-60230 note |
Cleaner Assy, Air
1969-03 → 1969-09
ended
|
F FA100,11#,FC100 | — | |
| 17700-60280 note |
Cleaner Assy, Air
1969-03 → 1971-01
ended
|
F FB100 | — | |
| 17700-60281 note |
Cleaner Assy, Air
1971-01 → 1971-05
ended
|
F FB100 | — | |
| 17700-60340 note |
Cleaner Assy, Air
1970-06 → 1975-01
ended
|
F FA100,11#,FC100 | — | |
| 17700-60360 note |
Cleaner Assy, Air
1970-06 → 1975-01
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17700-61010 note |
Cleaner Assy, Air
1975-01 → 1982-07
ended
|
F FA100,115 | — | |
| 17700-61050 note |
Cleaner Assy, Air
1975-01 → 1982-07
ended
|
F FA100,115 | — | |
| 17700-76090 note |
Cleaner Assy, Air
1969-03 → 1977-04
ended
|
2D DA11# | — | |
| 17700-77021 note |
Cleaner Assy, Air
1977-04 → 1979-10
ended
|
2D DA11# | — | |
| 17700-77023 note |
Cleaner Assy, Air
1980-02 → 1980-11
ended
|
2D DA11# | — | |
| 17700-77024 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77024 note |
Cleaner Assy, Air
1980-11 → 1985-09
ended
|
2D DA11# | — | |
| 17700-77051 |
Cleaner Assy, Air
1969-03 → 1977-04
ended
|
2D DB10# 5FD | — | |
| 17700-77100 note |
Cleaner Assy, Air
1972-04 → 1974-03
ended
|
2D DA115 LHD | — | |
| 17700-77100 note |
Cleaner Assy, Air
1974-04 → 1977-04
ended
|
2D DA11# | — | |
| 17700-77120 note |
Cleaner Assy, Air
1977-04 → 1978-11
ended
|
2D DA11# | — | |
| 17700-77121 note |
Cleaner Assy, Air
1978-11 → 1985-09
ended
|
2D DA11# | — | |
| 17700-77121 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77140 note |
Cleaner Assy, Air
1977-04 → 1979-10
ended
|
2D DA11# | — | |
| 17700-77142 note |
Cleaner Assy, Air
1980-02 → 1980-11
ended
|
2D DA11# | — | |
| 17700-77143 note |
Cleaner Assy, Air
1980-11 → 1985-09
ended
|
2D DA11# | — | |
| 17700-77143 note |
Cleaner Assy, Air
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17700-77143 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77160 note |
Cleaner Assy, Air
1977-04 → 1978-11
ended
|
2D DA11# | — | |
| 17700-77161 note |
Cleaner Assy, Air
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17700-77161 note |
Cleaner Assy, Air
1978-11 → 1985-09
ended
|
2D DA11# | — | |
| 17700-77161 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77180 note |
Cleaner Assy, Air
1979-10 → 1980-02
ended
|
2D DA11# | — | |
| 17700-77200 note |
Cleaner Assy, Air
1979-10 → 1980-02
ended
|
2D DA11# | — | |
| 17700-77210 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77220 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77220 note |
Cleaner Assy, Air
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17700-77230 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77240 note |
Cleaner Assy, Air
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17700-77240 note |
Cleaner Assy, Air
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17710-77020 |
Cleaner Assy, Air
1969-03 → 1977-04
ended
|
2D DA11# | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08006 note |
Nut, Wing(FOR AIR CLEANER)
1969-03 → 1969-09
ended
|
F FA100,11#,FC100 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-10 → 2001-12
ended
|
2D DA11# | — | |
| 94270-00800 |
Nut, Wing(FOR AIR CLEANER)
1977-04 → 1980-10
ended
|
2D DA11# | — | |
| 94270-00800 note |
Nut, Wing(FOR AIR CLEANER)
1969-03 → 1969-09
ended
|
F FA100,11#,FB100,FC100 | — | |
| 94270-00800 |
Nut, Wing(FOR AIR CLEANER)
1969-09 → 1973-05
ended
|
F FA100,11#,FB100,FC100 | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1973-05 → 1982-07
ended
|
F FA100,11#,FC100 | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1969-09 → 1974-03
ended
|
F FA100,11#,FB100,FC100 | — | |
| 90210-08003 note |
Washer, Seal(FOR AIR CLEANER)
1974-04 → 1975-01
ended
|
F FA100,115 | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1975-01 → 1977-04
ended
|
F FA100,115 | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1977-04 → 1980-10
ended
|
F FA100,115 | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1977-04 → 1980-10
ended
|
2D DA11# | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1980-10 → 1982-07
ended
|
F FA100,115 | — | |
| 90210-08003 note |
Washer, Seal(FOR AIR CLEANER)
1969-03 → 1969-09
ended
|
F FA100,11#,FB100,FC100 | — | |
| 90210-08004 note |
Washer, Seal(FOR AIR CLEANER)
1974-04 → 1975-01
ended
|
F FA100,115 | — | |
| 94612-10800 note |
Washer, Seal(FOR AIR CLEANER)
1969-03 → 1969-09
ended
|
F FA100,11#,FC100 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1975-01 → 1982-07
ended
|
F FA100,115 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-60041 note |
Cap Sub-assy, Air Cleaner
1969-03 → 1969-09
ended
|
F FA100,11#,FC100 | — | |
| 17705-60042 note |
Cap Sub-assy, Air Cleaner
1969-09 → 1971-01
ended
|
F FA100,11#,FC100 | — | |
| 17705-60130 |
Cap Sub-assy, Air Cleaner
1969-03 → 1971-01
ended
|
F FB100 | — | |
| 17705-60131 |
Cap Sub-assy, Air Cleaner
1971-01 → 1971-05
ended
|
F FB100 | — | |
| 17705-60160 note |
Cap Sub-assy, Air Cleaner
1969-03 → 1971-01
ended
|
F FA100,11#,FC100 | — | |
| 17705-60210 note |
Cap Sub-assy, Air Cleaner
1970-06 → 1975-01
ended
|
F FA100,11#,FC100 | — | |
| 17705-60230 note |
Cap Sub-assy, Air Cleaner
1970-06 → 1975-01
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17705-61010 note |
Cap Sub-assy, Air Cleaner
1975-01 → 1982-07
ended
|
F FA100,115 | — | |
| 17705-61050 note |
Cap Sub-assy, Air Cleaner
1975-01 → 1982-07
ended
|
F FA115 | — | |
| 17705-77010 |
Cap Sub-assy, Air Cleaner
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 17705-77011 note |
Cap Sub-assy, Air Cleaner
1977-04 → 1980-11
ended
|
2D DA11# | — | |
| 17705-77012 note |
Cap Sub-assy, Air Cleaner
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17705-77012 note |
Cap Sub-assy, Air Cleaner
1980-11 → 1985-09
ended
|
2D DA11# | — | |
| 17705-77020 note |
Cap Sub-assy, Air Cleaner
1977-04 → 1977-06
ended
|
2D DA11# | — | |
| 17705-77021 note |
Cap Sub-assy, Air Cleaner
1977-06 → 1978-11
ended
|
2D DA11# | — | |
| 17705-77022 note |
Cap Sub-assy, Air Cleaner
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17705-77022 note |
Cap Sub-assy, Air Cleaner
1978-11 → 1985-12
ended
|
2D DA11# | — | |
| 17705-77030 note |
Cap Sub-assy, Air Cleaner
1977-04 → 1980-11
ended
|
2D DA11# | — | |
| 17705-77031 note |
Cap Sub-assy, Air Cleaner
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17705-77031 note |
Cap Sub-assy, Air Cleaner
1980-11 → 1985-09
ended
|
2D DA11# | — | |
| 17705-77040 note |
Cap Sub-assy, Air Cleaner
1977-04 → 1977-06
ended
|
2D DA11# | — | |
| 17705-77041 note |
Cap Sub-assy, Air Cleaner
1977-06 → 1978-11
ended
|
2D DA11# | — | |
| 17705-77042 note |
Cap Sub-assy, Air Cleaner
1978-11 → 1985-09
ended
|
2D DA11# | — | |
| 17705-77042 note |
Cap Sub-assy, Air Cleaner
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17705-77042 note |
Cap Sub-assy, Air Cleaner
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17705-77050 note |
Cap Sub-assy, Air Cleaner
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17705-77060 note |
Cap Sub-assy, Air Cleaner
1985-12 → 2001-12
ended
|
2D DA11# | — | |
| 17705-77060 note |
Cap Sub-assy, Air Cleaner
1985-09 → 1985-12
ended
|
2D DA11# | — | |
| 17705-79010 note |
Cap Sub-assy, Air Cleaner
1974-04 → 1977-04
ended
|
2D DA11# | — | |
| 17705-79010 note |
Cap Sub-assy, Air Cleaner
1969-03 → 1974-03
ended
|
2D DA11#,DB10# | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-60030 note |
Element Sub-assy, Air Cleaner Filter
1969-03 → 1969-09
ended
|
F FA100,11#,FC100 | — | |
| 17801-60040 note |
Element Sub-assy, Air Cleaner Filter
1969-03 → 1982-07
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17801-60050 note |
Element Sub-assy, Air Cleaner Filter
1969-09 → 1982-07
ended
|
F FA100,11#,FC100 | — | |
| 17801-77020 note |
Element Sub-assy, Air Cleaner Filter
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 17801-77021 note |
Element Sub-assy, Air Cleaner Filter
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17801-77040 note |
Element Sub-assy, Air Cleaner Filter
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17801-79020 note |
Element Sub-assy, Air Cleaner Filter
1974-04 → 1977-04
ended
|
2D DA11# | — | |
| 17801-79020 note |
Element Sub-assy, Air Cleaner Filter
1969-03 → 1974-03
ended
|
2D DA11#,DB10# | — | |
| 17841 — Gasket, Filter Element | ||||
| 17735-77010 note |
Gasket, Filter Element
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 17841-31020 note |
Gasket, Filter Element
1977-04 → 1980-11
ended
|
2D DA11# | — | |
| 17841-60010 |
Gasket, Filter Element
1969-03 → 1971-05
ended
|
F FB100 | — | |
| 17841-60011 note |
Gasket, Filter Element
1969-03 → 1982-07
ended
|
F FA100,11#,FC100 | — | |
| 17841-60020 note |
Gasket, Filter Element
1969-09 → 1982-07
ended
|
F FA100,11#,FC100 | — | |
| 17841-77010 note |
Gasket, Filter Element
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 17841-77040 note |
Gasket, Filter Element
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17841-77050 note |
Gasket, Filter Element
1980-11 → 2001-12
ended
|
2D DA11# | — | |
| 17841-79030 note |
Gasket, Filter Element
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 90430-10164 note |
Gasket, Filter Element
1969-09 → 1982-07
ended
|
F FA100,11#,FC100 | — | |
| 90430-95080 note |
Gasket, Filter Element
1969-03 → 1974-03
ended
|
2D DA11#,DB10# | — | |
| 90430-95080 note |
Gasket, Filter Element
1974-04 → 1977-04
ended
|
2D DA11# | — | |
| 90430-99084 note |
Gasket, Filter Element
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17735-77010 note |
Gasket, Air Cleaner Cap
1969-03 → 1974-03
ended
|
2D DA11# | — | |
| 17845-60020 note |
Gasket, Air Cleaner Cap
1969-03 → 1974-03
ended
|
F FA100,11#,FC100 | — | |
| 17845-60040 note |
Gasket, Air Cleaner Cap
1969-03 → 1974-03
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17845-60040 |
Gasket, Air Cleaner Cap
1974-04 → 1982-07
ended
|
F FA100,115 | — | |
| 17845-76010 note |
Gasket, Air Cleaner Cap
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17845-76010 note |
Gasket, Air Cleaner Cap
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 17845-77030 note |
Gasket, Air Cleaner Cap
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 90430-99066 note |
Gasket, Air Cleaner Cap
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 90430-99084 note |
Gasket, Air Cleaner Cap
1974-04 → 1977-04
ended
|
2D DA11# | — | |
| 90430-99084 note |
Gasket, Air Cleaner Cap
1969-03 → 1974-03
ended
|
2D DA11#,DB10# | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-60021 |
Gasket, Air Cleaner TO Carburetor
1969-03 → 1975-01
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17848-61010 |
Gasket, Air Cleaner TO Carburetor
1975-01 → 1975-07
ended
|
F FA100,115 | — | |
| 17848-61011 |
Gasket, Air Cleaner TO Carburetor
1975-07 → 1982-07
ended
|
F FA100,115 | — | |
| 17848-76010 |
Gasket, Air Cleaner TO Carburetor
1969-03 → 1977-04
ended
|
2D DA11# | — | |
| 90301-70057 note |
Gasket, Air Cleaner TO Carburetor
1969-03 → 1977-04
ended
|
2D DA11#,DB10# | — | |
| 90301-70057 |
Gasket, Air Cleaner TO Carburetor
1977-04 → 2001-12
ended
|
2D DA11# | — | |
| 17851 — Bracket, Air Cleaner Support | ||||
| 17851-60021 |
Bracket, Air Cleaner Support
1969-03 → 1969-09
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17851-60022 |
Bracket, Air Cleaner Support
1969-09 → 1975-01
ended
|
F FA100,11#,FB100,FC100 | — | |
| 17851-60100 |
Bracket, Air Cleaner Support
1975-01 → 1975-02
ended
|
F FA100,115 | — | |
| 17851-61010 |
Bracket, Air Cleaner Support
1975-02 → 1982-07
ended
|
F FA100,115 | — | |
| 17852 — Bracket, Air Creaner Support, NO.2 | ||||
| 17852-61010 |
Bracket, Air Creaner Support, NO.2
1979-07 → 1981-01
ended
|
F FA100,115 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
