Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

42 part groups · 6 illustrations

Illustrations

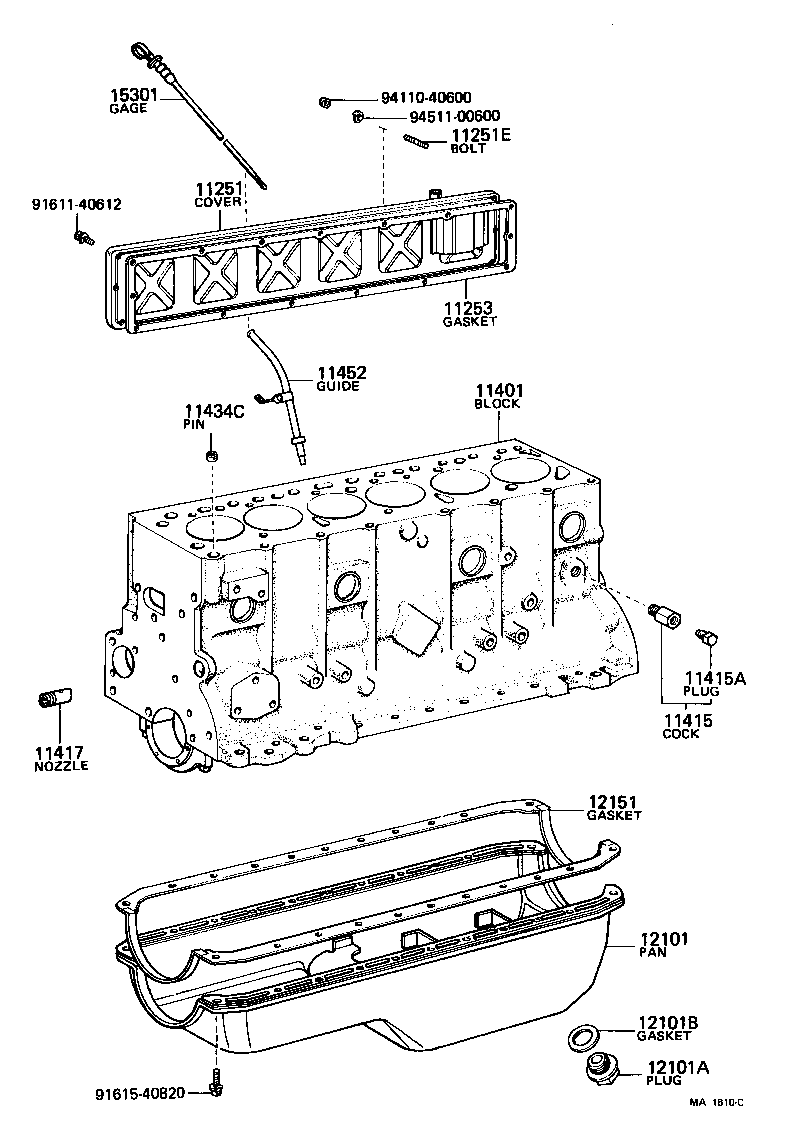

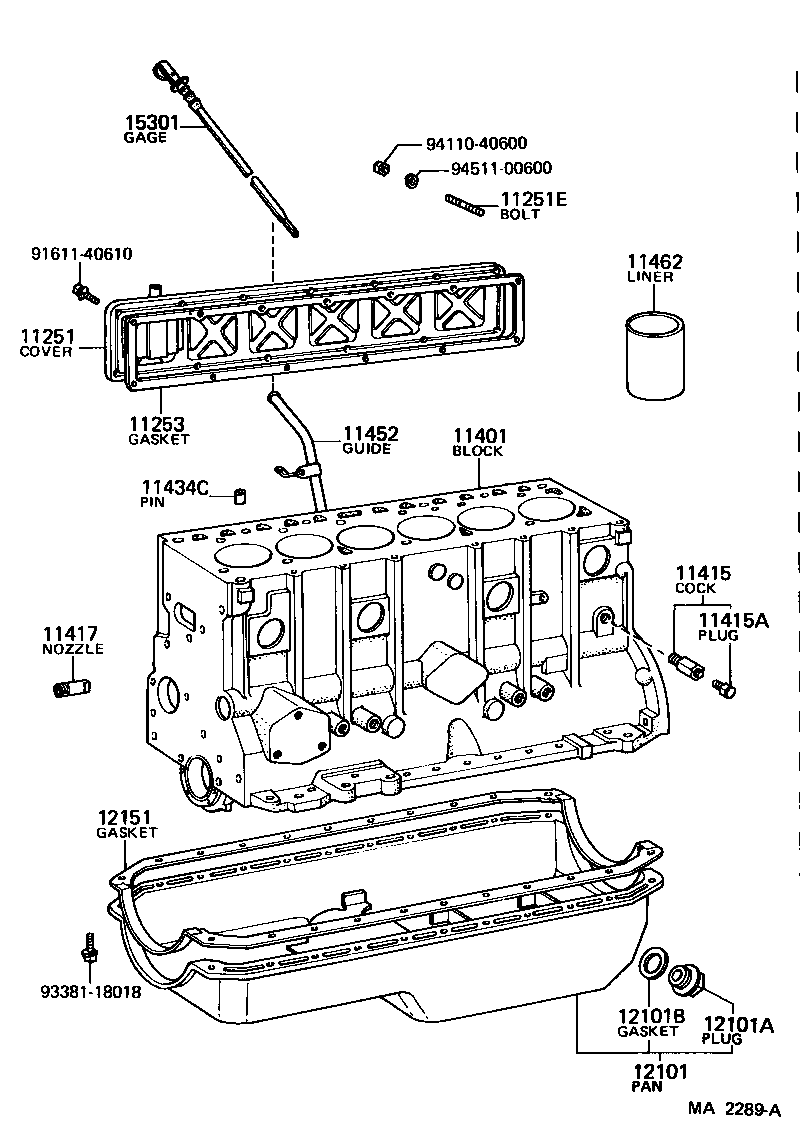

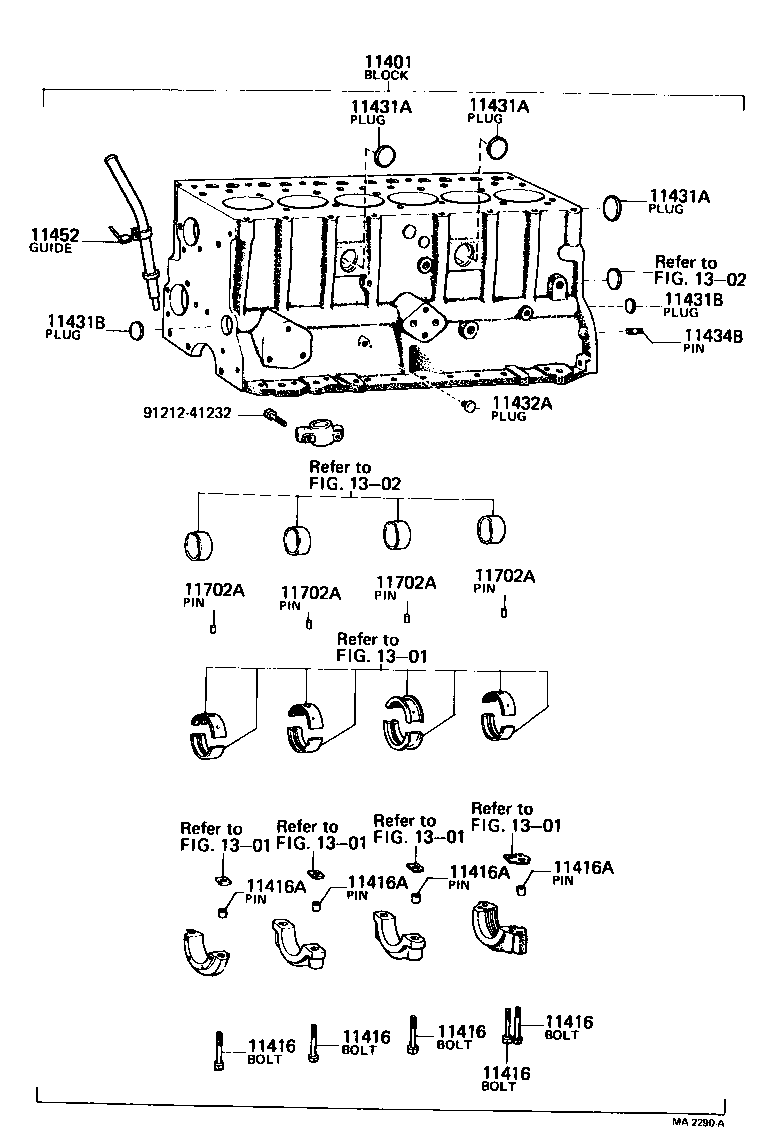

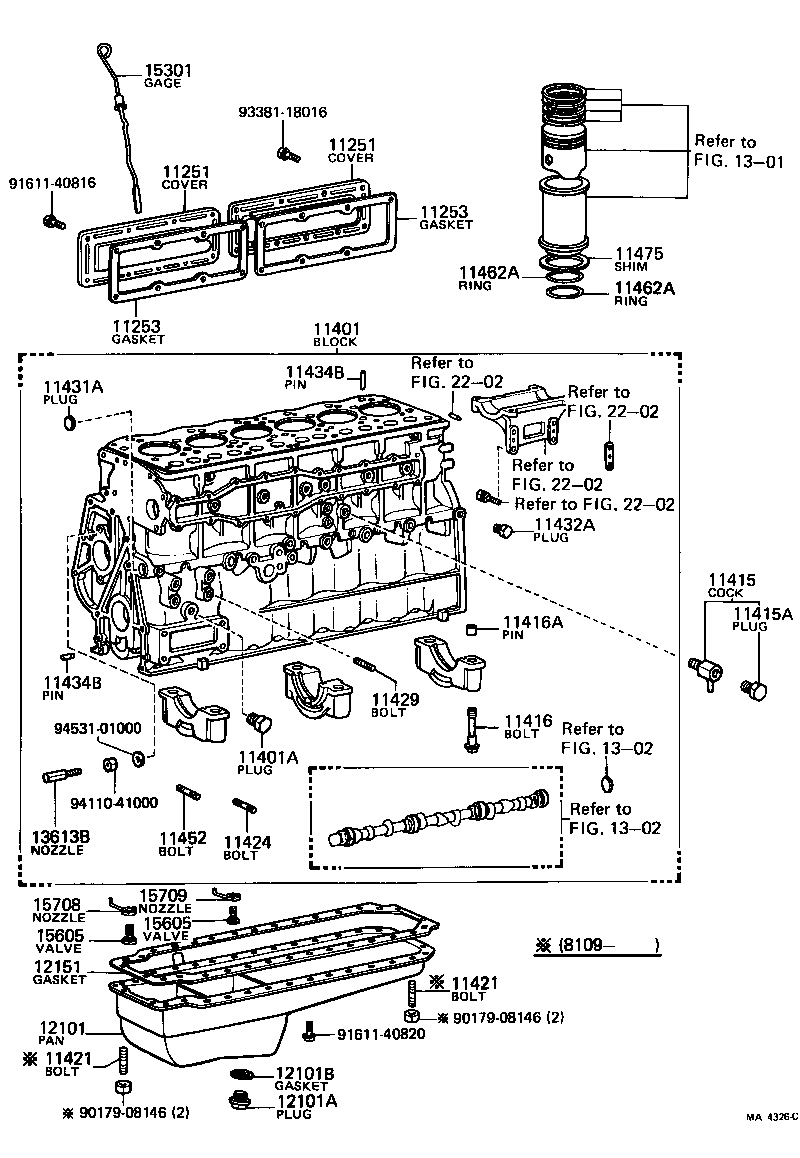

Figure MA0359H MA0359H 1969-03 → 1977-04 Figure MA4326C MA4326C 1977-04 → — Figure MA2289A MA2289A 1969-03 → 1975-01 Figure MA1610C MA1610C 1975-01 → 1982-07 Figure MA2290A MA2290A 1969-03 → 1973-09 Figure MA1566B MA1566B 1973-09 → 1982-07

Part groups

PNCDescription
11104 Pipe Sub-assy, Water
11251 Cover, Valve Push Rod
11251E Bolt, Stud(FOR VALVE PUSH ROD COVER)
11253 Gasket, Valve Push Rod Cover
11401 Block Sub-assy, Cylinder
11401A Plug(FOR CYLINDER BLOCK BLIND)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11415B Hose(FOR DRAIN COCK)
11415H Support, Water Drain Vinyl Pipe
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11417 Nozzle, Oil
11421 Bolt, Stud(FOR OIL PAN)
11424 Bolt, Stud(FOR WATER INLET HOUSING)
11425 Bolt, Stud(FOR OIL FILTER)
11429 Bolt, Stud(FOR ALTERNATOR BRACKET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11452 Guide, Oil Level Gage
11462 Liner, Cylinder
11462A Ring, O(FOR CYLINDER LINER)
11475 Shim, Cylinder Liner
11491 Gasket, Water
11525 Lock, Crankshaft Front Bearing Cap Bolt
11702A Pin, Dowel(FOR CRANKSHAFT MAIN BEARING)
11802A Pin, Dowel(FOR CAMSHAFT BEARING)
11891 Screw, Camshaft Bearing Set
11891A Gasket, Camshaft Bearing Set Screw
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12151 Gasket, Oil Pan
13613B Nozzle, Timing Gear Oil
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
