Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 3 illustrations

Illustrations

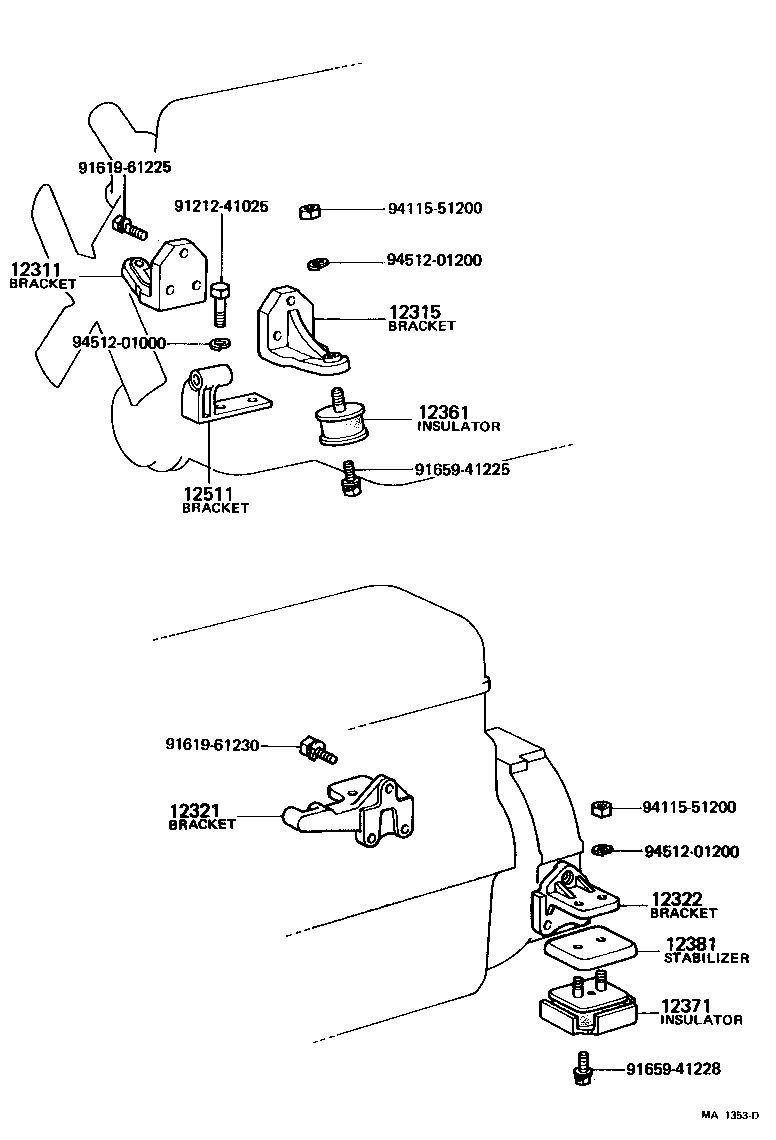

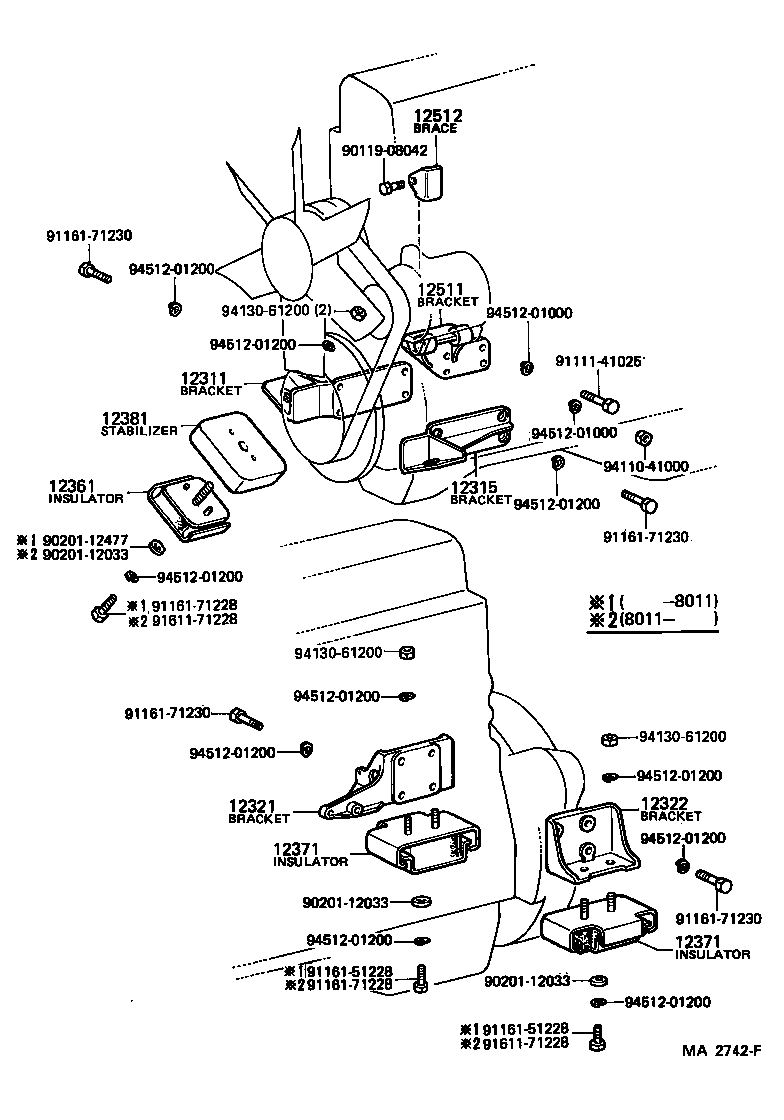

Figure MA4575 MA4575 1969-03 → 1977-04 Figure MA2742F MA2742F 1977-04 → — Figure MA1353D MA1353D 1969-03 → 1982-07

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12512 Brace, Alternator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
