Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

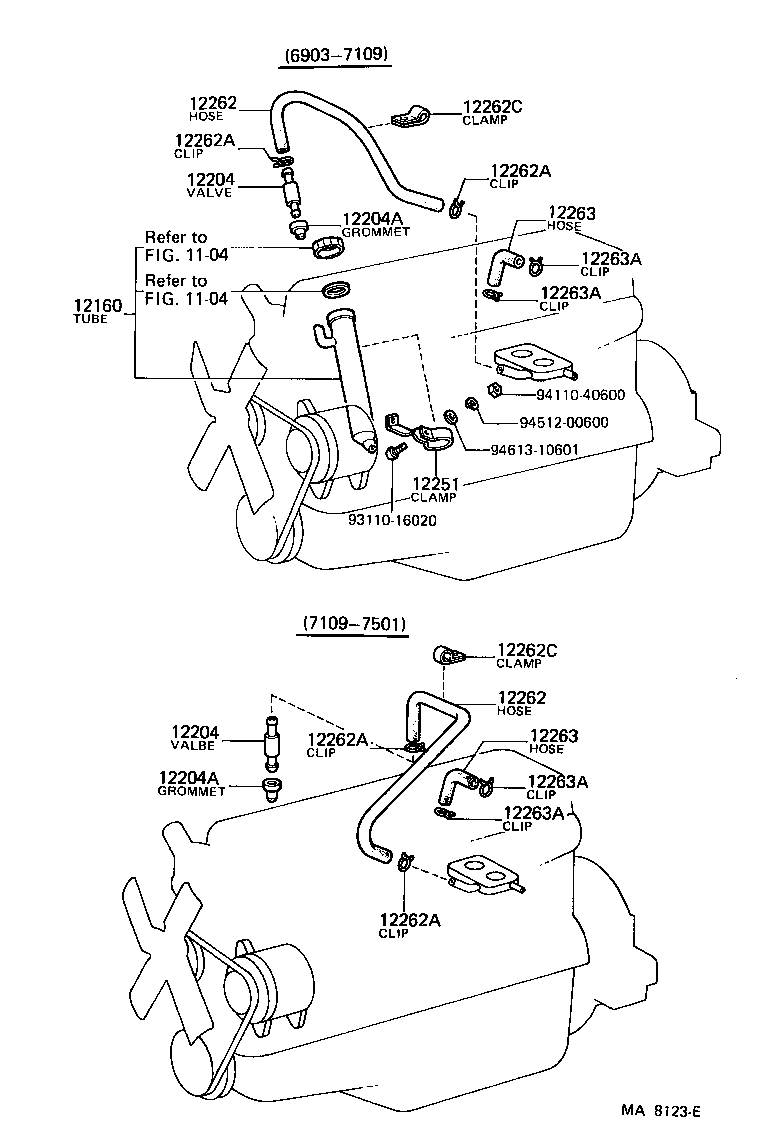

Ventilation Hose
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12160 | Tube Assy, Oil Filler |
| 12201A | Hose(FOR VENTILATION TUBE) |
| 12201B | Clip(FOR VENTILATION TUBE HOSE) |
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12251 | Clamp, Ventilation Tube |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12262C | Clamp, Ventilation Hose, NO.2 |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
