Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

47 part groups · 6 illustrations

Illustrations

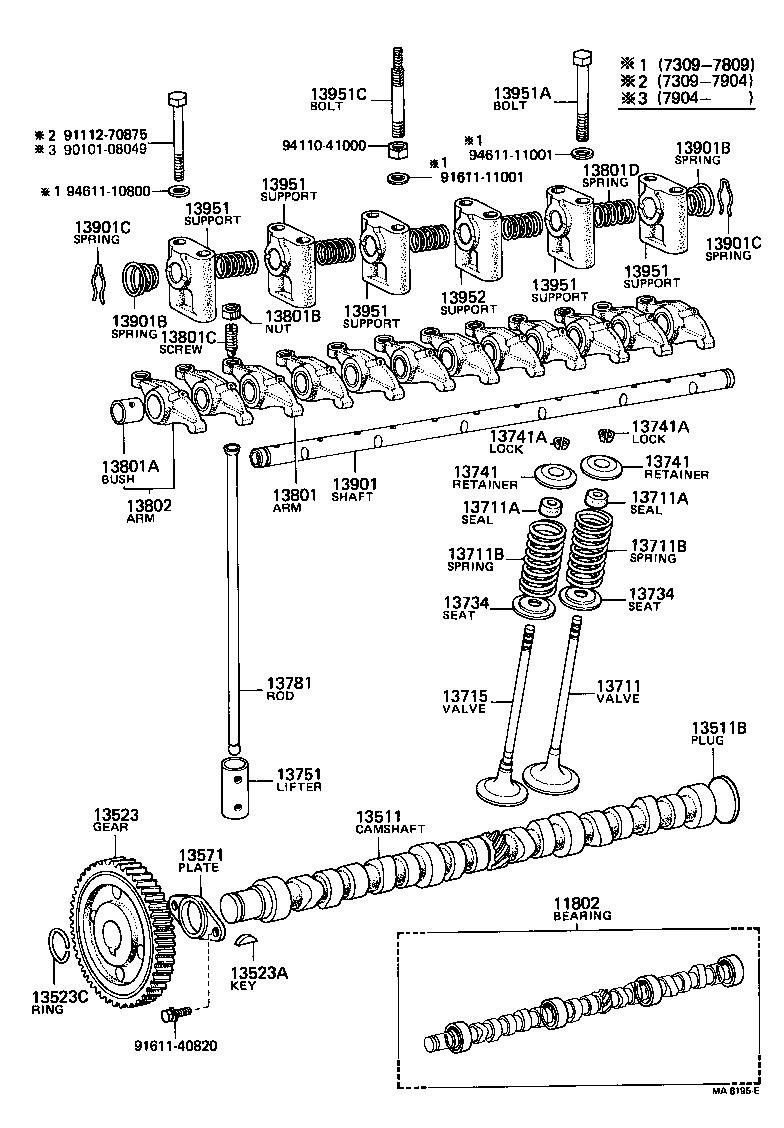

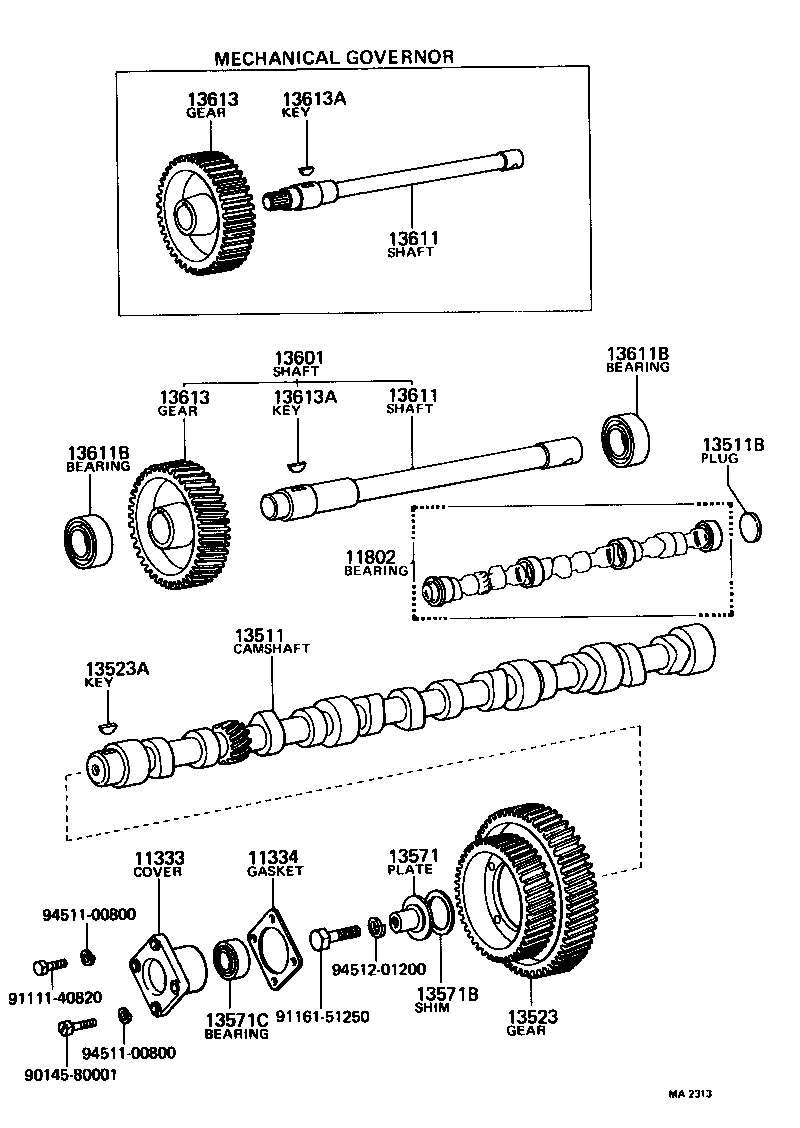

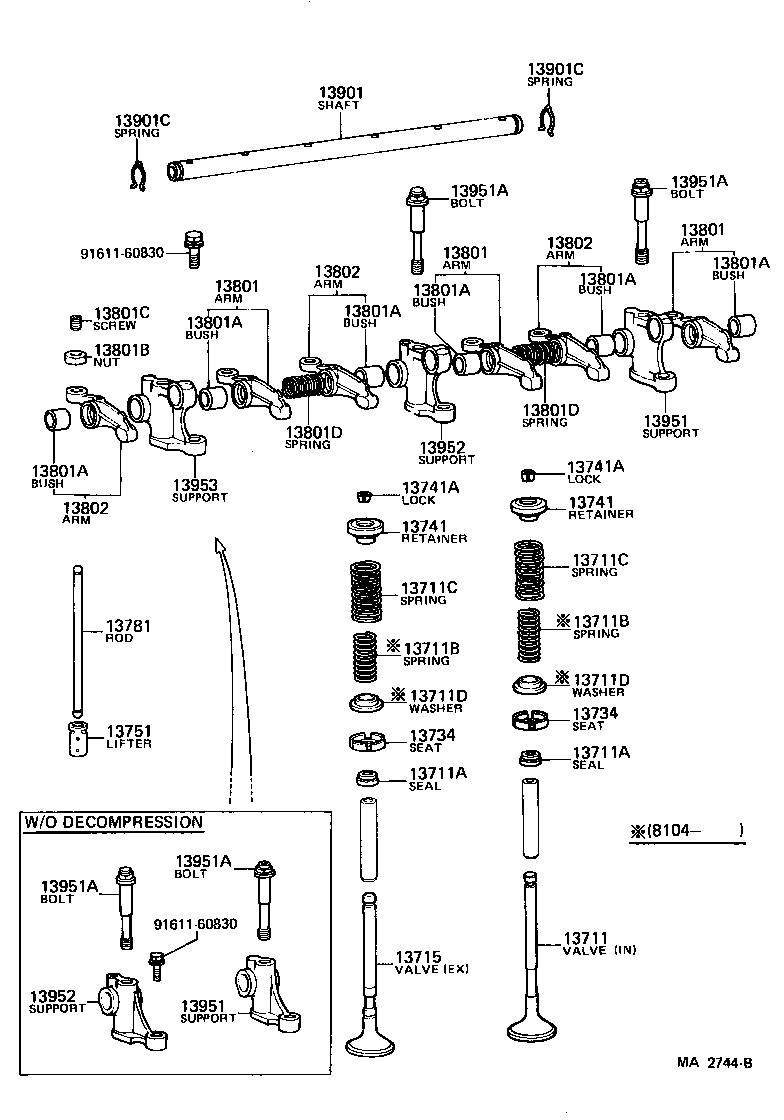

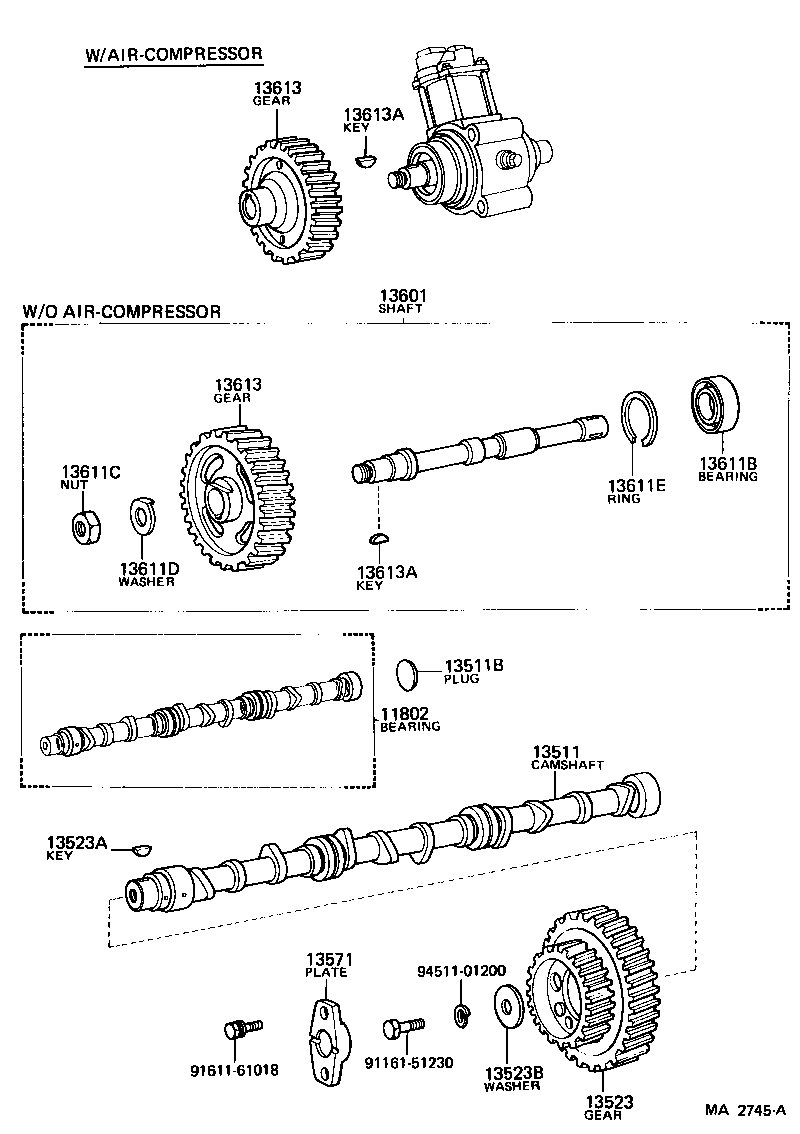

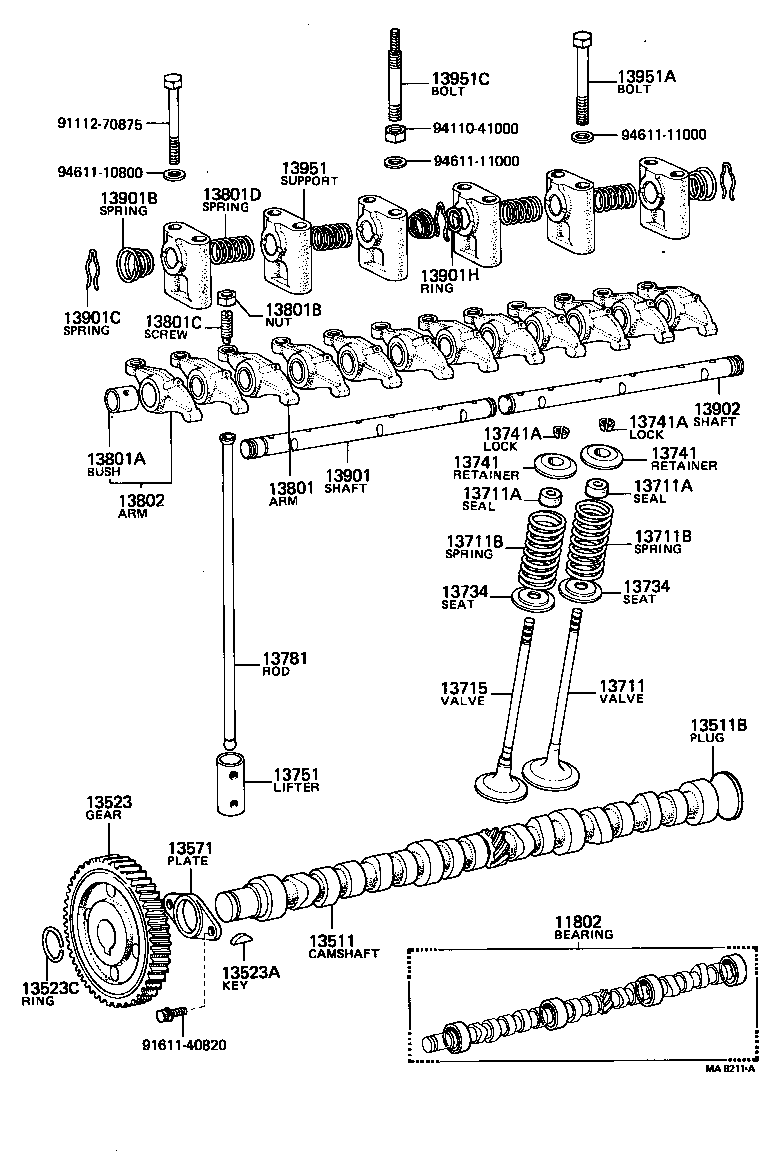

Figure MA0370G MA0370G 1969-03 → 1977-04 Figure MA2313 MA2313 1969-03 → 1977-04 Figure MA2744B MA2744B 1977-04 → — Figure MA2745A MA2745A 1977-04 → — Figure MA8211A MA8211A 1969-03 → 1973-09 Figure MA8195E MA8195E 1973-09 → 1982-07

Part groups

PNCDescription
11333 Cover, Camshaft Gear
11334 Gasket, Camshaft Gear Cover
11802 Bearing Set, Camshaft
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523C Ring, Snap Camshaft(FOR TIMING GEAR)
13571 Plate, Camshaft Thrust
13571B Shim, Camshaft End Plate
13571C Bearing(FOR COMSHAFT THRUST FLANGE)
13601 Shaft Sub-assy, Injection Pump Drive
13611 Shaft, Injection
13611B Bearing, Injection Pump Drive Shaft Ball
13611C Nut(FOR INJECTION PUMP SHAFT LOCK)
13611D Washer(FOR INJECTION PUMP SHAFT LOCK NUT)
13611E Ring(FOR INJECTION PUMP SHAFT BEARING)
13613 Gear, Injection Pump Drive
13613A Key, Woodruff(FOR INJECTION PUMP DRIVE GEAR)
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801A Bush, Bimetal Formed(FOR ROCKER ARM)
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13901H Ring, O, Valve Rocker Oil Delivery Union
13902 Shaft Sub-assy, Valve Rocker, NO.2
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
