Engine Oil Pump

57 part groups · 5 illustrations

Illustrations

MA0374C 1969-03 → 1977-04

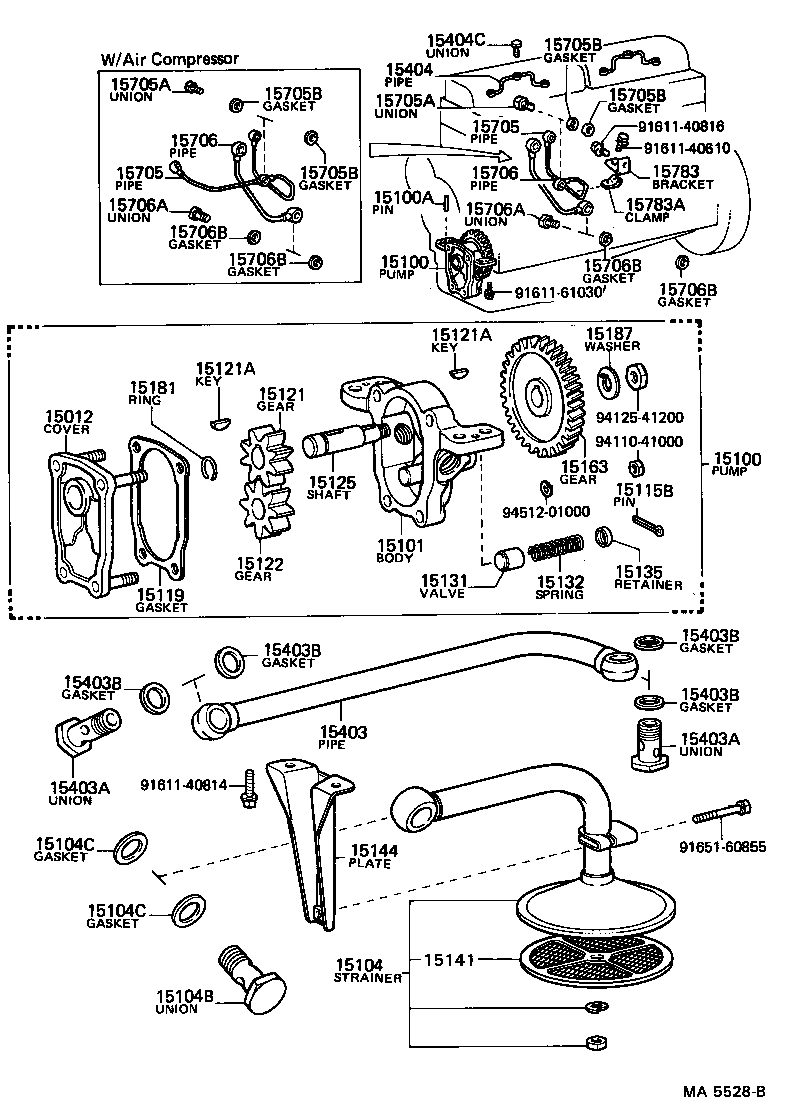

MA5528B 1977-04 → —

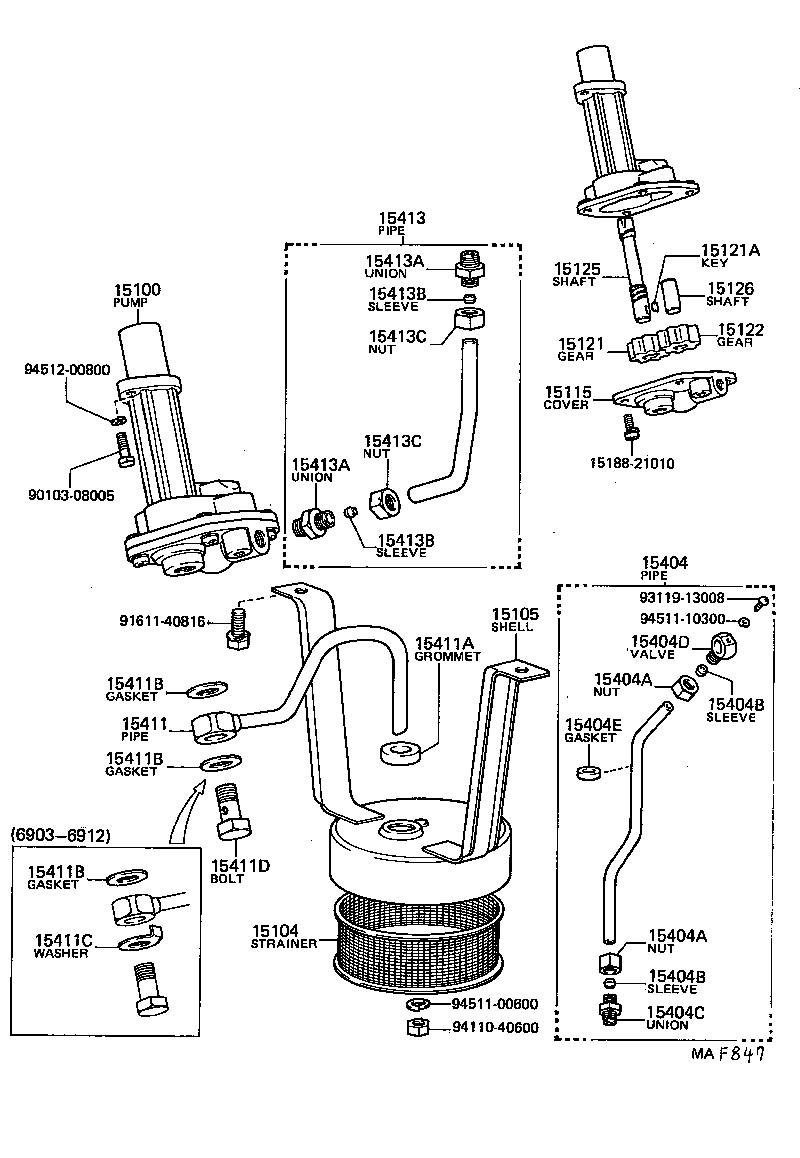

MAF847 1969-03 → 1973-09

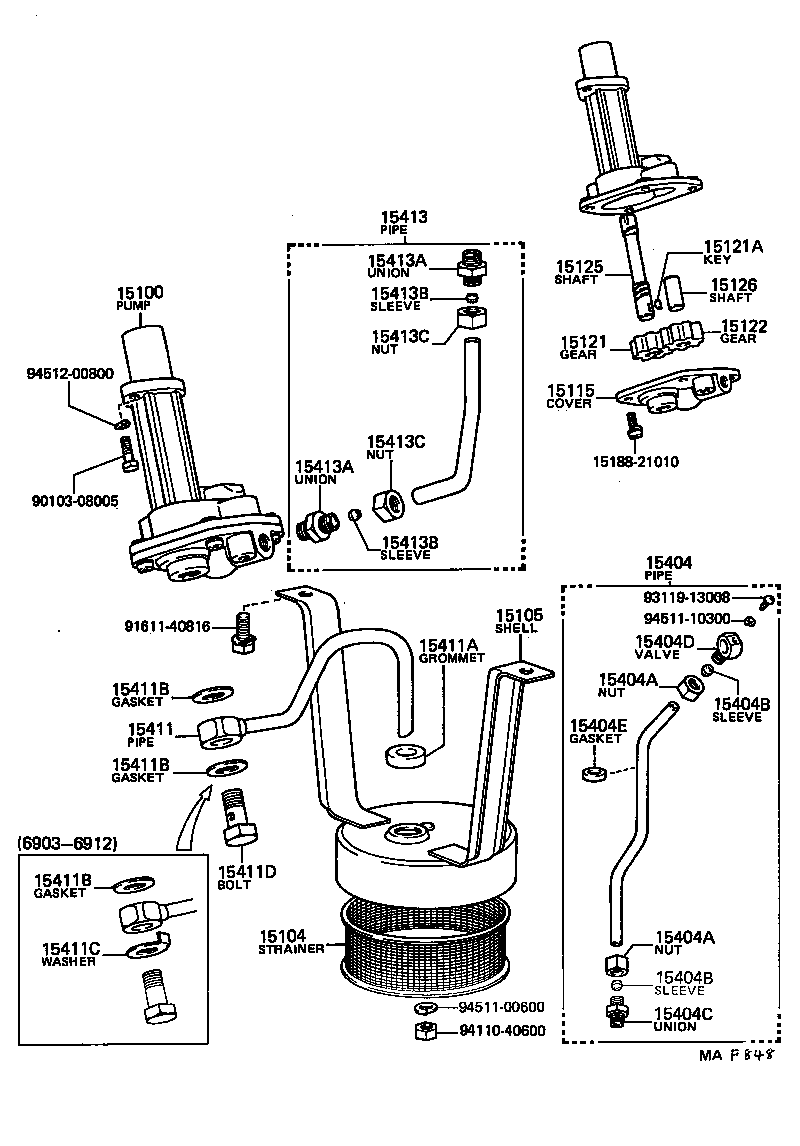

MAF848 1973-09 → 1976-06

MA2324B 1976-06 → 1982-07

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15047	Pipe Sub-assy, Oil Delivery Main
15100	Pump Assy, Oil
15100A	Pin, Ring(FOR OIL PUMP SET)
15101	Body Sub-assy, Oil Pump
15104	Strainer Sub-assy, Oil
15104B	Union(FOR OIL STRAINER)
15104C	Gasket(FOR OIL STRAINER)
15105	Shell Sub-assy, Oil Strainer
15115	Cover, Oil Pump
15115B	Pin, Oil Pump Valve Spring Setting
15119	Gasket, Oil Pump Cover
15121	Gear, Oil Pump Drive
15121A	Key, Oil Pump Drive Shaft
15122	Gear, Oil Pump Driven
15125	Shaft, Oil Pump
15126	Shaft, Oil Pump Driven
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15135	Retainer, Oil Pump Relief Valve
15141	Strainer, Oil
15144	Plate, Oil Filter Supporting
15163	Gear, Oil Pump Drive Shaft
15181	Ring, Oil Pump Shaft Snap
15187	Washer, Claw(FOR OIL PUMP DRIVE SHAFT GEAR)
15403	Pipe Sub-assy, Oil Pump Outlet
15403A	Union(FOR OIL PUMP OUTLET PIPE)
15403B	Gasket(FOR OIL PUMP OUTLET PIPE)
15404	Pipe Sub-assy, Valve Rocker Shaft Oil
15404A	Nut, Valve Rocker Shaft Oil Pipe Union
15404B	Sleeve, Valve Rocker Shaft Oil Pipe Ball
15404C	Union, Valve Rocker Shaft Oil Pipe
15404D	Valve, Rocker Shaft Oil Pipe Union
15404E	Gasket, Valve Rocker Shaft Oil Pipe Union
15411	Pipe, Oil Pump Inlet
15411A	Grommet(FOR OIL PUMP INLET PIPE)
15411B	Gasket OR Ring, O(FOR OIL PUMP INLET PIPE)
15411C	Washer, Lock(FOR OIL PUMP INLET PIPE)
15411D	Bolt, Union(FOR OIL PUMP INLET PIPE)
15413	Pipe, Oil Pump Outlet
15413A	Union(FOR OIL PUMP OUTLET PIPE)
15413B	Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C	Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D	Gasket(FOR OIL PUMP OUTLET PIPE)
15413F	Bolt, Union(FOR OIL PUMP OUTLET PIPE)
15414	Pipe, Rocker Shaft Oil Delivery, NO.1
15415	Pipe, Rocker Shaft Oil Delivery, NO.2
15705	Pipe Sub-assy, Oil, Injection Pump Inlet
15705A	Union(FOR INJECTION PUMP INLET PIPE)
15705B	Gasket(FOR INJECTION PUMP INLET PIPE)
15706	Pipe Sub-assy, Oil, Injection Pump Outlet
15706A	Union(FOR INJECTION PUMP OUTLET PIPE)
15706B	Gasket(FOR INJECTION PUMP OUTLET PIPE)
15783	Bracket, Oil Pipe Clamp(FOR INJECTION PUMP)
15783A	Clamp, Oil Pipe(FOR INJECTION PUMP)
