Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

24 part groups · 5 illustrations

Illustrations

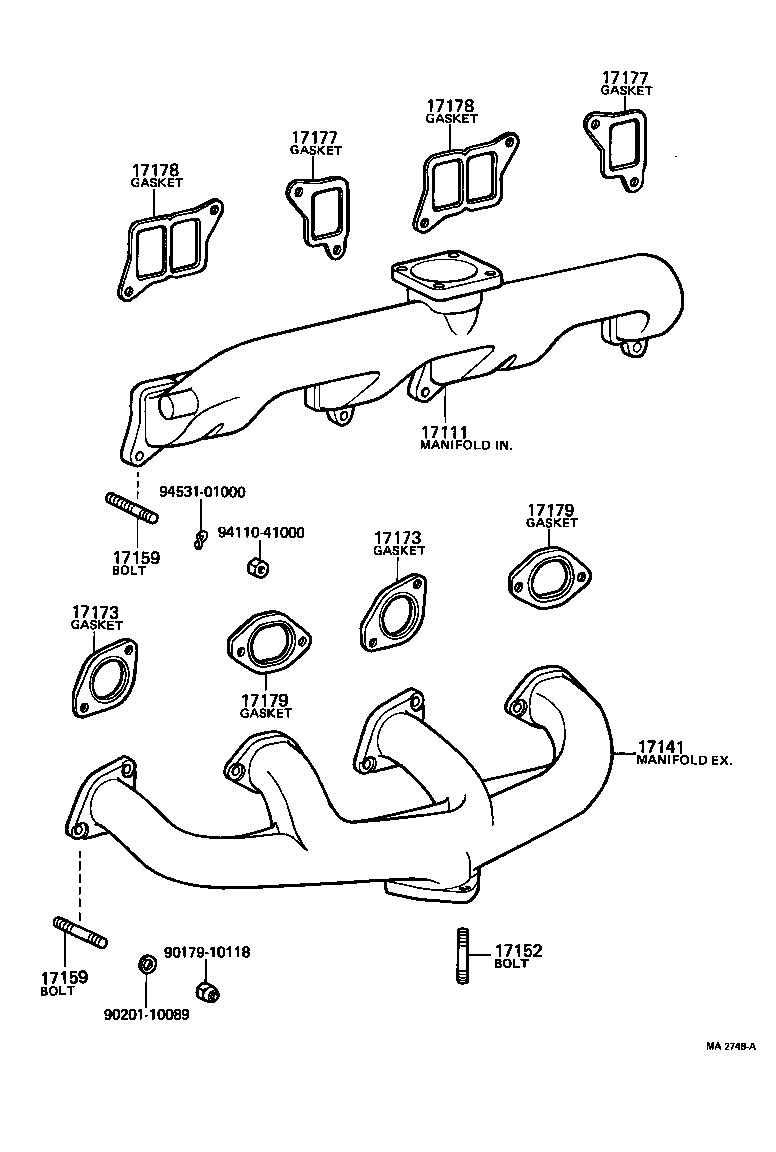

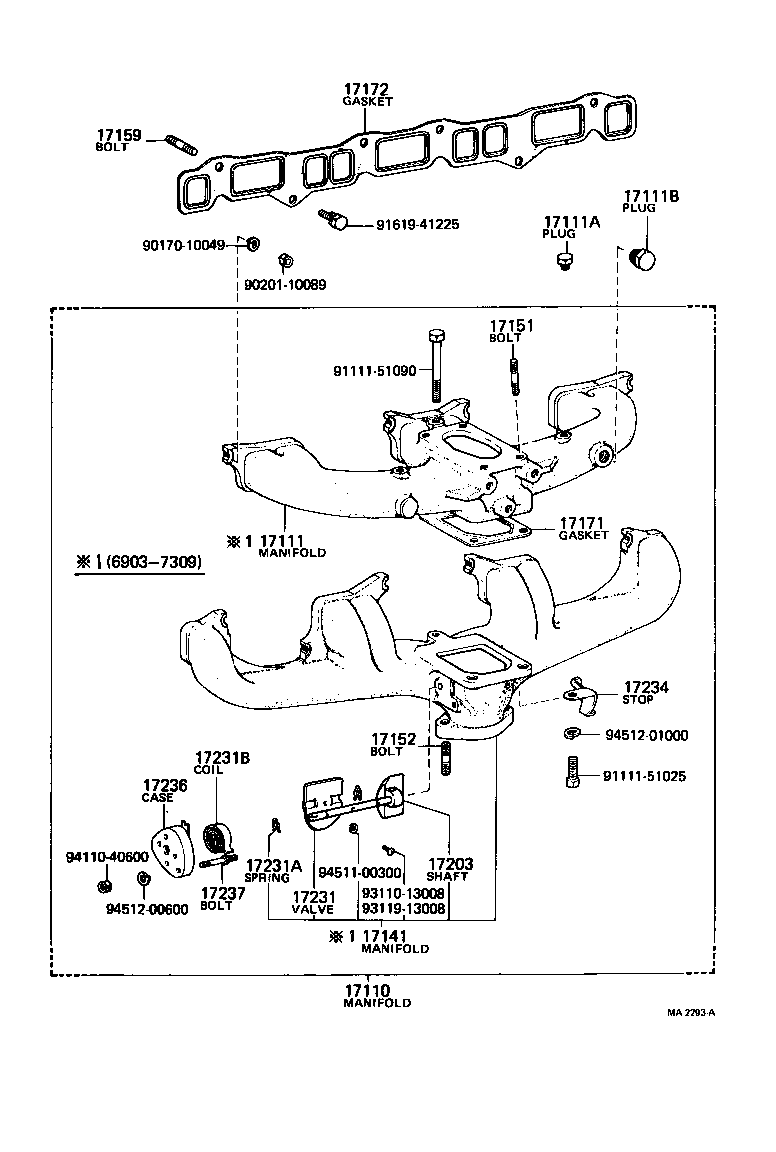

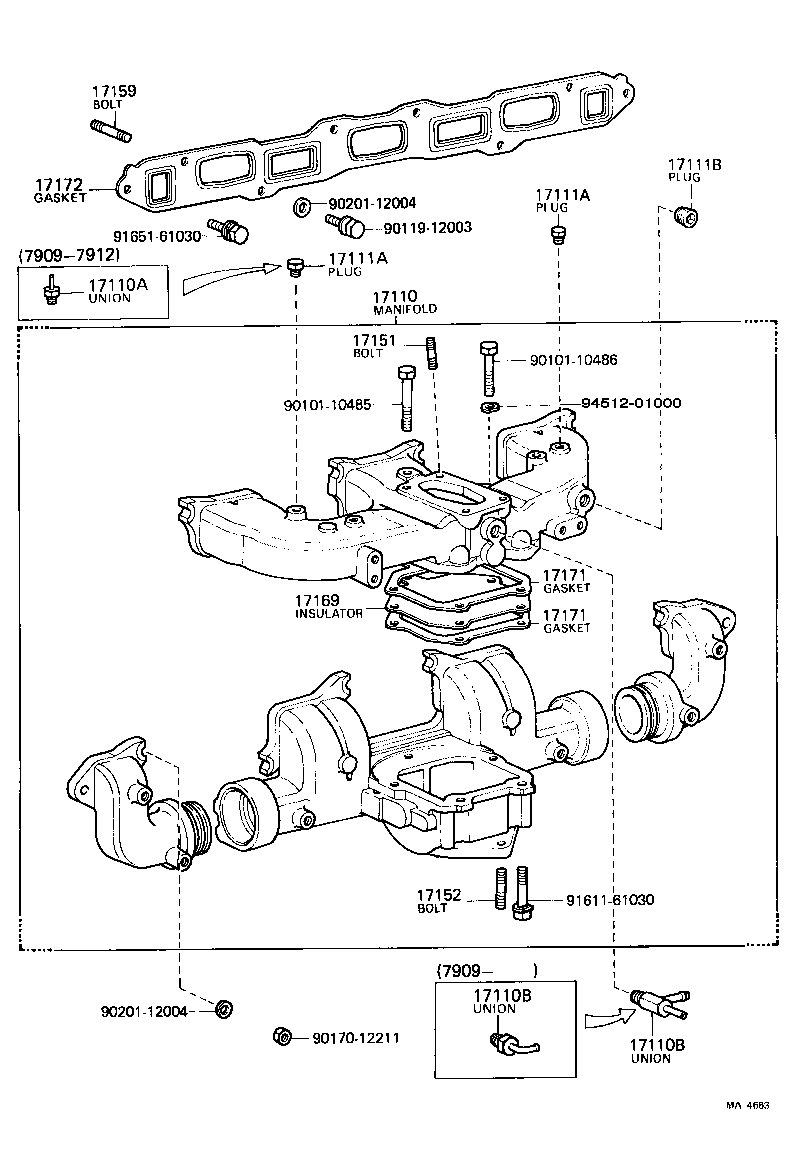

Figure MA0390D MA0390D 1969-03 → 1977-04 Figure MA2748A MA2748A 1977-04 → — Figure MA2293A MA2293A 1969-03 → 1975-01 Figure MA1598D MA1598D 1975-01 → 1976-08 Figure MA4663 MA4663 1976-08 → 1982-07

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17179 Gasket, Exhaust Manifold, NO.2
17203 Shaft Sub-assy, Manifold Heat Control
17231 Valve, Manifold Heat Control
17231A Spring, Retainer(FOR MANIFOLD HEAT CONTROL VALVE)
17231B Coil, Heat Control Valve
17234 Stop, Counter Weight
17236 Case, Heat Control Bimetal Set
17237 Bolt, Heat Control Case
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
