Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

59 part groups · 15 illustrations

Illustrations

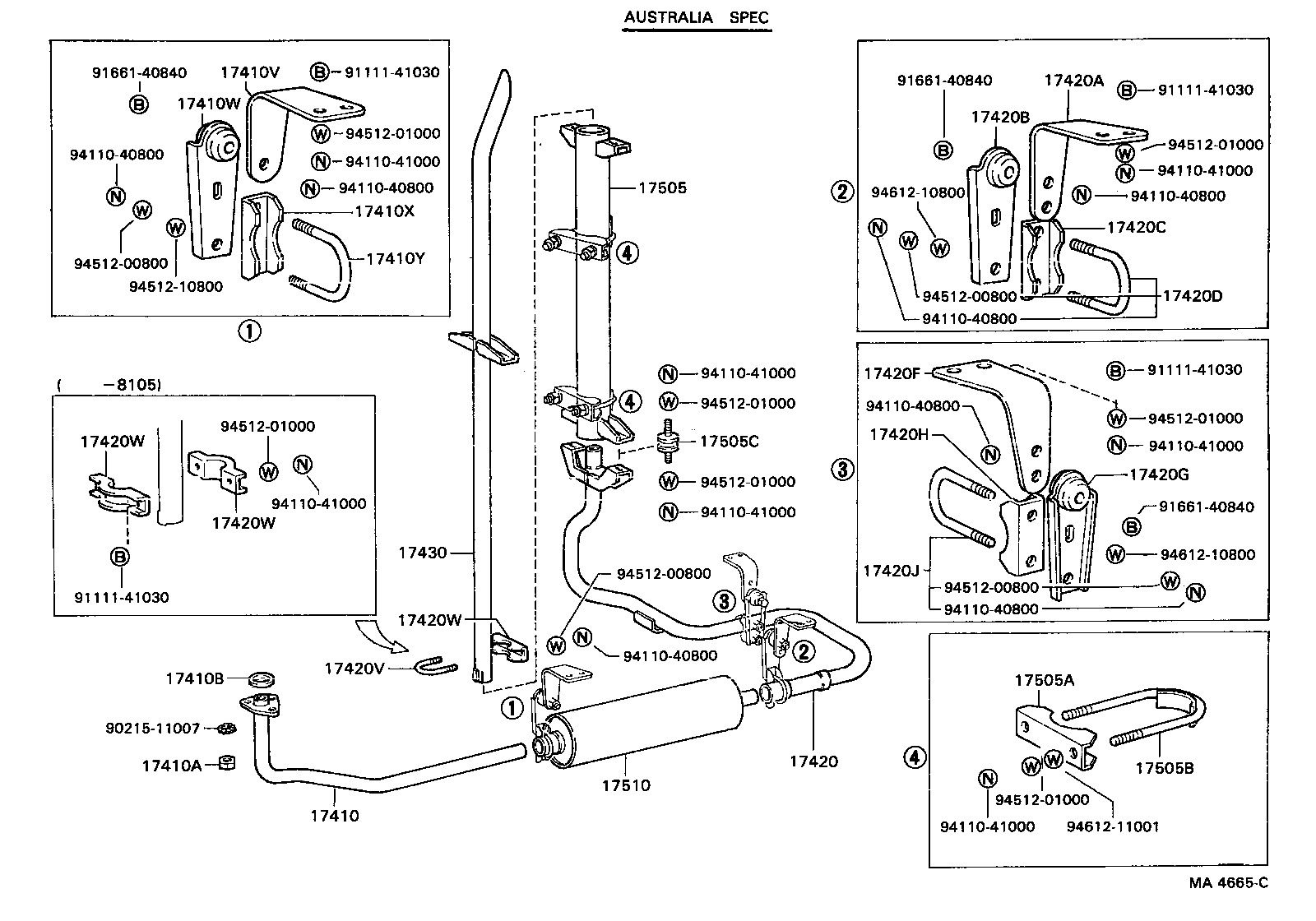

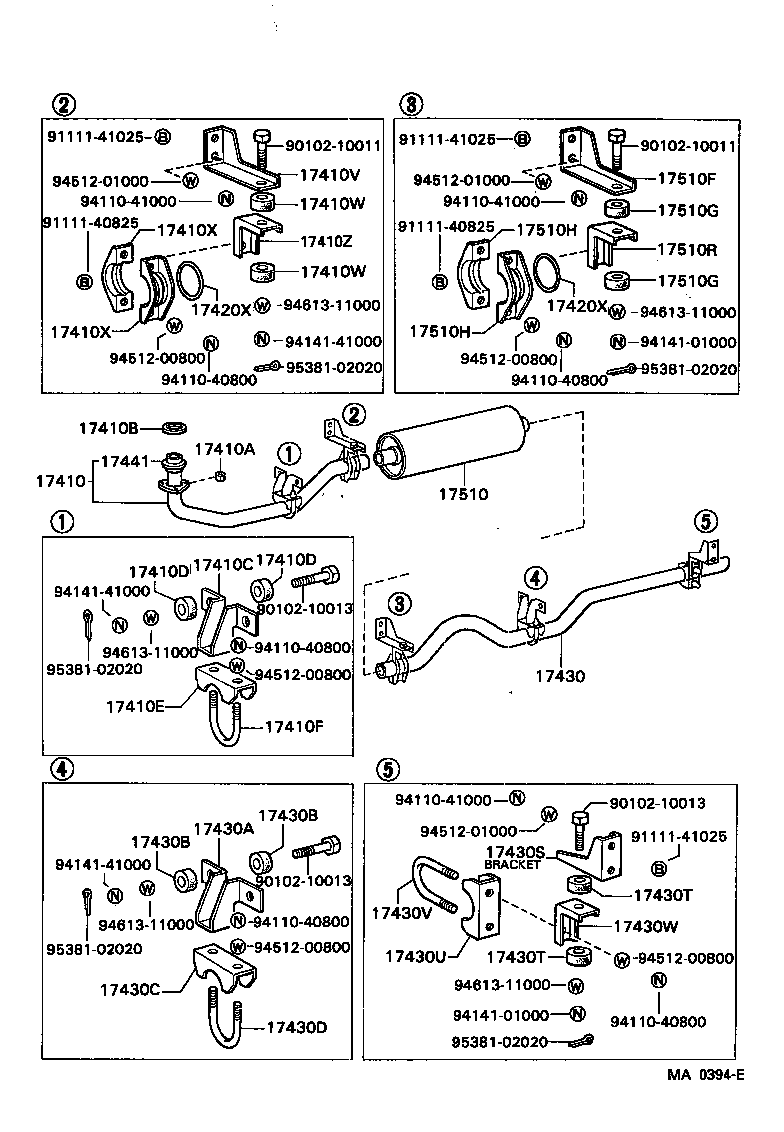

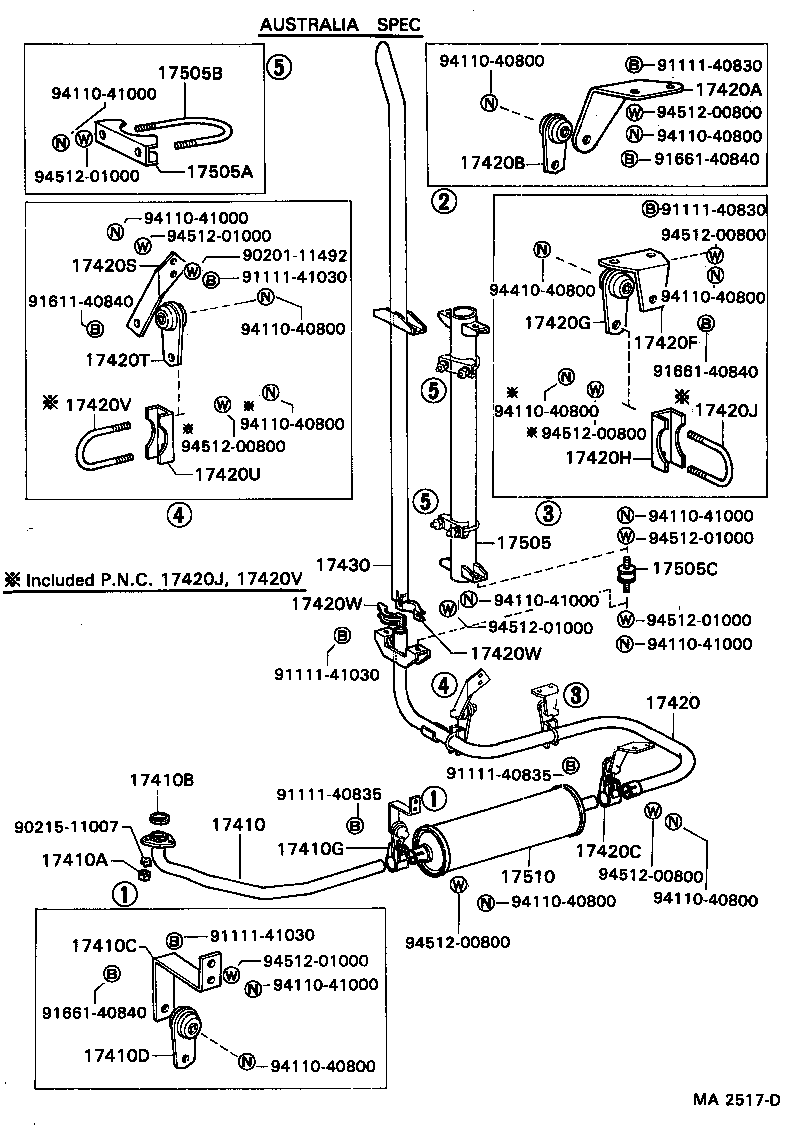

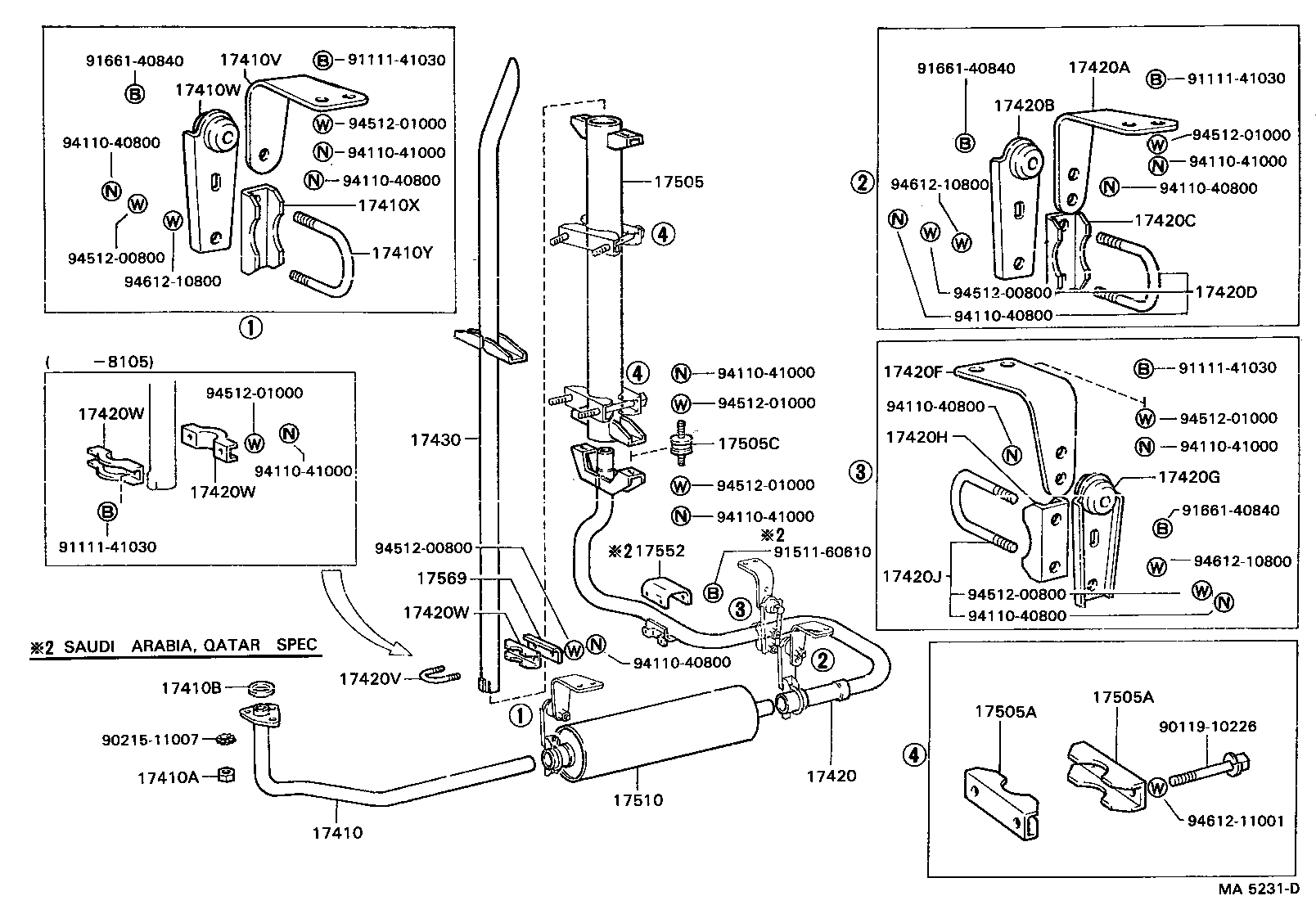

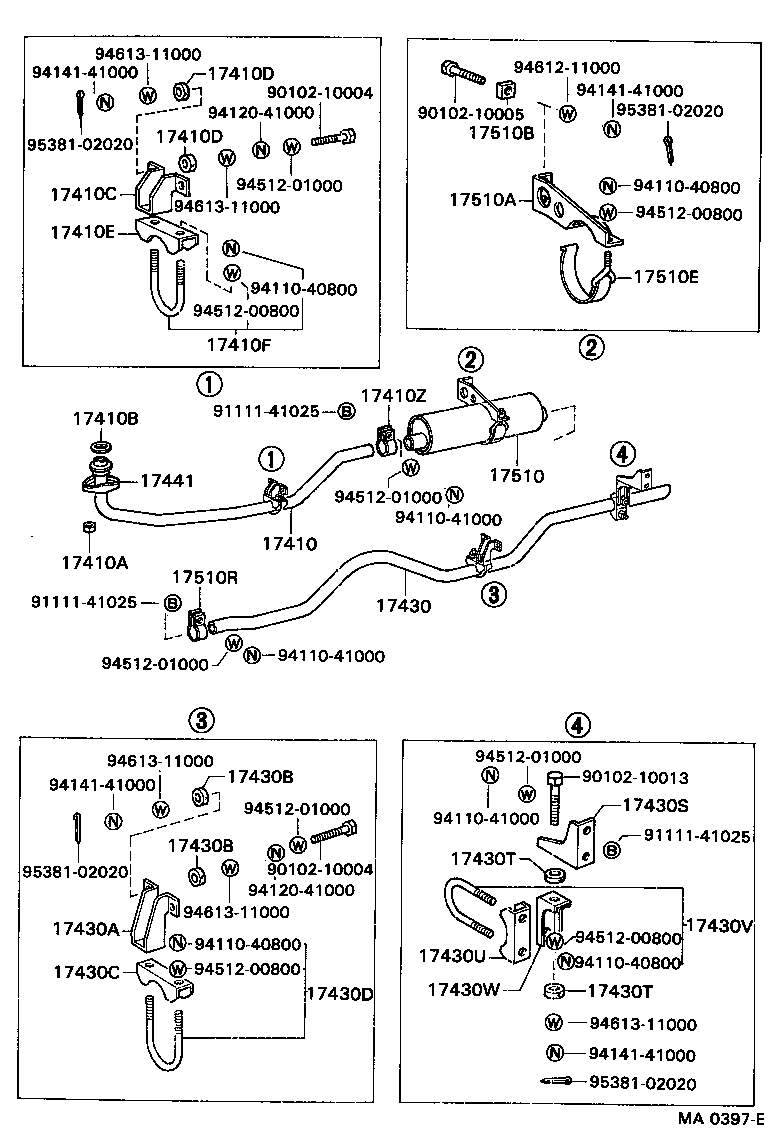

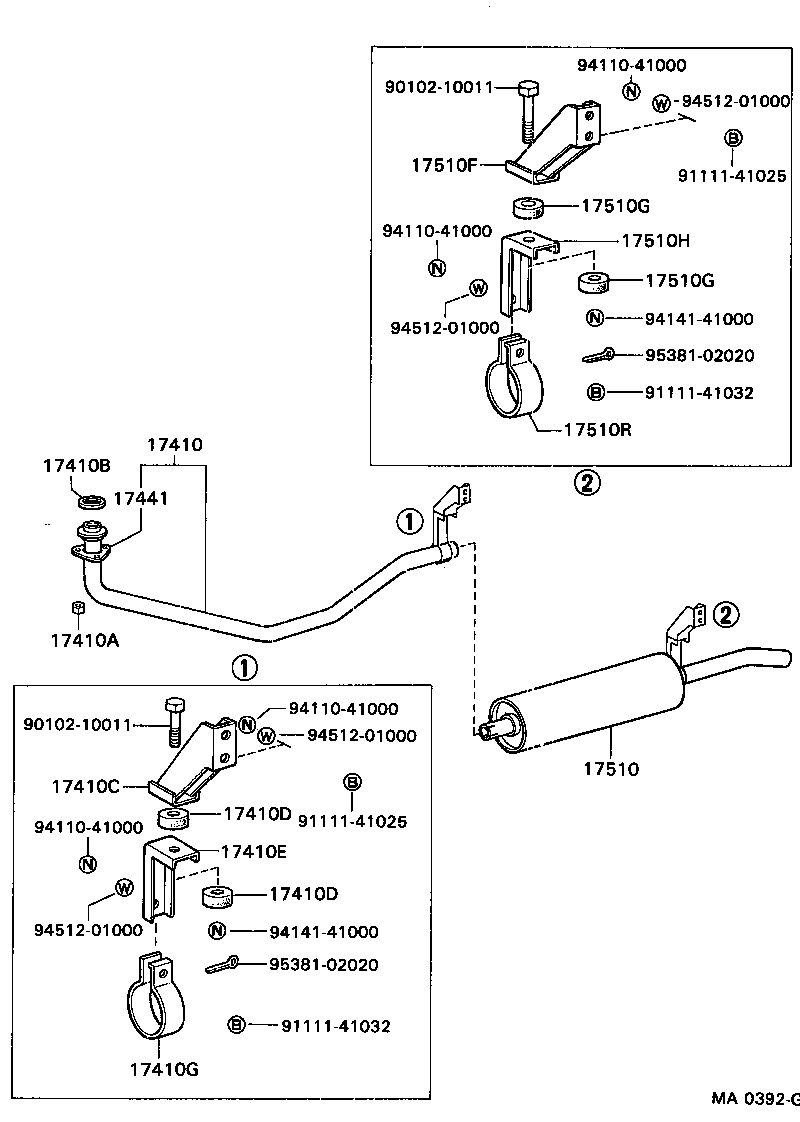

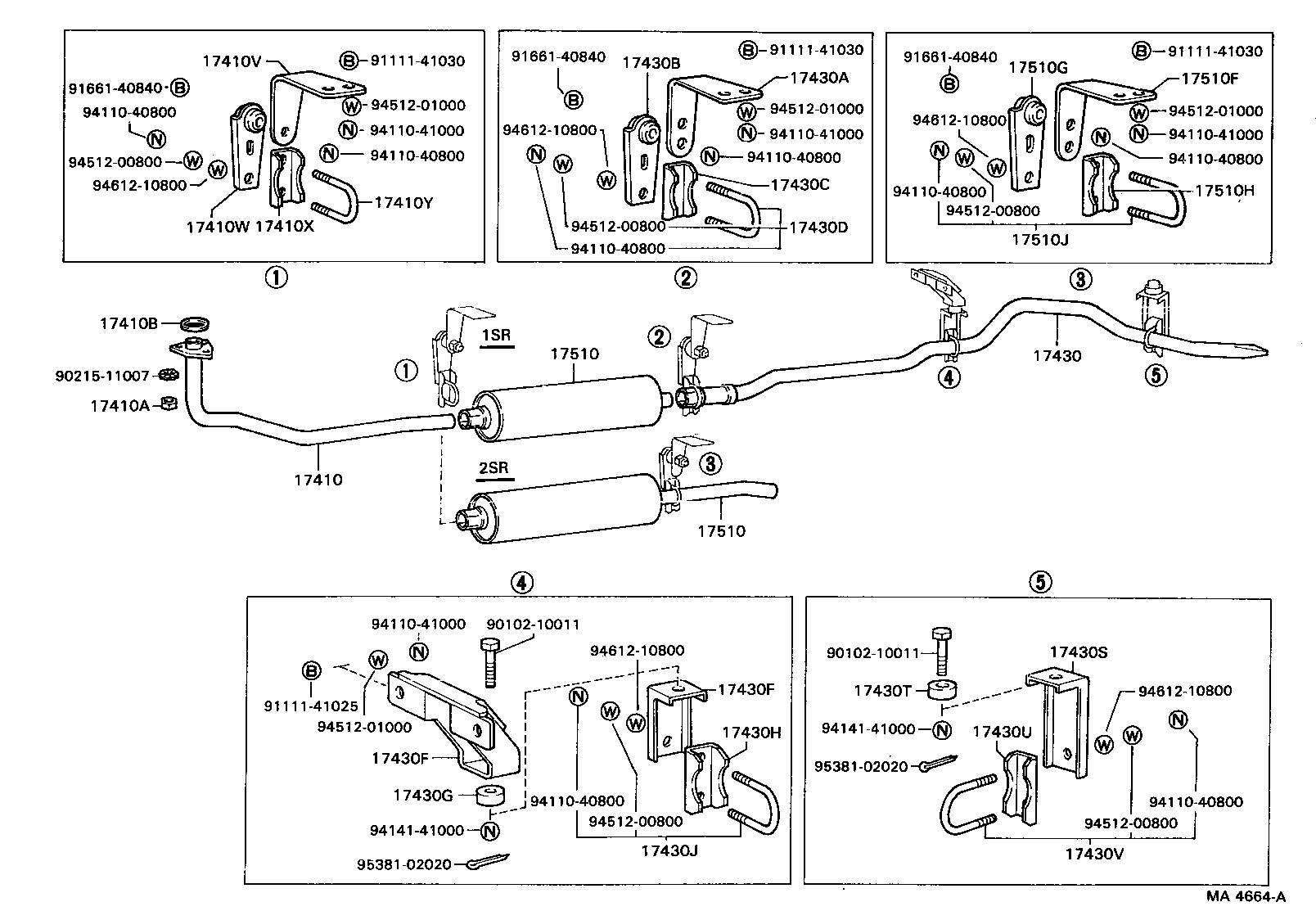

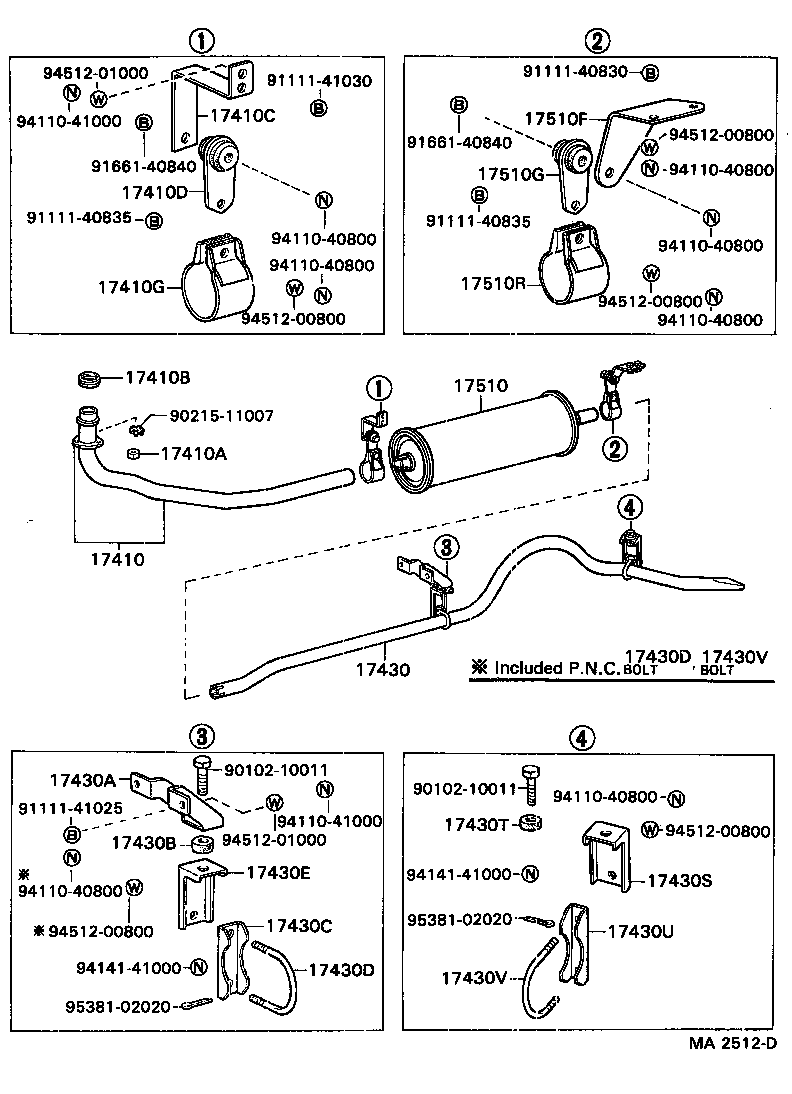

Figure MA0396D MA0396D 1969-03 → 1976-08 Figure MA0397E MA0397E 1969-03 → 1971-05 Figure MA0398C MA0398C 1969-03 → 1975-01 Figure MA0392G MA0392G 1969-03 → 1976-08 Figure MA0392G MA0392G 1974-04 → 1976-08 Figure MA0393D MA0393D 1969-03 → 1974-03 Figure MA0393D MA0393D 1974-04 → 1976-08 Figure MA2512D MA2512D 1976-08 → 1980-02 Figure MA2513D MA2513D 1976-08 → 1980-02 Figure MA2517D MA2517D 1976-08 → 1980-02 Figure MA4664A MA4664A 1980-02 → — Figure MA4665C MA4665C 1980-02 → 1991-05 Figure MA5231D MA5231D 1981-02 → — Figure MA5231D MA5231D 1983-08 → — Figure MA0394E MA0394E 1969-03 → 1977-03

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410D Cushion, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410G Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17410X Clamp NO.1, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17410Z Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420B Cushion, Exhaust Pipe Center, Front
17420C Clamp NO.1, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420U Clamp NO.1, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420W Clamp NO.2, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430H Clamp NO.1, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17441 Flange, Exhaust Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17505B Bolt, U(FOR HEAT INSULATOR CLAMP)
17505C Cushion, Exhaust Pipe(FOR HEAT INSULATOR)
17510 Muffler Assy
17510A Bracket, Muffler, Front
17510B Cushion, Muffler, Front
17510E Clamp NO.2, Muffler, Front
17510F Bracket, Muffler, Rear
17510G Cushion, Muffler, Rear
17510H Clamp NO.1, Muffler, Rear
17510J Bolt OR Ring, Muffler, Rear
17510R Clamp NO.2, Muffler, Rear
17552 Insulator, Exhaust Pipe Heat, NO.2
17569 Plate, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
