Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 12 illustrations

Illustrations

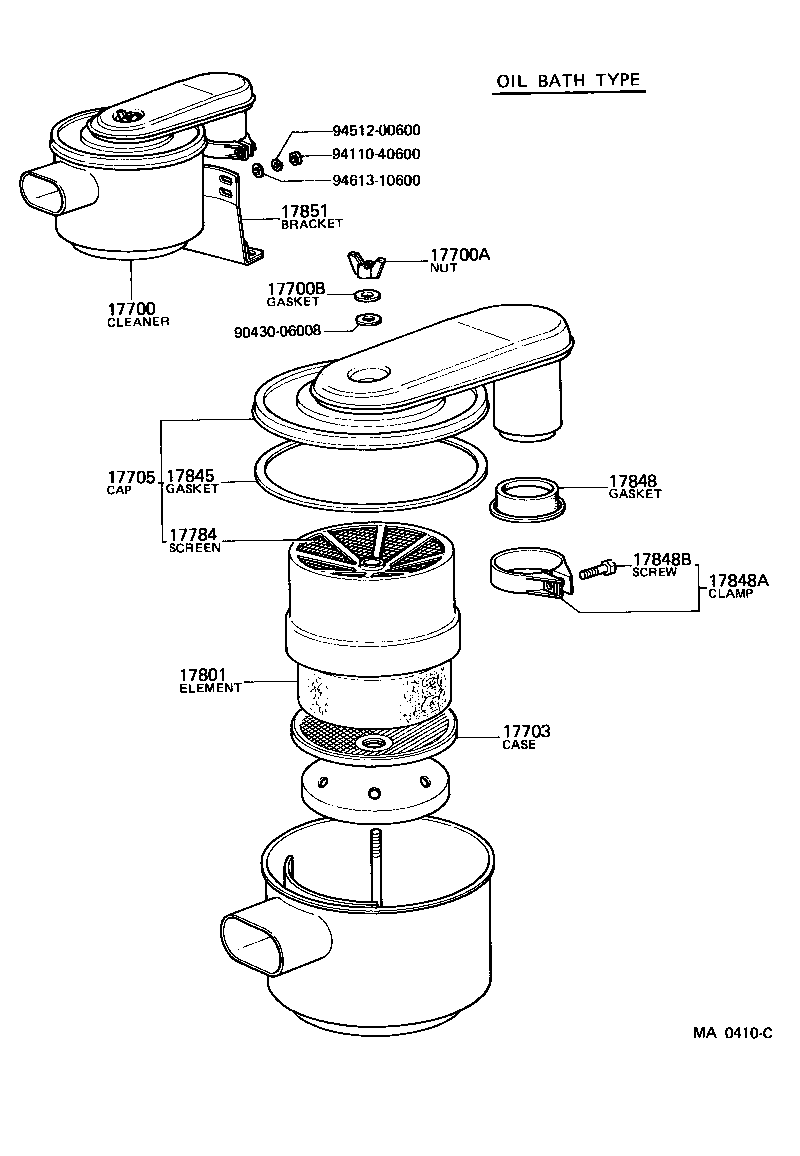

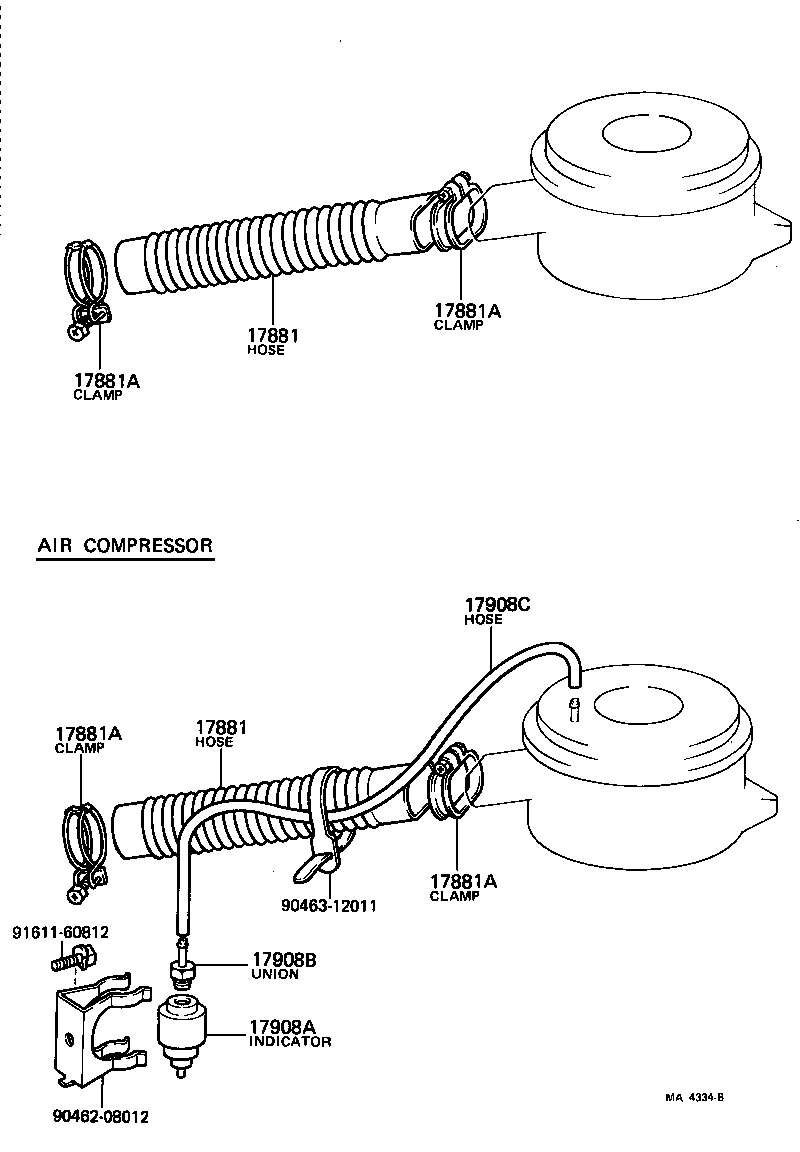

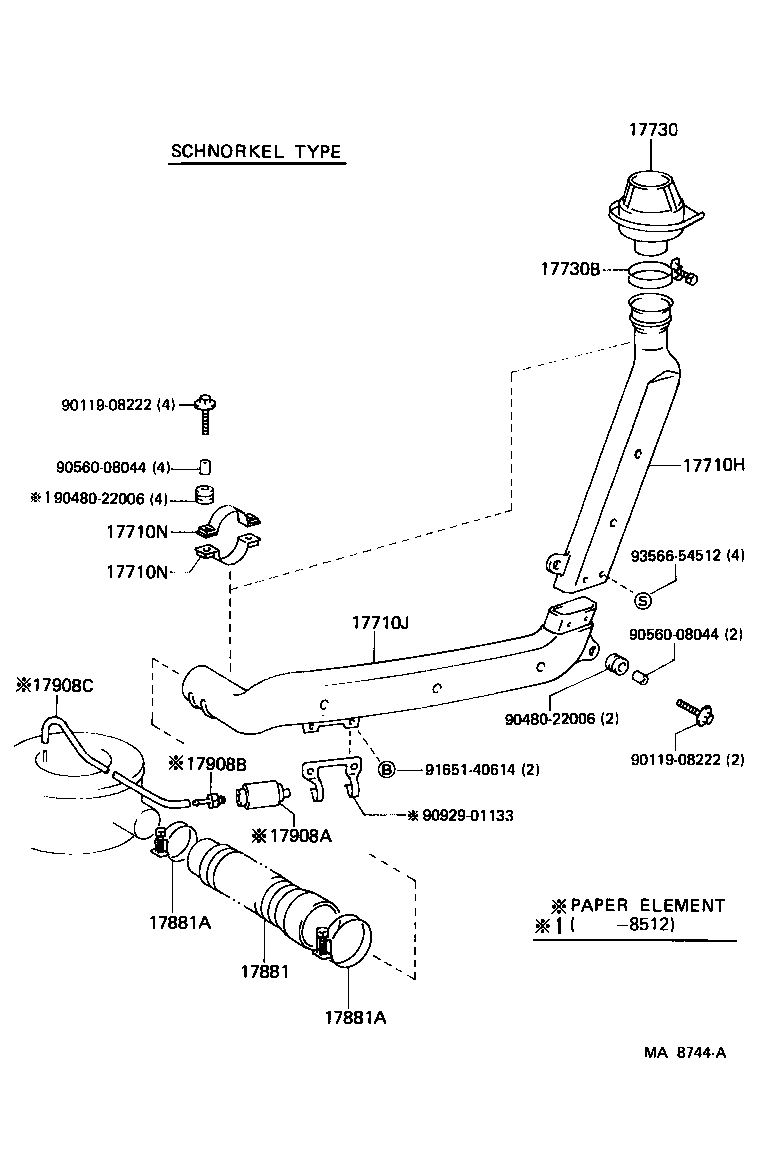

Figure MA0404C MA0404C 1969-03 → 1977-04 Figure MA0405B MA0405B 1969-03 → 1977-04 Figure MA2769D MA2769D 1977-04 → — Figure MA2770F MA2770F 1977-04 → — Figure MA4334B MA4334B 1977-04 → — Figure MA8744A MA8744A 1985-09 → — Figure MA0409C MA0409C 1969-03 → 1975-01 Figure MA0410C MA0410C 1969-03 → 1969-09 Figure MA0411C MA0411C 1969-03 → 1975-01 Figure MA0412C MA0412C 1969-03 → 1971-05 Figure MA5232 MA5232 1975-01 → 1982-07 Figure MA1604J MA1604J 1975-01 → 1982-07

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17702 Case Sub-assy, Air Cleaner, NO.2
17702C Gasket (FOR NO 2 AIR CLEANER CASE)
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17710H Pipe, Air Cleaner Inlet, Upper
17710J Pipe, Air Cleaner Inlet, Lower
17710N Bracket, Air Cleaner Inlet, NO.2
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17784 Screen, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17842 Gasket, Filter Element, NO.2
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17848A Clamp(FOR AIR CLEANER TO CARBURETOR GASKET)
17848B Bolt, Clamp(FOR AIR CLEANER TO CARBURETOR GASKET)
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17908A Indicator Sub-assy, Air Cleaner
17908B Union(FOR AIR CLEANER INDICATOR)
17908C Hose, Vaccum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
