Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

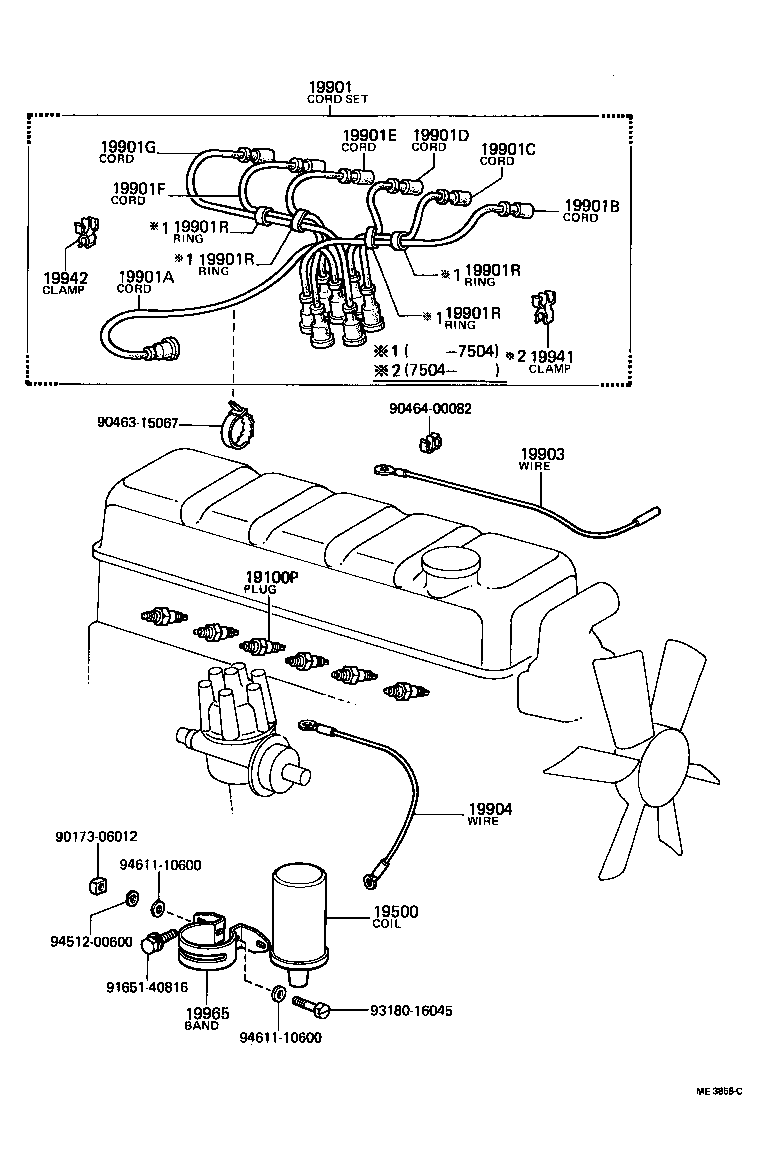

Ignition Coil & Spark Plug / Glow Plug
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19807 | Insulator Sub-assy, Glow Plug, NO.1 |
| 19850 | Plug Assy, Glow |
| 19850A | Gasket(FOR GLOW PLUG SETTING) |
| 19856 | Nut, Connecting(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19872 | Connector, Glow Plug, NO.2 |
| 19873 | Connector, Glow Plug, NO.3 |
| 19874 | Connector, Glow Plug, NO.4 |
| 19876 | Terminal, Glow Plug Main |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901F | Cord, Spark Plug Resistive, NO.5 |
| 19901G | Cord, Spark Plug Resistive, NO.6 |
| 19901R | Ring, Rubber Spark Plug Resistive Cord |
| 19903 | Wire Sub-assy, Carburetor Solenoid Valve |
| 19904 | Wire Sub-assy, Distributor Primary |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 19965 | Band, Ignition Coil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
