Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

58 part groups · 6 illustrations

Illustrations

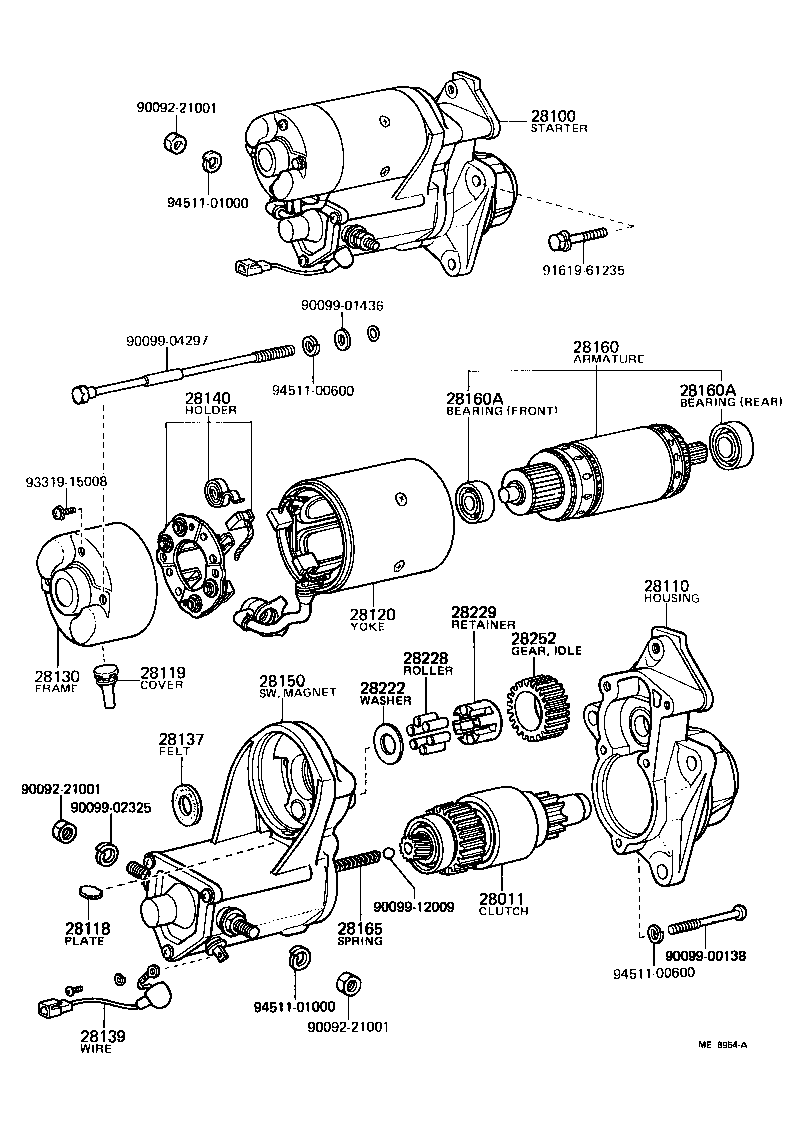

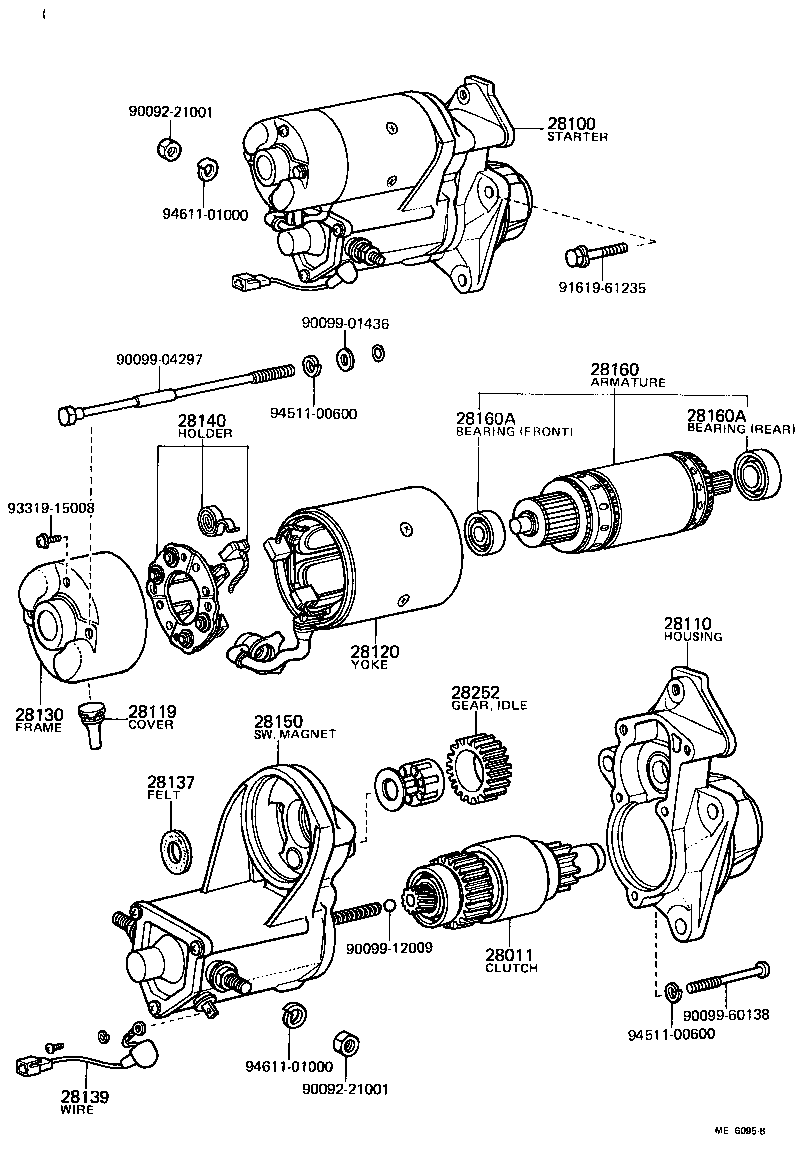

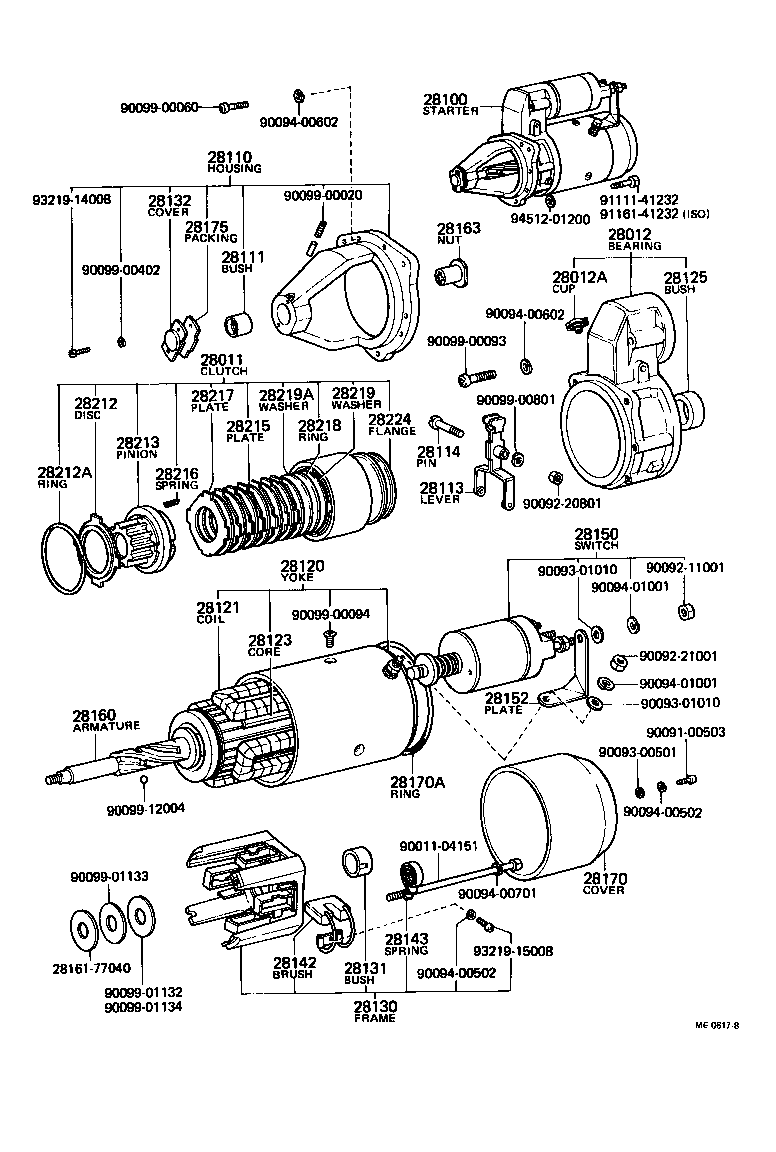

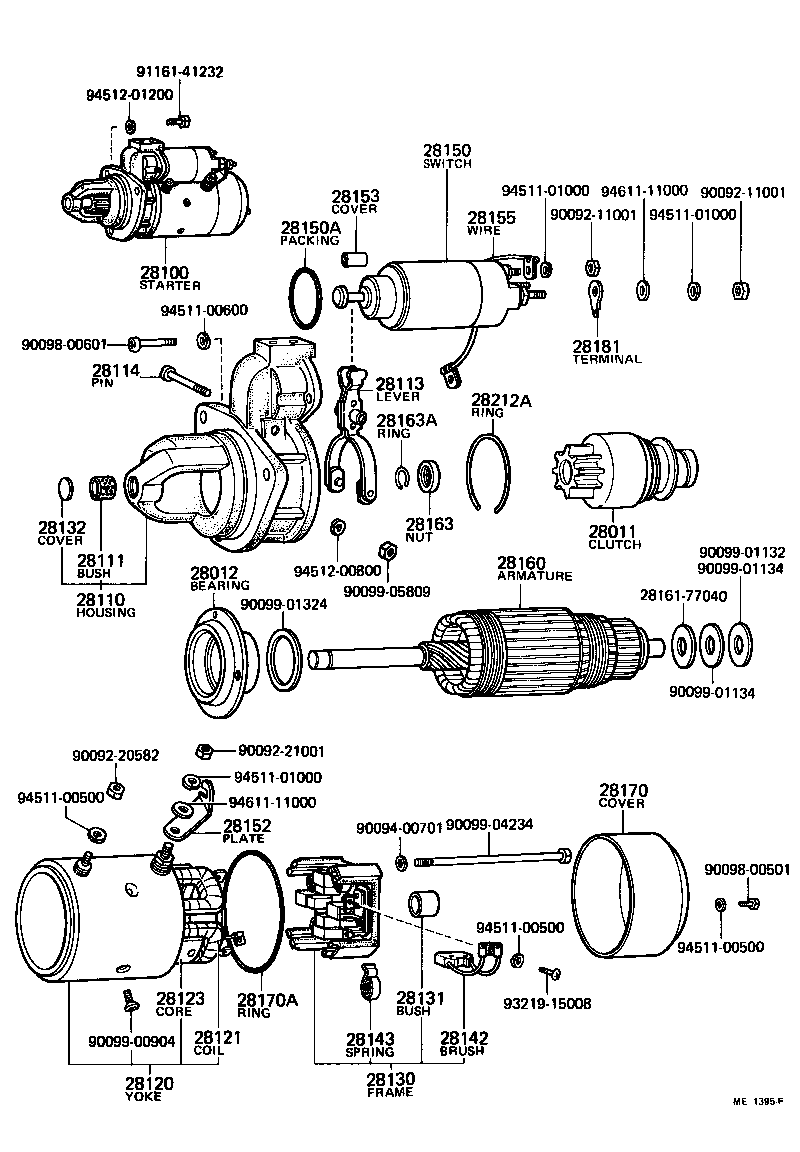

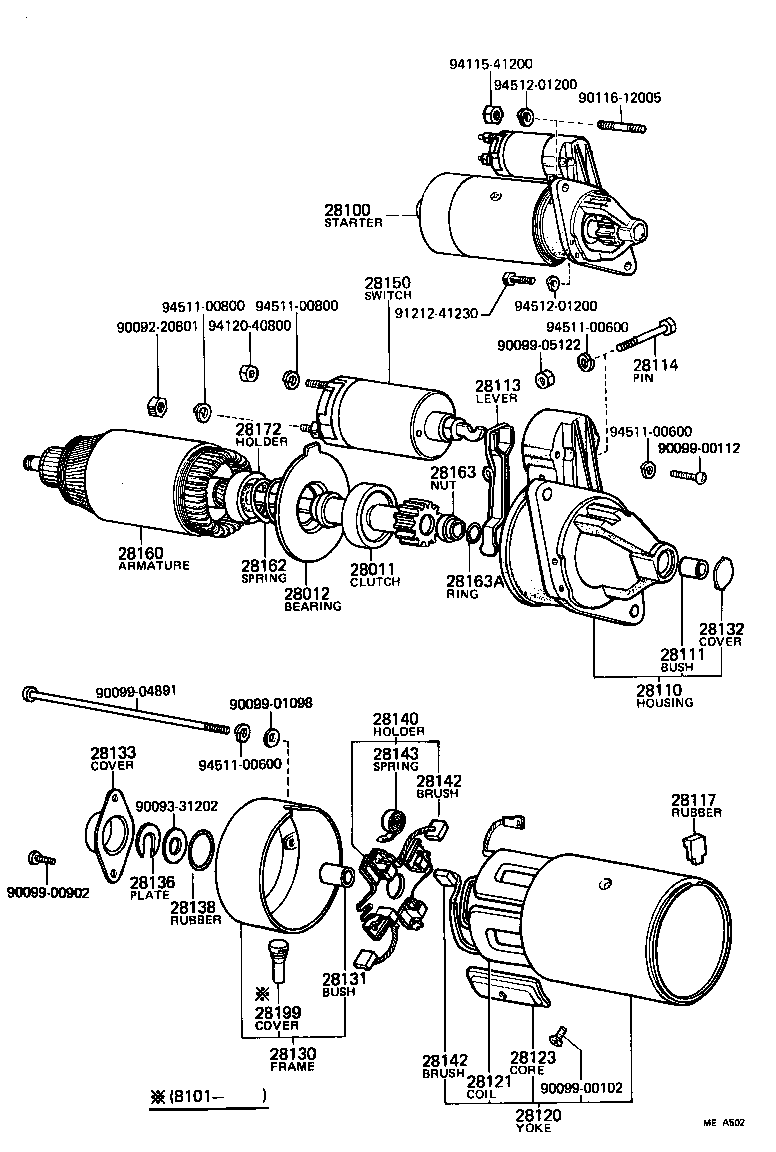

Figure ME8749A ME8749A 1969-03 → 1969-07 Figure MEA502 MEA502 1969-07 → 1982-07 Figure ME0617B ME0617B 1969-03 → 1971-01 Figure ME1395F ME1395F 1971-01 → 1977-04 Figure ME6095B ME6095B 1977-04 → 1980-02 Figure ME8954A ME8954A 1980-02 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28012 Bearing Sub-assy, Center
28012A Cup, Oil, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28121 Coil, Starter Field
28123 Core, Starter Pole
28125 Bush, Starter Center Bearing
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28132 Cover, Starter Bearing(FOR DRIVE HOUSING)
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28137 Washer, Felt, Starter
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28150A Packing(FOR STARTER MAGNET SWITCH)
28152 Plate, Switch Connecting
28153 Cover, Magnet Switch
28155 Wire, Lead, Switch Connecting
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28166 Bush, Starter Insulation
28170 Cover Assy, Starter
28170A Ring, O(FOR STARTER COVER)
28172 Holder, Starter Spring
28175 Packing, Starter Bearing Cover
28181 Terminal, Starter
28199 Cover, Starter
28212 Disc, Starter Clutch Housing
28212A Ring, Snap, Starter Clutch Housing Disc
28213 Pinion, Starter Clutch
28215 Plate, Starter Clutch, NO.1
28216 Spring, Starter Clutch Helical
28217 Plate, Starter Clutch, NO.2
28218 Ring, Starter Clutch Thrust
28219 Washer, Starter Clutch Spring, A
28219A Washer, Starter Clutch Spring, B
28222 Washer, Starter Idle Gear Clutch
28224 Flange, Spline Tube
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
