Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

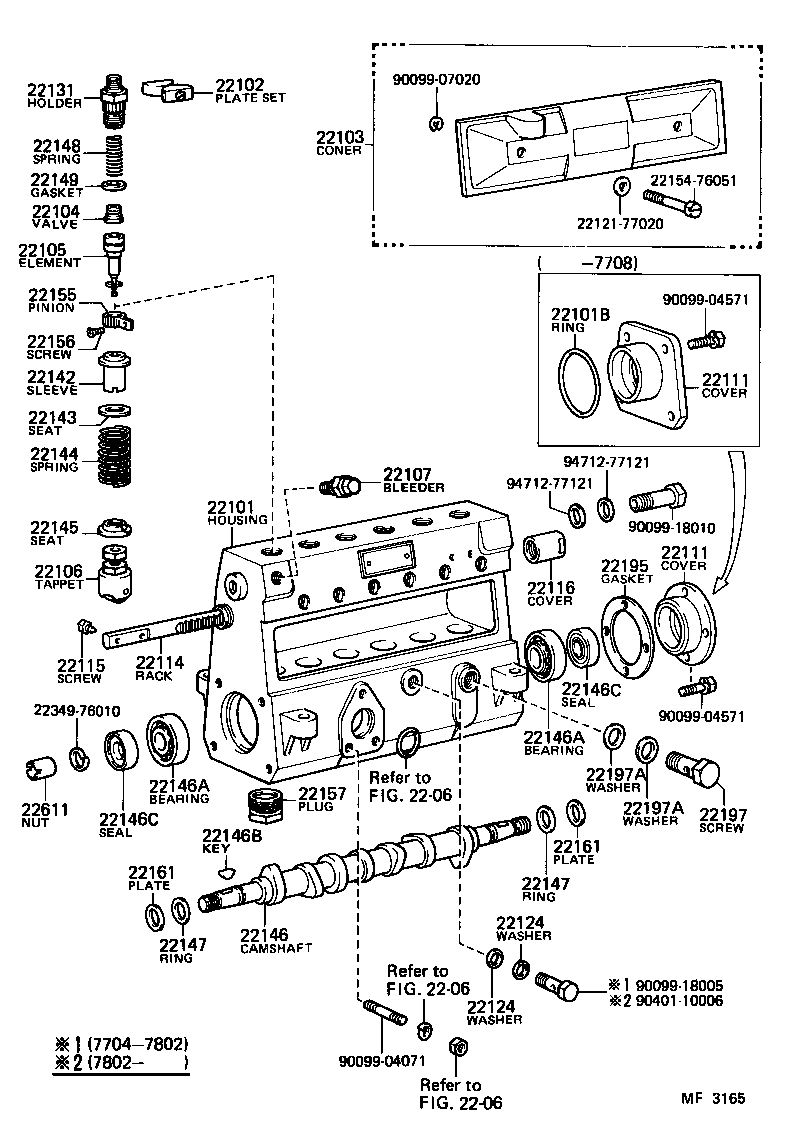

Injection Pump Body
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22101 | Housing Sub-assy, Injection Pump |
| 22101B | Ring, O(FOR INJECTION PUMP HOUSING) |
| 22102 | Plate Set, Valve Holder Lock |
| 22103 | Cover Sub-assy, Injection Pump |
| 22103A | Ring, Snap(FOR INJECTION PUMP COVER) |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22106 | Tappet Sub-assy, Injection Pump |
| 22107 | Bleeder Sub-assy, Air |
| 22111 | Cover, Injection Pump Camshaft Bearing |
| 22112 | Gage, Injection Pump Oil Level |
| 22114 | Rack, Control |
| 22115 | Screw, Rack Guide |
| 22116 | Cover, Control Rack |
| 22122 | Screw, Drain |
| 22122A | Nipple, Drain Plug |
| 22124 | Washer, Injection Pump Drain Union |
| 22127 | Union, Injection Pump Fuel Inlet |
| 22128 | Bolt(FOR DELIVERY VALVE HOLDER LOCK PLATE) |
| 22131 | Holder, Delivery Valve |
| 22132 | Plate, Delivery Valve Holder Rear Lock |
| 22133 | Plate, Delivery Valve Holder Front Lock |
| 22142 | Sleeve, Plunger Control |
| 22143 | Seat, Spring Upper |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146 | Camshaft, Injection Pump |
| 22146A | Bearing(FOR INJECTION CAMSHAFT) |
| 22146B | Key(FOR INJECTION PUMP CAMSHAFT) |
| 22146C | Seal, Oil, Injection Pump Camshaft |
| 22147 | Ring, Camshaft Adjust |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22151 | Cleaner, Injection Pump Air |
| 22153 | Gasket, Injection Pump Cover Plate |
| 22154 | Screw(FOR INJECTION PUMP COVER SETTING) |
| 22155 | Pinion, Plunger Control |
| 22156 | Screw, Plunger Control Pinion Clamp |
| 22157 | Plug, Injection Pump Felt Plate |
| 22158 | Plate, Injection Pump Camshaft Oil Felt |
| 22161 | Plate, Camshaft Shim |
| 22195 | Gasket, Bearing Cover |
| 22197 | Nipple, Over Flow |
| 22197A | Washer(FOR OVER FLOW NIPPLE) |
| 22611 | Nut, Timer Round |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
