Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

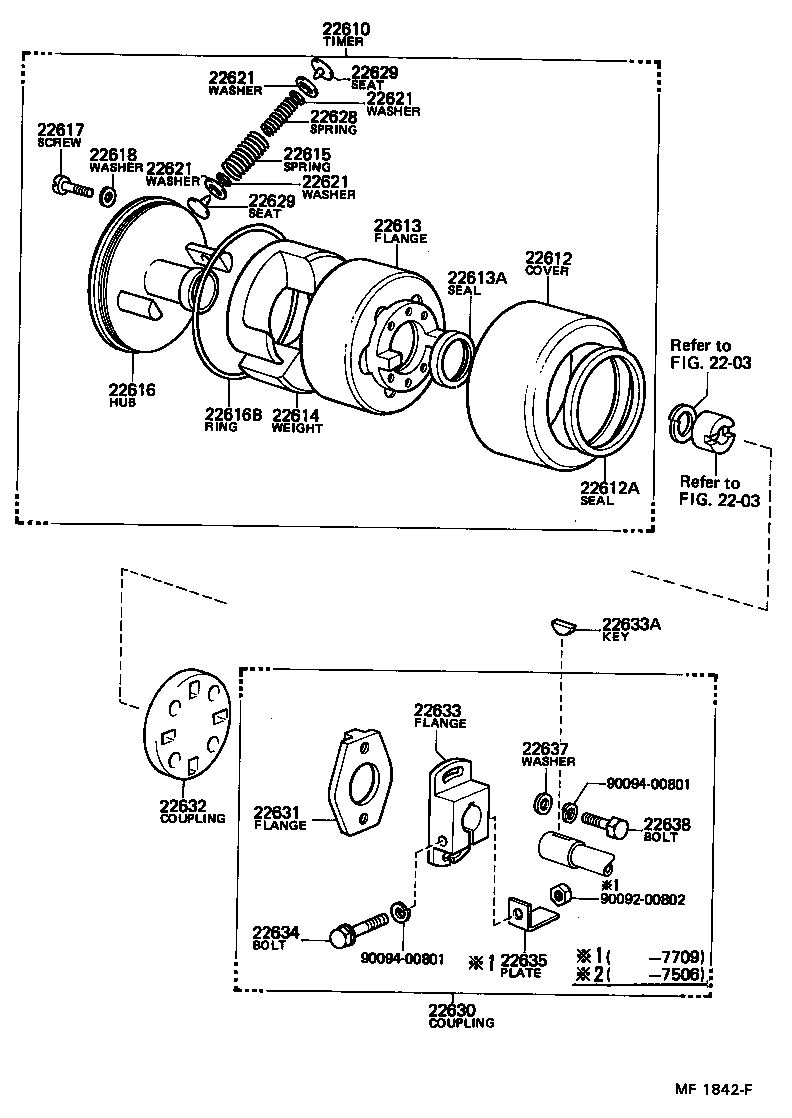

Automatic Timer
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22610 | Timer Assy, Automatic |
| 22612 | Cover, Timer |
| 22612A | Seal, Oil(FOR TIMER COVER) |
| 22613 | Flange, Timer Driving |
| 22613A | Seal, Oil(FOR TIMER DRIVING FLANGE) |
| 22614 | Weight, Timer |
| 22615 | Spring, Timer |
| 22616 | Hub, Timer |
| 22616B | Ring, O(FOR TIMER HUB) |
| 22617 | Screw, Timer Hub |
| 22618 | Gasket, Timer Screw |
| 22621 | Washer, Timer Spring Adjust |
| 22628 | Spring, Timer Sub |
| 22629 | Seat, Spring(FOR TIMER SPRING) |
| 22630 | Coupling, Injection Pump W/Coupling Disc |
| 22631 | Flange, Driving |
| 22632 | Coupling, Injection Pump |
| 22633 | Flange, Coupling |
| 22633A | Key, Woodruff(FOR COUPLING FLANGE) |
| 22634 | Bolt, Coupling Flange Set |
| 22635 | Plate, Coupling Flange Set |
| 22637 | Washer, Coupling Set Bolt |
| 22638 | Bolt, Driving Flange Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
