Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06
Venturi

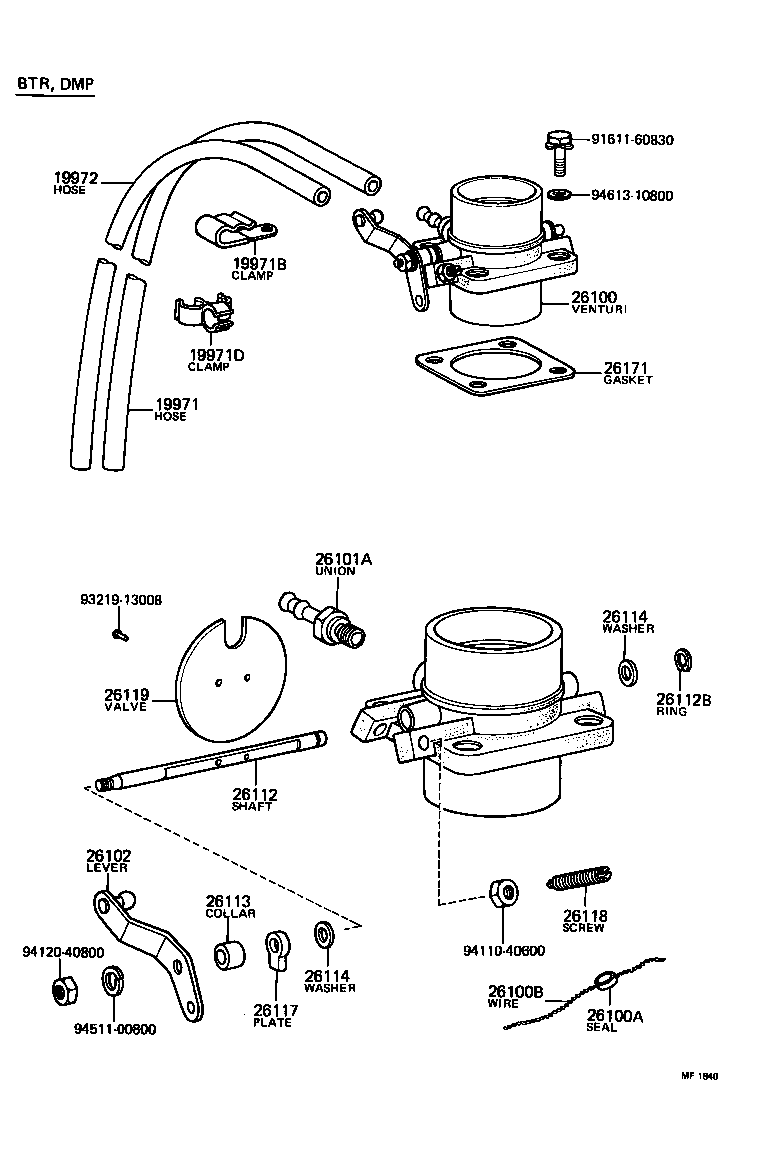

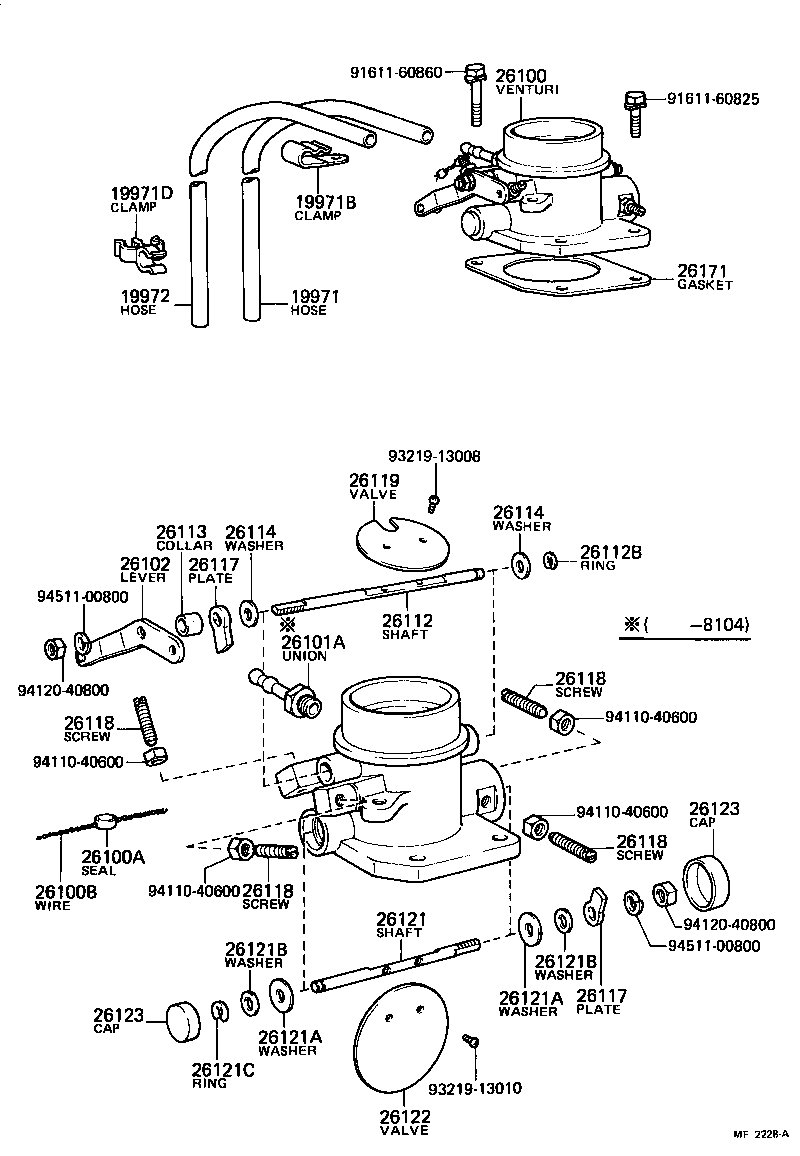

29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 19971 | Pipe, Vacuum(FOR VENTURI) |
| 19971A | Clamp(FOR VENTURI VACUUM PIPE END) |
| 19971B | Clamp(FOR VENTURI PIPE) |
| 19971C | Bush(FOR VENTURI PIPE CLAMP) |
| 19971D | Clip(FOR VENTURI PIPE) |
| 19972 | Pipe, Air Cleaner Vent |
| 19972A | Clamp(FOR AIR CLEANER VENT PIPE END) |
| 26100 | Venturi Assy |
| 26100A | Seal, Lead |
| 26100B | Wire, Seal |
| 26101A | Nipple(FOR VENTURI PIPE) |
| 26102 | Lever Sub-assy, Throttle Shaft Adjusting |
| 26102B | Key(FOR ADJUSTING LEVER) |
| 26112 | Shaft, Venturi Throttle Valve |
| 26112B | Ring, O(FOR VENTURI THROTTLE VALVE SHAFT) |
| 26113 | Collar, Throttle Valve Shaft |
| 26113A | Pin, Throttle Valve Shaft |
| 26114 | Washer, Throttle Valve Shaft Adjusting |
| 26117 | Plate, Throttle Valve Shaft Stop |
| 26117A | Pin(FOR THROTTLE VALVE SHAFT STOP PLATE) |
| 26118 | Screw, Stop Plate Adjusting |
| 26119 | Valve, Venturi Throttle |
| 26121 | Shaft, Venturi Throttle Valve(FOR INTAKE SHUTTER) |
| 26121A | Washer, Plate, NO.1(FOR VENTURI THROTTLE VALVE SHAFT) |
| 26121B | Washer, Plate, NO.2(FOR VENTURI THROTTLE VALVE SHAFT) |
| 26121C | Ring, Shaft Snap(FOR VENTURI THROTTLE VALVE SHAFT) |
| 26122 | Valve, Venturi Throttle(FOR INTAKE SHUTTER) |
| 26123 | Cap, Lever |
| 26171 | Gasket, Venturi |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
