Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

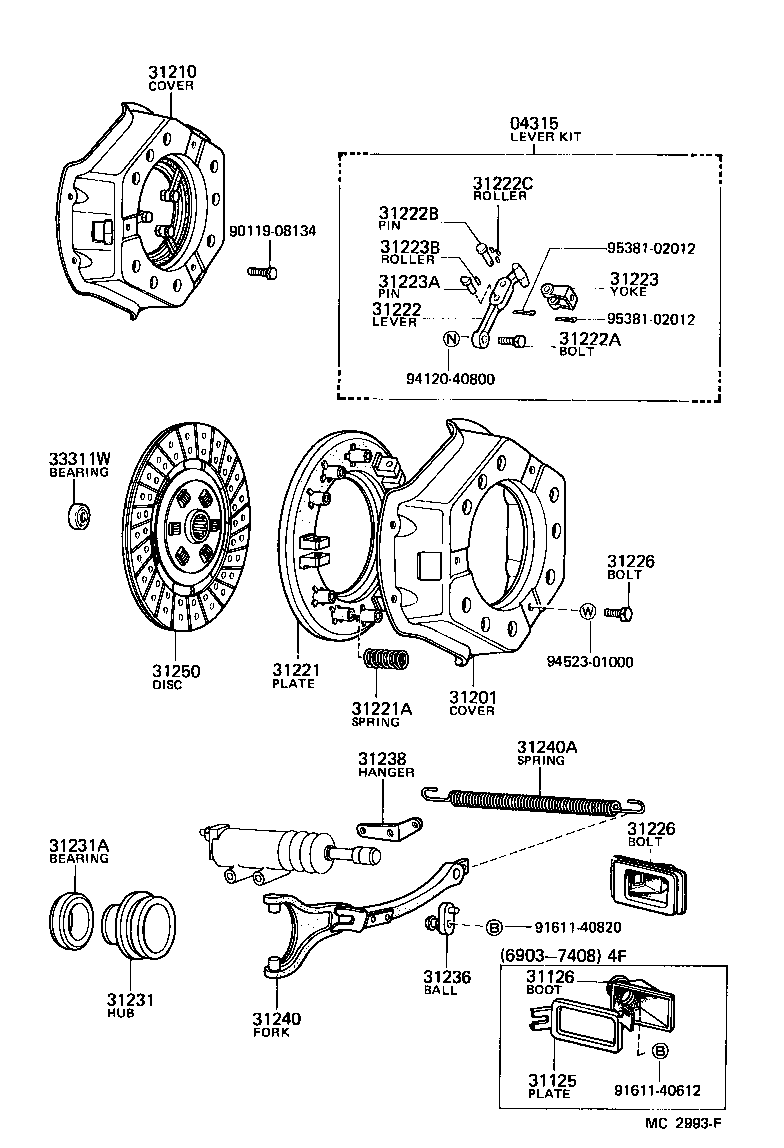

Clutch & Release Fork
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04315 | Lever Kit, Clutch Pressure |
| 31125 | Plate, Release Fork Boot |
| 31126 | Boot, Clutch Release Fork |
| 31201 | Cover Sub-assy, Clutch |
| 31210 | Cover Assy, Clutch |
| 31221 | Plate, Clutch Pressure |
| 31221A | Spring, Compression(FOR CLUTCH) |
| 31222 | Lever, Clutch Pressure |
| 31222A | Bolt, Clutch Pressure Lever Adjust |
| 31222B | Pin, W/Hole(FOR CLUTCH PRESSURE LEVER) |
| 31222C | Roller OR Bearing, Clutch Pressure Plate Pin |
| 31223 | Yoke, Clutch Release Lever |
| 31223A | Pin(FOR CLUTCH PRESSURE LEVER) |
| 31223B | Roller, Clutch Pressure Lever |
| 31226 | Bolt, Clutch Pressure Plate |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31236 | Ball, Release Fork |
| 31238 | Hanger, Release Fork Retracting Spring |
| 31240 | Fork Assy, Clutch Release |
| 31240A | Spring, Tension(FOR CLUTCH RELEASE FORK RETURN) |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
