Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

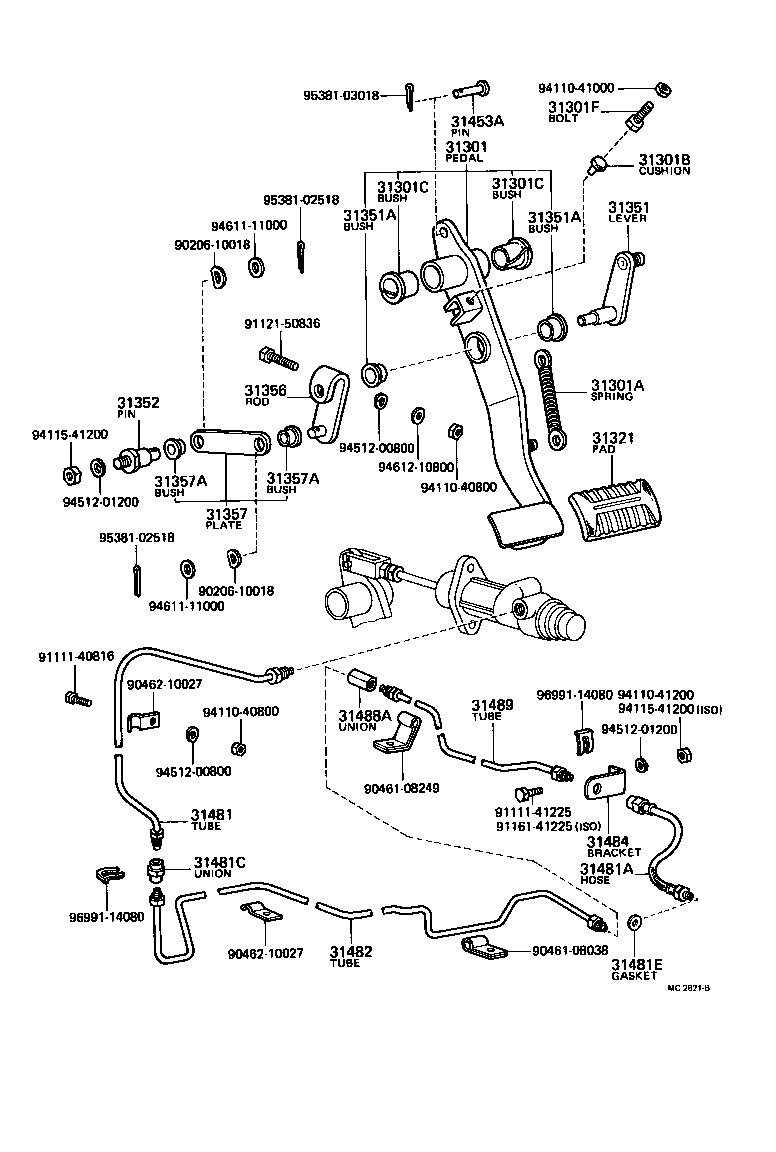

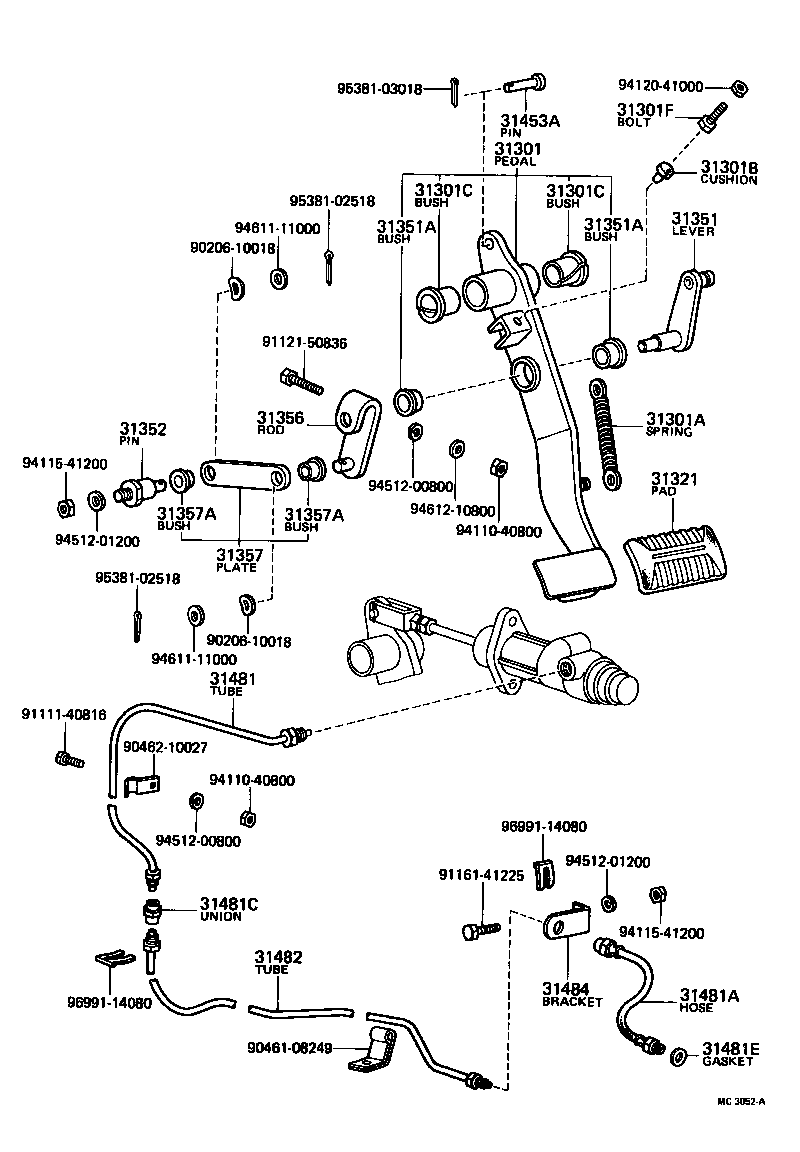

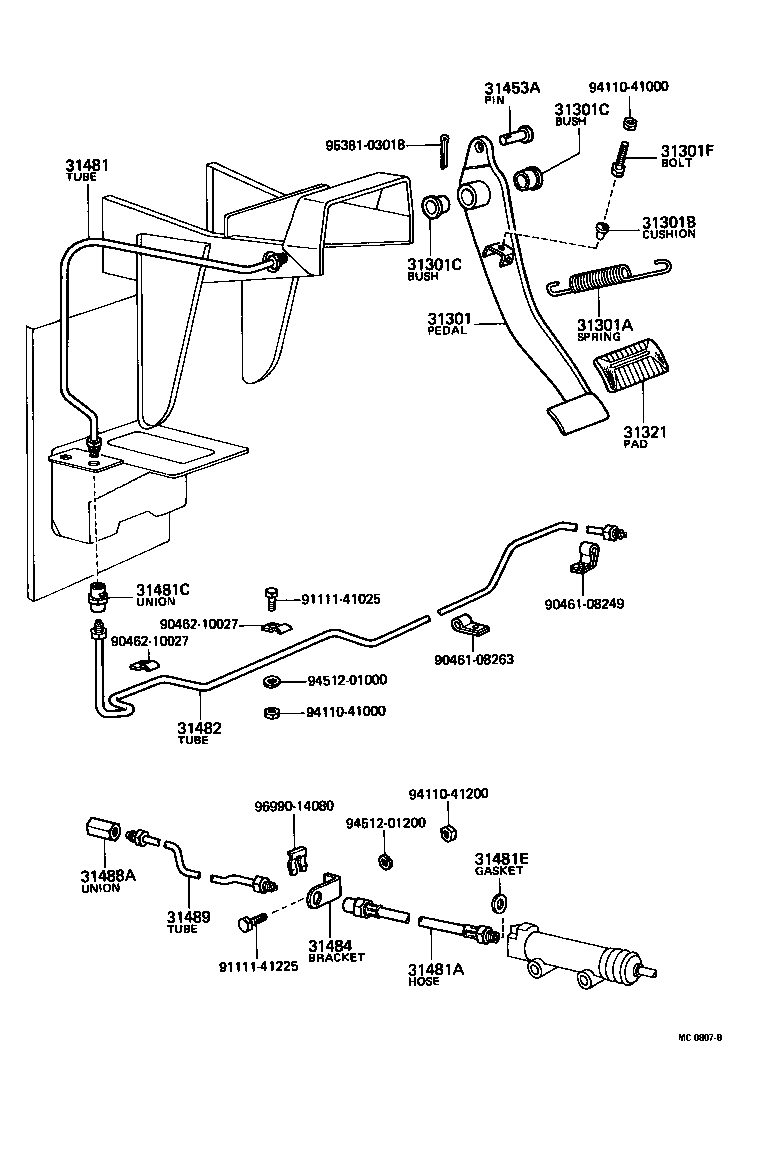

Clutch Pedal & Flexible Hose
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31351 | Lever, Over Center |
| 31351A | Bush(FOR OVER CENTER LEVER) |
| 31352 | Pin, Over Center Plate |
| 31356 | Rod, Over Center Adjusting |
| 31357 | Plate, Clutch Pedal Over Center, NO.2 |
| 31357A | Bush, Over Center Plate |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481C | Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) |
| 31481E | Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31488A | Union (FOR CLUTCH MASTER CYLINDER TO RELEASE CYLINDER) |
| 31489 | Tube, Tube Connector TO Flexible Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
