Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

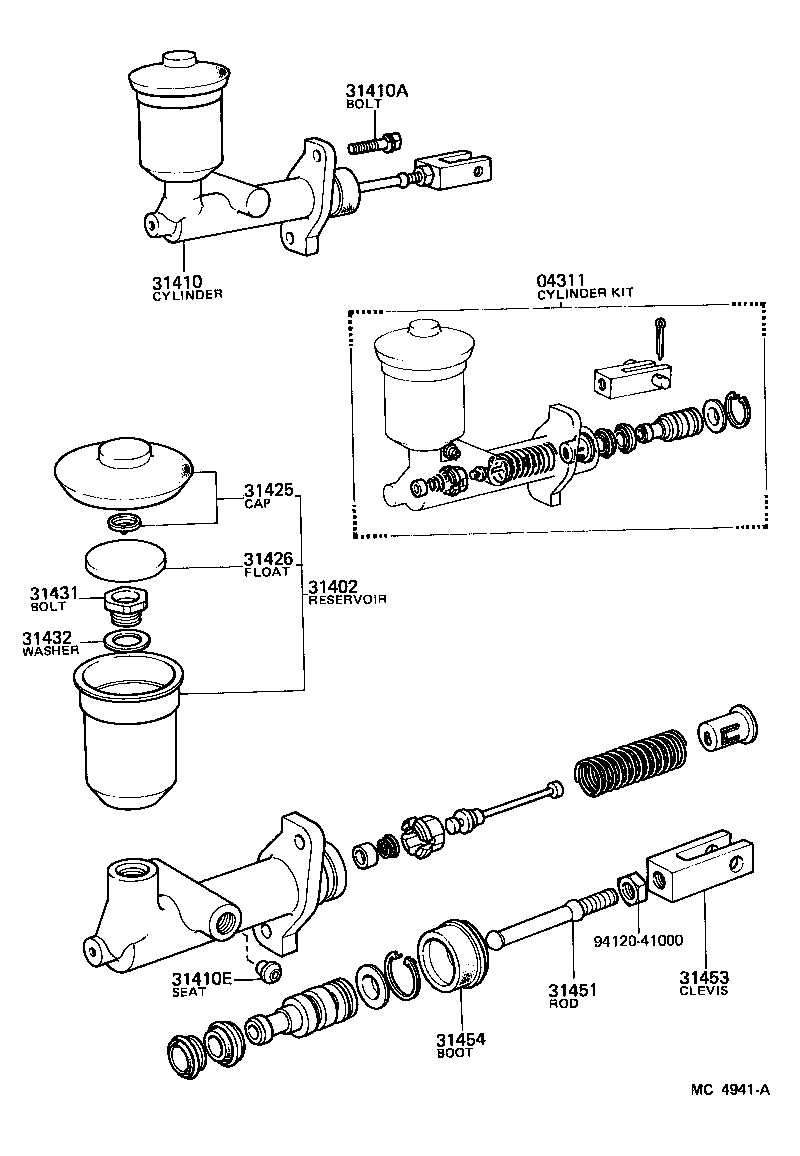

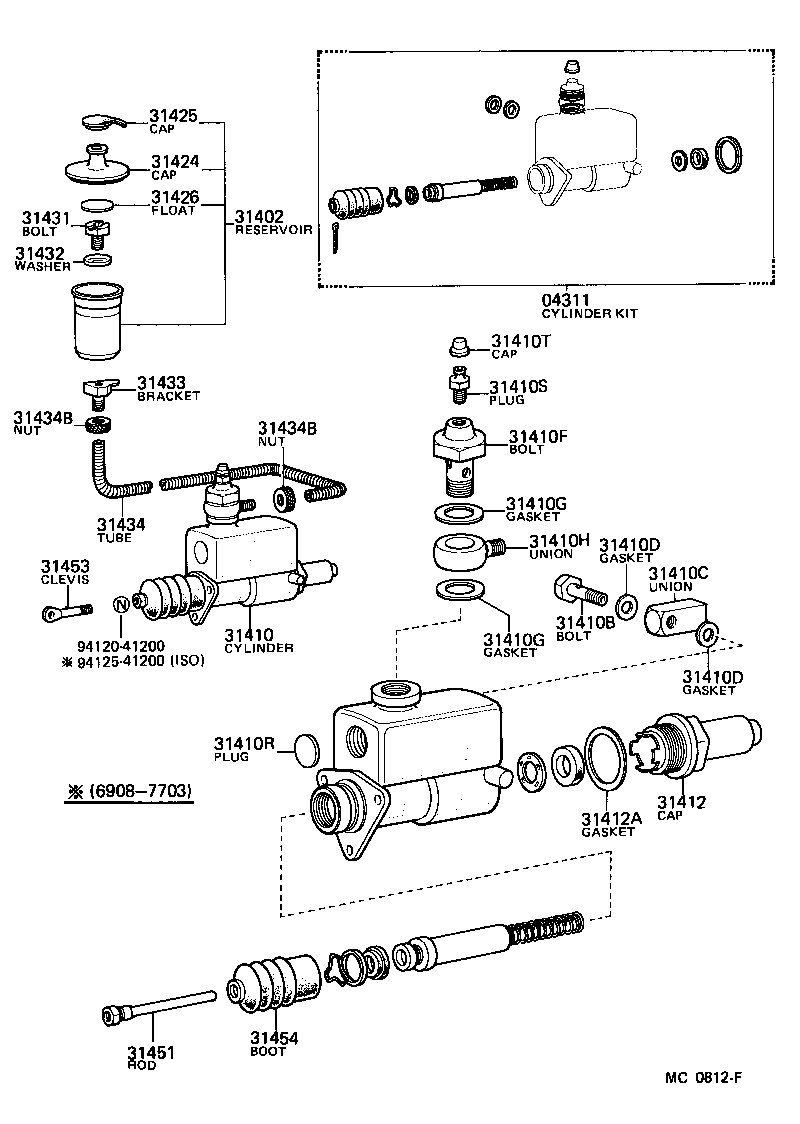

Clutch Master Cylinder
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31402 | Reservoir Sub-assy, Clutch Master Cylinder |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31410B | Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE) |
| 31410C | Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) |
| 31410D | Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) |
| 31410E | Seat, Union(FOR CLUTCH MASTER CYLINDER) |
| 31410F | Bolt, Union(FOR CLUTCH MASTER CYLINDER) |
| 31410G | Gasket(FOR CLUTCH MASTER CYLINDER UNION) |
| 31410H | Union(FOR CLUTCH MASTER CYLINDER) |
| 31410R | Plug, Expansion(FOR CLUTCH MASTER CYLINDER) |
| 31410S | Plug, Bleeder Plug(FOR CLUTCH MASTER CYLINDER) |
| 31410T | Cap, Bleeder Plug(FOR CLUTCH MASTER CYLINDER) |
| 31412 | Cap, Clutch Master Cylinder |
| 31412A | Gasket(FOR CLUTCH MASTER CYLINDER CAP) |
| 31424 | Cap, Reservoir(FOR CLUTCH MASTER CYLINDER) |
| 31425 | Cap, Clutch Master Cylinder Reservoir Filler |
| 31426 | Float, Clutch Master Cylinder Reservoir |
| 31431 | Bolt, Clutch Master Cylinder Reservoir Set |
| 31432 | Washer, Clutch Reservoir Set Bolt |
| 31433 | Bracket, Clutch Reservoir |
| 31434 | Tube, Clutch Reservoir |
| 31434B | Nut, Union(FOR CLUTCH RESERVOIR TUBE) |
| 31451 | Rod, Clutch Master Cylinder Push |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31454 | Boot, Clutch Master Cylinder |
| 31457 | Spacer, Clutch Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
