Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

61 part groups · 9 illustrations

Illustrations

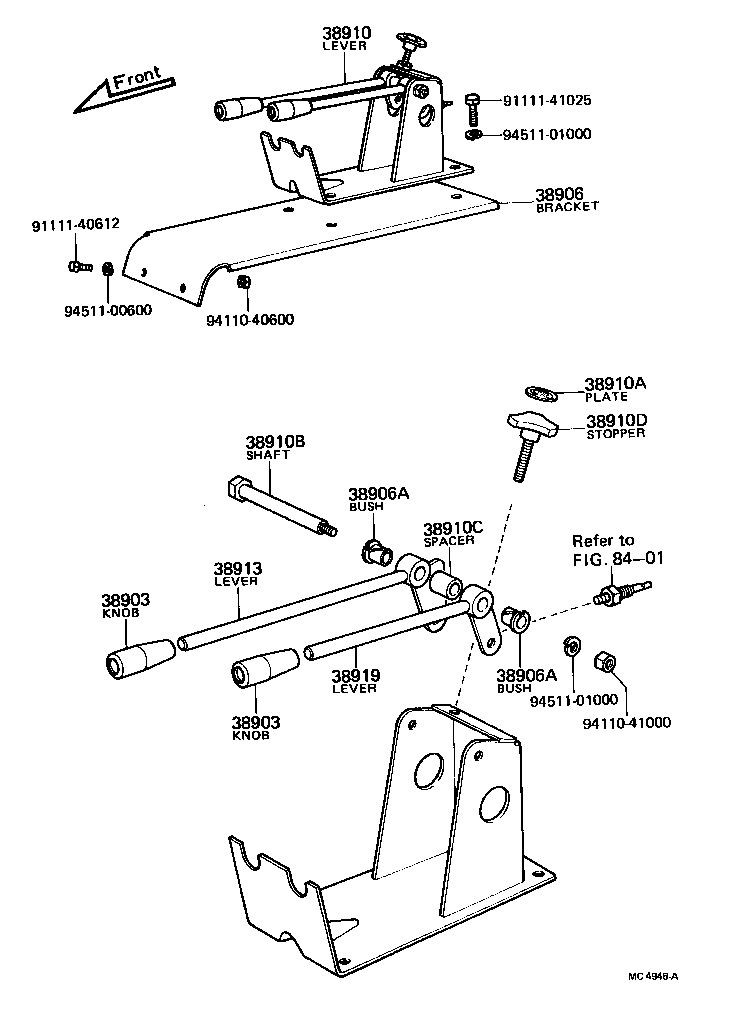

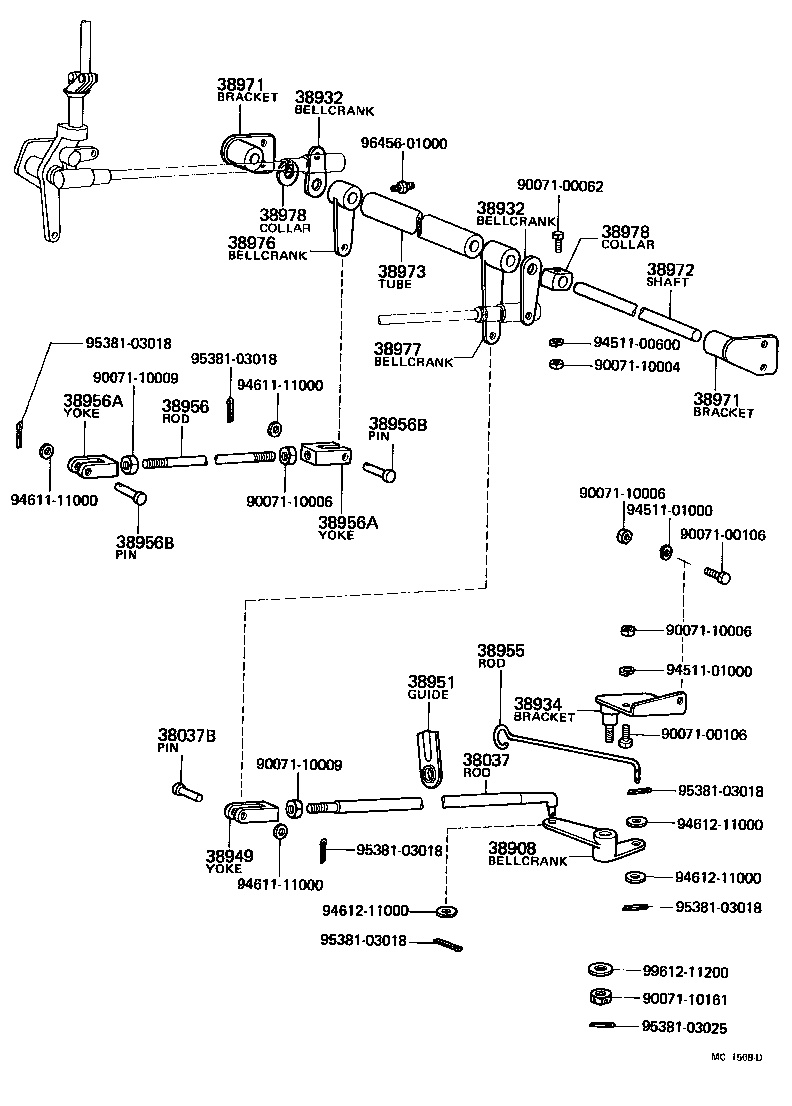

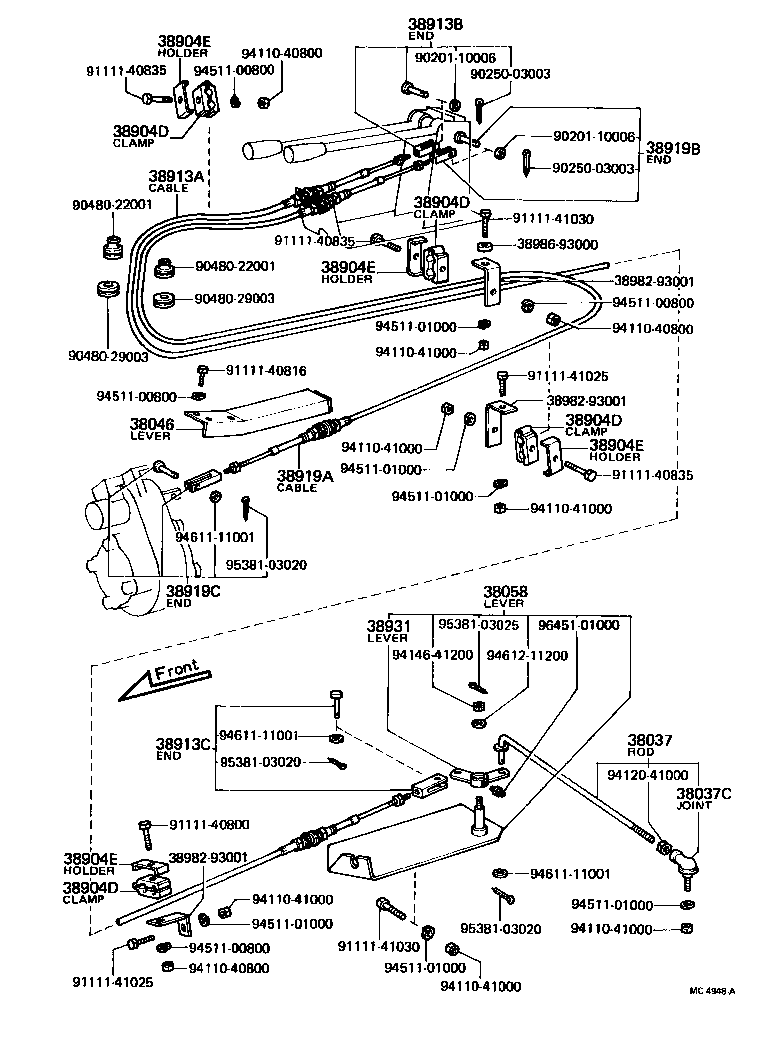

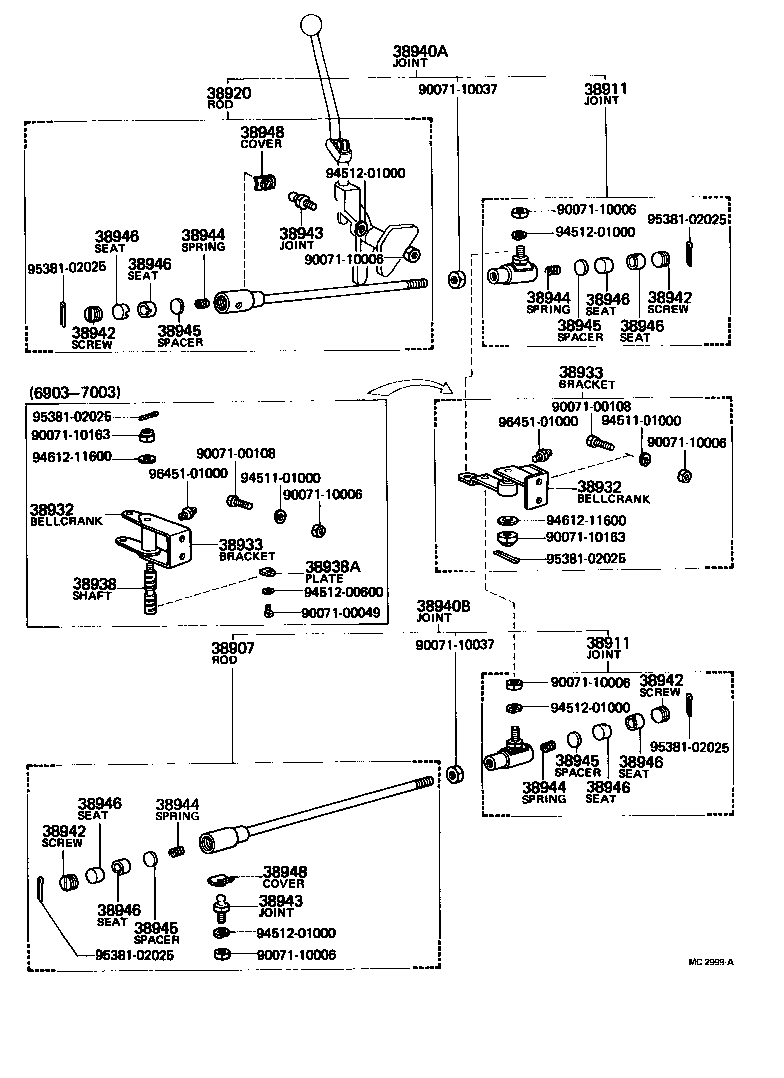

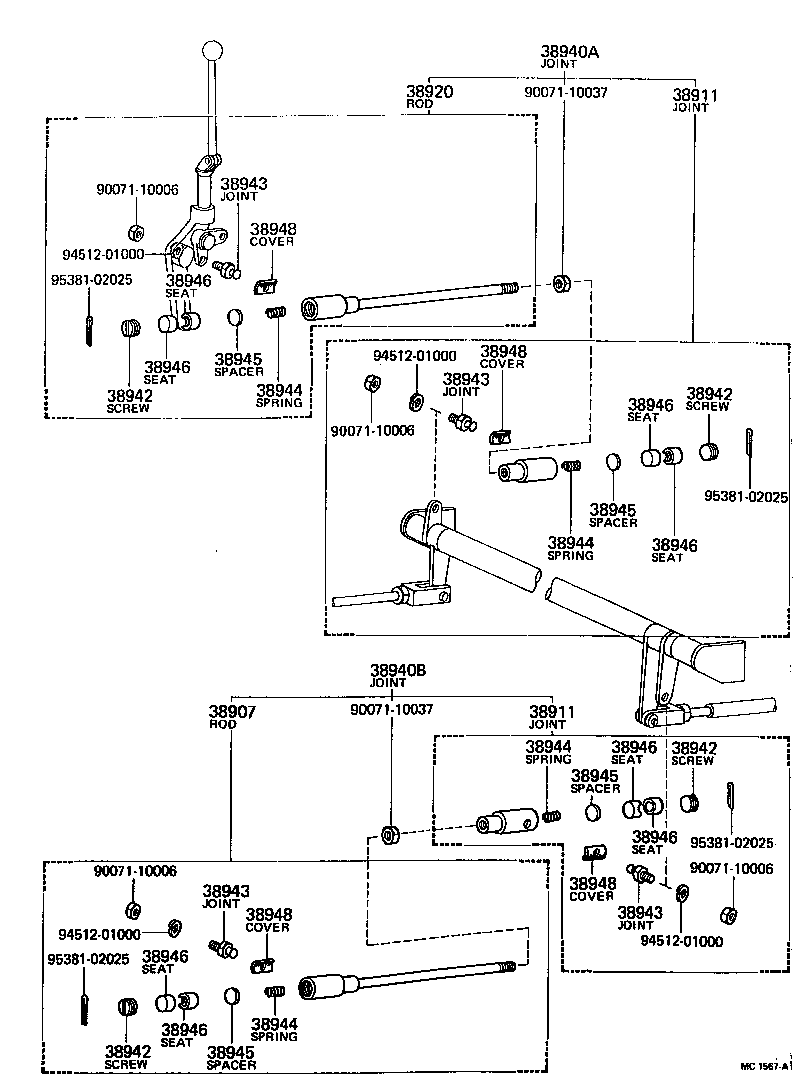

Figure MC1564C MC1564C 1969-03 → 1977-04 Figure MC2999A MC2999A 1969-03 → 1973-05 Figure MC4664 MC4664 1973-05 → 1977-04 Figure MC2970A MC2970A 1969-03 → 1977-04 Figure MC1567A MC1567A 1969-03 → 1973-05 Figure MC4665 MC4665 1973-05 → 1977-04 Figure MC1568D MC1568D 1969-03 → 1977-04 Figure MC4946A MC4946A 1977-04 → — Figure MC4948A MC4948A 1977-04 → —

Part groups

PNCDescription
38037 Rod Sub-assy, Valve Control, Rear
38037B Pin, Valve Control Rear Rod
38037C Joint Assy, Ball (FOR VALVE CONTROL ROD)
38046 Lever Sub-assy, Power Take-off Control
38058 Lever Sub-assy, Valve Control Center
38900 Linkage Assy, Control
38901 Shaft Sub-assy, Control
38903 Knob Sub-assy, Control
38904D Clamp, Cable Push Pull
38904E Holder, Cable Push Pull Clamp
38906 Bracket Sub-assy, Control Shaft, Lower
38906A Bush, Control Link
38907 Rod Assy, Ball Joint, NO.2
38908 Bellcrank Sub-assy, Rear Shift Rod
38910 Lever Assy, Dump
38910A Plate, Dump Lever Lock Caution
38910B Shaft, Control Lever
38910C Spacer, Control Lever
38910D Stopper, Control Lever
38911 Joint, Ball
38913 Lever, Pump Control
38913A Cable Sub-assy, Push Pull (FOR PUMP CONTROL)
38913B End Assy, Control Cable, NO.1 (FOR PUMP CONTROL)
38913C End Assy, Control Cable, NO.2 (FOR PUMP CONTROL)
38914 Rod, Power Take-off Gear Shift
38919 Lever, Power Take-off Control
38919A Cable Sub-assy, Push Pull (FOR POWER TAKE-OFF CONTROL)
38919B End Assy, Control Cable, NO.1(FOR POWER TAKE-OFF CONTROL)
38919C End Assy, Control Cable, NO.2(FOR POWER TAKE-OFF CONTROL)
38920 Rod Assy, Ball Joint, NO.1
38922 Bolt, Power Take-off Gear Shift Bellcrank Set
38923 Bolt, Power Take-off Gear Shift
38924 Pin, Power Take-off Gear Shift
38928A Plate, Dump Lever Lower Bush
38931 Lever, Valve Link
38932 Bellcrank, Power Take-off Gear Shift
38933 Bracket, Power Take-off Gear Shift Bellcrank
38934 Bracket, Bellcrank
38938 Shaft, Power Take-off Gear Shift Bellcrank
38938A Plate, Power Take-off Gear Shift Bellcrank
38940A Joint Assy, Ball, A
38940B Joint Assy, Ball, B
38941 Bellcrank Take-off Gear Shift
38942 Screw, Ball Joint Seat
38943 Joint, Ball
38944 Spring, Ball Joint
38945 Spacer, Ball Joint Seat
38946 Seat, Ball Joint
38948 Cover, Ball Joint Dust
38949 Yoke, Valve Control Rear Rod
38951 Guide, Oil Control Rod
38955 Rod, Ball Joint
38956 Rod, Oil Control, NO.2
38956A Yoke (FOR OIL CONTROL ROD NO.2)
38956B Pin (FOR OIL CONTROL ROD NO.2)
38971 Bracket, Torque Shaft
38972 Shaft, Torque
38973 Tube, Torque Shaft
38976 Stay, Power Take-off Control
38977 Bellcrank, Oil Control, LH
38978 Collar, Torque Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
