Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

36 part groups · 7 illustrations

Illustrations

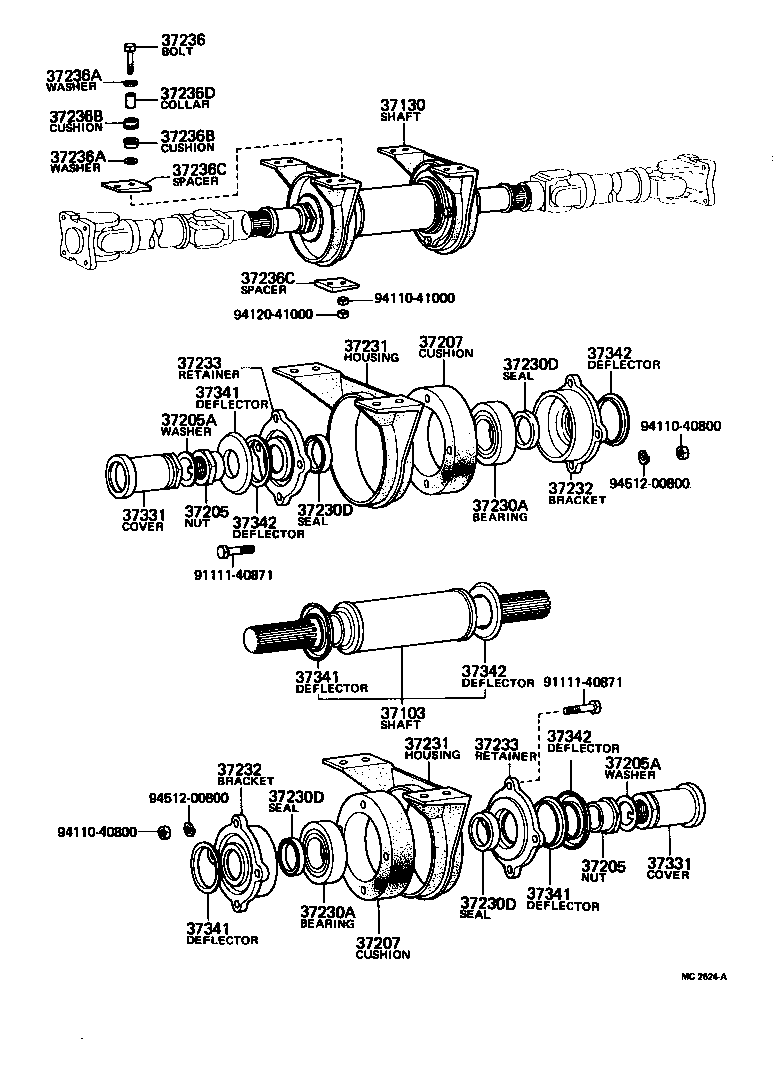

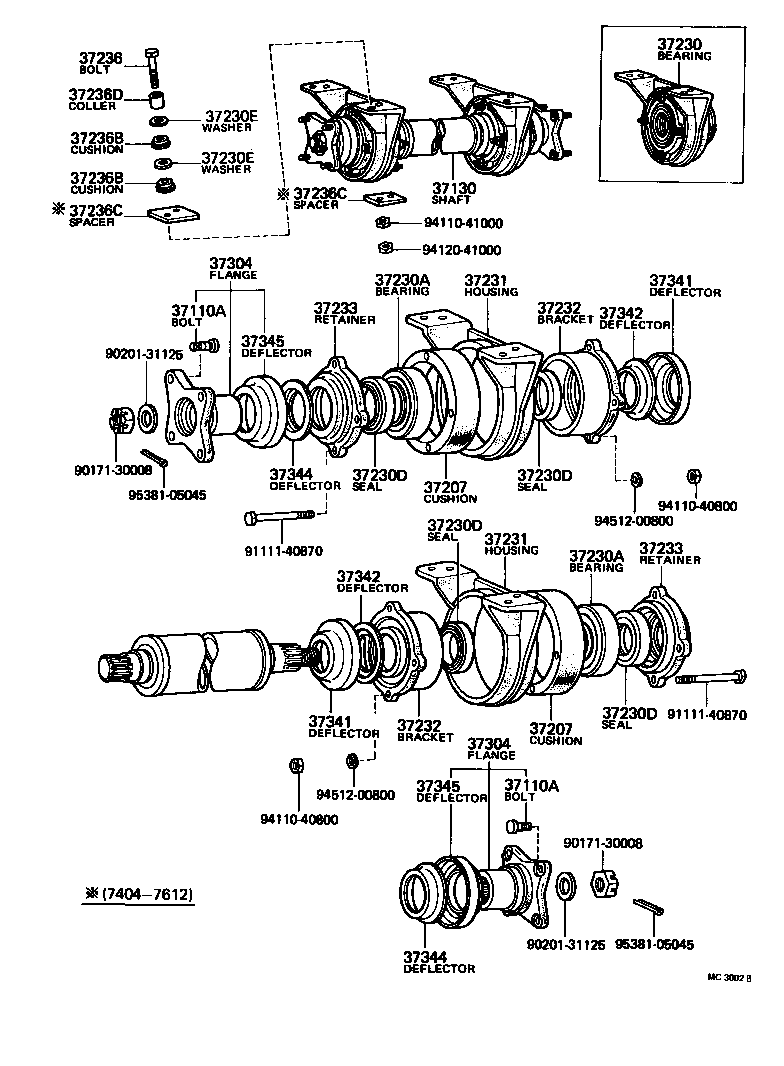

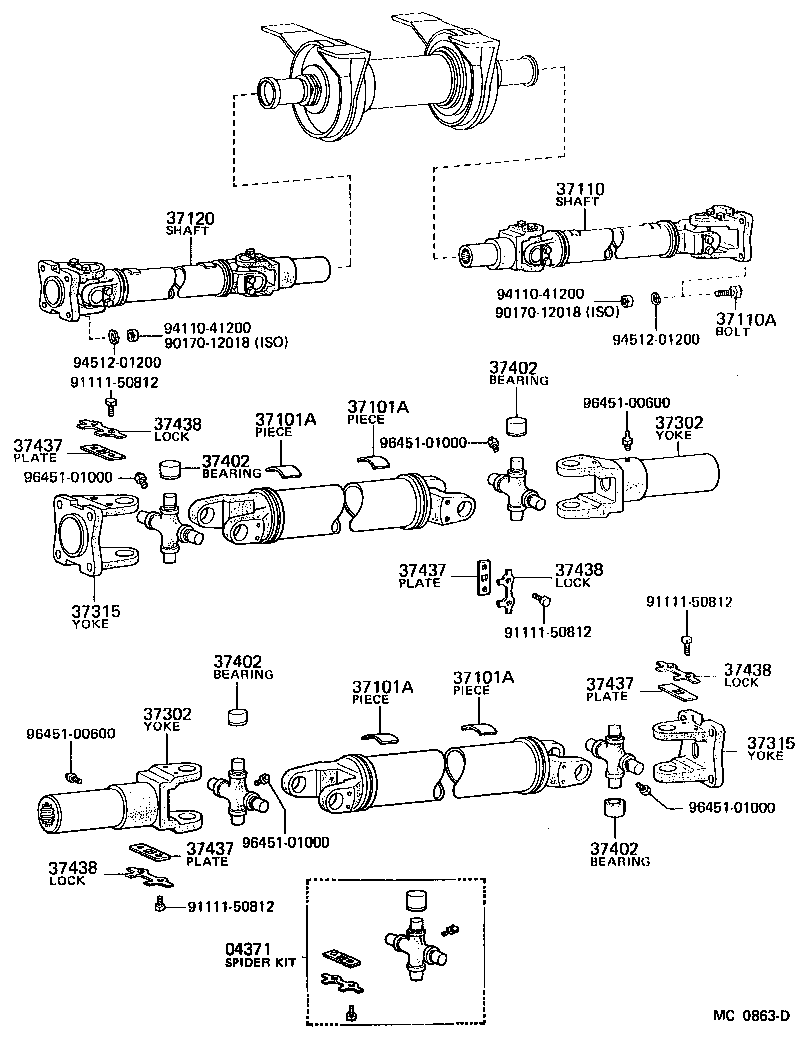

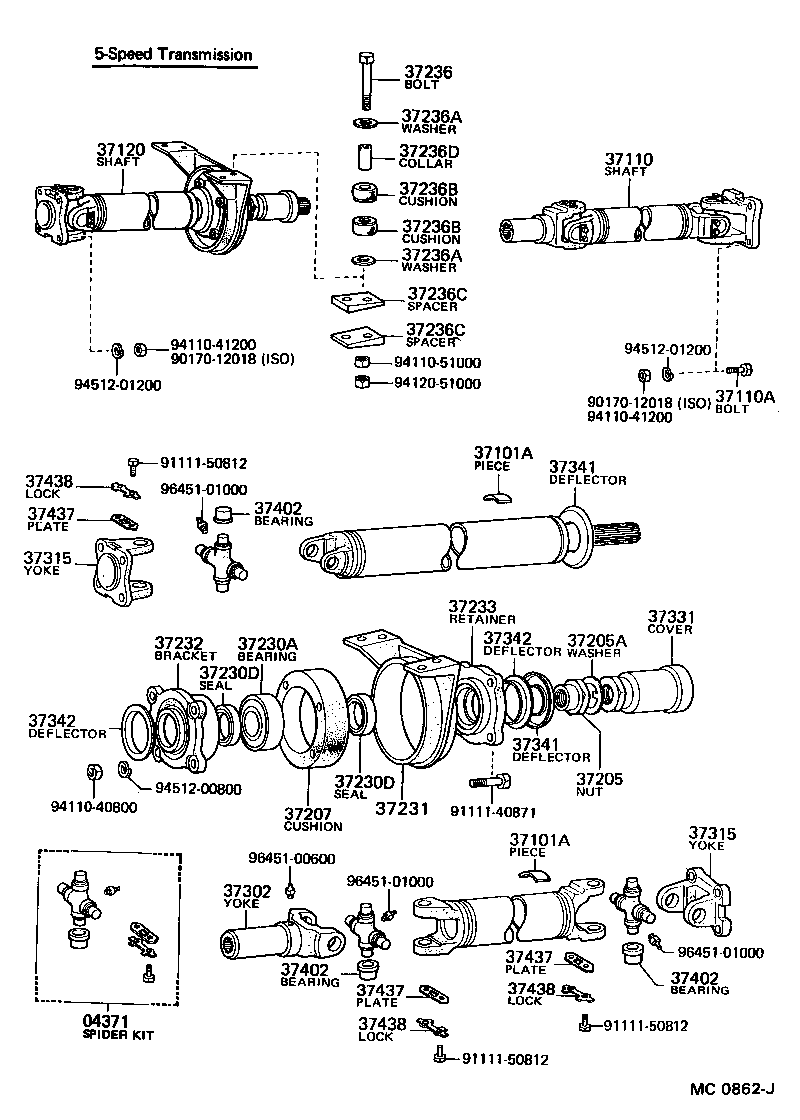

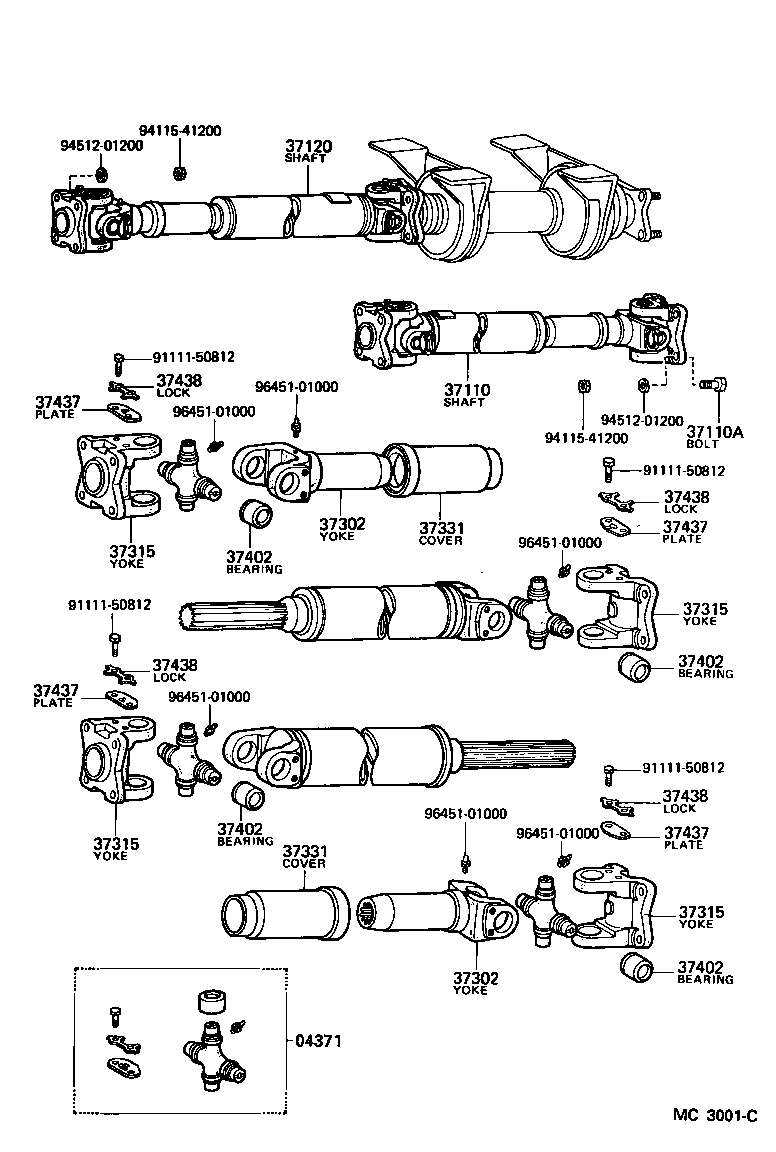

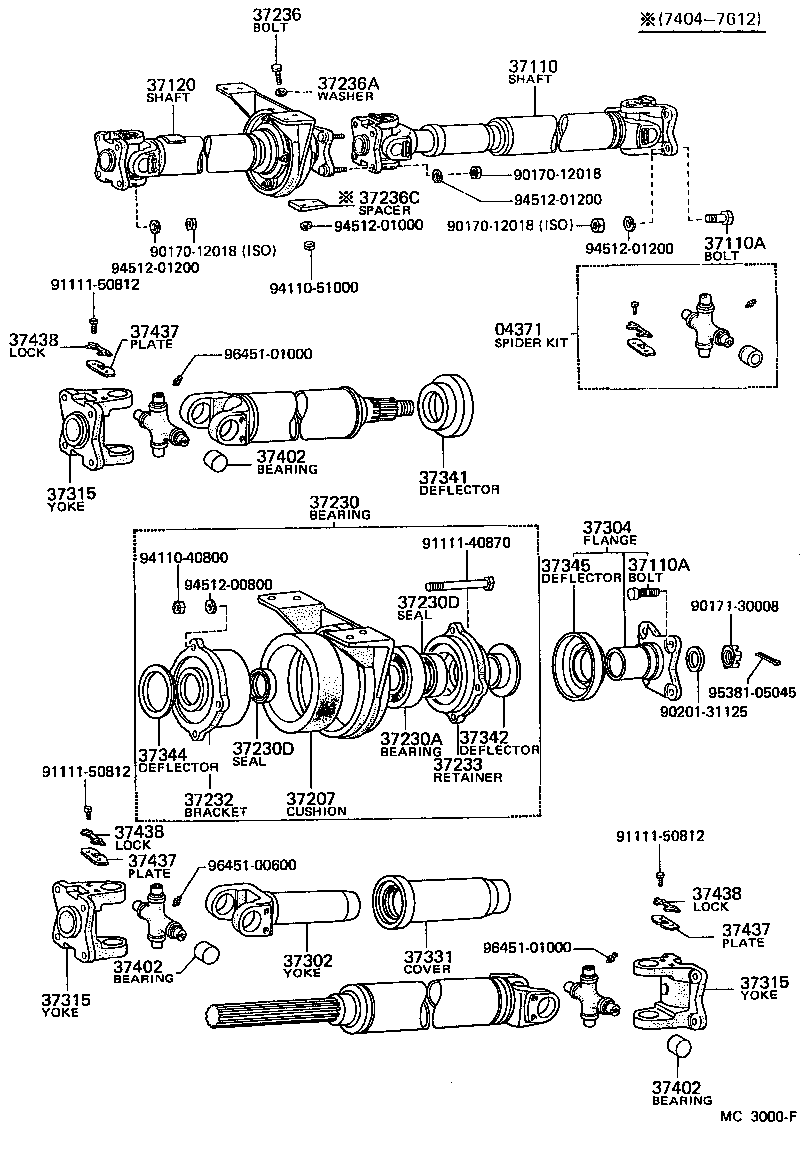

Figure MC0861F MC0861F 1969-03 → 1974-03 Figure MC0862J MC0862J 1969-03 → 1974-03 Figure MC3000F MC3000F 1974-04 → — Figure MC0863D MC0863D 1969-03 → 1974-03 Figure MC2624A MC2624A 1969-03 → 1974-03 Figure MC3001C MC3001C 1974-04 → 1977-03 Figure MC3002B MC3002B 1974-04 → 1977-03

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37103 Shaft Sub-assy, Intermediate
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37130 Shaft Assy, Propeller Intermediate W/Center Support Bearing
37205 Nut Sub-assy, Bearing Lock
37205A Washer, Claw
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37230A Bearing, NO.1 (FOR CENTER SUPPORT)
37230D Seal, Oil (FOR CENTER SUPPORT BEARING)
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37231 Housing, Center Support Bearing
37232 Bracket, Center Support Bearing Housing
37233 Retainer, Center Support Bearing
37236 Bolt, Center Support Bearing Housing
37236A Washer, Plate (FOR CENTER SUPPORT BEARING HOUSING)
37236B Cushion (FOR CENTER SUPPORT BEARING HOUSING)
37236C Spacer (FOR CENTER SUPPORT BEARING HOUSING)
37236D Collar (FOR CENTER SUPPORT BEARING HOUSING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37341 Deflector, Propeller Shaft Dust, NO.1
37342 Deflector, Propeller Shaft Dust, NO.2
37344 Deflector, Propeller Shaft Dust, NO.3
37345 Deflector, Propeller Shaft Dust, NO.4
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37401C Seat, Universal Joint Oil Retainer
37402 Bearing Sub-assy, Universal Joint Spider
37410 Joint Assy, Universal, W/Yoke
37437 Plate, Spider Bearing Set
37438 Lock, Spider Bearing Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
