Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

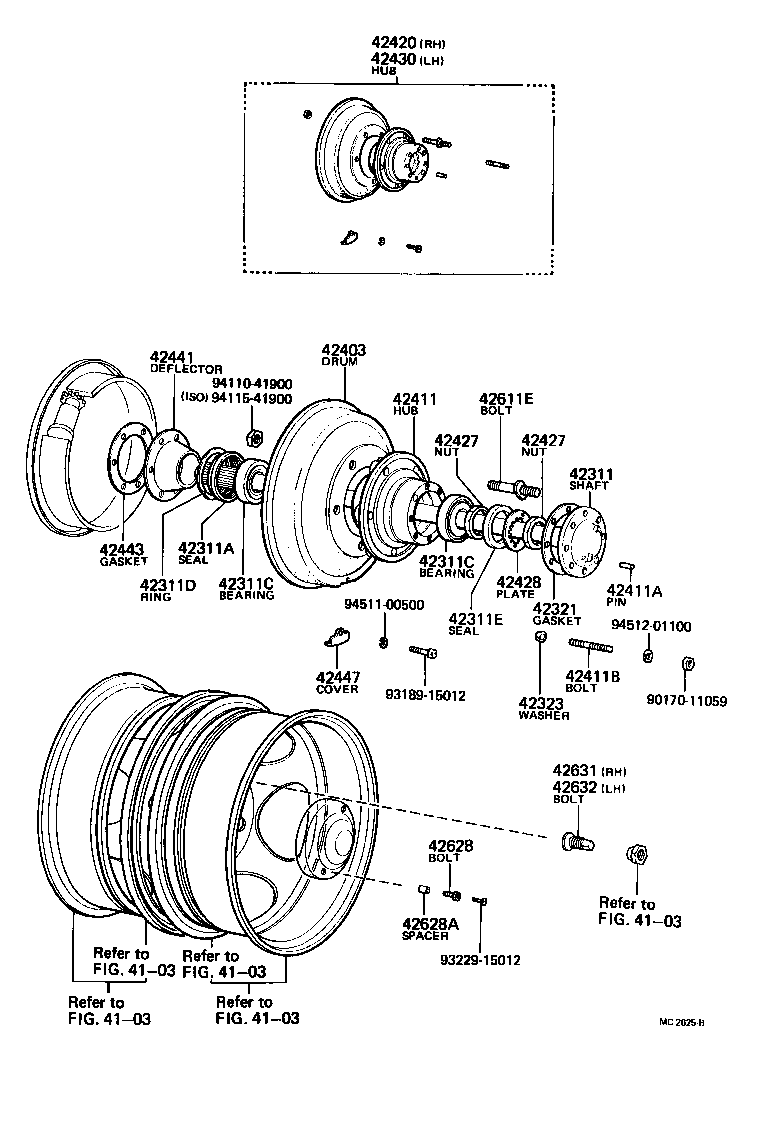

Rear Axle Shaft & Hub
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42311 | Shaft, Rear Axle |
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311C | Bearing(FOR REAR AXLE SHAFT) |
| 42311D | Ring, Snap(FOR REAR AXLE SHAFT) |
| 42311E | Seal, Oil(FOR REAR AXLE SHAFT OUTER) |
| 42321 | Gasket, Rear Axle Shaft |
| 42323 | Washer, Cone (FOR REAR AXLE SHAFT) |
| 42403 | Drum Sub-assy, Rear Brake |
| 42411 | Hub, Rear Axle |
| 42411A | Pin, Straight (FOR REAR AXLE HUB) |
| 42411B | Bolt, Stud (FOR REAR AXLE HUB) |
| 42420 | Hub (OR SHAFT) & Brake Drum Rear Axle, RH |
| 42427 | Nut, Rear Axle Bearing Lock |
| 42427A | Bolt (FOR REAR AXLE BEARING LOCK NUT SET) |
| 42428 | Plate, Rear Axle Lock Nut |
| 42430 | Hub (OR SHAFT) & Brake Drum Rear Axle, LH |
| 42441 | Deflector, Brake Drum Oil |
| 42443 | Gasket, Brake Drum Oil Deflector |
| 42447 | Cover, Brake Shoe Inspection Hole |
| 42608 | Bolt Sub-assy, Rear Axle Hub, RH |
| 42609 | Bolt Sub-assy, Rear Axle Hub, LH |
| 42611E | Bolt, Hub (FOR REAR AXLE) |
| 42628 | Bolt, Rear Wheel Cap Set |
| 42628A | Spacer (FOR REAR WHEEL CAP SET SCREW) |
| 42631 | Bolt, Double Wheel Stop, RH |
| 42632 | Bolt, Double Wheel Stop, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
