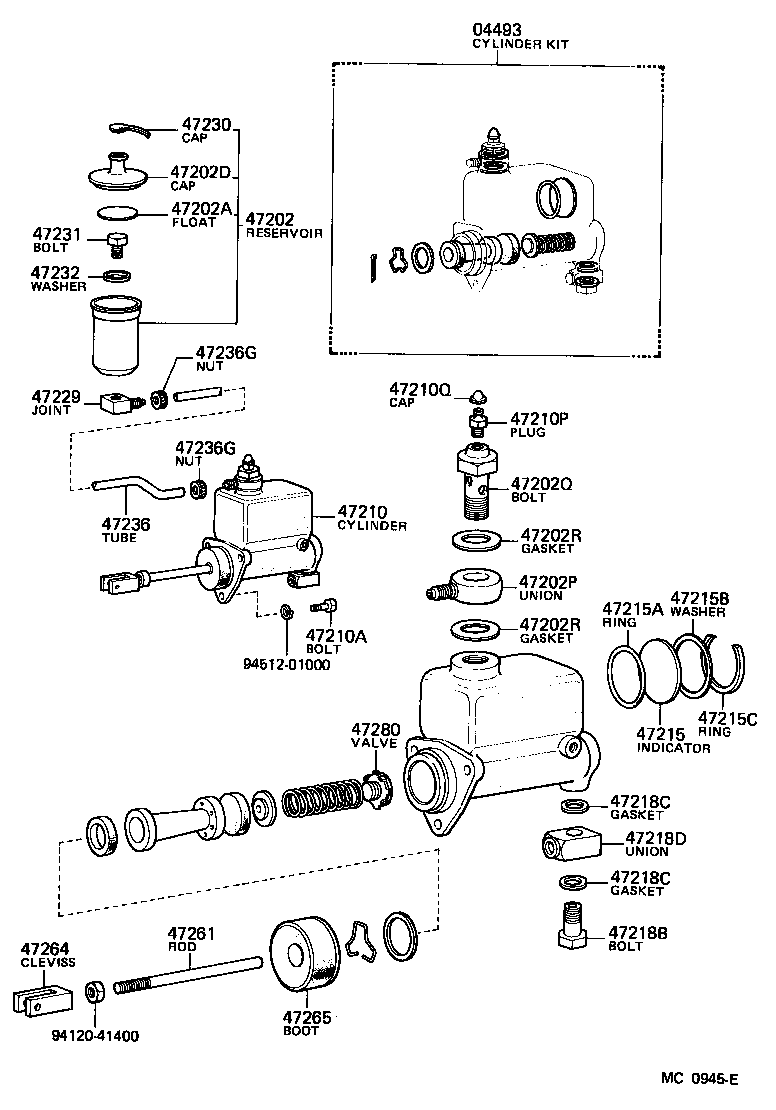

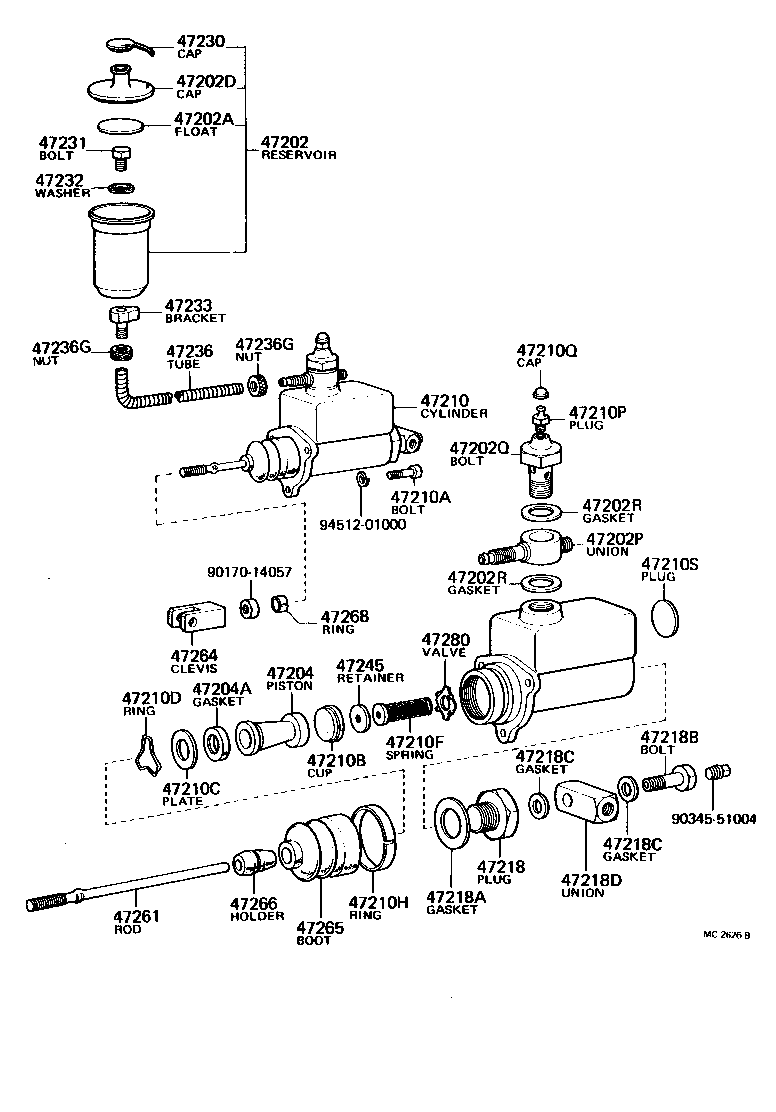

Brake Master Cylinder
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202A | Float, Master Cylinder Reservoir |
| 47202D | Cap, Reservoir(FOR MASTER CYLINDER RESERVOIR SET) |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47204 | Piston, Master Cylinder |
| 47204A | Gasket(FOR MASTER CYLINDER PISTON) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210A | Bolt OR Stud Bolt(FOR BRAKE MASTER CYLINDER SETTING) |
| 47210B | Cup, Cylinder(FOR BRAKE MASTER CYLINDER) |
| 47210C | Plate(FOR BRAKE MASTER CYLINDER PISTON STOP) |
| 47210D | Ring, Hole Snap(FOR BRAKE MASTER CYLINDER PISTON STOP) |
| 47210E | Seat, Union(FOR BRAKE MASTER CYLINDER) |
| 47210F | Spring, Compressor, NO.1(FOR MASTER CYLINDER PISTON RETURN) |
| 47210H | Ring, Snap(FOR BRAKE MASTER CYLINDER) |
| 47210P | Plug, Bleeder(FOR BRAKE MASTER CYLINDER) |
| 47210Q | Cap, Bleeder Plug(FOR BRAKE MASTER CYLINDER) |
| 47210S | Plug, Expansion(FOR BRAKE MASTER CYLINDER) |
| 47215 | Indicator, Brake Fluid |
| 47215A | Ring, O(FOR BRAKE FLUID INDICATOR) |
| 47215B | Washer, Plate(FOR BRAKE FLUID INDICATOR) |
| 47215C | Ring, Hole Snap(FOR BRAKE FLUID INDICATOR) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47218B | Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218C | Gasket(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218D | Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47229 | Joint, Brake Master Cylinder Reservoir |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47230A | Gasket(FOR RESERVOIR CAP) |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47233 | Bracket, Reservoir |
| 47236 | Tube, Reservoir Brake |
| 47236G | Nut, Union(FOR RESERVOIR TUBE) |
| 47245 | Retainer, Piston Return Spring |
| 47261 | Rod, Master Cylinder Push |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47266 | Holder, Master Cylinder Boot |
| 47268 | Ring, Master Cylinder Boot Retaining |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
