Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

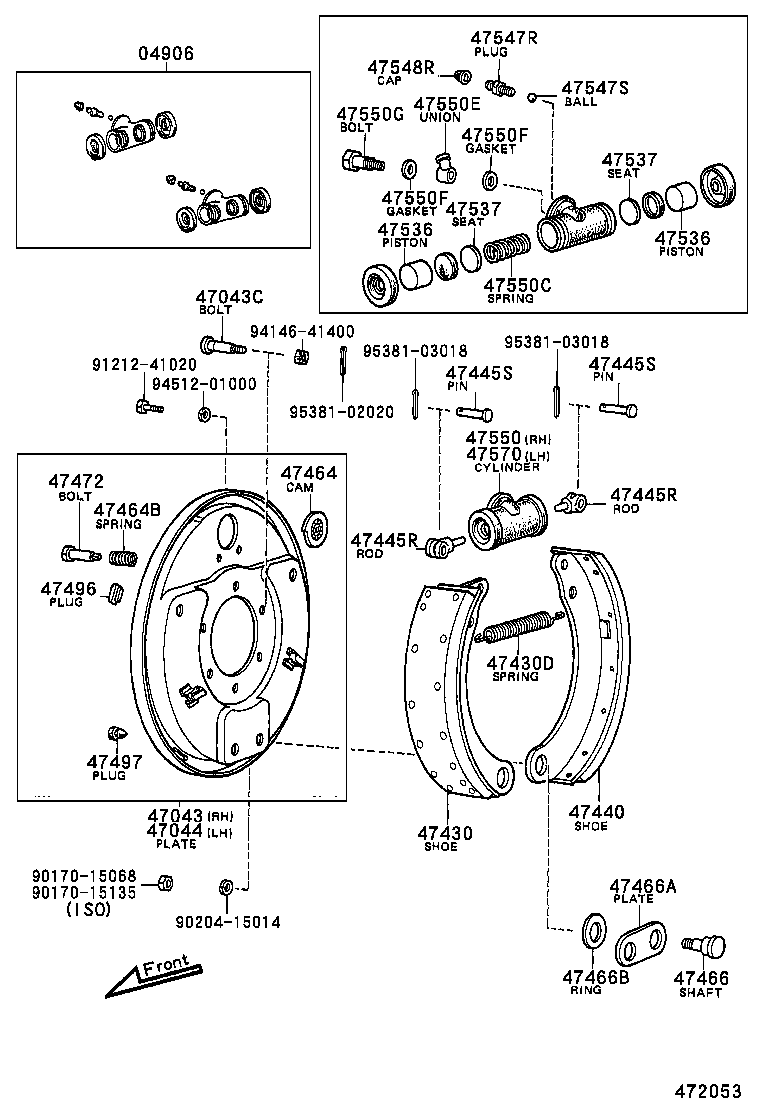

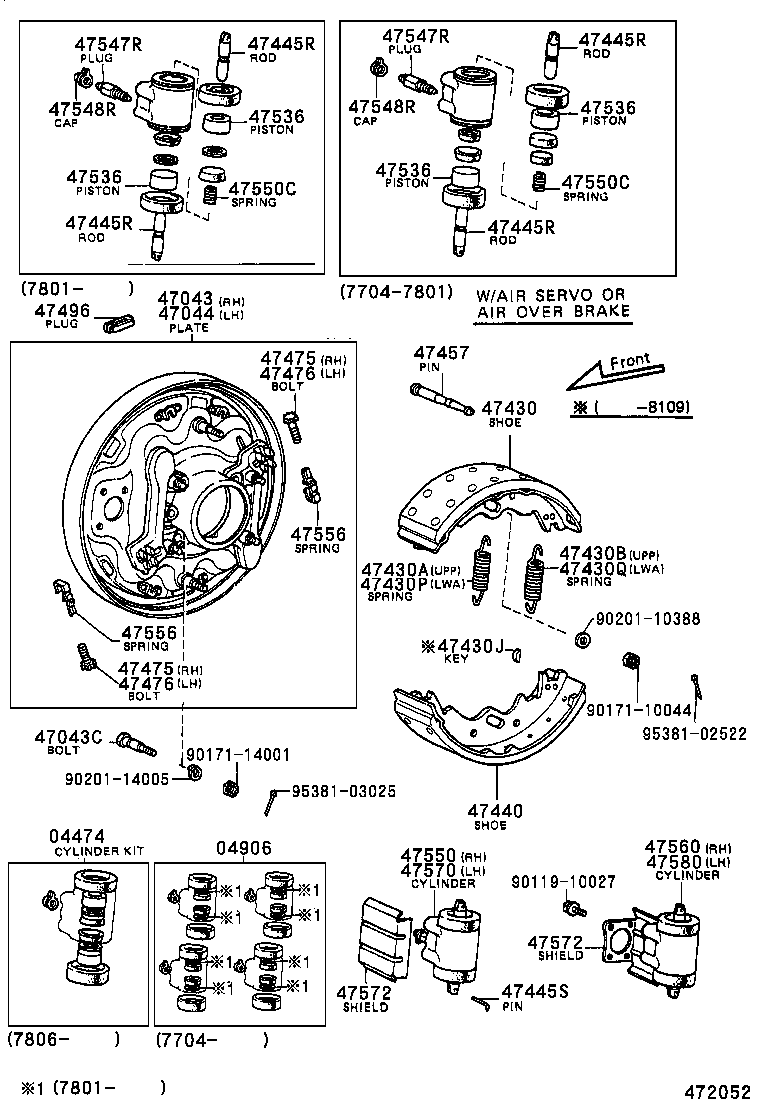

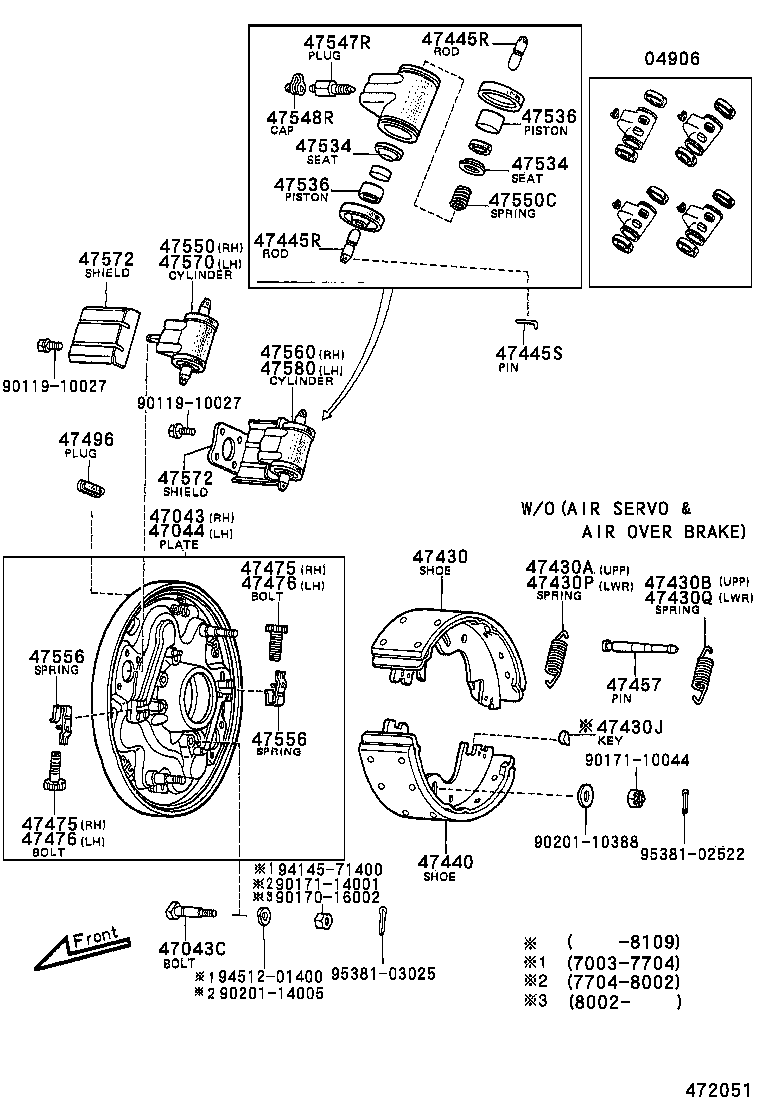

Rear Drum Brake Wheel Cylinder & Backing Plate
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47401 | Bracket Sub-assy, Rear Brake Shoe Anchor, RH |
| 47402 | Bracket Sub-assy, Rear Brake Shoe Anchor, LH |
| 47404 | Block Sub-assy, Rear Brake Shoe Adjusting Anchor |
| 47407 | Spring Sub-assy, Rear Brake Anchor Block |
| 47430 | Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE) |
| 47430A | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430B | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430J | Key, Woodruff(FOR REAR BRAKE SHOE) |
| 47430P | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430Q | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47440 | Shoe Assy, Rear Brake(FOR REAR OR LOWER SIDE) |
| 47445R | Rod, Rear Wheel Cylinder |
| 47445S | Pin, Rear Wheel Cylinder Rod |
| 47455 | Bolt, Rear Brake Shoe Anchor Bracket |
| 47455A | Nut, Rear Brake Shoe Anchor Bracket Bolt |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47464 | Cam, Shoe Adjusting(FOR REAR BRAKE) |
| 47464B | Spring, Rear Brake Shoe Adjusting Cam |
| 47466 | Shaft, Shoe Adjusting(FOR REAR BRAKE) |
| 47466A | Plate, Rear Brake Shoe Adjusting |
| 47466B | Ring, Rear Brake Shoe Eccentric |
| 47468 | Bolt, Rear Brake Shoe Guide |
| 47468A | Washer, Rear Brake Shoe Guide Bolt |
| 47472 | Bolt, Rear Brake Shoe Adjusting Cam |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47481 | Hanger, Shoe Retracting Spring (FOR REAR BRAKE) |
| 47492 | Seal, Rear Brake Anchor Bracket Dust |
| 47492A | Spacer, Rear Brake Anchor Bracket Dust Seal |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47497 | Plug, Hole NO.2(FOR REAR BRAKE) |
| 47534 | Seat, Wheel Cylinder Piston Cup(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47537 | Seat, Wheel Cylinder Piston Spring(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47547S | Ball, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550E | Union(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550F | Gasket(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550G | Bolt, Union(FOR REAR WHEEL BRAKE CYLINDER) |
| 47556 | Spring, Adjuster Lock(FOR REAR BRAKE) |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47572 | Shield, Rear Wheel Cylinder Heat |
| 47580 | Cylinder Assy, Rear Wheel Brake(FOR LH, REAR OR LOWER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
