Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

64 part groups · 17 illustrations

Illustrations

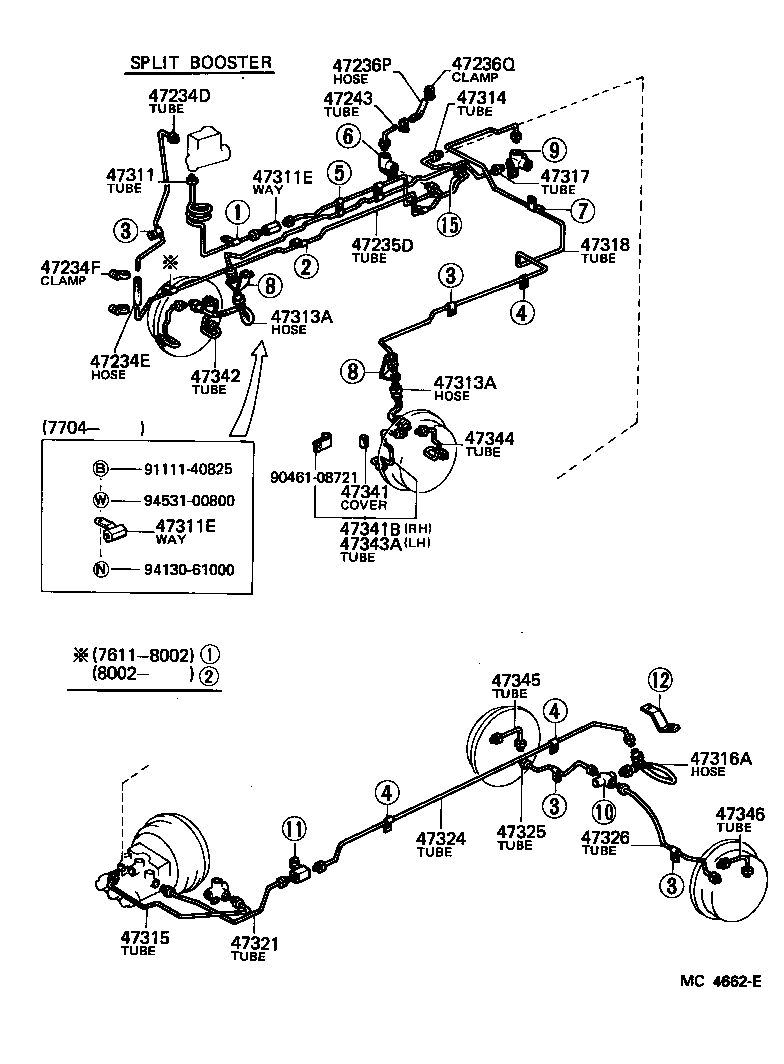

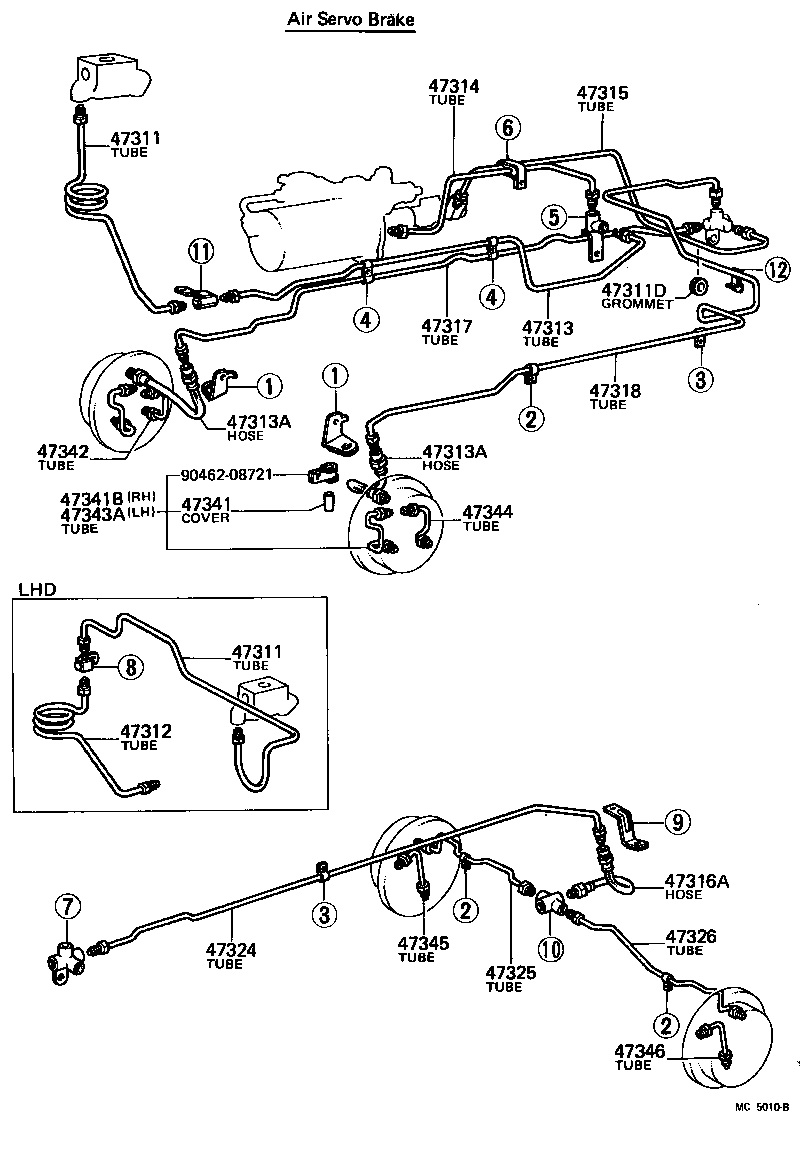

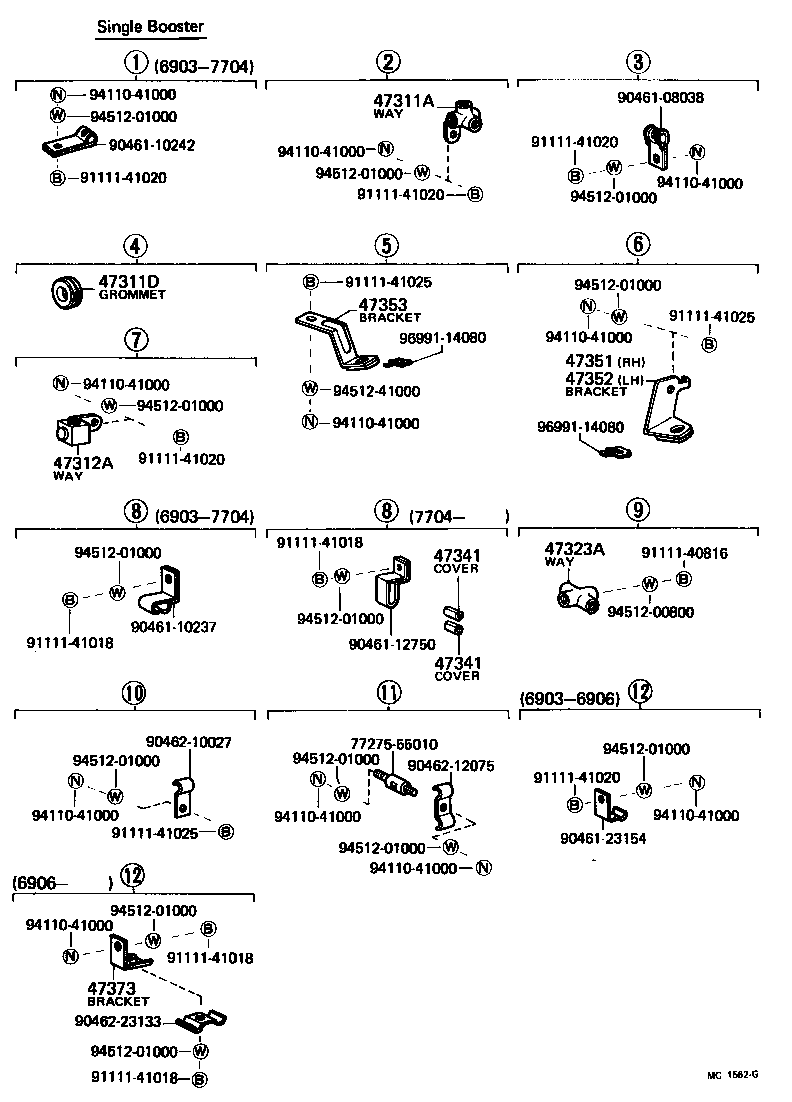

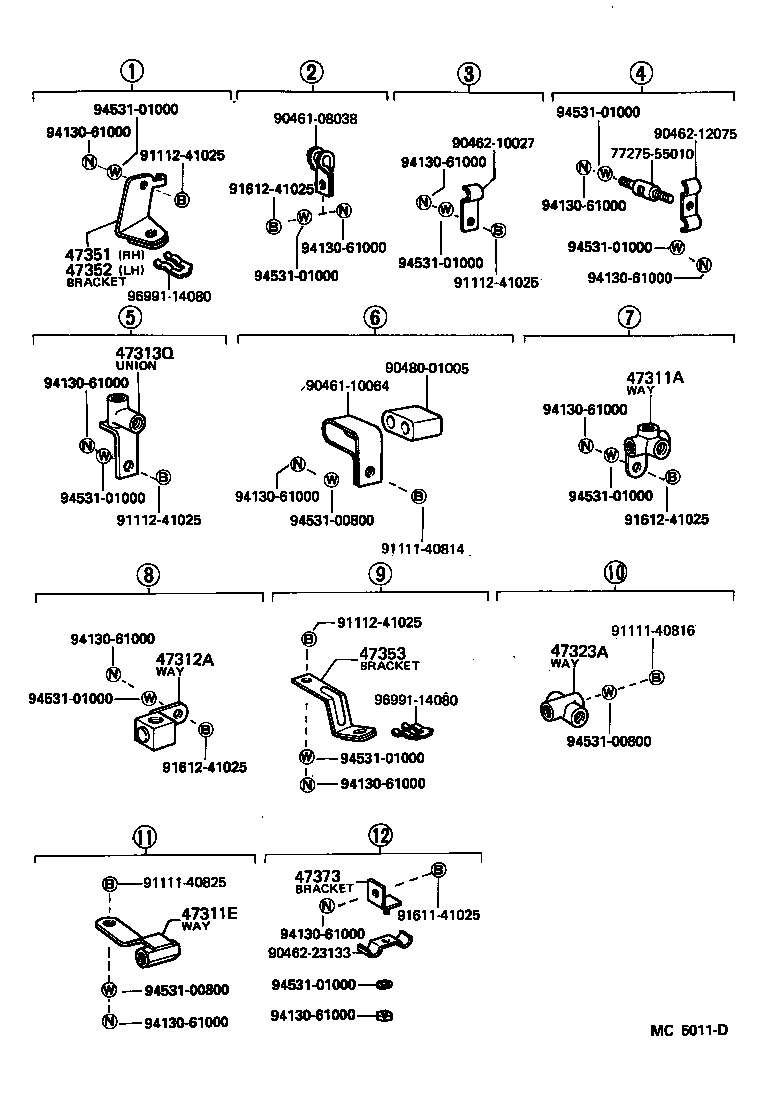

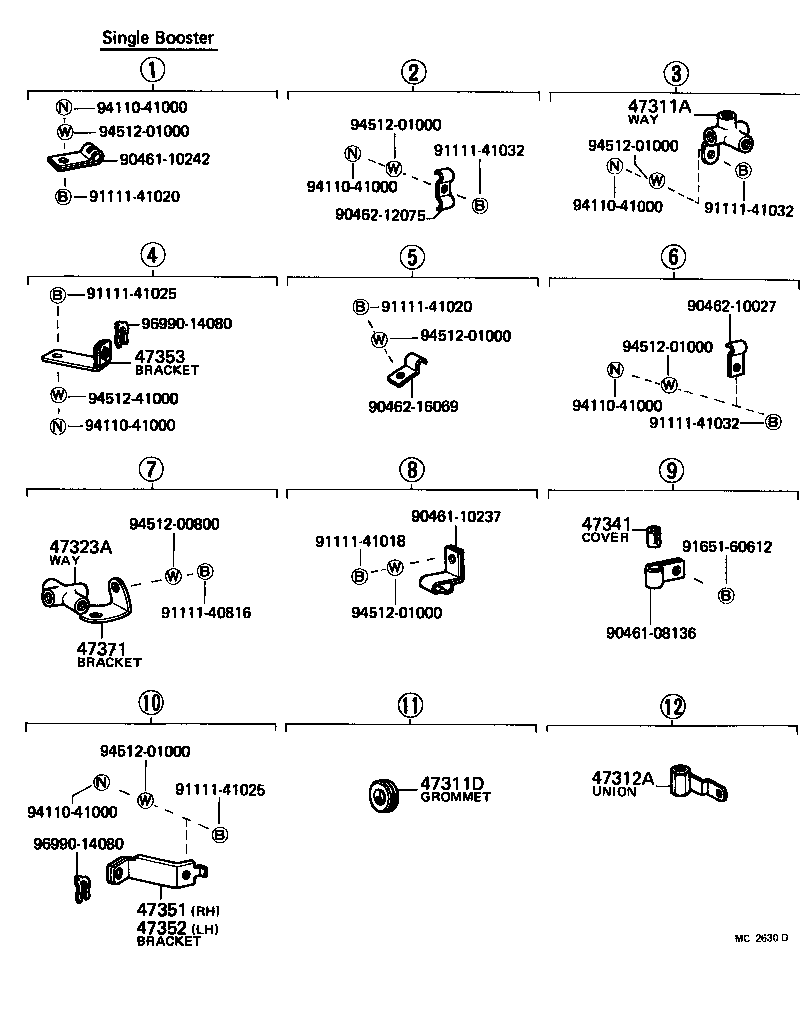

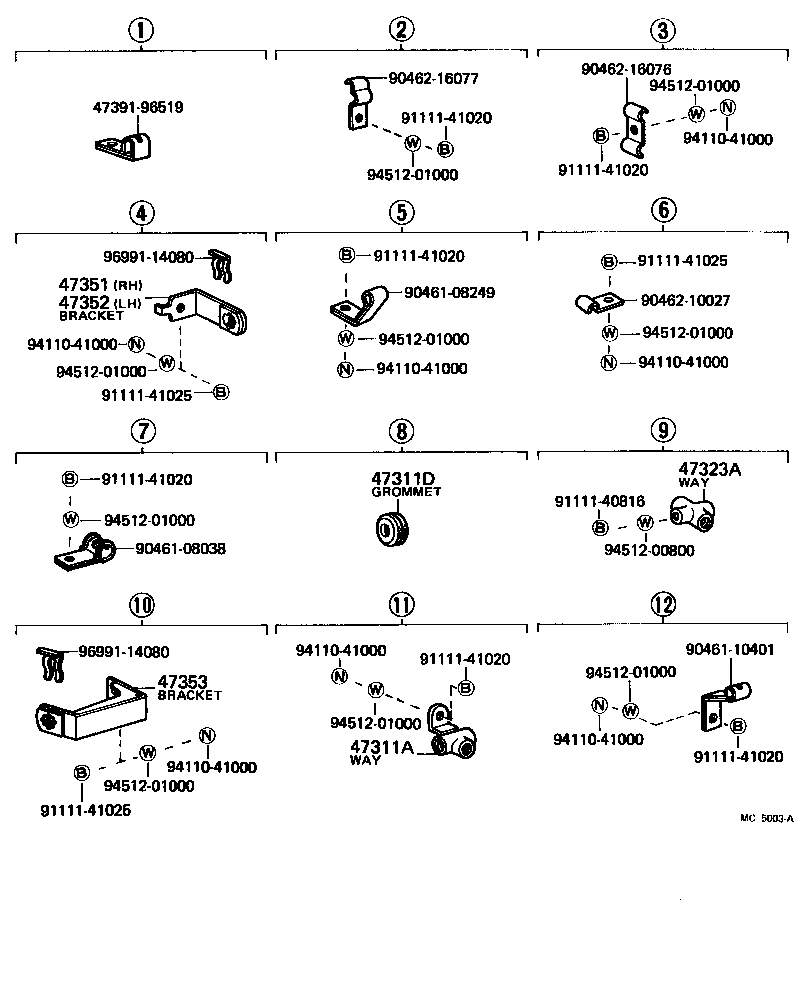

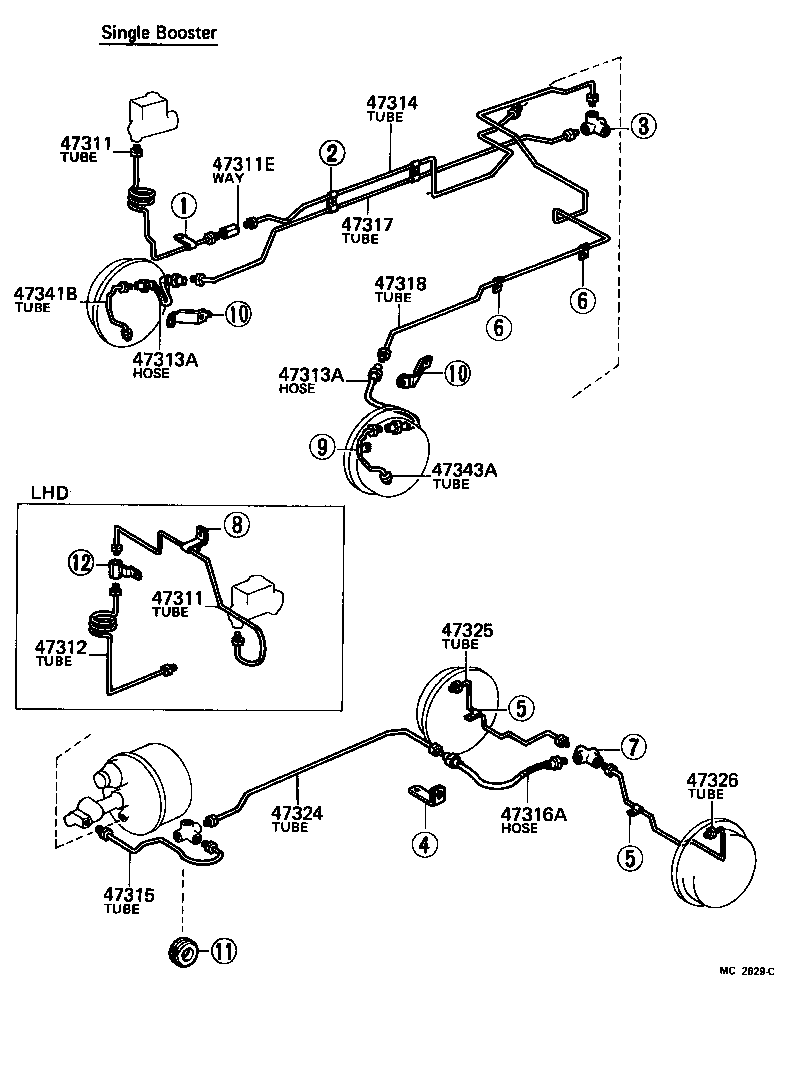

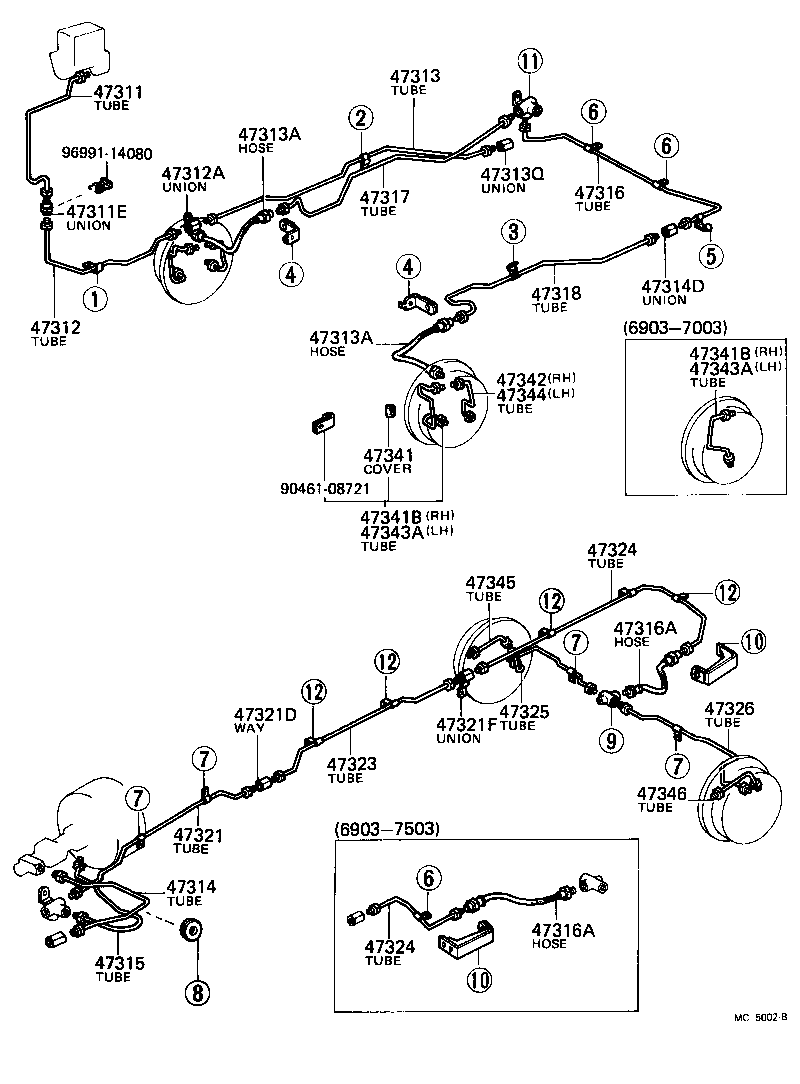

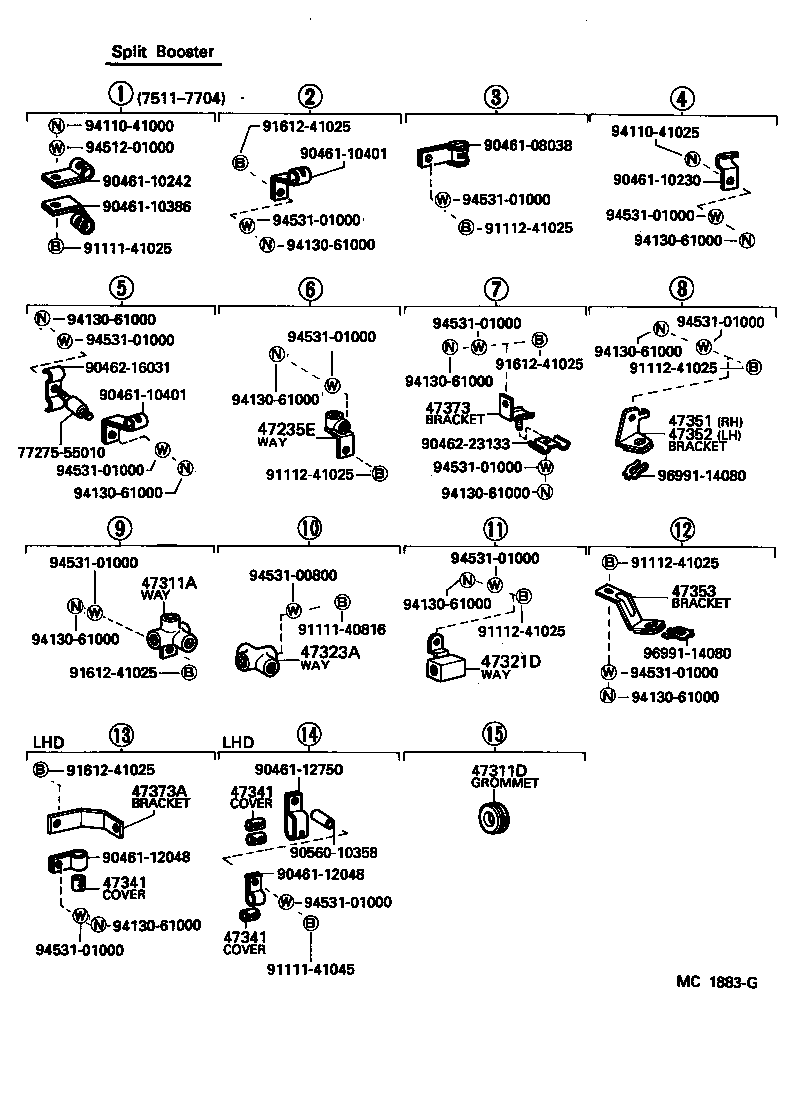

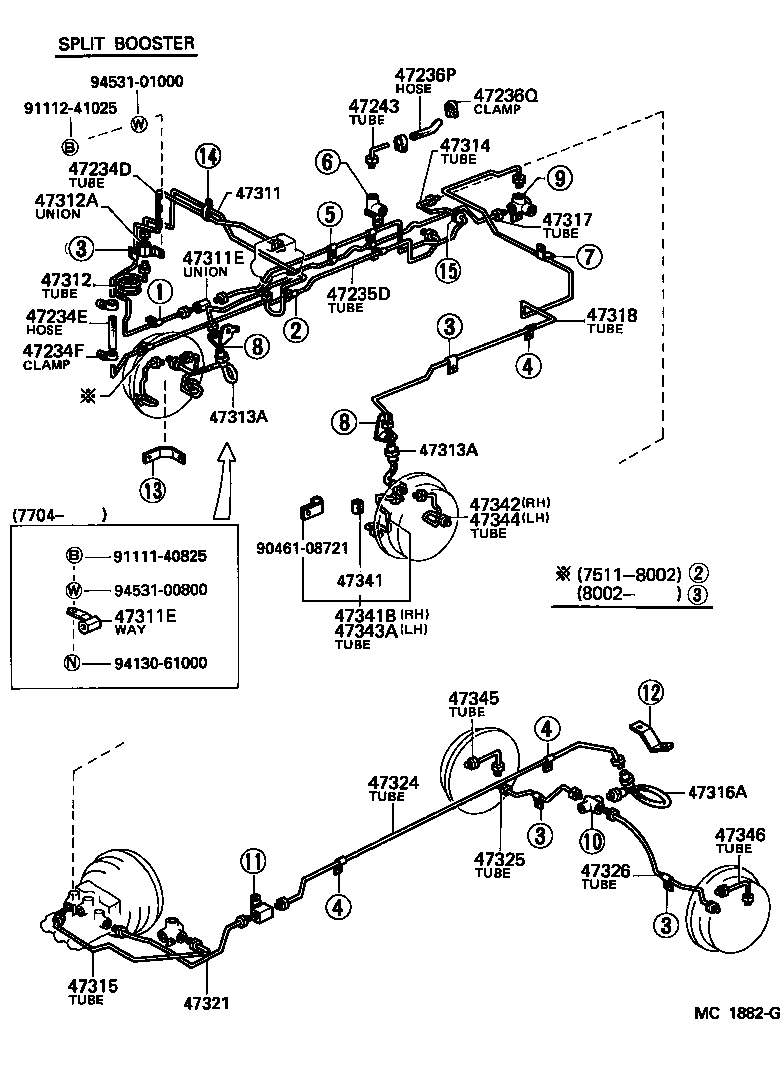

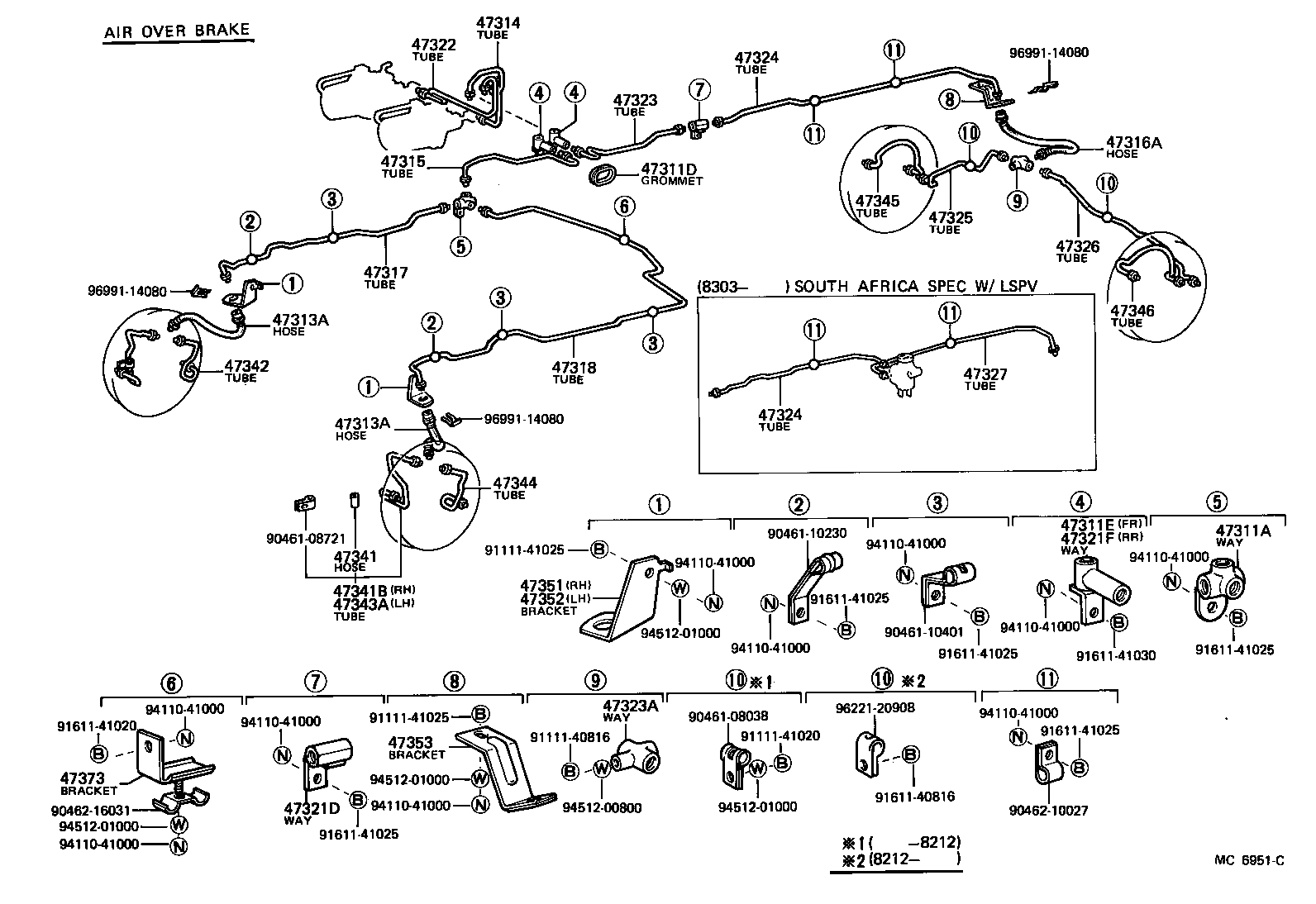

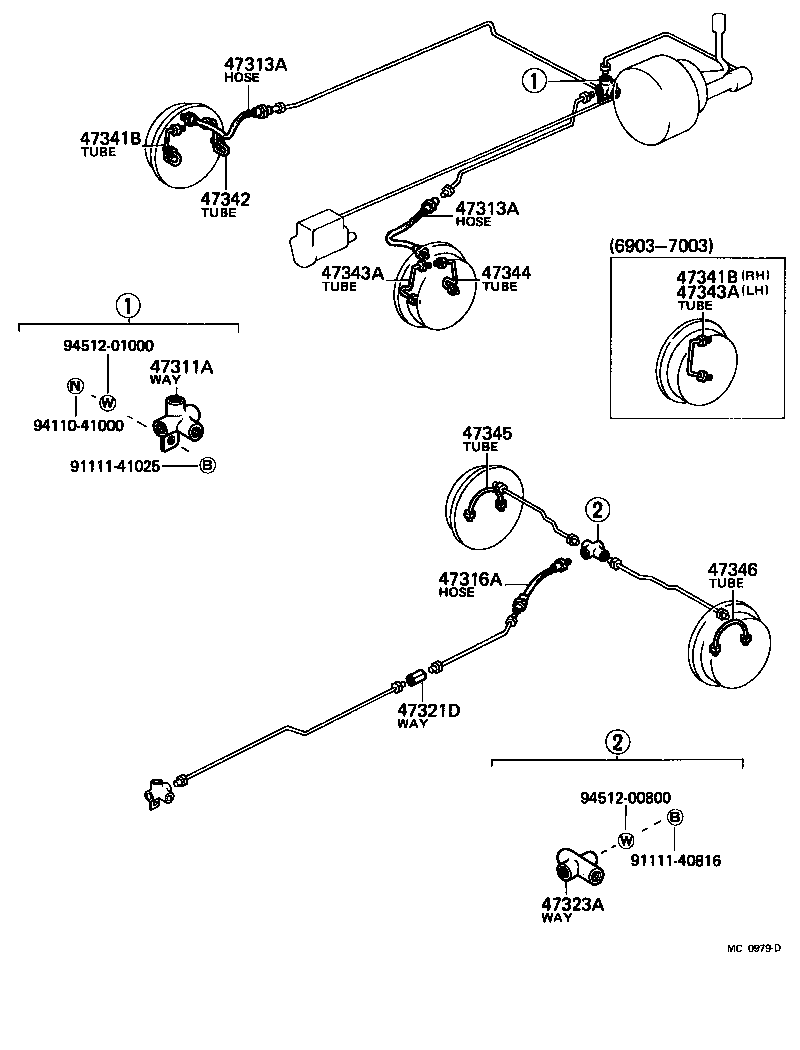

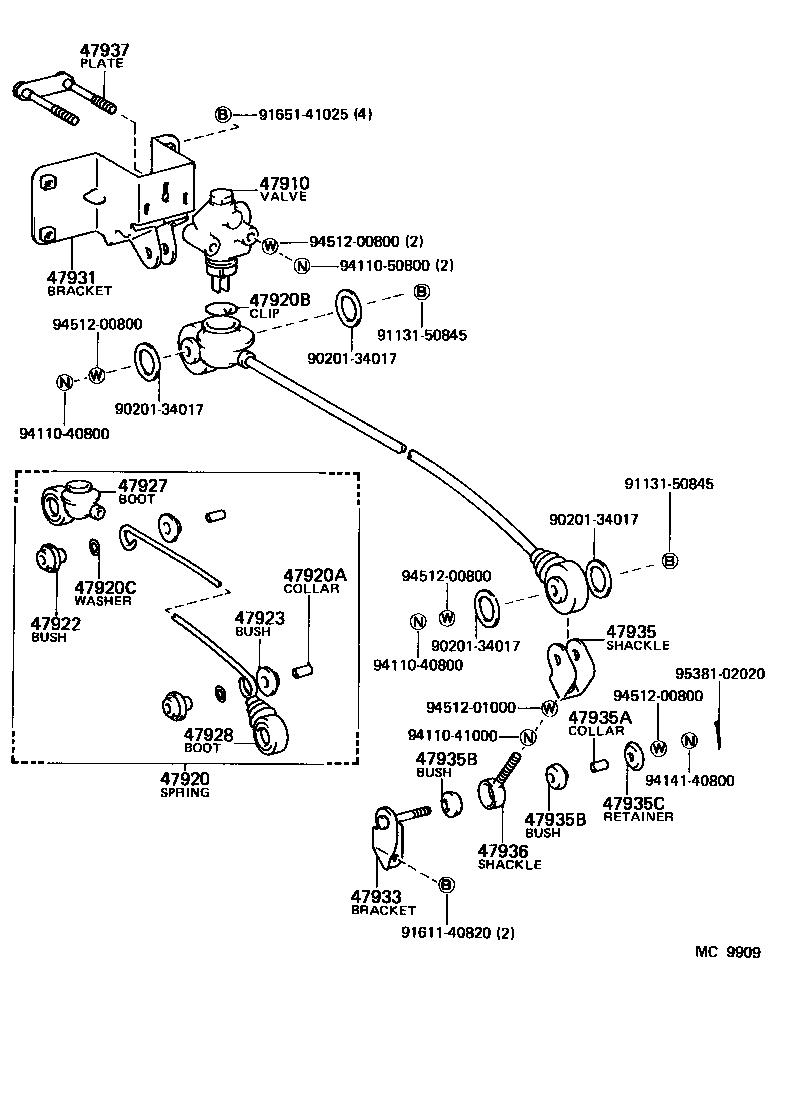

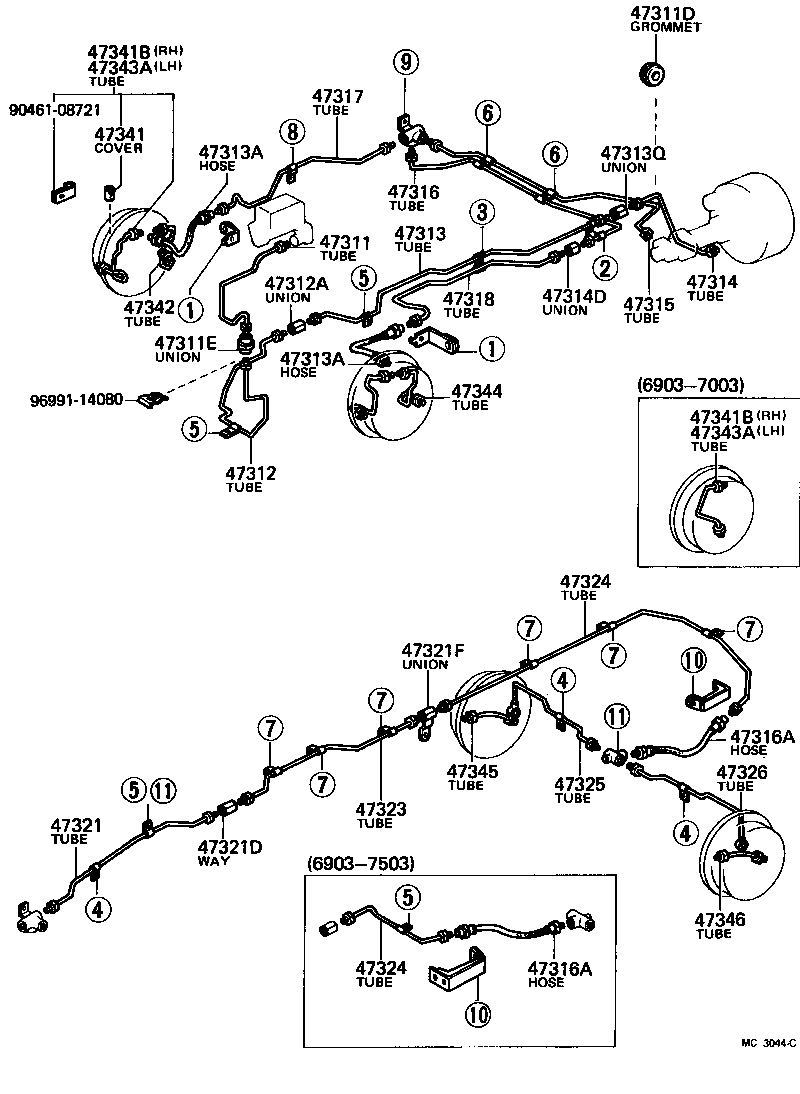

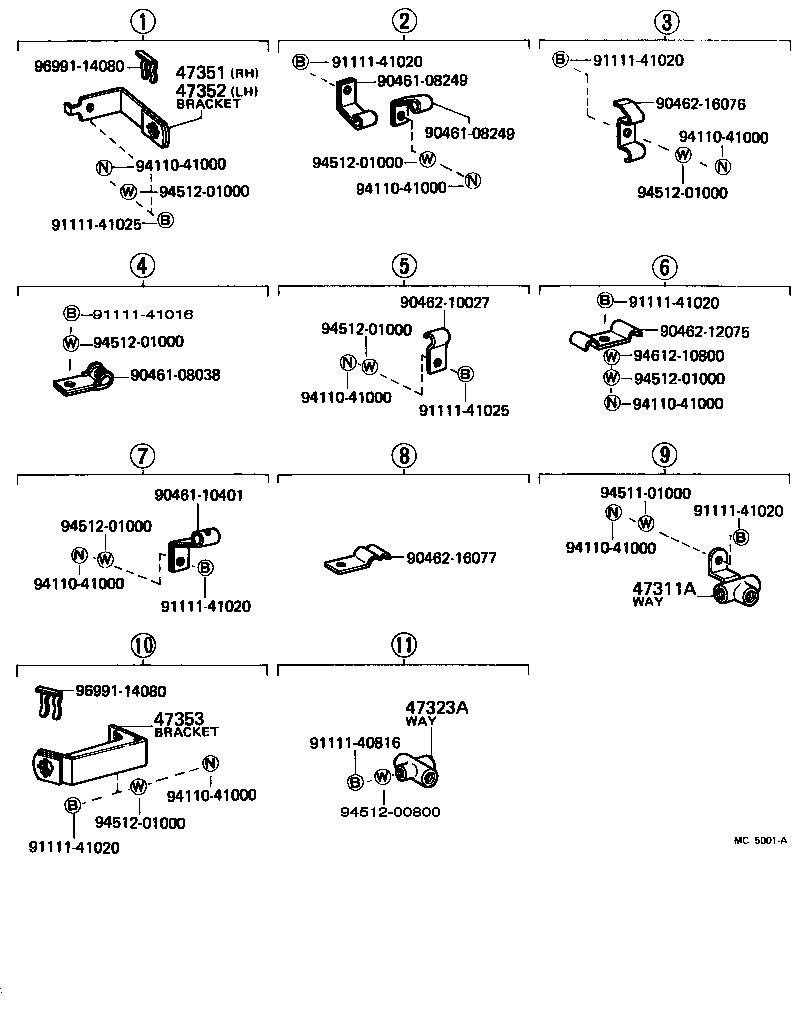

Figure MC3050E MC3050E 1969-03 → 1980-02 Figure MC1562G MC1562G 1969-03 → 1980-02 Figure MC6951C MC6951C 1980-02 → — Figure MC9909 MC9909 1983-03 → — Figure MC4662E MC4662E 1976-11 → — Figure MC1882G MC1882G 1975-11 → — Figure MC1883G MC1883G 1975-11 → 1976-11 Figure MC1883G MC1883G 1976-11 → — Figure MC5010B MC5010B 1977-04 → — Figure MC5011D MC5011D 1977-04 → — Figure MC5002B MC5002B 1969-03 → 1977-03 Figure MC5003A MC5003A 1969-03 → 1977-03 Figure MC3044C MC3044C 1969-03 → 1977-03 Figure MC5001A MC5001A 1969-03 → 1977-03 Figure MC2629C MC2629C 1969-03 → 1974-03 Figure MC2630D MC2630D 1969-03 → 1974-03 Figure MC0979D MC0979D 1969-03 → 1971-05

Part groups

PNCDescription
47234D Tube, Reservoir, NO.1
47234E Hose(FOR RESERVOIR NO.1 TUBE)
47234F Clamp(FOR RESERVOIR NO.1 TUBE)
47235D Tube, Brake Reservoir, NO.2
47235E Way(FOR BRAKE RESERVOIR TUBE)
47236P Hose(FOR RESERVOIR NO.3 TUBE)
47236Q Clamp(FOR RESERVOIR NO.3 TUBE)
47243 Tube, Reservoir, NO.5
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311D Grommet(FOR FRONT BRAKE TUBE)
47311E Union, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312A Union, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313Q Union, NO.3(FOR FRONT BRAKE TUBE)
47314 Tube, Front Brake, NO.4
47314D Union, NO.4(FOR FRONT BRAKE TUBE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321F Union(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47341 Cover, Tube
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47371 Bracket, Connector
47373 Bracket, Safety Switch OR Tube Clamp
47373A Bracket, Tube Clamp
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47922 Bush, Load Sensing Spring, NO.1
47923 Bush, Load Sensing Spring, NO.2
47927 Boot, Load Sensing Valve
47928 Boot, Load Sensing Spring
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
