Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

49 part groups · 6 illustrations

Illustrations

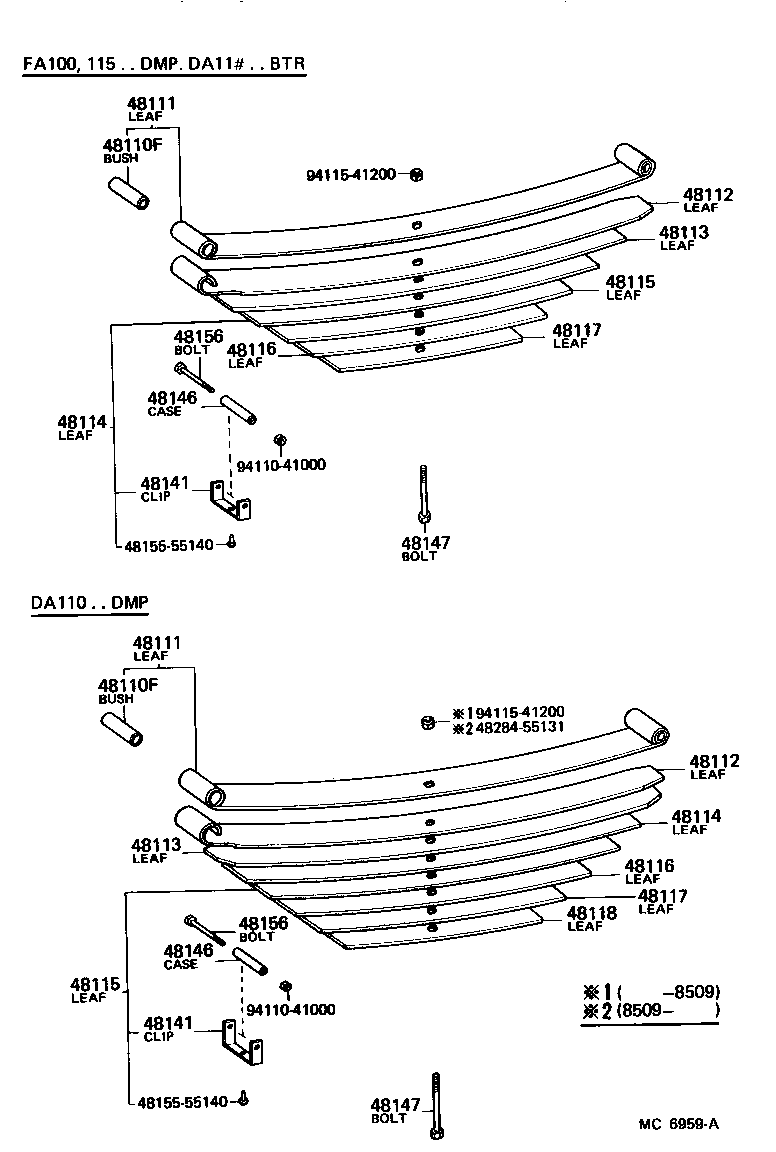

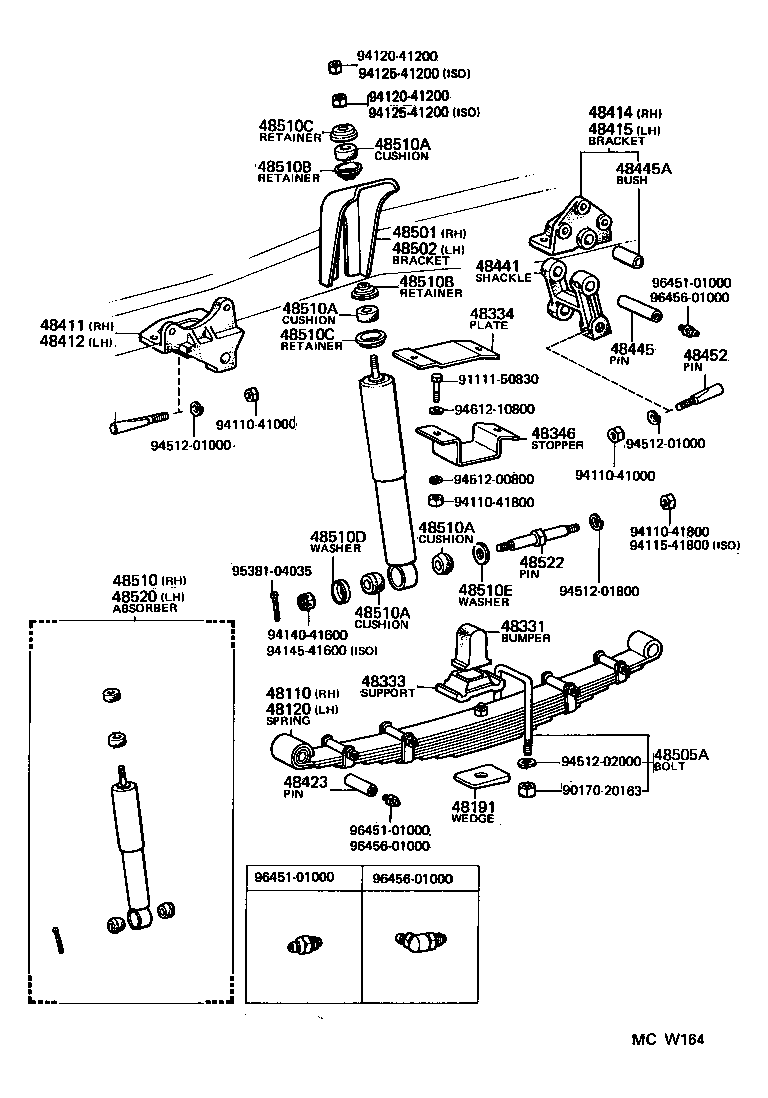

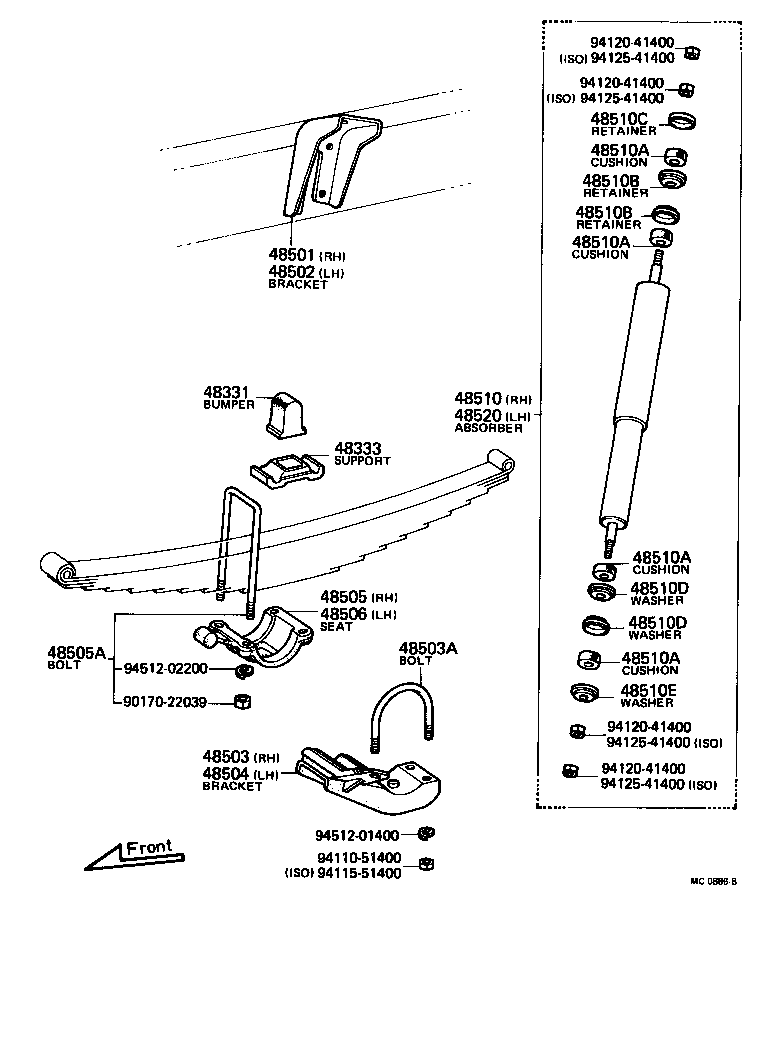

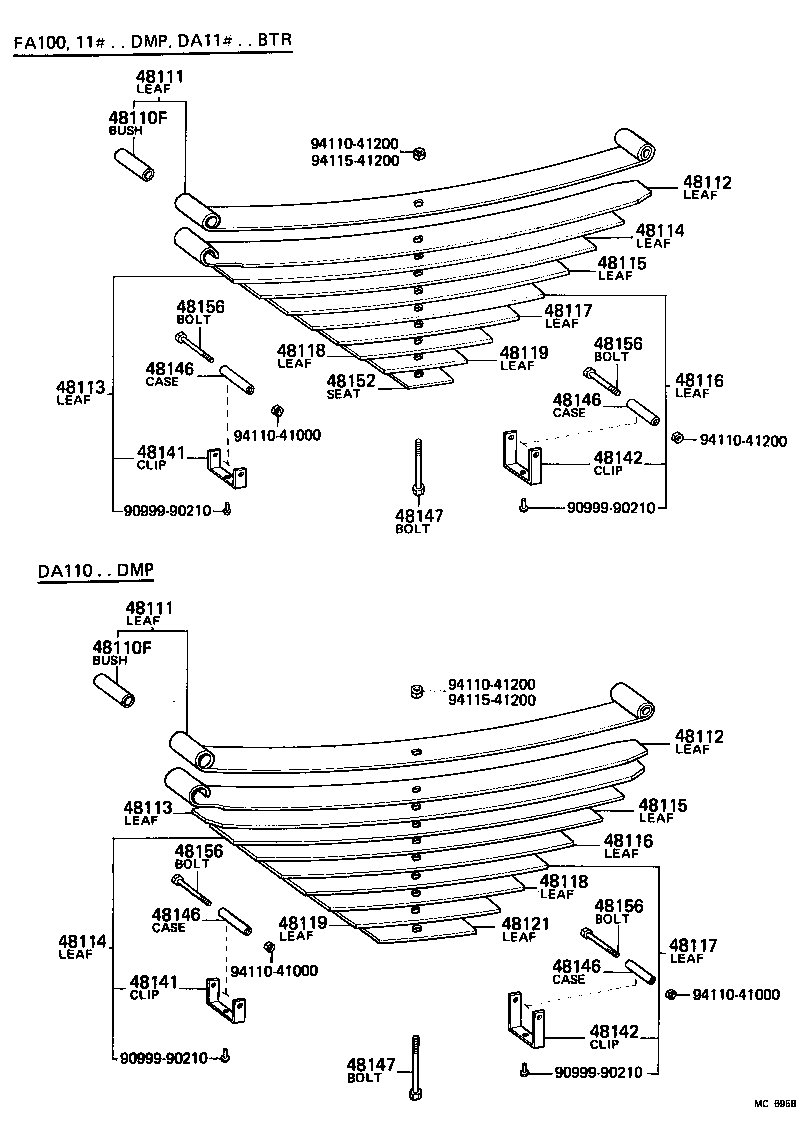

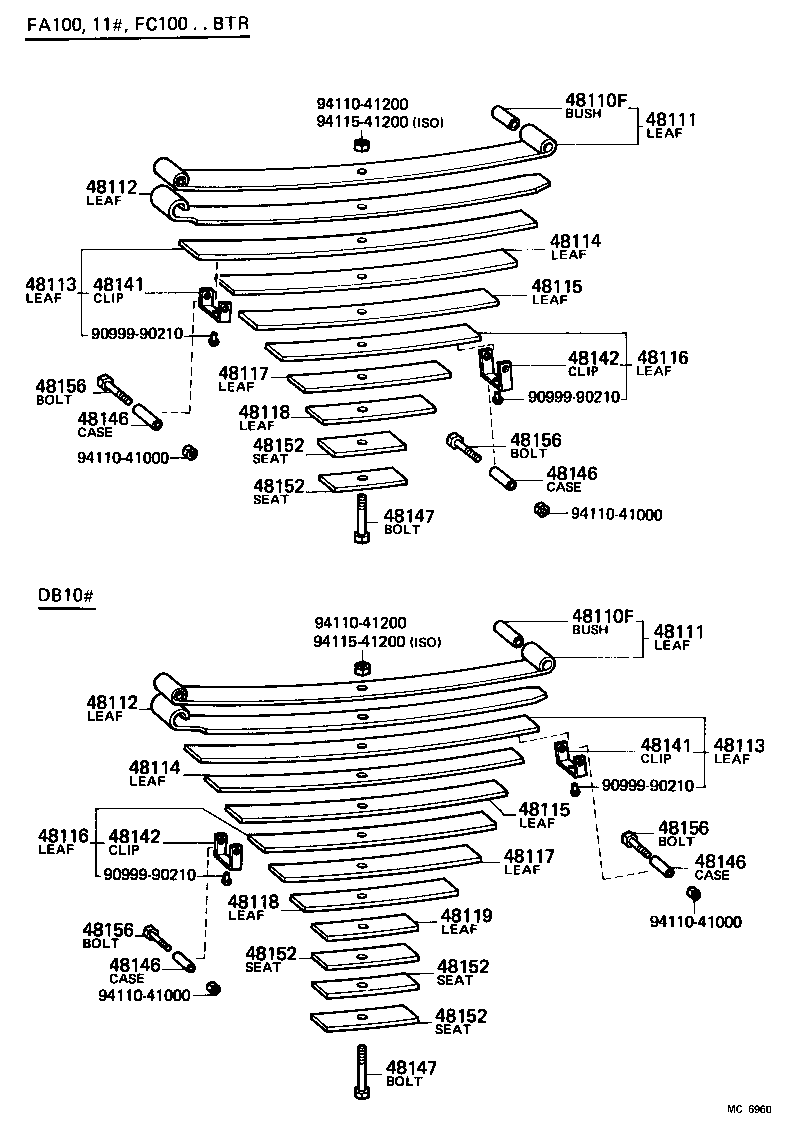

Figure MC4381C MC4381C 1969-03 → 1997-03 Figure MCW164 MCW164 1997-03 → — Figure MC6958 MC6958 1969-03 → 1975-10 Figure MC6959A MC6959A 1975-10 → — Figure MC6960 MC6960 1969-03 → 1982-08 Figure MC0886B MC0886B 1969-03 → 1971-05

Part groups

PNCDescription
48110 Spring Assy, Front, RH
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48118 Leaf, Front Spring, NO.8
48119 Leaf, Front Spring, NO.9
48120 Spring Assy, Front, LH
48121 Leaf, Front Spring, NO.10
48141 Clip, Front Spring, NO.1
48142 Clip, Front Spring, NO.2
48146 Case, Front Spring Clip Bolt
48147 Bolt, Front Spring, Center
48152 Seat, Front Spring
48156 Bolt, Front Spring Clip
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48331 Bumper, Front Spring, NO.1
48333 Support, Bumper, Front
48334 Plate, Bumper, Front
48346 Stopper, Bumper, Front
48411 Bracket, Front Spring(FOR FRONT RH)
48412 Bracket, Front Spring(FOR FRONT LH)
48414 Bracket, Front Spring(FOR REAR RH)
48415 Bracket, Front Spring(FOR REAR LH)
48423 Pin, Front Spring Bracket
48441 Shackle, Spring, NO.1
48445 Pin, Front Spring Shackle
48445A Bimetal Formed Bush(FOR FRONT SPRING SHACKLE PIN)
48452 Pin, Front Spring Pin Lock
48501 Bracket Sub-assy, Front Shock Absorber, Upper RH
48502 Bracket Sub-assy, Front Shock Absorber, Upper LH
48503 Bracket Sub-assy, Front Shock Absorber, Lower RH
48503A Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48504 Bracket Sub-assy, Front Shock Absorber, Lower LH
48505 Seat, Front Spring, RH
48505A Bolt, U(FOR FRONT SPRING)
48506 Seat, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D Washer, Front Shock Absorber Cushion, NO.1
48510E Washer, Front Shock Absorber Cushion, NO.2
48520 Absorber Assy, Shock, Front LH
48522 Pin, Front Shock Absorber Lower Pivot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
