Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

72 part groups · 11 illustrations

Illustrations

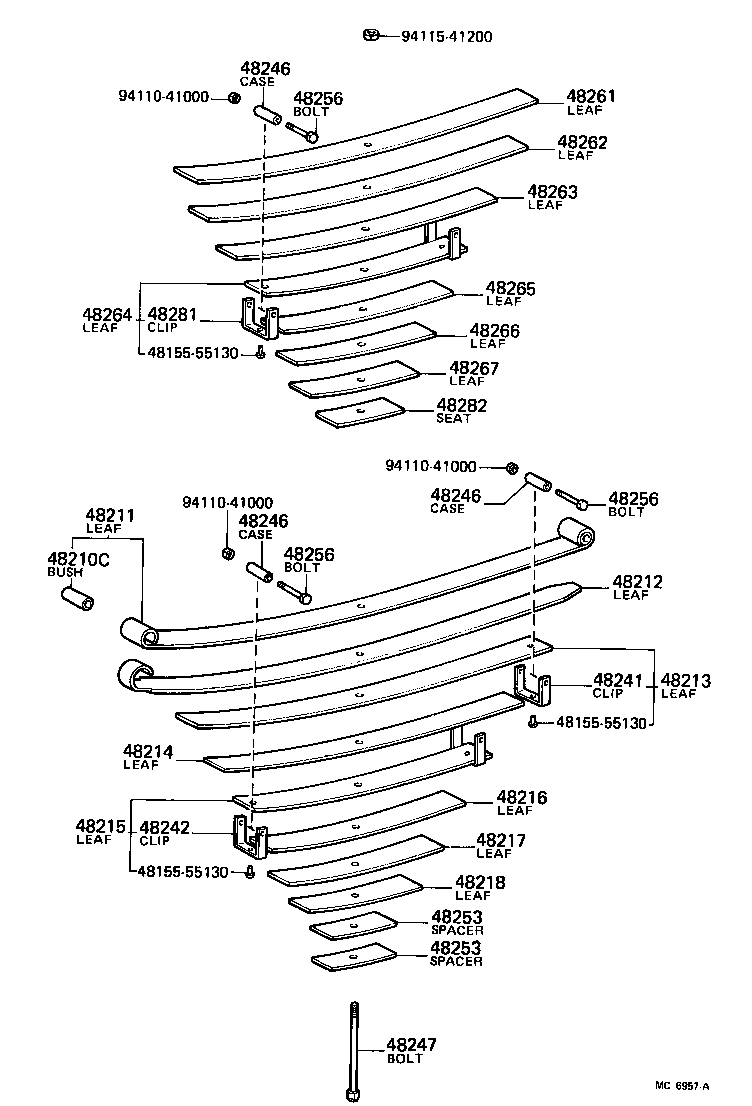

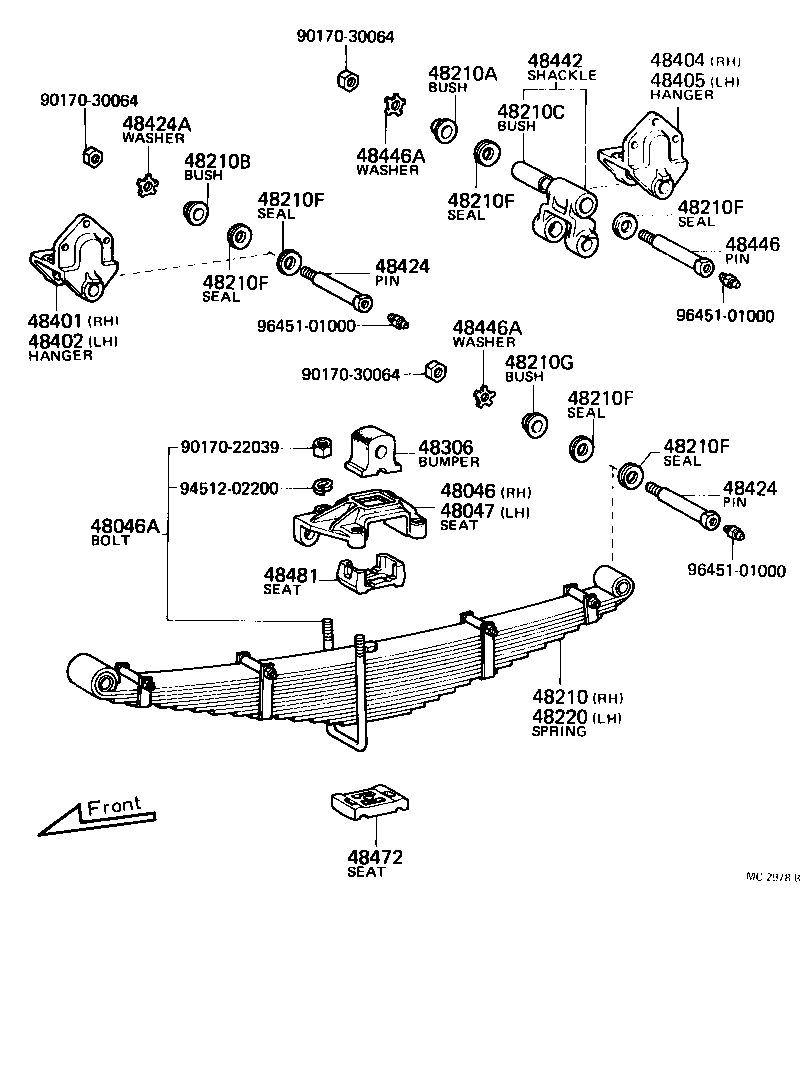

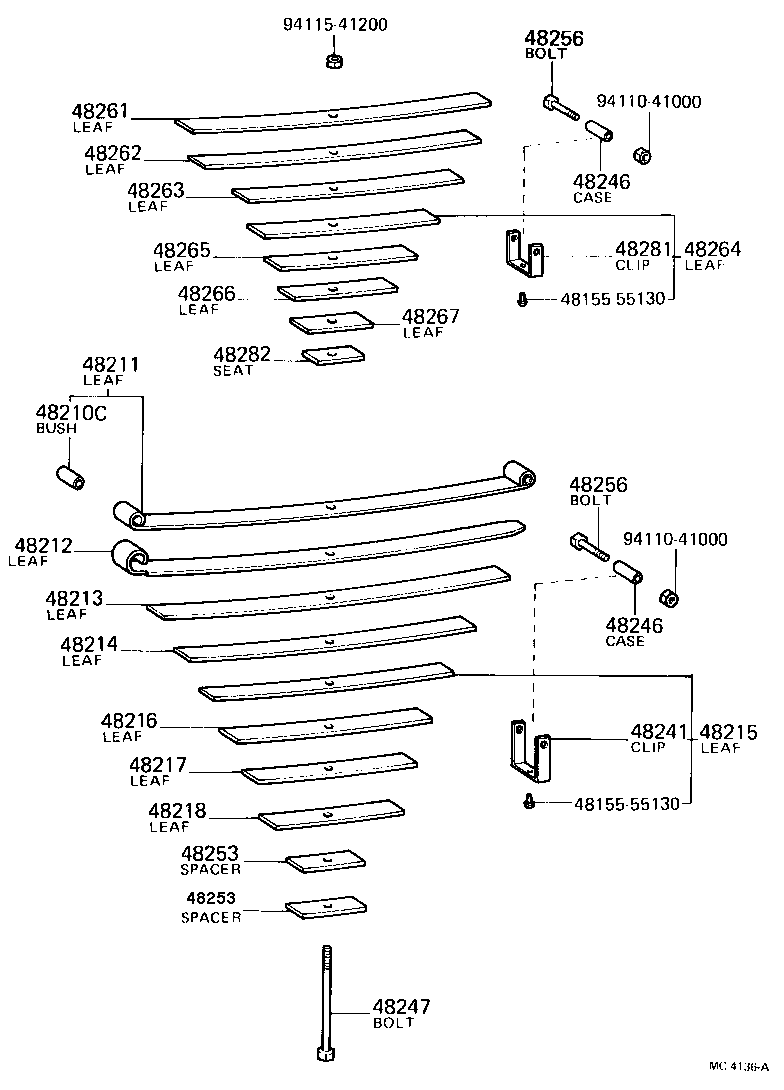

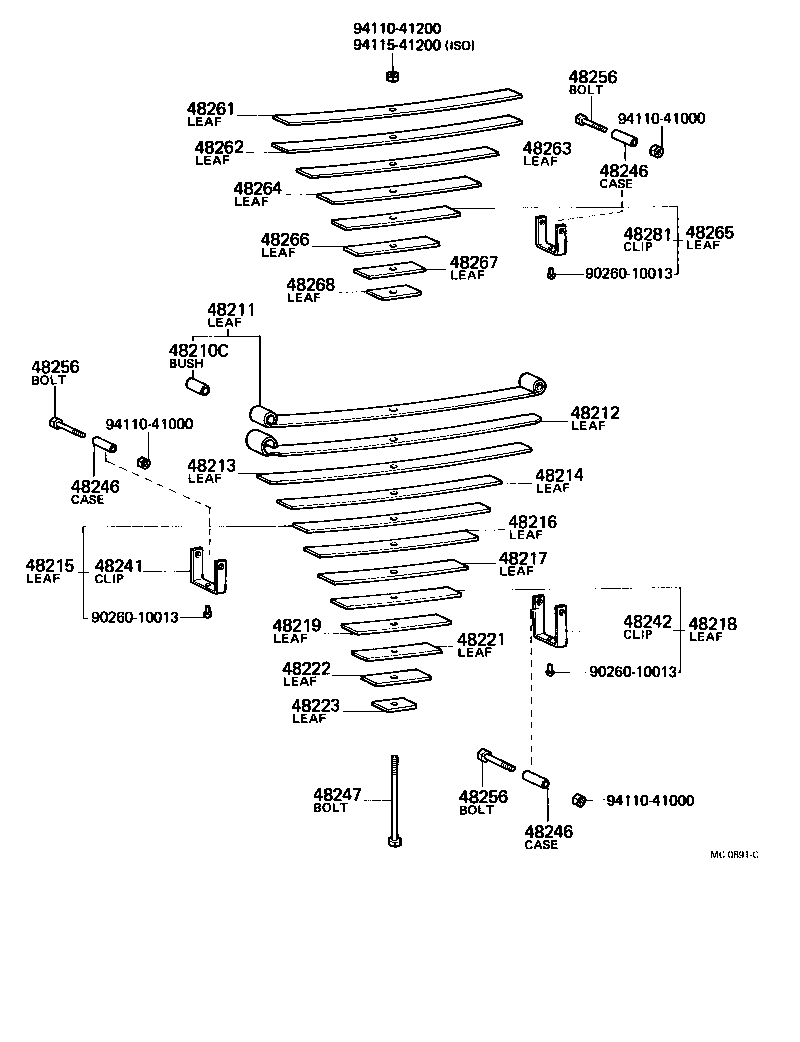

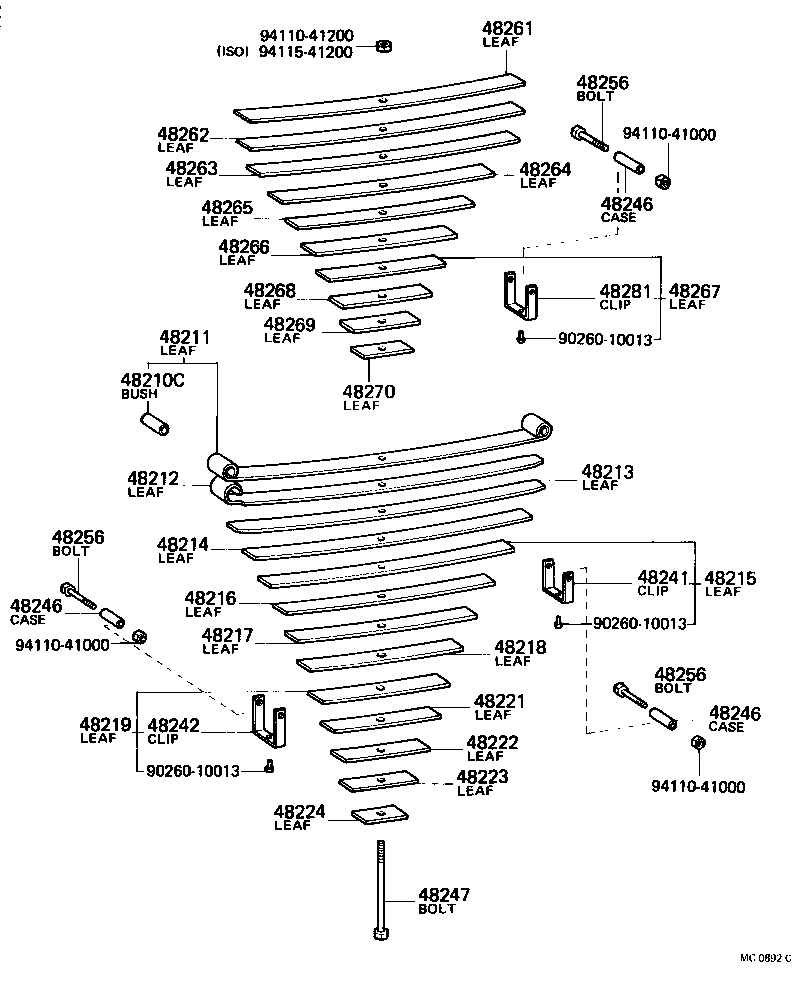

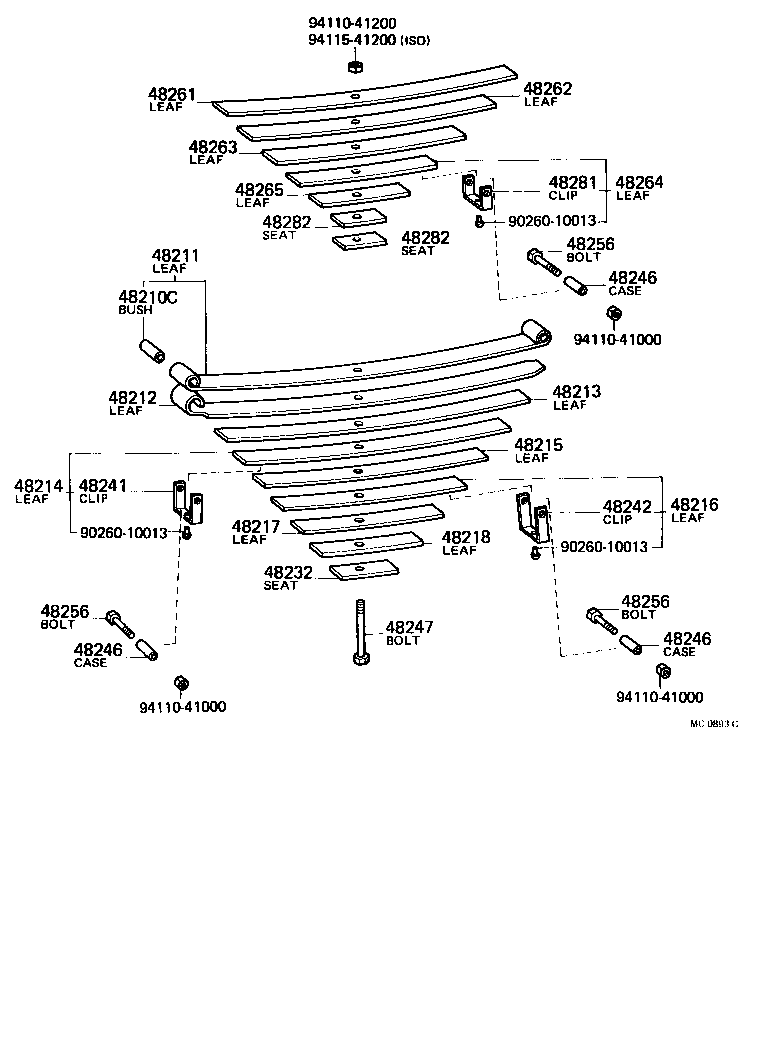

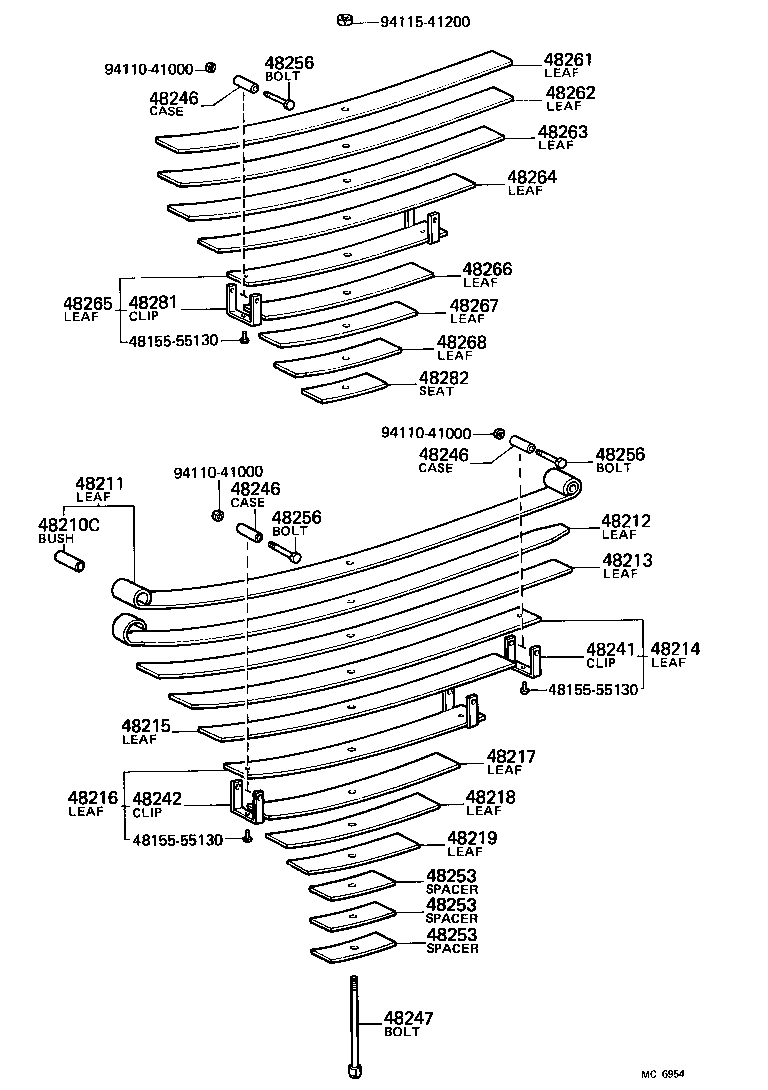

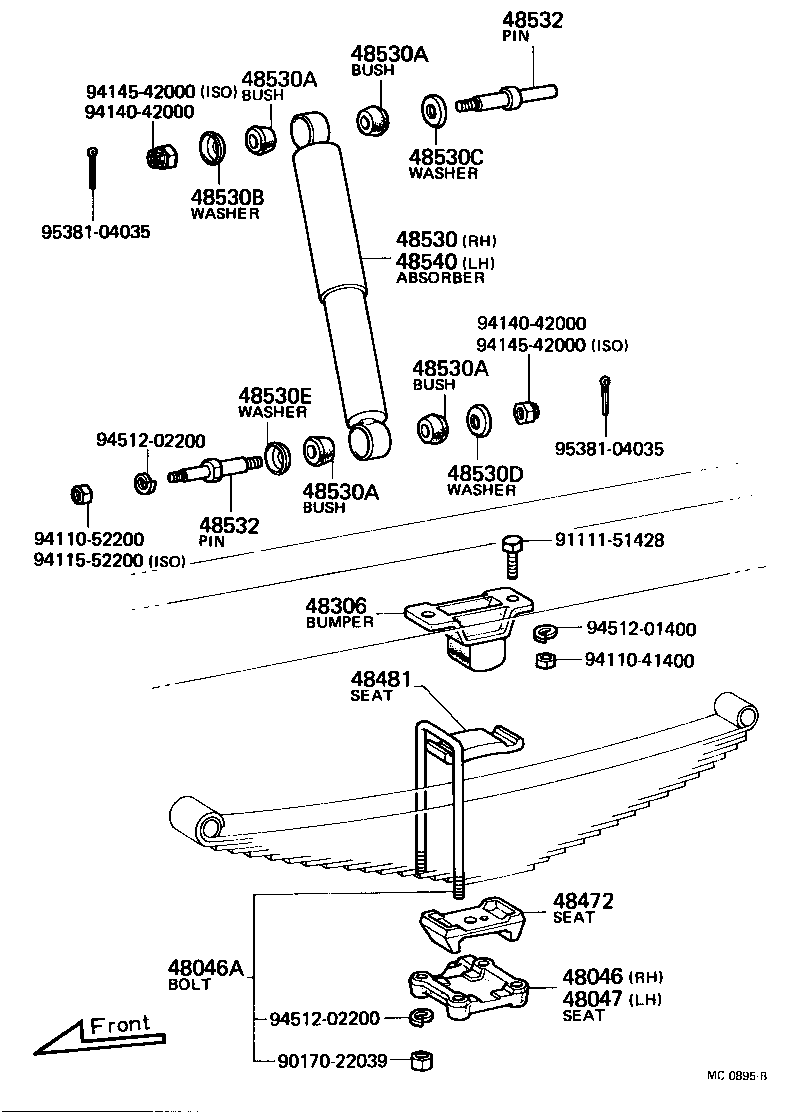

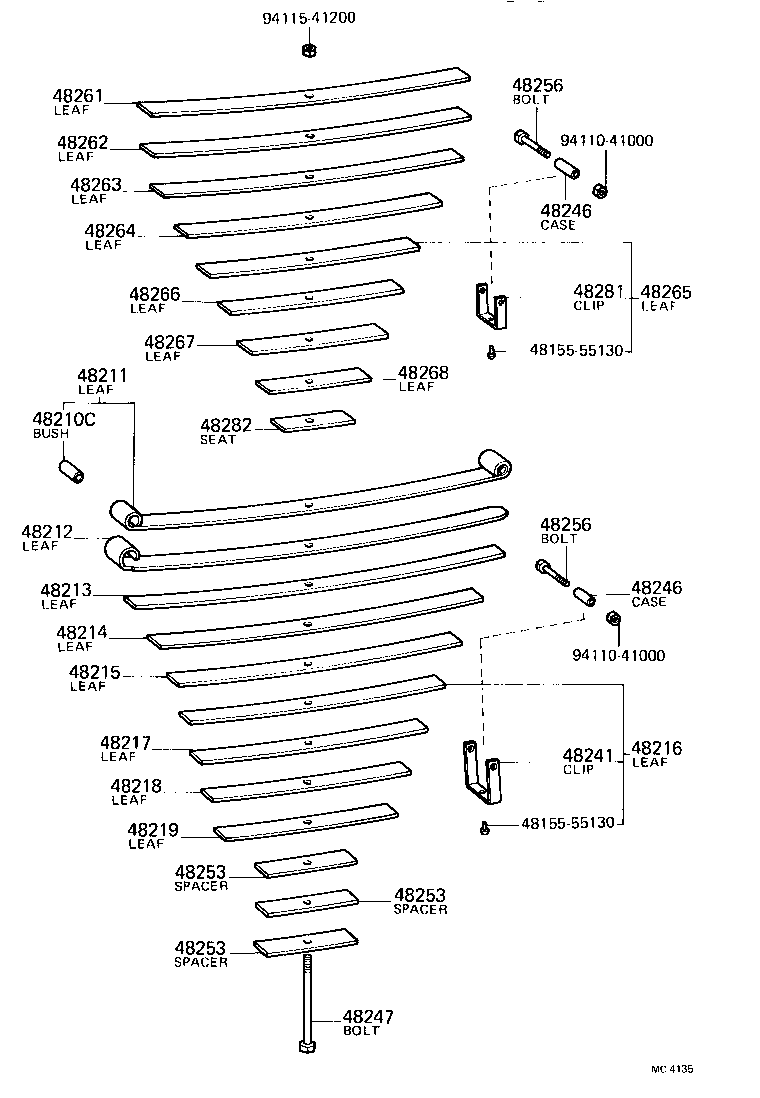

Figure MC0890D MC0890D 1969-03 → — Figure MC0891C MC0891C 1969-03 → 1975-10 Figure MC4136A MC4136A 1975-10 → 1980-02 Figure MC6957A MC6957A 1980-02 → 1982-08 Figure MC0892C MC0892C 1969-03 → 1975-10 Figure MC4135 MC4135 1975-10 → 1980-02 Figure MC6954 MC6954 1980-02 → — Figure MC2978B MC2978B 1969-03 → 1977-03 Figure MC2635B MC2635B 1969-03 → 1977-03 Figure MC0893C MC0893C 1969-03 → 1974-03 Figure MC0895B MC0895B 1969-03 → 1971-05

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48219 Leaf, Rear Spring, NO.9
48220 Spring Assy, Rear LH
48221 Leaf, Rear Spring, NO.10
48222 Leaf, Rear Spring, NO.11
48223 Leaf, Rear Spring NO.12
48224 Leaf, Rear Spring NO.13
48225 Leaf, Rear Spring, NO.14
48226 Leaf, Rear Spring, NO.15
48230 Spring Assy, Rear Main, RH
48232 Seat, Coil Spring, Rear
48240 Spring Assy, Rear Main, LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48260 Spring Assy, Rear Helper
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48269 Leaf, Rear Helper Spring, NO.9
48270 Leaf, Rear Helper Spring, NO.10
48281 Clip, Rear Helper Spring, NO.1
48282 Seat, Rear Helper Spring
48306 Bumper Sub-assy, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48418 Bracket, Helper Spring, Front RH
48419 Bracket, Helper Spring, Front LH
48424 Pin, Spring Bracket, NO.2
48424A Washer, Spring Shackle(FOR SPRING SHACKLE PIN)
48428 Bracket, Helper Spring, Rear RH
48429 Bracket, Helper Spring, Rear LH
48442 Shackle, Spring, NO.2
48446 Pin, Rear Spring Shackle
48446A Washer, Spring Shackle(FOR SPRING BRACKET PIN)
48453 Pin, Rear Spring Pin Lock
48472 Seat, Rear Spring, Lower
48481 Seat, Rear Spring, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48532 Pin, Rear Shock Absorber Pivot
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
