Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

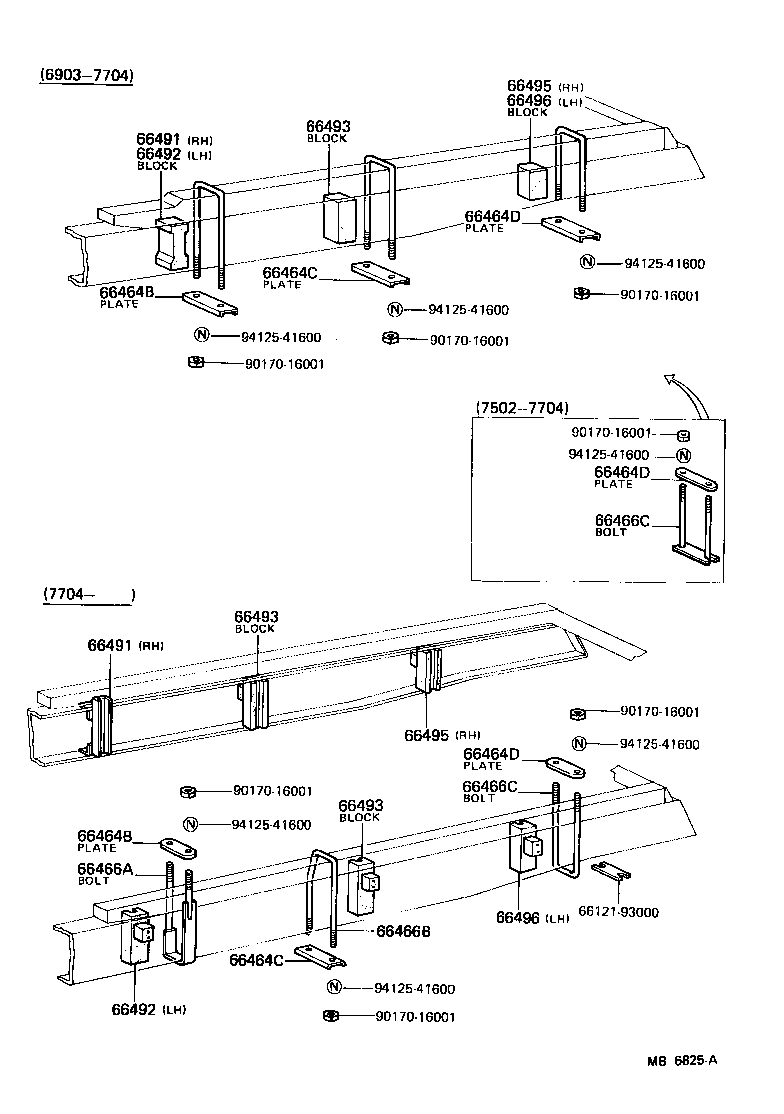

Rear Body Mounting
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 66462 | Bolt, U(FOR MAIN SILL) |
| 66463 | Bolt, U, NO.3 |
| 66464 | Bolt, U, NO.4 |
| 66464A | Plate, U Bolt |
| 66464B | Plate, U Bolt, NO.1 |
| 66464C | Plate, U Bolt, NO.2 |
| 66464D | Plate, U Bolt, NO.3 |
| 66466A | Bolt, U, NO.1 |
| 66466B | Bolt, U, NO.2 |
| 66466C | Bolt, U, NO.3 |
| 66471 | Block, U Bolt, NO.1 |
| 66472 | Block, U Bolt, NO.2 |
| 66481 | Brace, Sill TO Frame, RH |
| 66482 | Brace, Sill TO Frame, LH |
| 66483 | Brace, Sill TO Frame, NO.2 |
| 66491 | Block, Filler, Front LH |
| 66492 | Block, Filler ,Front RH |
| 66493 | Block, Filler Intermediate |
| 66495 | Block, Filler, Rear RH |
| 66496 | Block, Filler, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
