Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

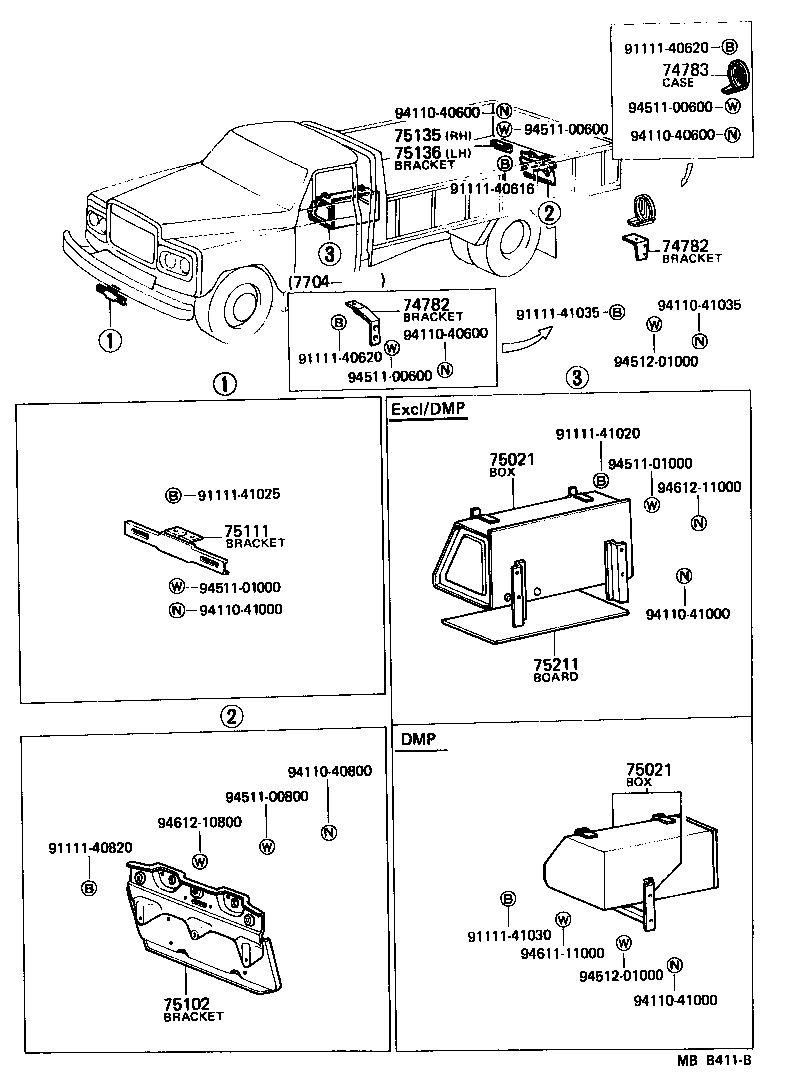

Tool Box & License Plate Bracket
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74782 | Bracket, Back Light |
| 74783 | Case, Back Light |
| 75021 | Box Sub-assy, Tool |
| 75102 | Bracket Sub-assy, Rear License Plate |
| 75111 | Bracket, Front License Plate |
| 75135 | Bracket, Combination Rear Lamp, RH |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75211 | Board, Tool Box Bottom |
| 75221 | Bracket, Tool Box |
| 75224 | Connect, Tool Box Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
