Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

70 part groups · 17 illustrations

Illustrations

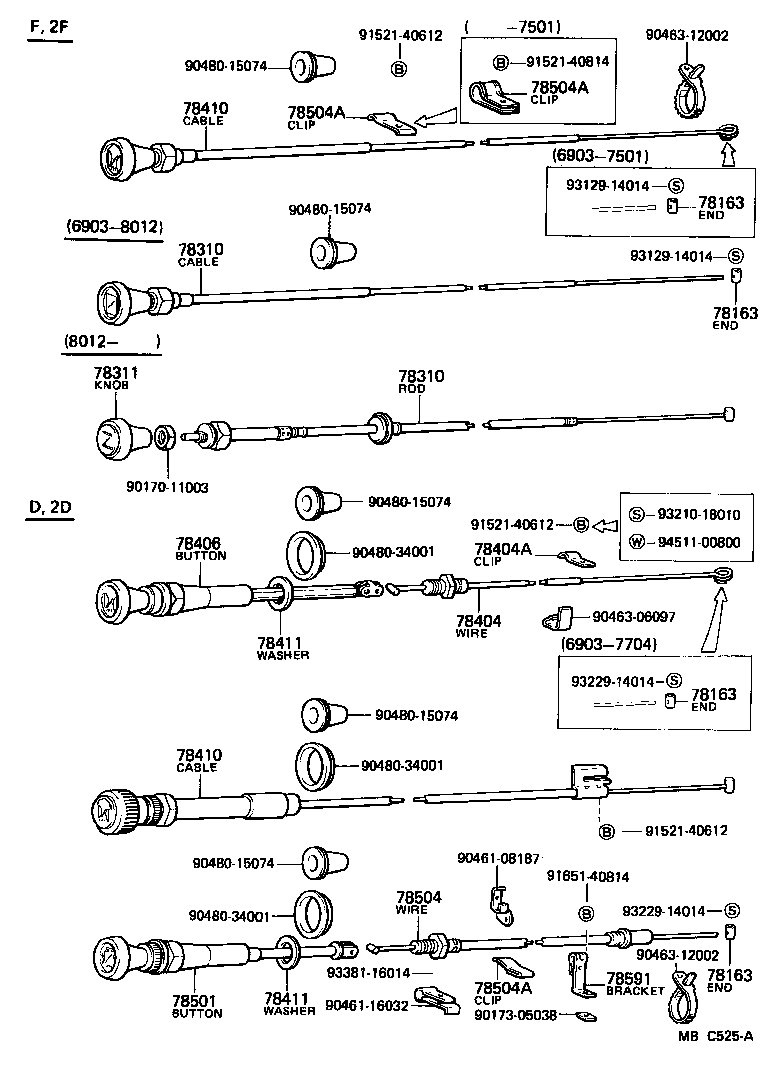

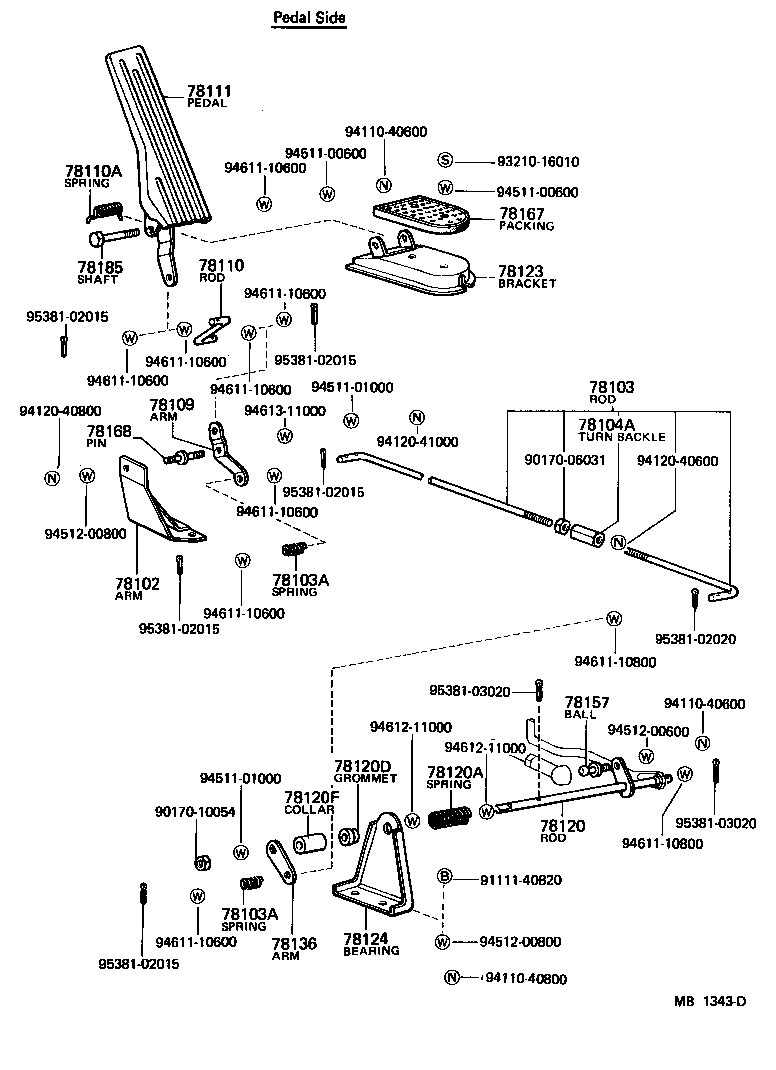

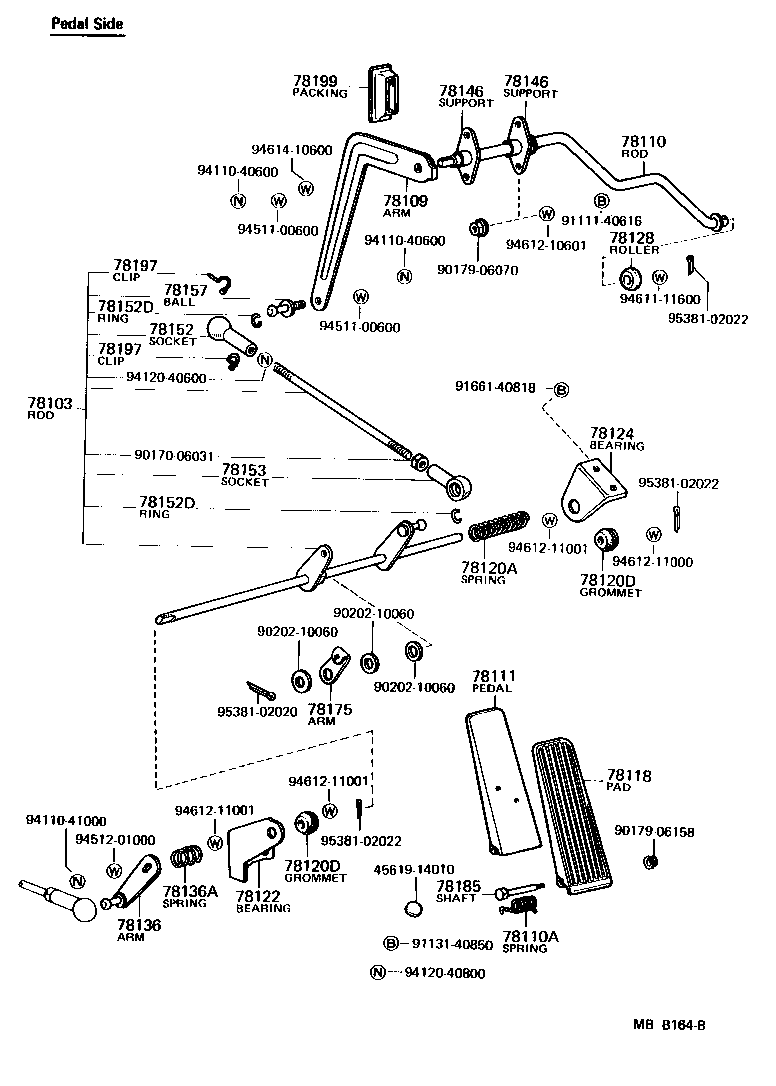

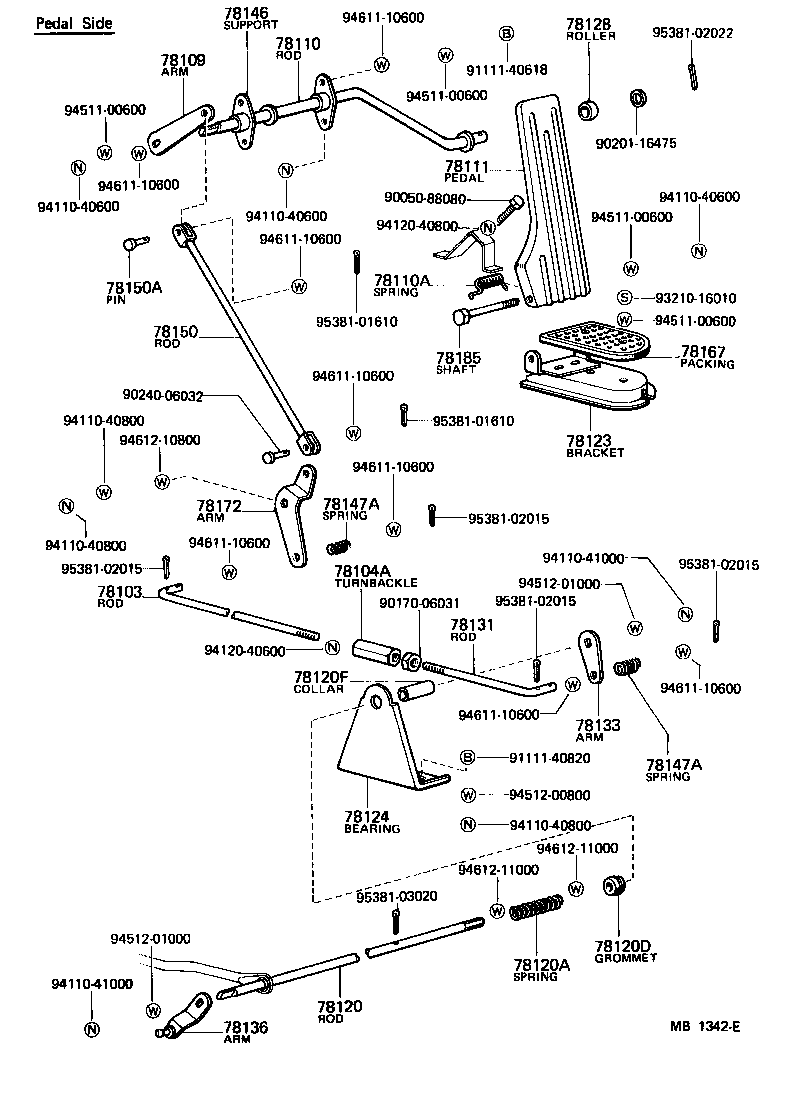

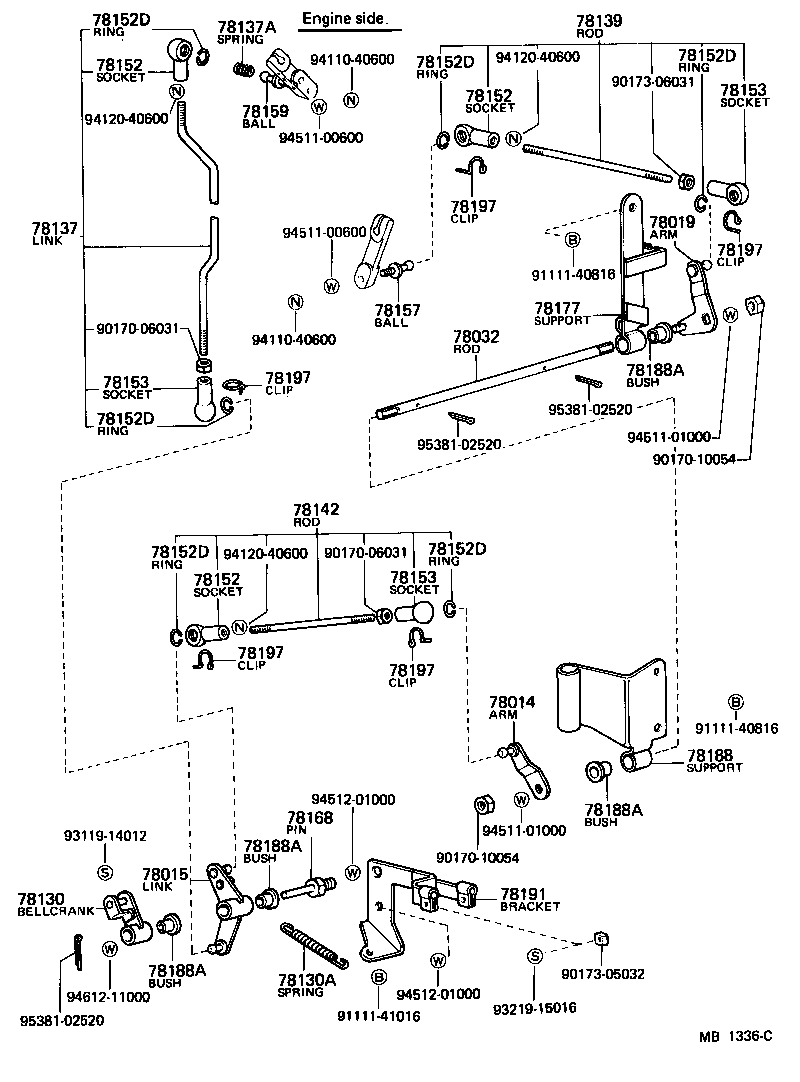

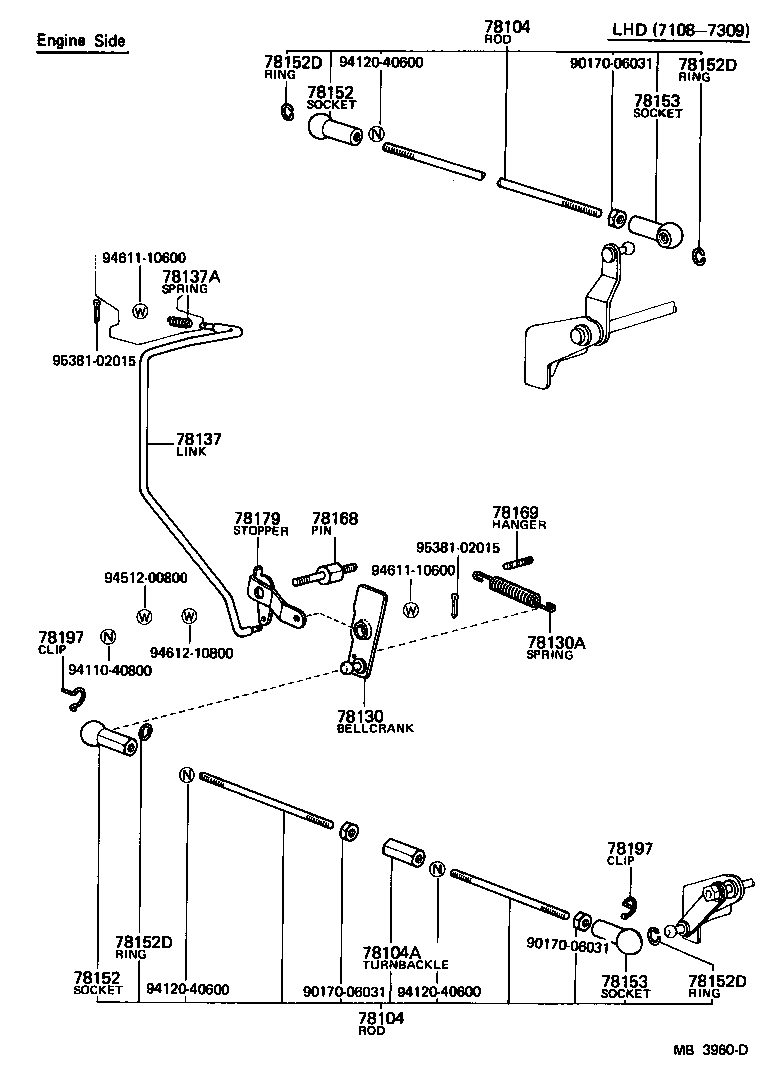

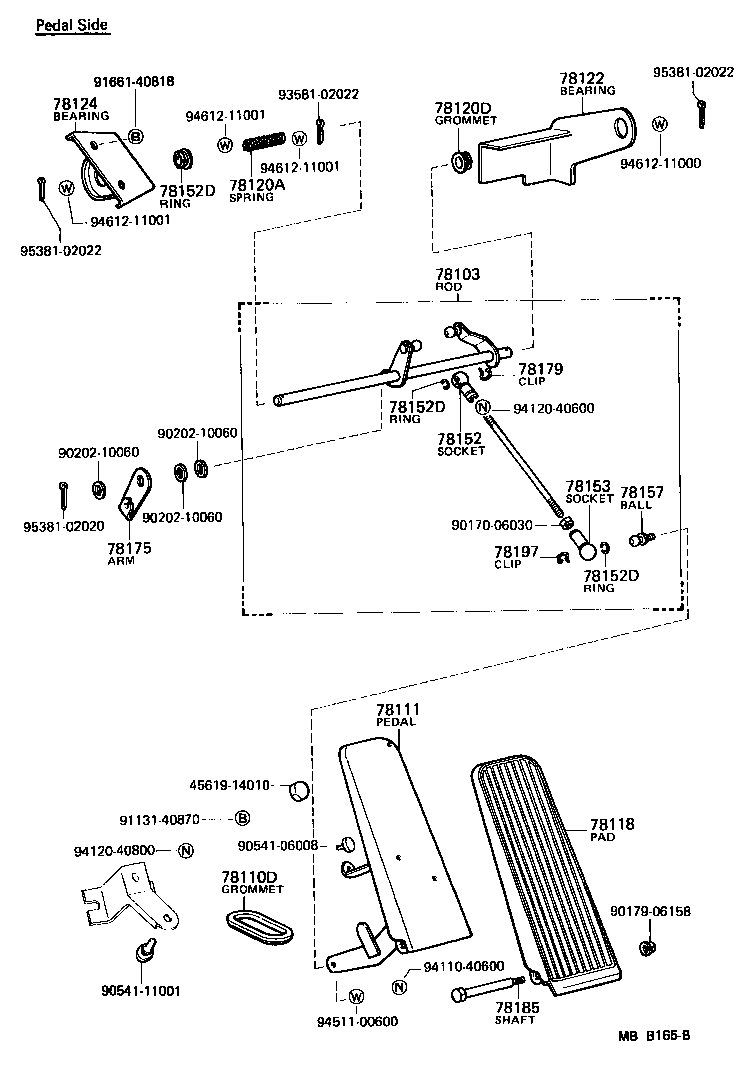

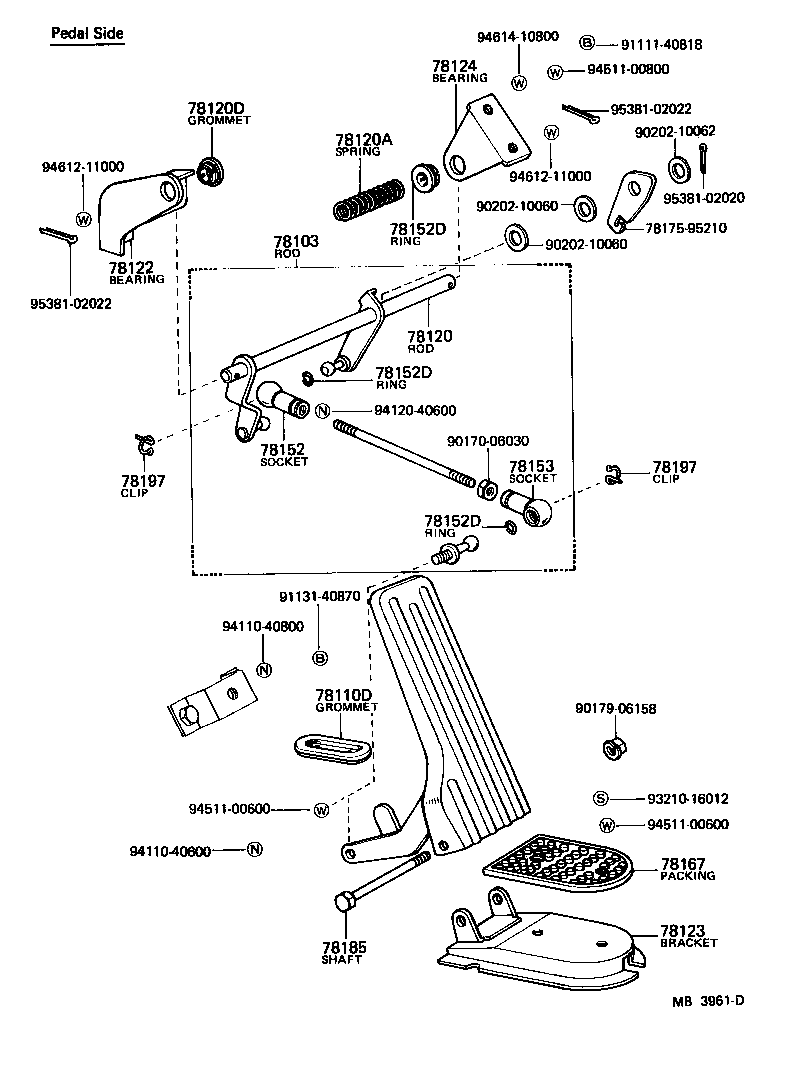

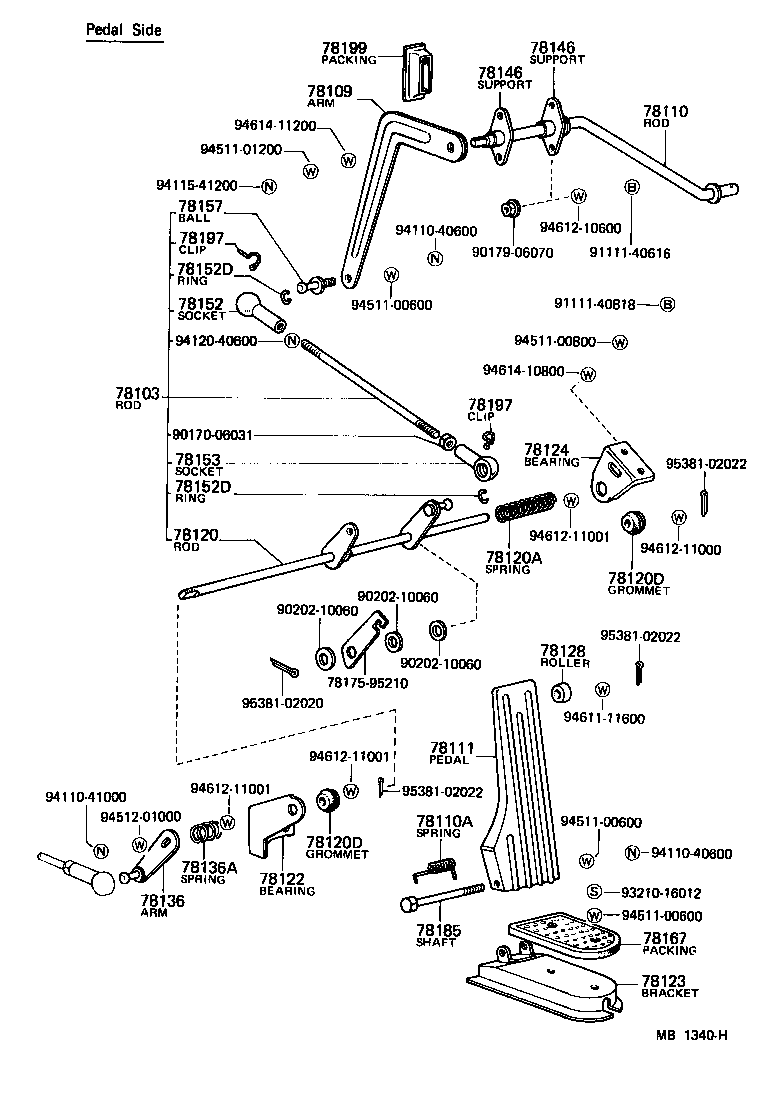

Figure MB1335F MB1335F 1969-03 → — Figure MB1335F MB1335F 1973-03 → — Figure MB1336C MB1336C 1969-03 → 1973-03 Figure MB3960D MB3960D 1969-03 → 1975-01 Figure MB3960D MB3960D 1971-08 → 1975-01 Figure MB1339C MB1339C 1969-03 → 1971-08 Figure MB4546C MB4546C 1975-01 → — Figure MB1340H MB1340H 1969-03 → 1980-02 Figure MBB164B MBB164B 1980-02 → — Figure MB1342E MB1342E 1969-03 → 1977-03 Figure MB1341D MB1341D 1969-03 → 1971-08 Figure MB1341D MB1341D 1969-03 → 1973-03 Figure MB3961D MB3961D 1971-08 → 1980-02 Figure MB3961D MB3961D 1973-03 → 1980-02 Figure MBB165B MBB165B 1980-02 → — Figure MB1343D MB1343D 1969-03 → 1977-03 Figure MBC525A MBC525A 1969-03 → —

Part groups

PNCDescription
78014 Arm Sub-assy(FOR PNEUMATIC GOVERNOR COUNTER ROD)
78015 Link Sub-assy, Engine Side Accelerator
78019 Arm Sub-assy, Throttle Wire
78032 Rod, Pneumatic Governor Counter
78102 Arm Sub-assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78103A Spring (FOR ACCELERATOR CONNECTING ROD, NO.1)
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78104A Turnbuckle, Accelerator Link Connecting Rod
78109 Arm Sub-assy, Accelerator Link Rod
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110D Grommet (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78118 Pad, Accelerator Pedal
78120 Rod, Accelerator Link
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120D Grommet (FOR ACCELERATOR LINK ROD)
78120F Collar (FOR ACCELERATOR LINK ROD)
78122 Bearing, Accelerator Link, NO.2
78123 Bracket, Accelerator Pedal Support
78124 Bearing, Accelerator Link, NO.1
78128 Roller, Accelerator Pedal Rod Arm
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78131 Rod, Accelerator Connecting
78133 Arm, Accelerator Link, NO.1
78136 Arm, Accelerator Link, NO.3
78136A Spring, Comprssion (FOR ACCELERATOR LINK ARM)
78137 Link, Engine Side Accelerator, NO.1
78137A Spring, Accelerator Link Pin
78139 Rod, Pneumatic Governor Connecting, RH
78142 Rod, Pneumatic Governor Connecting, LH
78144 Arm, Accelerator Rod Support
78146 Support, Accelerator Torque Rod
78147A Spring, Accelerator Rod Pin
78150 Rod Assy, Accelerator Link Connecting
78150A Pin, Accelerator Link Connecting Rod
78152 Socket, Accelerator Ball Joint, NO.1
78152D Ring, Accelerator Joint Ball Clip Snap
78153 Socket, Accelerator Ball Joint, NO.2
78157 Ball, Accelerator Joint
78159 Ball, Accelerator Joint, NO.2
78163 End, Flexible Wire
78167 Packing, Accelerator Pedal Hinge
78168 Pin, Accelerator Link Arm
78169 Hanger, Accelerator Spring
78172 Arm, Accelerator Link Connecting Rod
78175 Arm, Throttle Wire
78177 Support, Pneumatic Governor Connecting Rod
78179 Stopper, Accelerator Link Arm
78180 Wire Assy, Accelerator
78185 Shaft, Accelerator Pedal Support
78188 Support, Pneumatic Governor Link Rod, LH
78188A Bush, Accelerator Link
78191 Bracket, Accelerator Wire Support
78194 Bracket, Accelerator Wire Support, NO.2
78197 Clip, Accelerator Joint Ball
78199 Packing, Accelerator Link Hole
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78404 Wire Sub-assy, Throttle Flexible
78404A Clip, Throttle Flexible Wire
78406 Button Sub-assy, Throttle
78410 Cable Assy, Throttle Control
78411 Washer, Stop And Throttle Button
78501 Button Sub-assy, Stop
78504 Wire Sub-assy, Stop Flexible
78504A Clip (FOR STOP FLEXIBLE WIRE)
78591 Bracket, Stop Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
